About the SPL Boxes SB112V

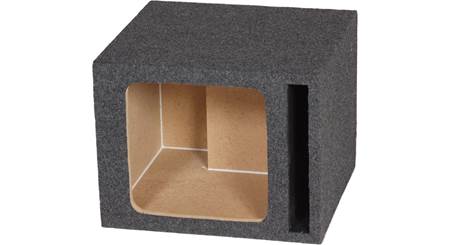

We all know how a good subwoofer can enhance your musical enjoyment, but not everyone wants to build their own box. SPL Boxes to the rescue! These heavy-duty enclosures can take the punishment of the car environment, with rugged 3/4" MDF construction to give your sub plenty of support. Attractive and tough charcoal carpet protects the box from nicks and dings, while gold-tipped spring terminals hold your speaker wires securely. This SB112V box holds one 12" sub in a ported enclosure.
Product highlights:
- ported enclosure for 12" subwoofer
- 3/4" MDF construction with 1" front panel
- gray carpet covering
- internal volume: 1.5 cubic feet
- cutout diameter: 11.26"
- dimensions: 18.125"W x 13.375"H x 15.75"D
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # SB112V
What's in the box:
- Ported enclosure for one 12" subwoofer
Reviews
Customer reviews
Loading reviews...
SPL Boxes SB112V reviews
Average review:
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the SPL Boxes SB112V

Features & specs
General | ||
---|---|---|
Box Type | Ported | |
Number of Boxes | 1 | |
Number of Speakers Per Box | 1 | |
Speaker Size | 12 | |
Cutout Diameter or Length (inches) | 11 5/16 | |
Maximum Speaker Depth (inches) | 12 | |
Box Volume (cubic feet) | 1.5 | |
Tuning Frequency | 38 Hz | |
Height (inches) | 13-3/8 | |
Width (inches) | 18-1/8 | |
Depth (inches) | 15-3/4 | |
Second Depth (inches) | 15-3/4 | |
Wood Thickness (inches) | 3/4 | |
Speaker Wire Connectors | Spring posts | |
Box Color | Charcoal Gray | |
Box Finish | Carpet | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year |
Product Research
Features
Design: The SB112V is an unloaded, ported enclosure for a single 12" subwoofer. It's constructed of ¾" MDF (medium-density fiberboard) and covered in charcoal colored carpet.
Internal Box Volume: The enclosure has a volume of 1.5 ft³ with a tuning frequency of 38 Hz.
Terminals: The wire terminals are spring-posts (one pair), mounted on the back of the enclosure. The spring terminals will accept pin connectors and bare wire up to 12-gauge. Inside the enclosure there are 0.205" male quick-slides (will accept 0.205" female quick slides) for both the positive and negative terminals. The wire can also be attached using the nuts holding the quick-slides in place.
Note: Speaker wire is needed to connect the terminals to the subwoofer.
Brackets: Brackets for securing the enclosure in your vehicle are recommended.
