Alpine Halo9 ILX-F309

Digital multimedia receiver — a 9" touchscreen that fits in a DIN dash opening (does not play CDs)

Item # 500ILXF309

Alpine's known for being on the cutting edge of stereo design, but for their iLX-F309 digital multimedia receiver,...

Find what Fits your car

Alpine's known for being on the cutting edge of stereo design, but for their iLX-F309 digital multimedia receiver,...

California customers:
Please click here for your Proposition 65 warning.

Need help?
Contact our Virginia-based experts.

Ships free

In stock

Deeply discounted installation gear

$999.95

About the Alpine Halo9 ILX-F309

Alpine's amazing new way to go BIG in your dash

Alpine's known for being on the cutting edge of stereo design, but for their iLX-F309 digital multimedia receiver, they actually borrowed an idea from some newer vehicles — an interface which "floats" on top of other dash controls. Only they went way bigger than anything else out there. The Alpine Halo9 boasts a monster 9" floating capacitive touchscreen to give you plenty of information at a glance. And it's adjustable so you can keep climate controls accessible. Single-DIN (2" tall) dash owners rejoice — this stereo's designed to go into most dash openings, even for many older cars. Add Alpine's trademark sonic capabilities and smartphone integration, and you've got a real humdinger on your hands.

Alpine's amazing new way to go BIG in your dash

Alpine's known for being on the cutting edge of stereo design, but for their iLX-F309 digital multimedia receiver, they actually borrowed an idea from some newer vehicles — an interface which "floats" on top of other dash controls. Only they went way bigger than anything else out there. The Alpine Halo9 boasts a monster 9" floating capacitive touchscreen to give you plenty of information at a glance. And it's adjustable so you can keep climate controls accessible. Single-DIN (2" tall) dash owners rejoice — this stereo's designed to go into most dash openings, even for many older cars. Add Alpine's trademark sonic capabilities and smartphone integration, and you've got a real humdinger on your hands.

Alpine iLX-F309 digital media receiver

The Alpine iLX-F309 in a 2004 Nissan Sentra.

Works in most dashes

Alpine Authorized Online Dealer

The Alpine Halo9 comes in two main pieces: a 2" tall chassis and a 9" touchscreen. The chassis fits in most single-DIN dash openings, and since there's no disc player, the mounting depth shouldn't be a major issue for most vehicles. Once you've mounted the chassis in your dash opening, you can choose from five available vertical mounting positions for the screen, giving you the flexibility to enjoy the radio without blocking essential dash climate controls. Your vents might be partially blocked, but Alpine designed the radio to function under typical in-vehicle temperatures.

Alpine iLX-F309 digital media receiver

The Alpine Halo9's 9" display (left) and chassis work together in most single-DIN dash openings — you can adjust both the height and viewing angle of the display to suit your needs.

Get the best view

Once you've determined the best vertical position for the display, you also have the option of changing the screen viewing angle up to 45 degrees forward or 20 degrees backward. This allows you to accommodate for angled dashes or just to get a better look at your iLX-F309's display, depending on its position in your dash. After you've chosen the best positions, four screws hold the display safely in place as you interact with it.

Just about everything you need

There's no disc player in the Alpine Halo9, but it does include several ways to enjoy your media. You can use the rear USB pigtail to attach your smartphone or a thumb drive with your favorite music or video files, or just get to your phone's audio quickly with the auxiliary input. If you've got an optional CD/DVD or Blu-Ray Disc™ player, there's a rear HDMi connection. Rear-view camera owners will appreciate the incuded camera input and distance guidance display. A GPS antenna enhances your phone's navigation functionality.

Built-in Bluetooth®

Alpine's been on the Bluetooth train for a long time, and the iLX-F309's no different. Use it to make or receive hands-free phone calls via your smartphone with the included microphone, or stream music from your phone with ease. You can also use the included microphone to activate voice commands for Apple CarPlay and Android Auto.

Apple CarPlay™

The Alpine Halo9 supports CarPlay —it integrates your iPhone® into the driving experience with a seamless interface, putting iPhone content at the driver's fingertips with minimal distraction. You'll enjoy easy access to your music library, your phone, messages, navigation, and many third party streaming music apps, too. Learn more at www.apple.com/ios/carplay. As an added bonus, you can access Siri Eyes Free functionality with a touch of the receiver's mic button, using your voice to place calls, select music, hear notification, add reminders — even compose and listen to text messages.

Android Auto™

If you're an Android fan, you'll love how Android Auto integrates the Android platform into your driving experience in a non-distracting way. You'll have voice control access to Google Maps, weather, music, your phone, text messages, plus easy access to many of your favorite apps. Get more info at www.android.com/auto.

Alpine iLX-F309 digital media receiver

Save your favorites

Along the bottom of the iLX-F309's bezel you'll find some helpful buttons, including a dedicated microphone button to activate voice controls for CarPlay and Android Auto. You also get a "favorites" button with a star on it, which allows you to save your preferred audio sources, places, contacts, stations, and more so you can pull them up on the screen in a hurry without scrolling through several menus.

HD Radio

HD Radio™, Pandora® Internet radio, and more

The Alpine Halo9 comes ready to play with a plethora of entertainment options:

  • HD Radio reception: You'll enjoy crystal-clear sound quality from participating AM and FM stations, including FM that sounds almost as good as a CD. Plus, you'll see station and song info on the screen.
  • Pandora® Internet radio: Pandora lovers will love touchscreen control over their stations, including thumbs up and down, bookmarks, and station lists. Just plug your iPhone® into the USB port or use Bluetooth audio with your Android device.
  • iPhone and iPod® control: Browsing for your favorite songs is simple and concise, thanks to an intuitive touchscreen interface and the huge display. You can check out song title, artist info, and album art with a quick glance at the big screen.
  • Satellite radio compatibility: You can add SiriusXM programming to the receiver with an optional tuner and your paid subscription.

Sonic goodness

The iLX-F309's not only a pretty face, it also boasts plenty of ways to keep your ears happy. You can use its many fingertip-friendly controls to set the 9-band parametric EQ, time correction, Bass Engine SQ, and much more. And it works with lossless FLAC files to give you the full-resolution digital media experience you crave. Pair your smartphone with Alpine's TuneIt app installed with this stereo to get even deeper with the tweaks, save your favorite settings, and share them with other Alpine users online.

More options from Alpine

If you've tricked out your vehicle with add-ons, the optional Truck Accessory Controller enables simple system expansion, allowing touchscreen command of up to eight electrical devices like winches, LED lights, interior lights, suspension kits, and powered bed covers. You can customize the onscreen icons and button labels, so you'll be able to access your devices with ease.

iDatalink Maestro lets you keep your factory extras

This Alpine offers compatibility you won't find in many other aftermarket radios, thanks to the iDatalink Maestro module (not included). In a wide selection of vehicles, this module lets you keep factory features that you'd otherwise lose when you install a new radio. You'll also be able to check out engine performance data and other vehicle data on the Alpine's screen. Once you've identified your vehicle, you'll see the iDatalink module offered on the way to your Shopping Cart if it's compatible.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.

Some states and localities prohibit or restrict the use of video and information displays in vehicles – it is your responsibility to see if any restrictions or prohibitions apply in your area.

READ LESS

Product highlights:

    General Features:
    • digital media receiver with AM/FM tuner (does not play CDs)
    • 9" capacitive touchscreen with adjustable vertical mounting positions and viewing angles
    • fits single-DIN dash openings
    • Bluetooth hands-free calling and audio streaming
    • HD Radio tuner built-in
    Smartphone Features (see Details for info on compatibility with specific smartphones and apps):
    • Apple CarPlay compatible
    • Android Auto compatible
    • built-in iPod, iPhone, and iPad control
    • playback and control of music files on compatible Android devices
    • Pandora and Spotify control with iPhone and Android
    Audio/video Features:
    • plays MP3, WMA, AAC, and FLAC music files (see Details tab for full capabilities)
    • plays AVI and MPEG4 video files
    • 9-band parametric equalizer with time correction
    • high- and low-pass filters
    • Bass Engine SQ
    • MediaXpander HD
    • compatible with Alpine's TuneIt smartphone app
    Expandability:
    • works with SiriusXM SXV300 tuner—supports Tune Mix, Traffic & Weather Now, and Sports Flash features
    • compatible with optional Truck Accessory Controller
    • inputs: rear USB port, HDMI input, auxiliary input, rear-view camera harness
    • outputs: 6-channel preamp outputs (4-volt front, rear, subwoofer)
    Other Information:
    • built-in internal amp (18 watts RMS CTA-2006 x 4 channels)
    • compatible with most factory steering wheel audio controls (adapter required)
    • CTA-2006 compliant
    • compatible with iDatalink Maestro
      • retains factory features in a wide selection of vehicles

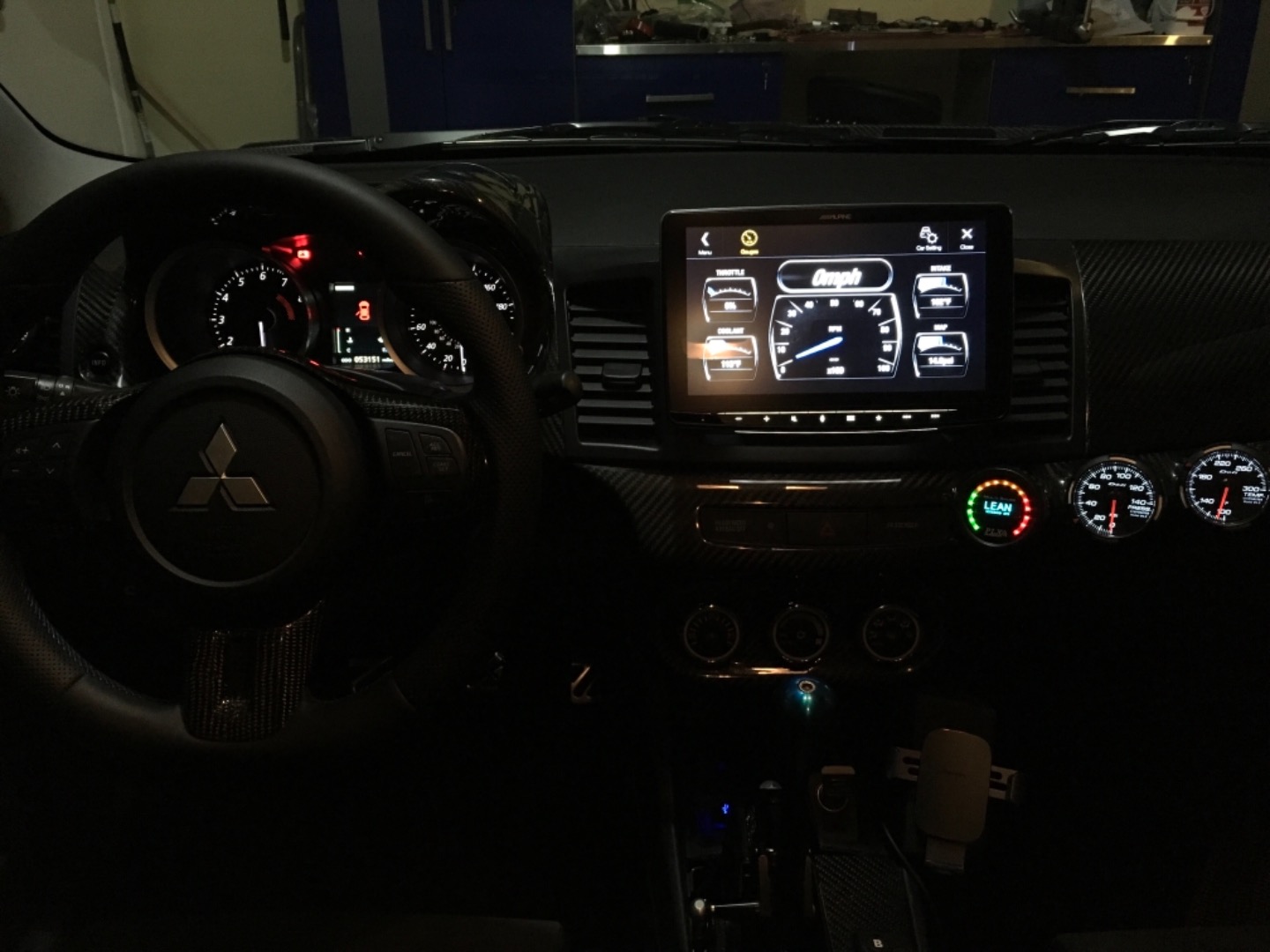

      • displays engine performance data on touchscreen
    • warranty: 1 year
    • Our 60-day money-back guarantee
    • compatible with SiriusXM satellite radio tuner
    • MFR # ILX-F309

    What's in the box:

    • 9" Touchscreen monitor
    • Source unit
    • Wiring harness
    • iDatalink/Camera/Aux harness
    • SWC/Mic harness
    • Pre-out harness
    • 5' USB extension cable
    • GPS antenna (attached 8' cable terminated by proprietary connector)
    • Self-adhesive mounting pad
    • Microphone (w/ attached 12.5' cable terminated by a right-angle mono-3.5mm connector)
    • Visor clip
    • Two-sided tape
    • HDMI connector clamp
    • 4 Pan-head ISO-screws (M5x8mm)
    • 4 Counter-sunk ISO-screws (M5x8mm)
    • 2 Counter-sunk adjustment-screws
    • (M4x13mm)
    • 7 Couter-sunk adjustment-screws (M4x6mm)
    • 2 Pan-head plate-screws (M3x4mm)
    • 2 Rear covers
    • Power-plate
    • Quick Reference Guide
    • Installation Manual
    • Online Registration Information
    • "WARNING" note

    Featured video:

    Customer reviews

    Loading reviews...

    Alpine Halo9 ILX-F309 reviews

    Average review:

    50 reviews

    Thanks for submitting your review

    Filter by rating

    Customer photos

    Sort reviews

    Sort by:
    Items per page:
    View page:

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    Pros:

    Cons:

    Crutchfield response

    << >>

    More details on the Alpine Halo9 ILX-F309

    Stacey B.

    Features & specs

    Expandability
    AUX Input Mini (rear)
    Audio/video Input HDMI (rear), Mini (rear)
    USB Input Rear
    Backup Camera Input Yes
    Second Camera Input Optional
    CarPlay Yes
    Android Auto Yes
    Siri Control Yes
    Android Control Yes
    Memory Card Slot USB memory
    Bluetooth Compatible Built-in
    Satellite Radio Ready SiriusXM 3.0
    HD Radio Built-in
    Navigation Optional
    iPod Compatibility
    Full size No
    Nano 7
    Touch 6/5
    iPhone XSMax/XS/XR/X/8+/8/7+/7/6S+/6S
    General
    RMS Power (CTA-2006) 18 watts
    RMS Power (Manufacturer) 18 watts
    Peak Output 50 watts
    RMS Power Bandwidth 20-20kHz
    Preamp Outputs 6-channel
    Sub Preamp Outputs Yes
    Switchable Rear Preamp Outputs No
    Video Screen Yes
    Navigation App Compatible (iOS) Apple, Google, Waze
    Navigation App Compatible (Android) Google,Waze
    Preamp Voltage 4 volts
    Screen Size 9
    Display Color
    Key Button Color White
    EQ Bands 9
    Wireless Remote No
    Steering Wheel Control Compatible Adapter required
    Parts Warranty 1 Year
    Labor Warranty 1 Year
    Tuner
    FM Sensitivity 9.3 dBf
    European Tuning No
    Seek/Scan Seek
    Radio Data System Yes
    File Playback
    Music File Playback MP3, WMA, AAC
    High-res Playback FlAC (96kHz)

    Product Research

    Touchscreen & Steering Wheel Controls
    Apple CarPlay & Android Auto
    HDMI & USB Integration
    Built-in Bluetooth
    Internet+SiriusXM+HD Radio
    Audio & DSP Section
    AV + OEM Connectivity

    Touchscreen & Steering Wheel Controls

    9" Capacitive Touchscreen: The 9" capacitive touchscreen boasts a 800 x 480 resolution (1.15 million pixels) with a 16:9 widescreen aspect ratio. The touchscreen monitor provides a balanced picture, not over-emphasizing dark or light areas, so album art, map screens, and videos are seen with greater clarity. The capacitive touchscreen requires less pressure, responds faster, and can recognize multiple touch points simultaneously; all advantages when compared to traditional resistive touchscreen displays. The iLX-F309's intuitive touchscreen interface allows for 4-way swipe action control - Left, Right, Down, & Up.

    • Swipe Up to access Source Selection options (such as HD Radio, Pandora, SiriusXM, Bluetooth, etc.)
    • Swipe Down to access Audio Settings or your Rear Seat Entertainment (RSE).
    • Swipe Left to access Presets or the Quick Search mode screen.
    • Swipe Right to access the Main Menu screen.
    Note: Conveniently located Power/Menu, Volume Up/Down, Mute, Voice Recognition, Favorite, Previous/Next Track buttons are accessible along the bottom edge of the 9" capacitive touchscreen for quick access and simple control.

    Single-DIN (2") Installation: The 9" capacitive touchscreen is attached to an adjustable mount connected to a Single-DIN (2") chassis. The screen hovers over or in front of the dash while its rear housing tapers off cleanly at the edges for a thin and modern silhouette. Various mounting positions allow for the screen to be positioned to avoid features on the dash such as air vents and buttons around the radio. At its default position, the screen's sliding mount is pushed out, sitting at a 90-degree angle and the bottom of the screen is centered with the Single-DIN (2") chassis. At this point, the screen can be angled at select positions to assist during installation, help with visibility, or move it away from other items on the dashboard.

    • The screen can be positioned 0.75" (20mm) deep from the default position to be closer to the dash, and higher or lower up to 1.1875" (30mm) from the default position to adjust for height in the dash. The screen position must be adjusted prior to installation. It cannot be adjusted while installed in the dash.
    • The screen can be manually tilted up or down, depending on the position of the up/down location. There are four pre-set angle points (45°, 20°, 0°, -20°) to allow for better viewing of the screen. The mounting angle must be adjusted prior to installation. It cannot be adjusted while installed in the dash.
    • Once the desired screen position is determined, the screen and mount get fixed to the chassis for a sturdy fit and finish. The 9" capacitive touchscreen is not detachable.
    Note: The Alpine iLX-F309 mounts in a Single-DIN (2") opening using the your vehicle's factory brackets or the brackets included with your dash kit (sold separately). The iLXF-309 is not recommended for dash kits with "snap-on" brackets; make sure the dash kit uses "bolt-on" brackets. The iLXF-309 does not mount in a dash using a sleeve or cage.

    My Favorites: This unit enables you to recall functions easily by registering frequently used items, such as specific audio sources and most-dialed contacts, to the Favorite screen. A shortcut soft-key on the touchscreen within all audio and phone sources makes it easy to select your Favorite sources or contacts. Easily add, delete, and re-arrange your shortcut icons by dragging the icon(s) to a new location on the screen. Your settings are kept as a personal profile linked to your smartphone via Bluetooth. You can create up to 6 favorite screens with up 54 selections (9 each).

    Variable Color Illumination: You can adjust the receiver's LCD screen color from Blue, Light Blue, Aqua, Red, Green, Light Green, Amber, or White. The unit's button illumination will always remain white.

    Brightness Control: You can adjust the brightness of the LCD backlight from -15 to +15 and the brightness of the button illumination from -2 to +2. You can then select one of the following modes for both the LCD's backlight and button illumination - Auto (adjusts the brightness of the background illumination based on the ambient light in your vehicle), On (keeps the background illumination of the monitor dark), or Off (keeps the background illumination of the monitor bright).

    Clock Display: The iLX-F309 lets you select between a 12 hour or 24 hour clock. The clock is displayed on each source screen and turns off when the head unit is powered down.

    Video Lockout: For safety and legal reasons, the iLX-F309 features a video lock-out feature to prevent the driver from viewing a video source (AUX, HDMI, & USB) while the vehicle is in motion. To watch a video source, the vehicle must be stopped with the parking brake engaged and the ignition in the ACC or ON position. CarPlay & Android Auto do not require the Parking Brake to be engaged.

    Note: The parking brake wire must also be connected and the parking brake engaged for certain setup functions and menu options.

    Steering Wheel Control Input: The head unit features an steering wheel remote control input on the rear of the unit that lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel audio control adapter (sold separately).

    Accessory Control Ready: You can also use the iLX-F309 to control external accessories like a light bar, motorized tonneau cover, or winch when used with the optional KAC-001 External Accessory Controller (500KAC001, sold separately). The KAC-001 works with up to eight relay-connected accessories which can be controlled from the iLX-F309's touchscreen. A graphical icon and name can be assigned to each accessory for quick identification on the touchscreen.

    Apple CarPlay & Android Auto

    Apple CarPlay: Apple CarPlay is a smarter, safer way to use your USB-connected iPhone 5 or newer (running latest iOS version) with Lightning-connector in the car, while you stay focused on the road. Apple CarPlay takes the things you want to do with your iPhone while driving and integrates them into the Alpine iLX-F309. Apple CarPlay offers an incredibly intuitive way to make calls, view maps, listen to music, and access messages from your compatible iPhone through the Alpine iLX-F309 in-dash receiver. With Apple CarPlay, you can control these functions from the iLX-F309 receiver's 9" capacitive touchscreen or activate Siri for minimized distraction.

    • Maps: Through Apple CarPlay, the power and simplicity of Apple Maps comes to your dashboard; complete with turn-by-turn direction, traffic conditions, and estimated travel time. You can enter a new destination or choose a favorite or recent destination using the head unit's touchscreen or by simply asking Siri. CarPlay can also predict where you most likely want to go using addresses from your email, text messages, contacts, and calendars. If you have iOS 12.0 or newer on your iPhone with the latest version of Google Maps or Waze, you can choose to navigate via Google Maps or Waze instead of CarPlay. Google Maps and Waze do not support Siri voice control, but will have there own proprietary voice control function which has to be accessed through a touchscreen icon on the receiver.
    • Phone: With Apple CarPlay, you can use the iLX-F309's interactive touchscreen or ask Siri to make calls, return calls, and check voicemail. To dial a phone number, simply tap the "Phone" icon and Siri will ask you who you want to call. Using the touchscreen you can manually enter a phone number from the on-screen keypad, scroll through contacts, or select from recent and miss calls. In addition, you get access to your voicemails via touchscreen and Siri. When a call comes in, simply tap the "Phone" icon to answer. You'll carry on your side of the conversation through the included external microphone, while the other party is heard through your vehicle's speakers. You can emphasize or weaken the volume level the microphone. You can also select which car speaker outputs the caller audio; you can select All, Front-Left, Front-Right, or Front-Left/Right.
    • Text Messages: Apple CarPlay also lets you enjoy a better and safer way of text messaging with friends and family when you're on the road, through the Alpine receiver and Siri. Through your voice commands, Siri can send, read, and reply to your text messages so that you never have to glance at your phone while behind the wheel. When a new message comes in a banner will come across the screen and Siri will read back the message for you. Text messages cannot be read or typed from the head unit's touchscreen to prevent driver distraction.
    • Music Library: CarPlay lets you access your music in your iPhone's music library, plus iTunes radio from the Alpine iLX-F309. You can browse your music by Playlist, Artist, Song, etc.. just like you would on your iPhone from the iLX-F309's touchscreen. You can also use Siri to find and play back your music. The iLX-F309's touchscreen will display song/artist information, as well as album art in the background. Tap the Now Playing icon on the Alpine receiver's capacitive touchscreen and see song, artist, album information with Album Art displaying in the background. From the Now Playing screen you also get basic playback function, like Play/Pause, Previous Next/Track, Fast Forward/Rewind, and Repeat/Shuffle.
    • Apps: CarPlay also supports additional audio apps that you've downloaded to your iPhone for enjoying music, radio, sports, news, podcasts, & audiobooks (subscriptions and fees may apply). Control these apps from the head unit's touchscreen just like you would from your iPhone. Current supported apps include:
    • Apple HomeKit Compatible: CarPlay now supports control of Apple HomeKit enabled devices (sold separately) through Siri. Using CarPlay in your vehicle, you can ask Siri to close or open your garage door, turn on or off home lighting, increase or decrease the temperature of your  thermostat, as well as control select functions of other Apple HomeKit enabled devices and appliances. Click here for a list of compatible Apple HomeKit products.
    Notes:
    • Use the included USB extension cable and an "Apple Certified" Lightning-to-USB extension cable (not included) for connection. Any other USB extension cable or non-certified cable can cause CarPlay to malfunction.
    • Bluetooth hands-free phone and wireless music streaming cannot be used while Apple CarPlay is being used with a connected iPhone.

    Android Auto: The Alpine iLX-F309 also supports the Android Auto app for Android smartphones running OS Lollipop (5.0 or newer). Your compatible Android smartphone must be connected to the Alpine receiver's rear-panel USB port via the included USB extension cable and your phone's USB cable, plus be paired via Bluetooth (your vehicle's parking brake needs to be engaged to initially setup Android Auto). Android Auto extends the Android platform into your car in a way that's purpose-built for driving and automatically brings you useful information and organizes it into a simple on-screen interface that is simple to use in the vehicle. It's designed to minimize distraction so you can stay focused on the road ahead. Features of Android Auto include (click here for a list of all compatible apps) -

    • Google Assistant: The Alpine receiver enhances your Android Auto experience even more by incorporating Google Assistant using the head unit's external microphone and your car speakers for voice command and text-to-speech, which makes using Android Auto and all of its integrated applications fast, easy, and safe. You will need to press the "mic" button or say "OK Google" to activate the Google Assistant. Use the Google Assistant to make a call, send a message, reply to a message, get driving directions, listen to music, or even control select Google Assistant smarthome enabled devices.
    • Google & Waze Maps: Use Google Maps to get where you're going with on-screen maps, voice-guided navigation, live traffic information, lane guidance, and more. Select your destination by using the head unit's touchscreen or just say where you want to go through the unit's external mic and the Google Assistant. If you prefer, you can switch over to a simpler version of the community-based Waze navigation app (version 4.27 or higher).
    • Phone & SMS: With Android Auto you get access to your contacts and messages through the Alpine receiver while keeping your eyes on the road. Use the unit's external mic and the Google Assistant to make a phone call, or have your text-messages read aloud to you while you concentrate on the road ahead; you can even reply to texts via voice command.
    • Music: Access your Android smartphone's music library through the Alpine receiver via Google Play Music. You'll be able to browse music like you do on your smartphone with song/artist information display and album art. Use the receiver's touchscreen to select songs or just say what song you want to listen to through the head unit's external mic and the Google Assistant. You also get access to online music and radio stations from Amazon MusicTidal, Pandora, Spotify, iHeart Radio, SiriusXM, Slacker Radio, & Tune-In. Music apps include song and station browsing, plus song/artist information and album art or station logo.
    Notes:
    • Android smartphones with a USB Type-C connector (including the Pixel) may not function without appropriate USB Type-A to USB Type-C cable. Click here to learn more About Android Auto and to see what phones are compatible. Use a USB cable that is under 6' long and avoid using any extension cable other than the one supplied.
    • Bluetooth hands-free phone and wireless music streaming cannot be used while Android Auto is being used with a connected Android smartphone.
    • The initial setup for Android Auto requires that your vehicle be stopped and the parking brake is engaged. You will need to connect the parking brake wire of the receiver's harness to your vehicle's parking brake circuit for the head unit to recognize that the vehicle's parking brake is engaged.

    GPS Receiver & Antenna: The iLX-F309 features a built-in GPS receiver, comes with an external GPS antenna, and is outfitted with a vehicle speed sensor (VSS) wire to optimize CarPlay's Apple Maps and Android Auto's Google Maps. The GPS antenna should be mounted on top of the dashboard near the front windshield, while the VSS wire connects to your vehicle's speed pulse wire to accurately gauge the direction, location, and speed of your vehicle.

    HDMI & USB Integration

    HDMI Input: In addition iPhone and Android connectivity, the head unit's HDMI input can be used to connect almost any external mobile AV source with an HDMI output, such as Alpine's DVE-5300 DVD player (500DVE5300; sold separately). The HDMI input will provide video and audio playback. Your vehicle's parking brake will need to be engaged to view video on the receiver's screen. Playback functions will need to be controlled from your HDMI-connected device (such as the DVE-5300 DVD player) or the remote that came with your HDMI-connected source device. The HDMI input supports video resolutions up to 720p.

    Smartphone Mirroring via HDMI: The Alpine's iLX-F309's rear-panel HDMI input can also be used to connect select Android or Apple iOS devices with video output to the digital media receiver. With the vehicle's parking brake engaged you can mirror the smartphone device's image and watch stored video and video apps (like Netflix) on the digital media receiver's touchscreen monitor. Stored music, music apps, and other audio content on your iPod/iPhone device can be heard through your speaker system without the parking brake engaged; however, there is no song/artist information display unless the parking brake is engaged. There is no touchscreen control from the Alpine head unit; you will still continue to use your Apple iOS or Android device to select content, apps, and control playback.

    • iPhone Connectivity: If you have an iPhone 5 or newer with the Lightning connector, you will need Apple's Lightning Digital AV adapter, a Lightning-to-USB cable (like Alpine's KCU-471i cable), and a HDMI cable - all sold separately. The HDMI connector provides the audio/video playback, while the USB connection charges your iPhone device through a 3rd party 2A USB power adapter (sold separately). Not compatible with 30-pin Apple devices.
    • Android Connectivity: For Android users most newer Android smartphones do not have HDMI adapters. The easiest way to connect is with a Miracast adapter (for example a Roku Stick or Amazon Firestick - sold separately). You can use Alpine's KCU-610MH HDMI cable kit (sold separately) to connect older MHL-compatible Android smartphones (check here for a list of compatible MHL-enabled Android phones). The Samsung Galaxy S3/S4/S5 and Note II/III/IV requires an additional 3rd party MHL microUSB 5-pin to 11-pin adapter (sold separately). Newer Samsung Galaxy and Note smartphones do not support MHL. Some Android smartphone will require a MHL conversion adapter (sold separately). The HDMI connector provides audio/video playback, while the USB connection charges the battery of your Android smartphone through a 3rd party 2A USB power adapter (sold separately).

    Note: The smartphone mirroring feature requires that you plug your Apple iOS or Android device into a 3rd party 2A USB power adapter (sold separately); do not plug your device into the 1.5A USB port back of iLX-F309FRN.

    iPod/iPhone Audio Playback: The Alpine receiver also supports direct connection of your Apple iPod/iPhone with Lightning connector or iPhone 4S with 30-pin connector through its rear-panel USB port and the included USB extension cable (use Alpine's KCU-471i cable or the cable that came with your Apple device). The iLX-F309 supports audio playback, music navigation, information display, and charging of your USB-connected Apple device with Lightning connector.

    • Head Unit Control: The Alpine iLX-F309 lets you navigate your iPod/iPhone's music library by Playlist, Artist, Album, Song, Genre, Composer, Podcast, or Audiobook. You can then search each category alphabetically. The head unit also offers playback functions such a Play/Pause, Previous/Next Track, & Random/Repeat for stored music files. Play/Pause & Previous/Next Track are supported by many music apps too; not all apps will be compatible. Your USB-connected iPhone will remain unlocked, so you can use its touchscreen to access music apps.
    • Song/Artist Information: The Alpine in-dash digital media receiver will display your iPod/iPhone's stored music file information; such as Track number, Elapsed playing time, Artist name, Song/Album title, as well as Album Art. The unit will also display song/artist information and station identification from select music apps.
    • 1.5A Charging: The head unit's USB connection provides 1.5A of current to power and charge your connected iPod/iPhone when your vehicle's ignition switch is set to the 'ACC' or 'On' position (if your iPod/iPhone has no initial battery charge, then the unit will not recognize it).

    Apple Device Compatibility Chart: The Alpine iLX-F309 is "Made for iPod/iPhone" compatible and supports the following iPod/iPhone model features (as of 2/22/2019):

    Apple Device Generation Tested Version Media Type Control Type Specific Apps Display Type Bluetooth Charge
    Audio Video/Mirror Head Unit iPod/iPhone CarPlay Pandora Album Art Song/Artist Text Track Info Phone Audio Siri
    iPhone
    4S 9.3.5 Y N Y Y N N Y Y Y Y Y Y Y
    5/5C 10.3.3 Y Y Y Y Y Y Y Y Y Y Y Y Y
    5S/SE 12.1.4 Y Y Y Y Y Y Y Y Y Y Y Y Y
    6/6+/6S/6S+ 12.1.4 Y Y Y Y Y Y Y Y Y Y Y Y Y
    7/7+8/8+ 12.1.4 Y Y Y Y Y Y Y Y Y Y Y Y Y
    XS-Max/XS/XR/X 12.1.4 Y Y Y Y Y Y Y Y Y Y Y Y Y
    touch
    5th 9.3.5 Y Y Y Y N N Y Y Y N Y Y Y
    6th 12.1.4 Y Y Y Y N N Y Y Y N Y Y Y
    nano
    7th 1.02 PC Y N Y N N N Y Y Y N Y N Y
    Note: Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the head unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.

    USB Mass Class Storage Devices: In addition to iPhone & Android connectivity, the head unit's rear-panel USB (type-A) port allows you to connect a USB Mass Storage Class (MSC) device; such as a USB thumbdrive or portable digital audio player. A 5' USB extension cable is included. The unit supports playback of a variety of audio and video files stored on a compatible USB MSC device. USB portable devices that can be charged via USB will be charged when plugged into the digital media receiver's USB port (max. 1.5A), and the vehicle's ignition switch is set to ACC or On.

    Media Type USB (Mass Storage Class Device)
    File System FAT 16/32
    Playable File Types Audio MP3: bit rate of 8-320kbps; sampling rate of 8-48kHz
    WMA: bit rate of 48-320kbps; sampling rate of 8-48kHz
    AAC: bit rate of 16-320kbps; sampling rate of 8-48kHz|
    FLAC: bit depth of 16-/24-bit; sampling rate of 8-96kHz
    Video AVI/MKV/MP4: optimum resolution of 96-720 (h) x 96-576 (v)
    Max # of Files/Folders 10,000 files/folders
    Song/Artist Info  MP3 ID3 tags, WMA/AAC/FLAC tags, & Album Art
    Note: The USB port does not support MTP or AOA playback for Android devices. The USB port cannot be connected to a USB hub or card-reader.

    Built-in Bluetooth

    Bluetooth 3.0: The Alpine iLX-F309 features built-in Bluetooth 3.0 with support for hands-free phone communication and wireless audio streaming. The head unit's built-in Bluetooth allows you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles -

    • Hands-Free Communication: HFP (Hands Free Profile), PBAB (Phone Book Access Profile).
    • Audio Streaming: A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Video Remote Control Profile).
    Note: Due to the differences in Bluetooth technology, some Bluetooth enabled devices may be incompatible, function improperly, or may not support all features when used with the Alpine iLX-F309.

    Multi-Device Pairing w/ Dual Phone Connection: You can pair up to 5 Bluetooth enabled devices with the Alpine head unit, and keep two phones connected simultaneously. That way you can switch between devices a lot quicker without having to un-connect and re-connect devices.

    • Secure Simple Pairing (SSP): With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the iLX-F309 without having to enter pin codes or go through complicated settings (your phone must also support SSP).
    • Auto Pairing (for iPhone): You can even pair your Apple iPhone (iOS 5.0+) by simply connecting it to the Alpine head unit via USB and following a single prompt on the head unit's display.

    Hands-Free Communication (w/ External Mic): The Alpine iLX-F309 supports wireless hands-free communication for your Bluetooth enabled mobile phone. Incoming calls are announced by a caller ring tone through your vehicle's speakers (music will be muted) & a Caller ID message across your Alpine head unit's touchscreen display. The iLX-F309 allows you to carry on a phone conversation from your Bluetooth enabled mobile phone using the included external mic and your car audio speakers. During a conversation, you can initiate a transfer of audio between your mobile phone and your car's speakers.

    • Receiving Calls: The Alpine iLX-F309 provides several ways to answer your phone calls without picking up your mobile phone.
      • Manual Answer: Manually answer an incoming call by pressing the "Phone" icon on the head unit's touchscreen.
      • Automatic Answer: Set the Alpine head unit to answer the incoming call automatically; when a call is received, it is answered automatically after approximately 5 seconds.
      • Call Waiting: If a second call is received during a current call, you can have the first caller wait momentarily while you take the second call. When you are finished with one call, you can switch to the other.
    • Making Calls: The Alpine iLX-F309 provides a variety of functions for placing a phone call without using your mobile phone. The Alpine iLX-F309 features full phone book access, call history, and redial with compatible phones.
      • Voice Dialing: If you have a voice-dial capable phone, you can dial a phone contact by simply speaking the name of your contact or the telephone number.
      • Phone Number Entry: Allows you to directly dial a phone number up to 31 digits from the head unit's touchscreen.
      • Phonebook (with ABC search): Up to 1,000 entries (5 telephone numbers for each name) can be downloaded from your compatible mobile phone. You can then search the contacts of your phonebook alphabetically.
      • Presets & Favorites: You can assign up to 4 phone numbers for one-touch dialing to make a call easily. You can also make a phone call using the Short Cut function of numbers that you have registered as Favorites.
      • Call History: The previously dialed, received, or missed numbers (60 total) can be retrieved and dialed from memory.
    Note: All Bluetooth phone functions are available with or without the parking brake engaged.

    Audio Streaming (w/ Advanced Music Navigation): The Alpine iLX-F309 can stream music from your Bluetooth A2DP/AVRCP mobile device (such as your iPhone or Android smartphone). Not only can it control & stream your music through Bluetooth, it can process your music using its built-in DSP to ensure you get the best sound. In addition to basic playback functions (Play/Pause, FF/RW, Skip, Random/Repeat), the iLX-F309 provides a Search List of your stored music by Playlist, Artist, Album, Song, etc.. AVRCP 1.4 phones only; which includes Android 4.0+ and iPhone 5.0+). The head unit will also display your stored music's song information; such as Artist name & Song/Album title (no Album Art). The iLX-F309 even supports audio streaming of music apps on your Bluetooth-enabled smartphone with song/artist information and limited control (continue to use your Bluetooth enabled smartphone to control advanced music app navigation).

    Note: When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call. Once the call is finished, your streaming music will resume.

    Siri Eyes Free Control: When paired and connected to an iPhone with Siri via Bluetooth, the Alpine iLX-F309 has the ability to access Siri through its front-panel/touchscreen controls and external microphone. Simply press the head unit's "microphone" button on the front-panel to engage Siri and use the external microphone to communicate with Siri. Siri's voice will be heard through your vehicle's speakers. All Siri functions including hands-free calling, music search, setting reminders, text-messaging, audible navigation, and more can be done through the iLX-F309 and its microphone. You can ask Siri to get directions to a destination and the turn-by-turn instructions will heard through your vehicle's speakers, while the on-screen map still displays on your iPhone with Siri. The head unit's audio is attenuated while Siri provides audible directions.

    Note: The head unit's display will only indicate hands-free calling and Bluetooth audio information (all other functions of Siri are only audible through the Alpine iLX-F309; visual data will still need to be viewed from your iPhone device).

    Bluetooth Adjustments: You can emphasize or weaken the volume level of the phone caller, the ring tone, and the microphone input to fit your own preference. You can also select which car speaker outputs the audio from your Bluetooth-enabled mobile phone/device. You can select All, Front-Left, Front-Right, or Front-Left/Right.

    Internet+SiriusXM+HD Radio

    Pandora Internet Radio App: The free Pandora App (for Apple iOS 11.0+ & Android OS 4.0+) lets you play music from the Pandora music service through the Alpine iLX-F309 using your USB-connected Apple iPhone (4S or newer) or Bluetooth paired Android smartphone. Your Apple iPhone must be connected to the iLX-F309 via the Alpine KCU-471i cable (sold separately) or the cable that came with your iPhone. Your Android smartphone must support A2DP/AVRCP/SPP Bluetooth profiles and be paired with the Alpine receiver. Your iPhone or Android smartphone will also need an active Data Plan account with connection to the Internet via 3G, LTE (4G), EDGE, or WiFi. The iLX-F309 provides control over the Pandora music service and displays Artist, Album, and Song information.

    • Station List: You can select Pandora stations from your Station List by date or alphabetically (A-Z).
    • New Station: Based on a currently playing track or artist, you can create a new station and save it to your Pandora account.
    • Shuffle Play: Shuffle Play allows you to listen to songs played on one or more Pandora stations in your Station List randomly.
    • Skip Songs: You can skip song tracks within a station. You cannot skip back to a previous song. Pandora limits the number of skips allowed.
    • Thumbs Up/Down: You can give songs a thumbs up or thumbs down to help Pandora personalize stations to suit your preferences.
    • Bookmarking: The song or artist currently being played can be bookmarked & stored in your Pandora account.
    Note: Access to these online service will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or smartphone to connect to the Internet. Pandora is not supported in Canada and only available in the United States.

    Apple Music Radio: You can playback Apple Music Radio on your USB or Bluetooth connected Apple iOS device through the Alpine iLX-F309. With a WiFi or cellular connection, you can listen to Beats 1, The Mixtape, and other live radio stations. Apple Music subscribers can also listen to on-demand stations for every genre and stations they have personally created. You can use the head unit's touchscreen to select between your Apple Music Radio stations. Apple Music Radio playback is compatible with the following Apple iOS devices -

    • iPhone: XS-Max/XS/XR/X, 8+/8, 7+/7, 6S+/6S/6+/6, 5S/5C/5, SE, & 4S - running iOS 9.3.5 or newer
    • iPod: touch (6th, 5th generation) - running at iOS 9.3.5 or newer
    Note: Your Apple iOS device will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi.

    SiriusXM Ready: The Alpine iLX-F309 is SiriusXM-Ready and compatible with the SiriusXM Connect Vehicle Tuner (220SXV300, sold separately). The SiriusXM Connect Vehicle Tuner supports SiriusXM programming with access to 140+ SiriusXM channels via subscription; check out the most popular SiriusXM subscription packages here. Additional features of the SiriusXM Connect tuner include:

    • Channel List w/ Category Search: A channel list displays a list of all available channels. The Category Search function searches for channels in a certain category.
    • Song/Artist Info + Album Art: Displayed Information such as Channel Name, Channel Logo, Artist Name, Song Title, and Album Art can be viewed on the head unit's LCD
    • SmartFavorite Presets + Jump: Up to 18 SiriusXM Satellite Radio station presets can be saved. All presets are recognized a SmartFavorites with advanced features like TuneStart, & TuneScan. The Jump feature lets you store your absolute favorite channel so you can jump to it with the press of a dedicated button and then jump back to the previous channel.
    • TuneStart & TuneScan: TuneStart allows you to choose whether to start a song from the beginning or from its live point when tuning to a Smart Favorite preset channel on the current band. TuneScan gives you a short preview of the songs that you have missed on each of your Smart Favorite Preset music channels on the currently tuned band.
    • Instant Replay: You can pause, rewind, and replay content from the currently tuned SiriusXM channel. The SiriusXM tuner will continually buffer up to 60 minutes of audio from the currently tuned channel.
    • Song/Artist/Game Alerts: With Song/Artist Alert you can get notified when your favorite songs or artists are being broadcast on any SiriusXM station. With the push of a button, you can jump right to that broadcast and catch the songs you want to listen to. GameAlert will display an on-screen message if your favorite teams' games are being broadcast. Jump to that station with the push of a button so you can listen to the game play by play. You can also get the latest score updates while you are listening to other stations.
    • Parental Lock: This function restricts the listening of channels for children of certain age levels and is protected by a 4-digit "lock-code".
    Note: A separate SiriusXM Satellite Radio subscription is required (operates on the XM Network). However, you can easily add this SiriusXM tuner to an existing Sirius or XM account for a Multi-Radio Discount Plan.

    HD Radio: With the built-in HD Radio tuner, you can receive digital AM/FM broadcasts from local stations where available. HD Radio lets you listen to the radio with the same fidelity as your digital music. HD Radio features high quality audio, FM multi-casting, and data services. With HD Radio, your FM stations offer near CD-quality sound, AM stations provide FM-like sound, and there is crystal-clear reception with no audio distortion. Best of all, HD Radio is 100% subscription free. The unit's tuner also supports analog AM/FM broadcasts.

    • Multicasting: Multicasting is the ability to broadcast multiple program streams over a single AM/FM frequency. this increases the amount and diversity of content choices. A maximum of eight multicast station channels (HD1-HD8) can be selected on this unit.
    • Station Text w/ Album Art: AM/FM digital stations can offer text and data such as artist names and song titles, plus Album Art. The built-in HD Radio tuner displays song title, artist and station information on the touchscreen monitor of the Alpine iLX-F309. The RDS (Radio Data System) is a radio information system for analog FM. The RDS allows you to receive a variety of information such as traffic information, station names, and song information from standard analog FM radio stations.
    • Preset & Direct Tuning: The built-in tuner provides 12 FM and 6 AM preset stations. The unit's tuner can automatically seek and store six strong stations in a selected band in order of signal strength. Sub-program services of multicast stations are not included in the automatic memory search. You can also input a station number directly from the head unit's LCD touchscreen.
    • Tuner Quality Setting: This unit can be set to three different FM tuner quality settings - Normal (standard), HiFi (high-quality), or Stable (controls noise).
    • Ballgame Mode: In a live broadcast, such as a sportscast, a time lag occurs between digital sound and analog sound. Therefore, when live broadcasts are received, time lag between the real broadcast may occur and this unit can change to analog broadcasting automatically.
    Note: HD Radio is the system for digital AM and FM broadcasting in the U.S. More than 2,000 radio stations are broadcasting their primary signals in digital HD Radio technology, as a free service. Go to HDRadio.com to check for HD Radio stations in your area.

    Audio &DSP Section

    CTA-2006 Compliant: The specifications given by Alpine for the built-in amplifier comply with the CTA-2006 mobile amplifier power testing and measurement standards from the CTA (Consumer Technology Association). All manufacturers who comply with the standard can display the CTA-2006 logo on their product.

    • CTA-2006 Power Rating: 18 watts x 4 channels (at 4 ohms, 20-20kHz, 1% THD)
    • Max Power Output: 50 watts x 4 channels
    Note: Add the KTP-445A Head Unit Power Pack (500KTP445A, sold separately) to deliver 45 watts x 4-channel RMS of power. The KTP-445A is compact enough to install behind the Alpine receiver. It plugs in-line with the head unit's wiring harness, so you don't even need additional wires.

    6ch/4V Preouts + Sub Control: The iLX-F309 has three sets of 4-Volt RCA pre-outs (Front/Rear/Sub) for connection of external amplifiers. The unit's front and rear preamp output can be faded (front/rear), while the subwoofer preamp output is non-fading. The subwoofer output level can be adjusted independently from the main volume setting (0-15); so even at low volume settings the subwoofer is still audible. The subwoofer output phase can be set to Normal (0°) or Reverse (180°).

    High-Pass & Low-Pass Crossovers: This unit is equipped with active high-pass and low-pass crossovers which limit the frequencies delivered to the speaker and line-level outputs. Each speaker channel is controlled independently, so each speaker pair can be driven by the frequencies for which have they been optimally designed. The crossover adjusts the HFP (high pass filter) or LPF (low pass filter) frequency point of each speaker pair, and also the slope (how fast the filter rolls off the highs or lows).

    • High Pass Filter: The Alpine head unit is equipped with a high-pass filter for its speaker-level output and front/rear-channel preamp outputs. You can set the unit's high-pass filter center frequency point to 20Hz, 25Hz, 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz, or Off (through). The slope of the high pass filter can be set to 6, 12, 18, or 24 dB/oct.
    • Low Pass Filter: The unit's subwoofer output low-pass filter can be set to 20Hz, 25Hz, 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz, or Off (through). The slope of the low pass filter can be set to 6, 12, 18, or 24 dB/oct.

    Built-in EQ: The iLX-F309 digital media receiver is equipped with a variety of  EQ presets for different types of music, plus a 9-Band Parametric EQ for fine-tuning the sound to your preference, and Alpine's very own Bass Engine SQ.

    • EQ Presets: 10 typical equalizer settings are preset at the factory for a variety of music source material. Choose from Flat, Pop, Rock, News, Jazz, Electronic, Hip Hop, Easy Listening, Country, and Classical.
    • 9-Band EQ: You can create three Custom EQ presets by adjusting the head unit's 9-Band Parametric Equalizer to create a response curve more appealing to your personal taste. Band 1 (20Hz-100Hz), Band 2 (63Hz-325Hz), Band 3 (125Hz-500Hz), Band 4 (250Hz-1kHz), Band 5 (500Hz-2kHz), Band 6 (1kHz-4kHz), Band 7 (2kHz-7.2kHz), Band 8 (5.8 kHz-12kHz), Band 9 (9kHz-20kHz). Bandwidth Q (1, 2, or 3). Levels (-7 to + 7).
    • Bass Engine SQ: Alpine's Bass Engine SQ optimizes the sound for all speakers in the vehicle according to the music genre and mood for well-balanced and effective bass sound. Select from six Bass Engine SQ Types - Standard (Natural low-pitched sound), Punch (boosted bass sound), Rich (rich low-pitch sound), Mid Bass (emphasizes presence of upper bass), Low Bass (emphasizes presences lower bass), and Off (bypasses Bass Engine SQ).

    Audio Enhancements: The iLX-F309 provides Time Correction, Media Xpander Pro, and Source Volume Level to enhance your listening experience in the vehicle.

    • Time Correction: This unit is able to delay the audio signal to the speakers closest to the listener with its built-in Time Correction feature. This effectively creates a perception of increased distance for those speakers. Time Correction allows the listener to be placed at an equal distance between the left and right speakers for optimum staging. You can adjust the distance (0-336.6cm) or time delay (0.0-9.9msec) of each speaker and subwoofer to the listener. You are able to save three time correction presets.
    • Media Xpander HD: Alpine's exclusive Media Xpander HD is engineered to bring out the musical details lost in compressed media, and it is adjustable per source to get the most out of your digital audio media. The Media Expander HD makes vocals or instruments sound distinct regardless of the music source. The FM radio, USB memory, HDMI, iPhone/iPod, Pandora, and Bluetooth Audio will be able to reproduce the music more clearly even in vehicles with a lot of road noise.
    • Source Volume Level: The output level (+/-14dB) of each source can be individually adjusted. For example, if the Tuner level sounds lower than Bluetooth, its output can be adjusted without affecting the other sources.

    Alpine's TuneIt App: The Alpine TuneIt app (for Apple iOS 9.0+ & Android OS 4.0+) is an easy-to-use sound-tuning app that also offers Facebook notifications. Download this free app from the Apple App Store or Google Play onto your compatible Apple iPhone or Android device and create a user profile about your vehicle and sound system. Your iPhone must be connected to the Alpine receiver via the appropriate Alpine connector cable (500KCU471I, sold separately) or the cable that came with your iPhone. Your Android smartphone must support A2DP/AVRCP/SPP Bluetooth profiles and be paired with the Alpine receiver. Your iPhone or Android smartphone will also need an active Data Plan account with connection to the Internet via 3G, EDGE, or WiFi.

    • Sound Tuning: The Alpine TuneIt app turns your iPhone or Android smartphone into a sound tuning interface for the Alpine receiver. Follow the simple graphical instructions on your phone to adjust sound settings for your specific vehicle or choose from pre-made settings in the database. Settings that can be adjusted include Parametric EQ, Bass Engine SQ, Crossover, and Media Xpander. As you change settings on your smartphone, you will hear the results, so you can customize the sound to exactly how you want it. You can make and save up to 100 different sound settings in your account, which is helpful if you want various settings to use for specific types of music. After tuning your system, upload your settings to the Alpine Cloud Server to share them with other Alpine fans. You can also check out other user's settings and rate them. The more active you are, the higher your profile status progresses within the app.
    • Facebook Notifications: The Alpine TuneIt app also keeps you in touch with your Facebook friends. When you receive a notification, you will get a visual alert on the smartphone and the head unit, plus a sound alert through your car speakers. The visual notification includes the Facebook icon and the sender's name, with the profile picture shown on the phone. You are then able to listen to the notification via TTS (Text-to-Speech) through the head unit and your vehicle's speaker. You can even "Like" the notification from the head unit's front-panel controls. In order to receive Facebook notifications on the head unit, the Alpine TuneIt app must be the active app on your smartphone.

    Note: Access to the Alpine TuneIt app will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or smartphone to connect to the Internet. You will also need to turn on the GPS function of your phone.

    Beep Guide: This function will give audible feedback with varying tones depending upon the button pressed. The volume of this feature can be set from 0-7.

    AV & OEM Connectivity

    Camera Input: The iLX-F309 features a composite video rearview camera input which allows you to connect an optional backup camera with a composite video connector (sold separately - see Accessories Tab).

    • Guidelines: The rear-view camera function also provides on-screen color-coded guidelines to assist you when backing up your vehicle into a parking space. There is also a Hitch Guide feature which marks the position of the junction between your vehicle and your trailer on the head unit's monitor, when backing up.
    • Auto Rearview Switching:  If a rear-view camera is connected, you should also connect the unit's reverse lead wire (Orange/white) to your vehicle's back-up lamp circuit. When properly connected, the image from the rear-view camera automatically appears on the monitor when the vehicle is shifted into reverse. Automatic video switching takes approximately 0.75 seconds.
    • Optional Dual Camera Interface: The Alpine KCX-C2600B Multi-Camera Selector Interface (500KCXC260, sold separately) allows as many as two cameras (including an Alpine front & rear camera - sold separately) to be connected to the iLX-F309.
    Note: The rear view camera feature is meant as a back-up aid only; never solely rely on the rear-view camera when backing-up. In addition to using the rear-view camera, always look behind you to make sure everything is clear when backing up your vehicle.

    iDatalink Serial Port: The Alpine iLX-F309 is compatible with the iDatalink Maestro RR (794ADSMRR, sold separately); a web programmable module that will permit the aftermarket Alpine receiver to work with select Ford, Lincoln, and Mercury vehicles that feature the factory SYNC system; as well as select GM vehicles with factory OnStar; select Chrysler/Dodge/Jeep vehicles with U-Connect, plus select Honda/Acura, Toyota/Scion, Volkswagen & Subaru vehicles with factory digital amplifiers.

    • Retained Features: The iDatalink Maestro RR lets Ford/Lincoln/Mercury, GM, Dodge/Chrysler, and VW owners swap out their factory radio for this aftermarket Alpine head unit; while retaining the Ford Sync system, GM OnStar system, Chrysler/Dodge/Jeep U-Connect system, steering wheel controls, Bluetooth, USB interface, Satellite Radio, and 911 assist. You also get to keep the hands-free mic that comes with the car (which is specially tuned to that particular vehicle). *Retained features will vary by vehicle.
    • Extra Features: In some installations, the iDatalink Maestro RR lets you configure the head unit to operate interior climate controls and provides extra visual data; such as User Selectable Gauges, Vehicle Info (Tire Pressure/Battery Voltage/Check Engine Codes/Door Ajar Warning), and Visual Park Assist. *Extra features will vary by vehicle.

    Note: The iDatalink Maestro RR is web programmable, which means you'll need to flash the iDatalink Maestro RR interface module with the correct firmware from iDatalink's website. In addition to flashing the iDatalink Maestro RR module, you'll also need a vehicle specific harness (sold separately). The Alpine receiver's OEM Setup menu must also be configured with your compatible vehicle's factory system before initial operation.

    Audio/Video Input: The Alpine iLX-F309 is fitted with one rear-panel AV minijack (3.5mm) input to connect an external AV source.

    Loading accessories...

    Customer Q&A

    Q
    Crutchfield asked: Why did you buy this?
    A
    cuz i like big screen [ Nhi  Aug 24, 2019 ]
    A
    Centerpiece to show car build [ WILLIAM A  Jul 01, 2019 ]
    A
    From what I can tell this looks to be one of Alpines greatest inventions to compare to the euro style of dash technology. Looking forward to checking the Halo9 out. [ Timothy  Mar 07, 2019 ]
    A
    Because it's supper cool [ John Mcculley   Jan 04, 2019 ]
    A
    Only product of its kind! [ Thaddeus  Nov 09, 2018 ]
    A
    Needed CarPlay in a Single DIN Chassis - Finally! [ Joshua  Jul 14, 2018 ]
    A
    Looks and CarPlay [ Donald  Jun 27, 2018 ]
    A
    Its new and different from what is out there (a more to date styling). Plus it looks customizable enough to fit in my 2002 Maserati. [ Wayne  Jun 11, 2018 ]
    A
    Upgrading my Fiat 500e with a nicer quality radio system. This radio give the car a more tesla-like interior and is easier to reach than the factory radio. [ Ken  May 03, 2018 ]
    A
    I'm looking to do a complete custom install. Change the mounting location of my head unit and Alpine being the best this unit will fit my needs perfectly. [ Kevin  Apr 28, 2018 ]
    A
    I needed this unit to complete my stereo project for my truck. I was waiting on Alpine to develop a Re-Style unit for my truck, but then this unit came along. This unit will fit my truck and I can't wait for Re-Style any longer. [ Michael  Mar 01, 2018 ]
    SHOW MORESHOW LESS

    46 questions already asked

    Q
    Well the data link and the other interfaces work with the 2017 Camaro ?
    [ The dean  Oct 10, 2019 ]
    1 answer
    A
    The compatibility is a function of the iDatalink Maestro and is not really a question about the head unit. You need an interface that essentially sits on the data bus between your car and the head unit that handles then"translation" of instructions between the two different systems. Almost any headunit and vehicle combination can be loaded onto the iDatalink module during setup, but from looking on the Maestro website, the Camaro does not appear to be supported beyond the 2015 model year. You may want to reach out to them to understand why.
    [ Chris G  Oct 10, 2019 ]
    Q
    When combined with iDataLink Maestro, does this unit include the Ford heater steering wheel toggle? Thanks
    [ James  Aug 02, 2019 ]
    2 answers
    A
    I can tell you when I installed it in my 2013 Lincoln Navigator I did not get any of those features to work. So I can't give you a 100% answer on if they will with your truck.
    [ Kevin  Aug 02, 2019 ]
    A
    Installer said no
    [ JIMMY  Aug 02, 2019 ]
    Q
    Will this fit a 93 Honda Del Sol? It has a unique center console.
    [ Ben  Jul 02, 2019 ]
    1 answer
    A
    You can check to see if this will fit your vehicle by using our Outfit My Car tool: http://www.crutchfield.com/car/carselector.aspx For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
    [ Krissy  Jul 12, 2019 ]  Staff
    Q
    would it possibly work in a 2016 Honda accord if i install it with a Mounting Dash Kit for Car Radio ?
    [ joe  Jul 02, 2019 ]
    1 answer
    A
    I believe so! You should get in touch with one of our advisors : https://www.crutchfield.com/support/ContactUs.aspx to make sure you get all of the install gear you will need!
    [ Calvin  Jul 12, 2019 ]  Staff
    Q
    Is this waterproof? (For Motorcycle)
    [ Douglas  Jun 30, 2019 ]
    3 answers
    A
    NO
    [ Adam  Jul 01, 2019 ]
    A
    I don't actually know, but I would guess not. I'm surprised Crutchfield staff cannot answer this question. I would think this unit would be a bit cumbersome for a motorcycle.
    [ David  Jun 30, 2019 ]
    A
    Absolutely not.
    [ Chris G  Jun 30, 2019 ]
    Q
    Can I make this work in a motorhome with a 1.5 din radio in there now?
    [ don  May 19, 2019 ]
    4 answers
    A
    Ha! Funny you should ask! I'm in the process of making that happen. When I finish I'll let you know. Bought the first one for my Sprinter. Still working out the wiring. Lots of fun! My RV is next. Update you then
    [ Christopher  May 23, 2019 ]
    A
    I can't definitively say yes but after renovating my rv I would lean towards it being easily done. My rv had a 12vdc stereo system but you'll have to make a mounting system for it. If you're using the speaker outputs I would check the impedance of your speakers as well
    [ Bradley  May 19, 2019 ]
    A
    ??????
    [ Jason  May 19, 2019 ]
    A
    I don't see why not. Just make sure you buy the proper insert for fitment. The screen is pretty big so measure where your screens gonna go just to make sure you not blocking any of you controls or vents.
    [ Jason  May 19, 2019 ]
    Q
    Can you play Spotify music via Bluetooth or do you have to plug in to connect to Spotify?
    [ Nic001  May 16, 2019 ]
    1 answer
    A
    In order to have control over your Spotify through the Alpine head unit, you will need to be connected via USB. If you need immediate assistance, don't hesitate to reach out to any member of our advisor team by phone (1-800-324-9695) or online chat.
    [ Jess  May 23, 2019 ]  Staff
    Q
    What is the quality of the blue tooth handsfree calling? I have a Jeep Wrangler and back round noise can be pretty bad at times.. what is the quality while talking on the phone? Clear? A lot of back round noise for the person talking to me?
    [ Gina  May 06, 2019 ]
    5 answers
    A
    It is very good quality. My wife has this in her suv and drives around with the window down by the mic. It does just fine.
    [ Doug  May 16, 2019 ]
    A
    I use it in a Kenworth Truck. When driving the background noise is there and it seems worse when the window is open. If the truck is turned off with no motor running it is clear . I always find my self using my blue tooth headset when using my cell phone.
    [ Anthony  May 15, 2019 ]
    A
    I have it in a first gen Honda Insight, which like your Jeep it has a lot of background noise due to the sparse amount of sound dampening. The Halo 9 does fine with calls, people can tell I'm driving but the quality is acceptable. Internet calls such as with Skype/Google Voice do sound clearer, and the person on the other end can understand me better so I recommend doing those if possible instead.
    [ Frank  May 15, 2019 ]
    A
    Sound quality in my 2 Door JK is pretty good, actually much better than the unit this replaces.
    [ Joshuwa  May 15, 2019 ]
    A
    It seems to work pretty well. No one ever has a problem hearing me but my truck is pretty quiet and as far has hearing the other person it's great but I have a completely custom sound system so I don't know if that makes a difference or not. Over all I am extremely impressed with the radio. It is quite nice and works as good or better than the factory radio
    [ robert  May 15, 2019 ]
    Q
    dimensions, what is the exact outer height and width of the face ?
    [ Matthew  Apr 30, 2019 ]
    2 answers
    A
    6in high by 9 inches wide
    [ jim  May 07, 2019 ]
    A
    Screen dimensions are just inside of 9.25 in (w) x 6.0 in (h) x 1.75 in (d)
    [ Michael  May 07, 2019 ]
    Q
    Can I flush mount this in a 2012 VW GTI?
    [ kevin  Apr 27, 2019 ]
    2 answers
    A
    It's sole purpose is to protrude from the dash and pivot.
    [ Fletcher  Apr 27, 2019 ]
    A
    I don't believe this is possible. The screen attaches to the single din via plug which makes it stick out. If there was enough room in the dash behind the radio, you might be able to get creative...as far as factory mounted, I'd say no.
    [ Jacob  Apr 27, 2019 ]
    Q
    What's the details with open box deals ?
    [ Mark  Apr 10, 2019 ]
    3 answers
    A
    My Understanding is that in most cases someone bought the item opened it then decided they didn't want it and returned it. Pretty sure it will have all included items as if it was never opened no scratches or dents full warranty but you still should get clarification from Crutchfield on this question
    [ BRADLEY J  Apr 10, 2019 ]
    A
    Typically customer returns that should still be covered with full manufacturers warranty. Possibly missing some smaller easily misplaced parts (screws, washers, etc). If you're handy at figuring that stuff out you can maybe save a few bucks.
    [ Chris G  Apr 10, 2019 ]
    A
    My experience with open box purchase was very pleasant. All part were contained in the box along with installation instructions and manufacturers contact information. My unit was free on any type of defect. The unit works as advertised, I could not be happier.
    [ Larry  Apr 10, 2019 ]
    Q
    Why is this not compatible with the Toyota Sequoia? It is just a standard single din install? Sequoia would greatly benefit from this, the screen is so small on the factory head unit while the dash is massive.
    [ Thomas  Mar 28, 2019 ]
    1 answer
    A
    It's not clear why the Crutchfield compatibility checker lists it as not compatible with vehicles in which it certainly does fit. Example: I installed in a 2000 Tahoe that accepts single DIN (with an adapter kit), and this unit dropped right in just fine. They may not be willing to declare it compatible because unlike most traditional single DIN units, this one obviously has a large face that could be difficult to install if there are obstacles on the surface of the dash. In my Tahoe example, the steering-column gear shift lever barely clears the screen (by 1 mm) when in park, and the lip of the dash is almost in contact with the back of the screen. That's a tight fit, and had Chevy made that lip protrude just a little more, or made some other change to the dash, shift lever, or other item in the vicinity of the screen, it might not have worked. If there's plenty of empty space around your single DIN mount point, and your vehicle can accept single DIN units with/without an adapter, you should also be able to install it. I doubt that Crutchfield has the time or resources to go back through every vehicle in its database and ask this new compatibility question of "is the area around the DIN slot clear of surface obstructions that would interfere with a protruding touchscreen panel at Z height above the slot's face with dimensions of X by Y?" That's what it would take to make the compatibility checker be able to say "yes."
    [ Michael  Mar 28, 2019 ]
    Q
    Where can I buy the AV cable? I can only find left, right, video, ground 4-pole and not what Alpine wants: left right ground video (video closest to sleeve on the 3.5mm) thanks!
    [ Pablo  Mar 14, 2019 ]
    1 answer
    A
    What kind of cable are you looking for Pablo? That Alpine can accept HDMI or RCA analog AV connections. You can connect with one of our Product Advisors to see if we have the cable(s) you are looking for: https://bit.ly/2QNxGQB
    [ Cosmo  Mar 20, 2019 ]  Staff
    Q
    Is it compatible with 30 pin Classic ipod?
    [ Pablo  Mar 08, 2019 ]
    3 answers
    A
    No
    [ Michael  Mar 10, 2019 ]
    A
    Should be. You would just have to purchase iPod 30 pin adaptor for USB port
    [ seth  Mar 09, 2019 ]
    A
    It has a usb plug in so I'd assume so but obviously the phone part might not work being plugged in
    [ Joseph  Mar 09, 2019 ]
    Q
    Does the Halo9 have an ambient light on the bottom? If so, can it be turned off?
    [ Mike  Feb 26, 2019 ]
    3 answers
    A
    The bottom row of flush buttons are illuminated whenever the head unit is on but there is no lighting that projects from the bottom of the screen towards the center console.
    [ Chris G  Feb 27, 2019 ]
    A
    Yes it does and you can turn it off
    [ Tom  Feb 26, 2019 ]
    A
    Do you mean on the bottom buttons? Yes that's lit but it can't be turned off. There's no other ambient lighting.
    [ RYAN  Feb 26, 2019 ]
    Q
    why doesn't this fit my veh when every review I have watched says fits single din openings? Even says it the review below that older veh will rejoice.. You car advice system says no but everyone else says yes. Same goes for the other two ILX models. I have a Ford F-150 single cab no stx package. Please explain bc I just watched on YouTube where a guy put the 9" in a old 60s car which has way less room than I do?
    [ Mark  Jan 24, 2019 ]
    1 answer
    A
    The iLX-F309 is very front heavy due to the large monitor so, it is not recommended for installations that require a DIN sleeve. Alpine does not include a DIN sleeve with the stereo for this reason. The dash kits available for a single DIN install in your Ford require a DIN sleeve. For additional assistance and personalized recommendations, feel free to contact us directly by phone or through our online chat service: https://www.crutchfield.com/support/ContactUs.aspx
    [ Ryan  Jan 25, 2019 ]  Staff
    Q
    What speaker does android auto (not Bluetooth calls) read text messages and respond to inquires through? Front, rear, all? Only front left....anyone with a unit know?
    [ Eddie exquis  Jan 01, 2019 ]
    4 answers
    A
    It comes with a very small wired microphone that the installer will connect to the unit and hide it somewhere. Mine was hidden behind the rear view mirror.
    [ Anthony  Jan 08, 2019 ]
    A
    It plays over all speakers.
    [ Chris G  Jan 07, 2019 ]
    A
    Android auto outputs sound like all speaker by default. I haven't sought out any option/settings on either the unit or the app to change that behavior.
    [ Michael  Jan 07, 2019 ]
    A
    You can choose between front , all , left and right .
    [ Neil  Jan 07, 2019 ]
    Q
    Would this product work with a dsp?? Specifically the alpine pxa-h800???
    [ Michael  Dec 05, 2018 ]
    4 answers
    A
    You shouldn't need it with this head unit due to all the built in processors unless it was gonna be for surround sound
    [ seth  Dec 05, 2018 ]
    A
    Yes this will work with any DSP. I'm currently using a JBL MS-8 with no issues.
    [ Christopher  Dec 05, 2018 ]
    A
    You won't need it but it will work
    [ Jose  Dec 05, 2018 ]
    A
    Yes, absolutely. I am using the new Alpine DSP with wireless tech with this same head unit
    [ Lawrence  Dec 05, 2018 ]
    Q
    Is there an adapter available that will allow this unit to work with 360 degree around view backup camera systems?
    [ Chris  Dec 01, 2018 ]
    2 answers
    A
    Hi Chris! The input for the rear backup camera is an RCA input. There is no interactivity between the camera and the head unit; my guess is if the camera needs a specific signal to toggle modes, you'd need to do that with some other technology.
    [ Pete G  Dec 06, 2018 ]
    A
    Not that I am aware of, but I haven't sought one. There is one camera input which activates via reverse gear. Any multiple camera system may may need it's own selector to rotate through this input. I have not seen any split screen function.
    [ HOWARD  Dec 06, 2018 ]
    Q
    Is there an adapter available that will allow this unit to work with 360 degree around view backup camera systems?
    [ Chris  Dec 01, 2018 ]
    1 answer
    A
    Factory cameras can be retained in many vehicles with the proper installation accessories. You can see which options are available for your specific vehicle by using the "Find What Fits' application on the main Crutchfield website: https://www.crutchfield.com/car/outfitmycar/mycar.aspx For additional assistance and personalized recommendations, feel free to contact us directly by phone or through our online chat service: https://www.crutchfield.com/support/ContactUs.aspx
    [ Ryan  Dec 22, 2018 ]  Staff
    Q
    I'm curious why this says it is not compatible with a 2012 F-150? If it is because the unit does not include a DIN sleeve, is that something that could just be ordered separately and added?
    [ Darren  Oct 25, 2018 ]
    1 answer
    A
    That's correct. The large screen makes this unit very front-heavy so, it's not recommended for DIN sleeve installations.
    [ Ryan  Nov 01, 2018 ]  Staff
    Q
    Will this work in a Peterbilt 379 with the din hole up above the windshield?
    [ Tumble  Oct 05, 2018 ]
    5 answers
    A
    I don't see why not. I'm not 100% sure that you have enough vertical adjustment in the screen to clear your roof. How much room is there between the top edge of the DIN slot and the roof of the cab? If it's less than 4", I wouldn't even try it. Also, I know the screen does allow some tilt, but it's only to tilt the top edge towards the back of the unit (angle the screen up). I don't think you can angle the screen down which is what you'd want for a high mounted unit.
    [ Chris G  Oct 09, 2018 ]
    A
    That will all depend on how much clearance you have.
    [ Kevin  Oct 09, 2018 ]
    A
    It will mount into a single din opening and the screen will adjust down. Check the specs and see if there is enough clearance at the top of the screen when adjusted down. This is a great unit.
    [ Kevin  Oct 09, 2018 ]
    A
    This head unit will fit anywhere a din head unit will, as long as there's nothing sticking out along the perimier of the hole. Crutchfield told me according to their computer, it wouldn't fit in my 2014 Challenger and it fit beautifully.
    [ RYAN  Oct 09, 2018 ]
    A
    I have mine in a 2000 379 with a standard roof. Works perfect. Plenty of adjustments for the screen!
    [ Neil  Oct 09, 2018 ]
    Q
    How far does the screen tilt up and down? Does the screen detach easily for security once installed?
    [ Tony  Aug 28, 2018 ]
    9 answers
    A
    Once installed it cannot be moved or removed but it would be really difficult to get out. The unit has quite a bit of adjustment available to allow for the best final fixed location. The screen is attached to its single din brain. During installation the screen can be adjusted up and down in 15 mm increments and tilted to find the best dash location. I absolutely love ?? my Halo9 and with its large screen it makes regular double din units look ?? tiny in comparison. As long as you have the space to mount it it's the best option for Apple car play or android audio.
    [ Michael  Aug 29, 2018 ]
    A
    The screen has a limited amount of adjustments, and sticks out enough for the tilt of maybe an inch and a half in not less. Once secured the screen will not move and can't be adjusted after installing. It is a great unit I installed mine on my Harley Davidson motorcycle, and may decide to remove and install in my daily driver.
    [ Richard  Aug 29, 2018 ]
    A
    It's got plenty of tilt. The instructions call to lock it in, but i left mine free, and it stays in place. No, the screen is not meant to be removed. If someone stole it, they would need tools, and have to remove the entire DIN unit for it to be functional.
    [ Joshua  Aug 29, 2018 ]
    A
    Hi, the screen is bolted on and not easily removable. It is secure, I wouldn't be too concerned with someone being able to take this any easier than any other unit. The unit adjust from 90 degrees to around 50 degrees via pre drilled set screws. It is fixed, not adjustable as far as being able to continually adjust it without using tools to do so. I'm very pleased with this unit...top notch! Looks awesome in my 2017 Tundra.
    [ Jacob  Aug 28, 2018 ]
    A
    The tilt ability of this unit is broad enough for any application????, not only does it tilt, but it moves up and down ????. The face attaches to the unit utilizing 4 main screws and 1 additional screw that retains the cover for those 4 screws, in which the unit will not work without. To be more specific, this is not your typical single din unit that has some quick release button to take the face with you. That being said, the way this thing is mounted in your car, a theif has to disassemble the vehicle to remove it.
    [ Fletcher  Aug 28, 2018 ]
    A
    I don't know the tilt but it dos not cum off for security
    [ korey  Aug 28, 2018 ]
    A
    The pictures above show how far this tilts from front to back. And as far as detaching, The screen is secured with 5 screws, Making it permanent, and not easily removable for security reasons, unless you'd like to undo all 5 screws.
    [ Brian  Aug 28, 2018 ]
    A
    This system requires you to install a small screw for the screen to power up. Its a pain to put in and take out. I assumed this also held the screen to the bracket. (that's how the manual reads) BUT low and behold it does NOT hold the screen on. I have this is a bumpy Jeep Wrangler and has not ever come off the dash. I do reach up and press it quite a bit to make sure it wasn't moving. 3 months and never had an issue. I would think it will operate just fine this way. I like knowing I can take the display off when I park and leave for awhile with the doors and top off. As far as the tilt it doesn't go back much, pretty much straight up and down. But it does tilt forward maybe 30 - 45 degrees? More than enough for any vehicle. Plus the bracket allows you to mount 3-4 inches up or down so you don't block air vents or A/C controls. I would venture to guess it will fit the majority of cars with no issue at all. Having said all of this, the unit is designed my the manufacture to be installed, mount and bolted in a way that it would not be easy to remove every time you let the car.
    [ Grayson  Aug 28, 2018 ]
    A
    There is a lot of movement up or down probably over an inch. The screen is held securely in place by four screws are not the easiest to get to. Once you get it mounted it is not the easiest to remove. Someone with no knowledge of how it was installed would have great difficulty removing it.
    [ ART  Aug 28, 2018 ]
    Q
    Is this compatible with the Alpine KCX-C250MC?
    [ Mark B  Aug 18, 2018 ]
    1 answer
    A
    Unfortunately the Alpine iLX-F309 does not work with their KCX-C250MC multi-camera selector interface. For more details or to discuss further, please contact an Advisor directly by phone (888.955.6000) or online chat.
    [ Larry  Aug 22, 2018 ]  Staff
    Q
    Is it capable of of using a backup camera?
    [ Jay  Jul 31, 2018 ]
    8 answers
    A
    Yes
    [ Michael  Aug 05, 2018 ]
    A
    Yes, I use mine with a backup camera. This head unit is great!
    [ Kevin  Aug 01, 2018 ]
    A
    Yes, but for new subarus you need to purchase an idatalink maestro RR in order for it to work
    [ Camilo  Aug 01, 2018 ]
    A
    Absolutely. The input line I encountered during installation was the yellow composite RCA-style connector. One way to build a robust setup if you're using Alpine's cameras (that have proprietary connectors) is to pair it with the KCX-C2600B module. That takes Alpine's connectors on one end and routes feeds them out to the composite video on the iLX-F309. It also provides you a controller: press and hold to switch between front and rear cameras (if installed).
    [ Michael  Aug 01, 2018 ]
    A
    I have the Honda factory back up camera working with this unit but it has a bad view (fish eye view). Would recommend an after market lens specifically something compatible with this HU from Alpine.
    [ Anthony  Aug 01, 2018 ]
    A
    Yes. I am actually using my factory Toyota FJ Cruiser camera with the Alpine. I tapped in to the feed from the camera to my rear view mirror with its integrated screen and now get the camera feed on both my mirror and in my dash.
    [ Chris G  Jul 31, 2018 ]
    A
    Yes, any camera with an RCA connector
    [ David  Jul 31, 2018 ]
    A
    Yes
    [ Kevin  Jul 31, 2018 ]
    Q
    Can it be adjusted to face left, more facing the driver or right, more facing the passenger?
    [ KEVIN S.  Jun 22, 2018 ]
    4 answers
    A
    No, the unit does not support pivot.
    [ Matthew  Jun 22, 2018 ]
    A
    No it tilts and it slides up and down but once you find the right position it won't move anymore
    [ Matthew  Jun 22, 2018 ]
    A
    No. The sliders for the screen only move up and down vertically, allow you to angle it upwards and downwards, or inwards or outwards from the base. Those are all notched too so you don't have that much freedom with those options either.
    [ Thomas  Jun 22, 2018 ]
    A
    no it only faces straight out and the up down angle can be manually adjusted.
    [ Kabir  Jun 22, 2018 ]
    Q
    Does the sound output for bluetooth hands-free calling play through both the RCA line outputs and the amplified speaker outputs? Does it play through both front and rear channels, or just through the front? If it plays through the front only, does it still play even if the fader is set all the way to the rear? (I'm using an outboard DSP that has a time delay, so I need to route the Bluetooth calling sound so it does not go through the DSP.)
    [ musicfan145  Jun 12, 2018 ]
    2 answers
    A
    You can set which speakers the sound for calls come from.
    [ seth  Dec 05, 2018 ]
    A
    According to the Owner's Manual, "you can adjust Caller Level and Mic. Level (Microphone Level) during a phone call via Bluetooth hands-free." However I'm afraid Alpine doesn't specify much else about the audio output during a Bluetooth phone conversation. For more information on that you can check Alpine's support site: http://www.alpine-usa.com/support You can also contact a Crutchfield Advisor directly by phone (888.955.6000) or online chat to discuss further.
    [ Larry  Jun 23, 2018 ]  Staff
    Q
    IS THERE A PLACE TO CONNECT A USB THUMB DRIVE?
    [ A  Jun 03, 2018 ]
    4 answers
    A
    Yes. The back of the unit has both a USB and HDMI connection. You would need to run an extension out if you wanted "forward facing" access. There is no USB connection on the unit face.
    [ Timothy  Jun 11, 2018 ]
    A
    I do not know the answer. I returned this unit. Sorry.
    [ Lorenzo  Jun 10, 2018 ]
    A
    Yes, it has a rear USB port and comes with an extension cable for access.
    [ Jacob  Jun 09, 2018 ]
    A
    There is no front-facing USB port however there is one on the rear of the head unit. A USB extension cable is included and if you run it from the back to somewhere in the cabin you can connect a thumb drive.
    [ Matthew  Jun 09, 2018 ]
    Q
    I'm looking to stream on it through HDMI. I have a Samsung Note 8. Would this be an issue? I know alot of other units have a problem with it streaming anything at all....
    [ Vladislav  Jun 03, 2018 ]
    1 answer
    A
    The Samsung Note 8 is a device that supports MHL and that means it can work! You will need to get the microUSB 5-pin to 11-pin adapter to use Alpine's HDMI connection kit to make this work. Here is that HDMI connection kit: www.crutchfield.com/p_500KCU610M/item.html My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=101
    [ Paul  Jun 09, 2018 ]  Staff
    Q
    can i have an xbox display on this unit and then run it to addition monitors as well?
    [ Rocky  May 22, 2018 ]
    2 answers
    A
    You cant, rather you shouldnt try to split HDMI signals. Results is unintended consequences
    [ Lawrence  Dec 05, 2018 ]
    A
    II would think you could with the HDMI port. You'd need an HDMI splitter for others.
    [ David  May 22, 2018 ]
    Q
    Does it really have rear/dual zone support with hdmi OUT like the iLX-207 or is that a typo? Unboxing videos show just hdmi input. Which is it?
    [ R  May 01, 2018 ]
    2 answers
    A
    It has an hdmi input only.
    [ Adam  May 08, 2018 ]
    A
    I'm almost 100% positive that is a typo because the unit only has a single HDMI input. No outputs
    [ Tim  May 07, 2018 ]
    Q
    Does Alpine offer an outboard CD / DVD player for the Halo 9 ILX f309 receiver?
    [ Andre  Apr 21, 2018 ]
    2 answers
    A
    Yes they have a separate DVD player for this unit
    [ James  Apr 21, 2018 ]
    A
    Not that I'm aware of. The HDMI input can be used for that though. I use my phone connected to the HDMI INPUT, birecttv,netflix,etc.
    [ CURTIS  Apr 21, 2018 ]
    Q
    Detachable face?
    [ James  Mar 22, 2018 ]
    1 answer
    A
    The floating display is mounted to the chassis via 5 screws. It can be detached from the chassis during installation, but it is not something that detaches for removal from the vehicle for safekeeping.
    [ Chris G  Mar 28, 2018 ]
    Q
    How secure is the screen (for security purpose and vibration)?
    [ Paul  Mar 17, 2018 ]
    2 answers
    A
    The screen is securely mounted to the chassis, so the overall strength of the installation depends more on how the radio chassis is mounted to your vehicle. I installed in an FJ Cruiser that had a factory double din head unit. I was not able to reuse my metal mounting brackets so I bought both the Metra and Scosche dash kite. Ended up going with the metra one. It's fairly solid but it could be better. The screen feels secure but I do worry it may not be up to off-road duty specs. If you have a factory single din opening and reuse the metal iso mounts that come with your car I think it would be super solid.
    [ Chris G  Mar 28, 2018 ]
    A
    5 screws to good the screen on. Make sure you find a dash kit with metal brackets or it will vibrate on rough roads.
    [ Adam  Mar 27, 2018 ]
    Q
    I have a 2014 Honda Ridgeline RTL. So far your site says this head unit is not compatible but the dimensions are not an issue. Because this is a new head unit to market does it just take time for Crutchfield to develop the install protocol with proper wiring harness or is your site up to date and I'm truly out of luck with my vehicle and this head unit through Crutchfield? Thanks in advance!
    [ Joshua  Mar 16, 2018 ]
    1 answer
    A
    The reason the stereo is not currently recommended for your Ridgeline is that the dash kit we offer for the install requires the compatible stereo to come packaged with a DIN sleeve. At this time, the Alpine iLX-F309 does not come with a DIN sleeve. For additional assistance and personalized recommendations, feel free to contact us directly by phone or through our online chat service: https://www.crutchfield.com/support/ContactUs.aspx
    [ Ryan  Mar 30, 2018 ]  Staff
    Q
    What is the default and or the farthest distance the screen is from the single din case?
    [ Scott  Mar 15, 2018 ]
    2 answers
    A
    It is not adjustable within this range. There are two fixed distance settings. It comes set for the 70mm and can be adjusted to 50mm. I have mine mounted in a Toyota FJ Cruiser with the 50mm setting.
    [ Chris G  Mar 29, 2018 ]
    A
    The front of this screen will be anywhere from 50-70mm from the chassis My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=101
    [ Paul  Mar 26, 2018 ]  Staff
    Q
    Will this fit a Jeep Wrangler 2018 JK? If so, does it require you to cut any of the radio?
    [ zackh123  Mar 14, 2018 ]
    2 answers
    A
    Should fit fine with no cutting required. It's adjustable in the up and down position and the in and out from the dash for more space.
    [ seth  Dec 05, 2018 ]
    A
    You can check to see if this will fit your vehicle by using our Outfit My Car tool: http://www.crutchfield.com/car/carselector.aspx For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
    [ Krissy  Mar 25, 2018 ]  Staff
    Q
    Is it compatible with infiniti QX60?
    [ Hussam  Mar 12, 2018 ]
    1 answer
    A
    You can check to see if this will fit your vehicle by using our Outfit My Car tool: http://www.crutchfield.com/car/carselector.aspx For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
    [ Krissy  Mar 27, 2018 ]  Staff
    Q
    With your provided pictures, the back of the unit has a port that says GPS, is this for dedicated GPS navigation?
    [ adame  Mar 04, 2018 ]
    2 answers
    A
    The GPS port is for the included GPS antenna. There is no built-in navigation with this receiver, though. The mapping is done solely through Apple CarPlay or Android Auto (or another app you might have on your phone). The GPS antenna is there to augment your phone's GPS info, especially if you lose cell reception. But do not expect to have GPS guidance without a phone connected.
    [ Jules  Mar 07, 2018 ]
    A
    The GPS works along side your phones GPS and yes, is pretty much dedicated to navigation.
    [ P  Mar 06, 2018 ]
    Q
    Will the navigation work independently or does it have to be connected to a smart phone? Does the navigation display posted speed limits?
    [ Caleb  Mar 01, 2018 ]
    1 answer
    A
    Needs to be connected with either Android Auto Or I-Phone. I'm using a Galaxy S9 and once plugged in your Google maps will come up. Loos AWESOME on the big screen.. Kevin
    [ Kevin  Mar 02, 2018 ]
    Q
    What are the screen dimensions? How far does it come off of the single din base?
    [ Nathan  Feb 26, 2018 ]
    1 answer
    A
    The Alpine iLX-F309's "halo" screen measures 9.24" wide x 5.9" tall. The screen can be positioned 0.75" (20mm) deep from the default position to be closer to the dash, and higher or lower up to 1.1875" (30mm) from the default position to adjust for height in the dash. For more details or to discuss further, please contact an Advisor directly by phone (888.955.6000) or online chat. Thanks!
    [ Larry  Mar 07, 2018 ]  Staff
    Q
    What is the length and width of the screen?
    [ mar  Feb 26, 2018 ]
    2 answers
    A
    I checked our hands-on research and was able to confirm the dimensions R Edwards listed are what we found when we measured! My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=101
    [ Paul  Mar 05, 2018 ]  Staff
    A
    235.2 mm wide 152.2 mm tall. A detailed drawing can be found on page 18 of the install manual.
    [ R  Mar 04, 2018 ]
    Q
    Does it connect to CarPlay or Android Auto via bluetooth ?
    [ Augusto  Feb 25, 2018 ]
    2 answers
    A
    No you have to connect the phone to the unit to access car play
    [ Matthew  Jun 22, 2018 ]
    A
    It connects to CarPlay and Android Auto via a wired connection to your smartphone. There is Bluetooth involved, but these are not wireless connections. For a wireless CarPlay stereo, check out the Alpine iLX-107. There should be wireless Android Auto aftermarket receivers coming out later this year.
    [ Jules  Feb 27, 2018 ]
    SHOW MORESHOW LESS

    Loading articles...

    TOP
