Alpine RUX-KNOB.2

Remote subwoofer level control

Item # 500RUXKNO2

California customers:
Please click here for your Proposition 65 warning.

Top seller

Item # 500RUXKNO2

In stock
$29.95

About the Alpine RUX-KNOB.2

Alpine Authorized Online Dealer

Tweak the subwoofer volume from the driver's seat

The RUX-KNOB.2 remote level controller works with Alpine's amplifiers so you can manage your bass level from the front of your vehicle. This handy little knob adjusts your amp's level from its set maximum volume all the way down to virtually "off." Since it adjusts level and not "bass boost," you'll maintain the same bass tone as you turn the volume up and down. You can control multiple amplifiers with a single remote by adding a standard phone cable splitter (not included).

Product highlights:

  • remote level controller for Alpine amplifiers
    • mono amps
    • sub channel of 5-channel amps
    • bridged channels 3/4 of the X-A70F
  • adjusts gain from 0 to -12 dB
  • multi-amp capable (standard phone cable splitter required — not included)
  • 16' connection cable
  • warranty: 1 year
  • Our 60-day money-back guarantee
  • MFR # RUX-KNOB.2

What's in the box:

  • Alpine Remote Bass Level Control module
  • 16.4' (5 meter) connecting cable (RJ-14 plugs on both ends)
  • 4 Self-tapping screws (Length 1/2")

Customer reviews

Loading reviews...

Alpine RUX-KNOB.2 reviews

Average review:

62 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the Alpine RUX-KNOB.2

Mark G.
The Alpine RUX-KNOB.2 replaces these items:

Product Research

Features

Overview: The Alpine RUX-KNOB.2 is a Remote Bass Level Control for compatible Alpine amplifiers. It allows you to adjust the bass output of the amplifier remotely from the driver's seat. The RUX-KNOB.2 comes with a 5-meter (16.4 feet) cable with an easy plug-'n-play installation.

Compatibility: The RUX-KNOB.2 is designed for controlling the overall output level of Alpine mono amps, the level of bridged channels 3/4 of 4-channel amps, or the subwoofer channel of 5-channel amps. It is compatible with the following Alpine amplifiers (as of August 2017):

  • X Series: X-A70F, X-A90V, X-A90M
  • PDX Series: PDX-M12, PDX-M6, PDX-V9
  • MRX Series: MRX-M55, MRX-M110, MRX-M240, MRX-M50, MRX-M100, MRX-M200, MRX-V60, MRX-V70
Note: The RUX-KNOB.2 can be used with amplifiers that are compatible with the older RUX-KNOB.

Rotary Control: The Alpine RUX-KNOB.2 is equipped with a rotary knob for adjustment of your connected amplifier's bass level. The remote has an adjustment range of 0 (max) to -20dB (min).

Mounting: The RUX-KNOB.2 features two mounting flanges for mounting the knob on or under your dash. Four self-tapping screws are included.

Dimensions: The RUX-KNOB.2 has the following dimensions:

  Width Height Depth
Module 1" 1.015" 1.656"
Overall 1.772" 1.015" 2.243"

Loading accessories...

Customer Q&A

11 questions already asked

Q
does this knob work with Alpine S-A60M?
[ darien v  Jun 21, 2020 ]
2 answers
A
Yes this knob will work with the A60M. You can confirm this by reviewing the amps Product Highlights area. This knob is a must have unless your amp is in your lap (which Im sure it's not).
[ Arthur  Jun 21, 2020 ]
A
These are a must for any amp running bases speakers. Easy to install and adjust base volume on the fly.
[ Gary  Jun 21, 2020 ]
Q
Can this be wired to control the volume of my Alpine head unit?
[ JR  May 17, 2020 ]
3 answers
A
Although it might not matter either way; you did not include your model head unit in your question. Since this appears to be a potentiometer style controller, it is unlikely to work with any modern style head unit as a volume control. Unless your unit has specifications to work with this knob in such a fashion, it will not work. Long story short, no. It does work great in attenuating the output of an Alpine MRV-M500 though.
[ Ryan  May 21, 2020 ]
A
This is used to adjust the input level to an amp. I use mine on a sub amp to attenuate the amount of bass as the levels vary with different songs and different recordings, etc. Now I'm curious, may I ask why you would want to adjust the volume of a head unit with this as opposed to just using the head unit's volume knob?
[ Tommy  May 17, 2020 ]
A
I only used the control to adjust the bass so unfortunately I can't help
[ Allan  May 17, 2020 ]
Q
Does the knob come with the cable wire if not what other knobs and wire are alike too this one? Looking too connect too alpine MRV-M500
[ Jorge  Feb 17, 2020 ]
4 answers
A
Yes it comes with the cable. It is plenty long enough as well for 99% of vehicles. Definitely worth having in the system
[ HARLEY  Feb 20, 2020 ]
A
yes it comes with wire. I don't remember if it is 6 or 10 or more feet of wire but it should be enough for most applications. with the alpine rux knob it does not take the place of gain like in some other rux knobs, but instead it allows you to use full gain where it is set or turns it down from there. so if you want to use it to turn up bass for music with less bass you'll have to set your gain higher and use the knob to turn down bass for punchier music.
[ joseph  Feb 17, 2020 ]
A
Comes with the wire
[ Gary  Feb 17, 2020 ]
A
When I ordered it, it come with the cable, so I would assume it will still come with the cable. And I'm using this with my Alpine MRV-M500 Hope this helps
[ Justin  Feb 17, 2020 ]
Q
What's the difference between using the RUX-KNOB and the built in equalizer inside my Kenwood 396 header inoder to increase or decrease footprint of the amp?
[ Stephen  Jan 27, 2020 ]
1 answer
A
Thanks for your question. For information on comparing two or more models I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They will be able to help determine the differences and help you make the best choice for your system and your budget.
[ Krissy  Mar 02, 2020 ]  Staff
Q
Will this work on the pwe-s8 powered subwoofer?
[ Britt  Jan 10, 2020 ]
1 answer
A
We have not received any answers from other customers on your question. I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They should be able to help answer your question.
[ Calvin  Feb 13, 2020 ]  Staff
Q
Does this work with the MRV-F450?
[ Chris  Jun 02, 2019 ]
1 answer
A
Unfortunately, Chris, Alpine RUX-KNOB.2 isn't a compatible option for the Alpine MRV-F450 amp. I did some research on the MRV-F450, and I'm not seeing an option for a compatible remote with that amp. Feel free to reach out to us by chat online, or by phone, we'll be happy to help. 1-800-324-9695
[ Jess  Jun 16, 2019 ]  Staff
Q
Need a bass knobs that will connect to planet audio big bang 4000 watts amp?
[ Toriano  May 28, 2019 ]
2 answers
A
That bass knob uses a proprietary connection specific to Alpine amps. I don't have anything specific to Planet Audio but if you have it connected via RCA cables you could use a universal level controls like this EFX: https://bit.ly/31q0iFe
[ Cosmo  Jun 10, 2019 ]  Staff
A
I bought it because it was made for Alpine amps. Using it for a different manufacture is taking a chance that it might not work. Check to see if the manufacturer of you amp has an bass controller.
[ BILL  Jun 06, 2019 ]
Q
Will this work with the Alpine PWA-S10V?
[ David  Apr 12, 2019 ]
3 answers
A
Per Alpine..... COMPATIBLE MODELS The RUX-KNOB.2 is specifically designed as the controller for use with any of the following PDX Amplifiers: MRV-M1200, Mrv-M500, MRV-M250, PWA-S10V, KTP-190U, MRX-M50, MRX-M100, MRX-V60, PDX-M12, PDX-M6, PDR-M65, PDR-V75, PDX-V9, X-A70F (3 Channel Mode), X-A90V, and X-A90M.
[ Tracy L.  Apr 12, 2019 ]
A
The PWA-S10V uses a MRV-M250 amp which does work with the RUX-KNOB.2
[ timothy  Apr 12, 2019 ]
A
Yes it will, but the Control Knob needs to be paired with an Alpine AMP.
[ Alton  Apr 12, 2019 ]
Q
Can the unit be disassembled for flush mounting?
[ Rodney  Mar 02, 2019 ]
3 answers
A

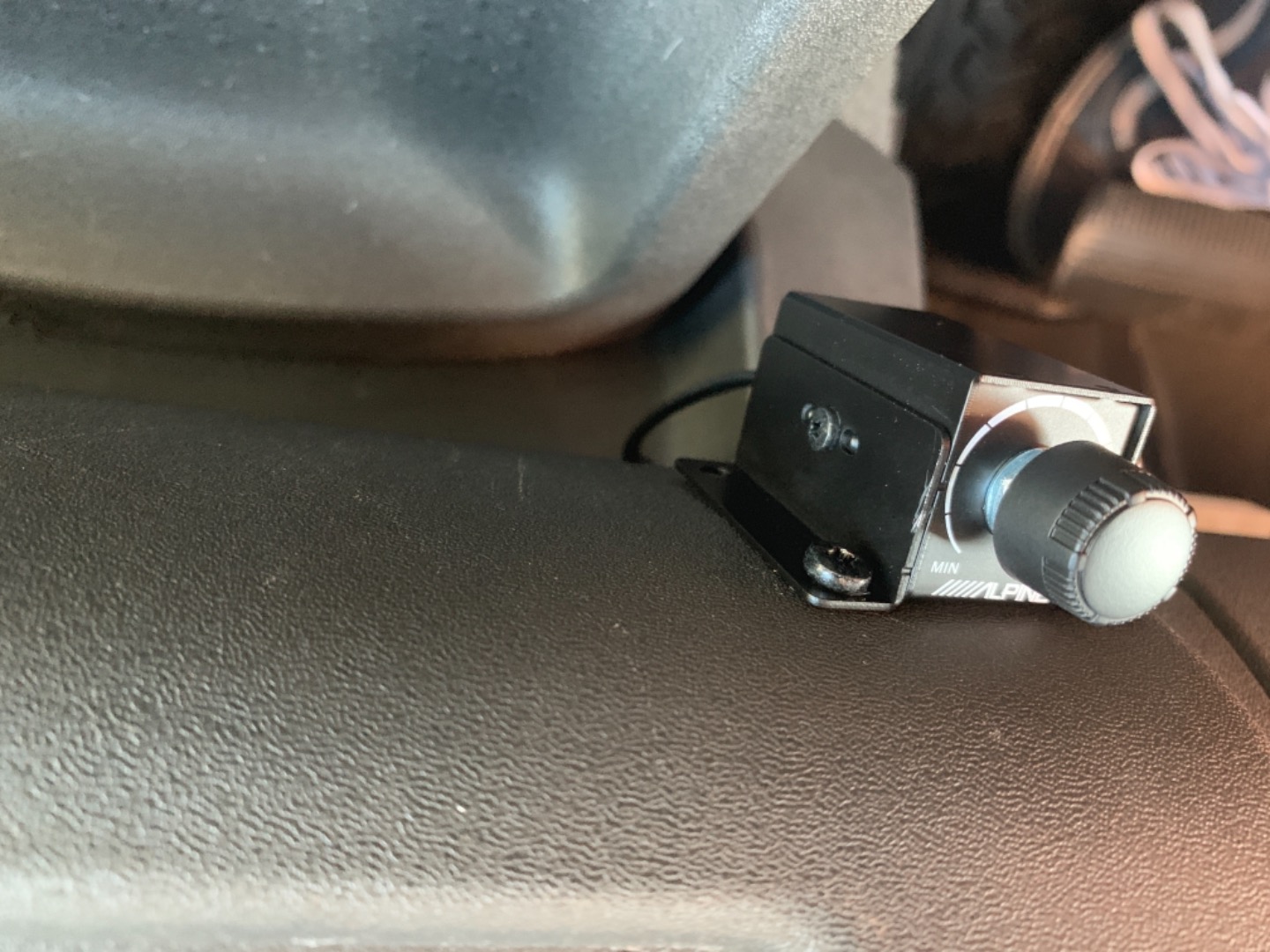

The Unit comes with two removable Brackets attached to it's sides. They can be removed by removing one screw, each. I mounted the Unit as is, just inside of a compartment opening below the Radio. I don't think you can take the housing off for a flush mount. This is about all that I can assist with regarding flush mounting. Al
[ Alton  Mar 07, 2019 ]
A
The two little L shaped brackets unscrew on each side. But it does not come with any other brackets to mount it with.
[ Alexis  Mar 07, 2019 ]
A

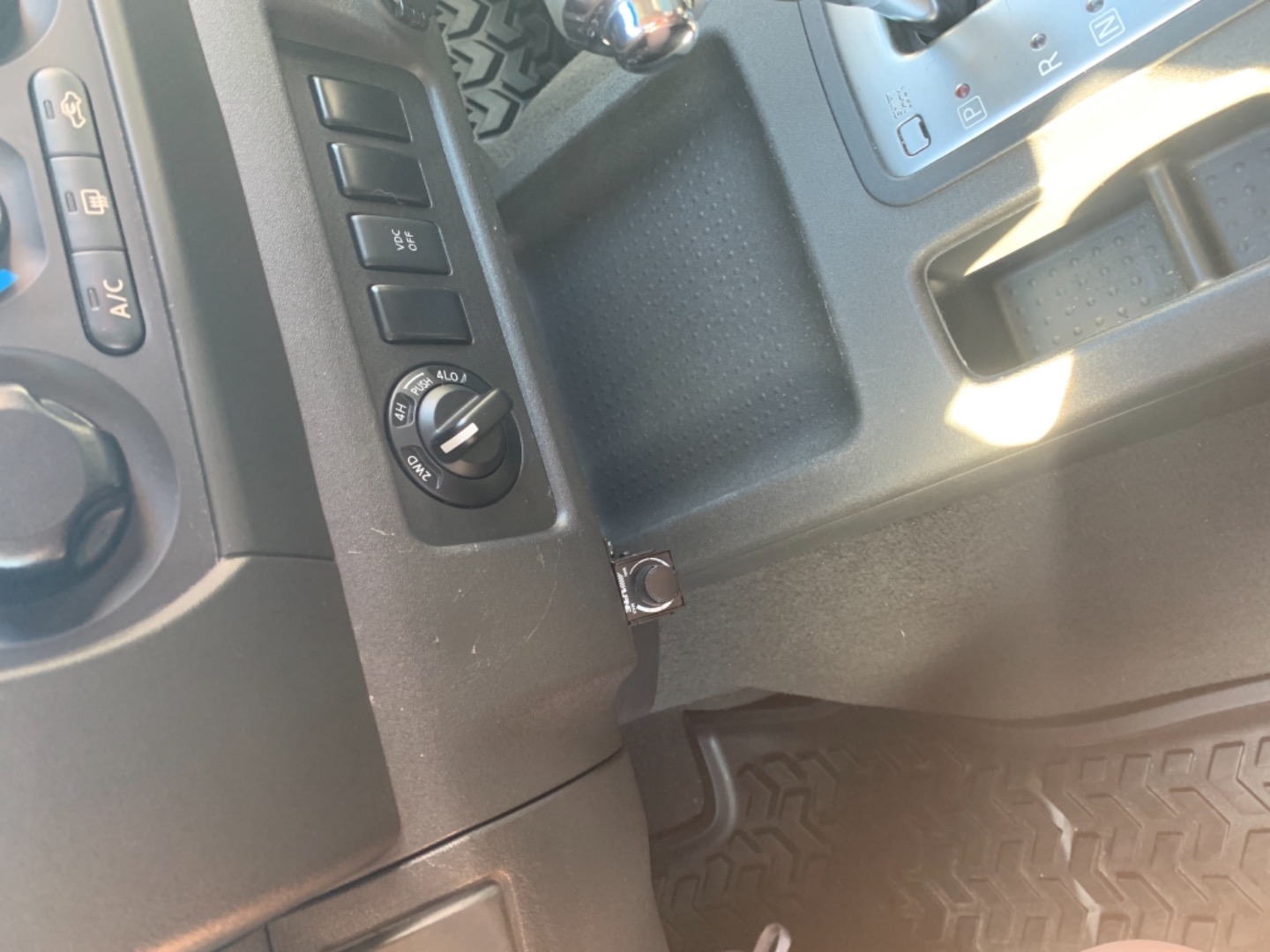

Yes. I've installed mine through the dash from and all that is visible is the knob.
[ Brian  Mar 07, 2019 ]
SHOW MORESHOW LESS
