Alpine SBV-10-WRA

Weather-resistant sealed enclosure with 10" subwoofer — fits select 2007-18 Jeep Wrangler JK Unlimited models

Item # 500SBV10WR

Alpine designed their SBV-10-WRA sealed sub enclosure to fit under the passenger seat of 2007-17 Jeep Wrangler JK...

Find what Fits your car

Alpine designed their SBV-10-WRA sealed sub enclosure to fit under the passenger seat of 2007-17 Jeep Wrangler JK...

California customers:
Please click here for your Proposition 65 warning.

Top seller

Item # 500SBV10WR

In stock

$349.95 Sale: -$69.99 off

$279.96

About the Alpine SBV-10-WRA

Great bass in a convenient space

Alpine designed their SBV-10-WRA sealed sub enclosure to fit under the passenger seat of 2007-17 Jeep Wrangler JK models (also fits the early 2018 JK body style), giving you the bass you need without taking up cargo space. Alpine loads the SBV-10-WRA with a rugged 10" subwoofer, which handles up to 350 watts RMS to deliver powerful bass. The sub's 2-ohm impedance ensures maximum output from your mono amplifier.
Alpine Authorized Online Dealer

Great bass in a convenient space

Alpine designed their SBV-10-WRA sealed sub enclosure to fit under the passenger seat of 2007-17 Jeep Wrangler JK models (also fits the early 2018 JK body style), giving you the bass you need without taking up cargo space. Alpine loads the SBV-10-WRA with a rugged 10" subwoofer, which handles up to 350 watts RMS to deliver powerful bass. The sub's 2-ohm impedance ensures maximum output from your mono amplifier.

Compact enclosure

Alpine's experts have carefully tuned the enclosure to deliver maximum punch from its high-performance sub. The box's rubberized material and weather-resistant construction earned it an IP66 weatherproof rating. Since the enclosure mounts under the passenger seat, you'll get great bass even with the top off.

READ LESS

Product highlights:

  • sealed enclosure with 10" subwoofer
  • fits under passenger seat in 2007-17 Jeep Wrangler JK models (also fits the early 2018 JK body style)
  • 2-ohm impedance
  • IP66 weatherproof rating
  • handles up to 350 watts RMS (1,050 watts peak power)
  • frequency response: 45-200 Hz
  • warranty: 1 year
  • Our 60-day money-back guarantee
  • MFR # SBV-10-WRA

What's in the box:

  • Pre-loaded 10" subwoofer enclosure w/attached 4" wiring harness
  • Matching wire harness w/4" bare-ended 12 AWG wire
  • Warranty registration sheet w/serial#
  • Warranty coverage sheet
  • Safety and warnings

Customer reviews

Loading reviews...

Alpine SBV-10-WRA reviews

Average review:

12 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the Alpine SBV-10-WRA

Pat M.

Product Research

Features

Overview: The Alpine SBV-10-WRA pre-loaded sub enclosure is designed to fit under the passenger seat of select 2007 - 2018 Jeep Wrangler Unlimited (JK) models, giving you deep bass without taking up valuable space. (Please enter your vehicle information to confirm fit.) The 10" pre-loaded 2Ω sub is non-amplified and can handle up to 350 watts RMS/1,050 watts peak power. Housed in a durable ABS enclosure, the SBV-10-WRA carries an IP66 weatherproof rating.

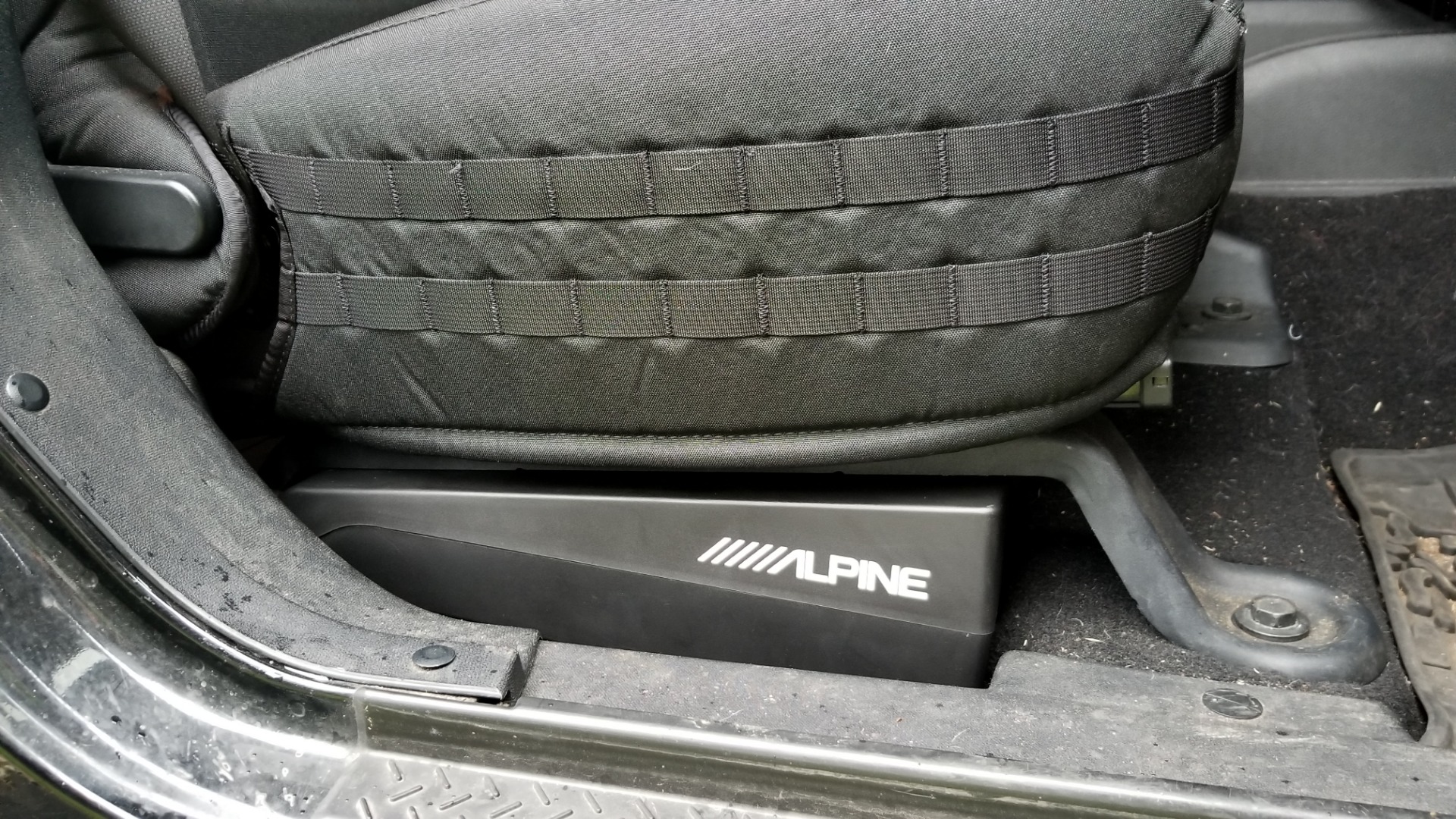

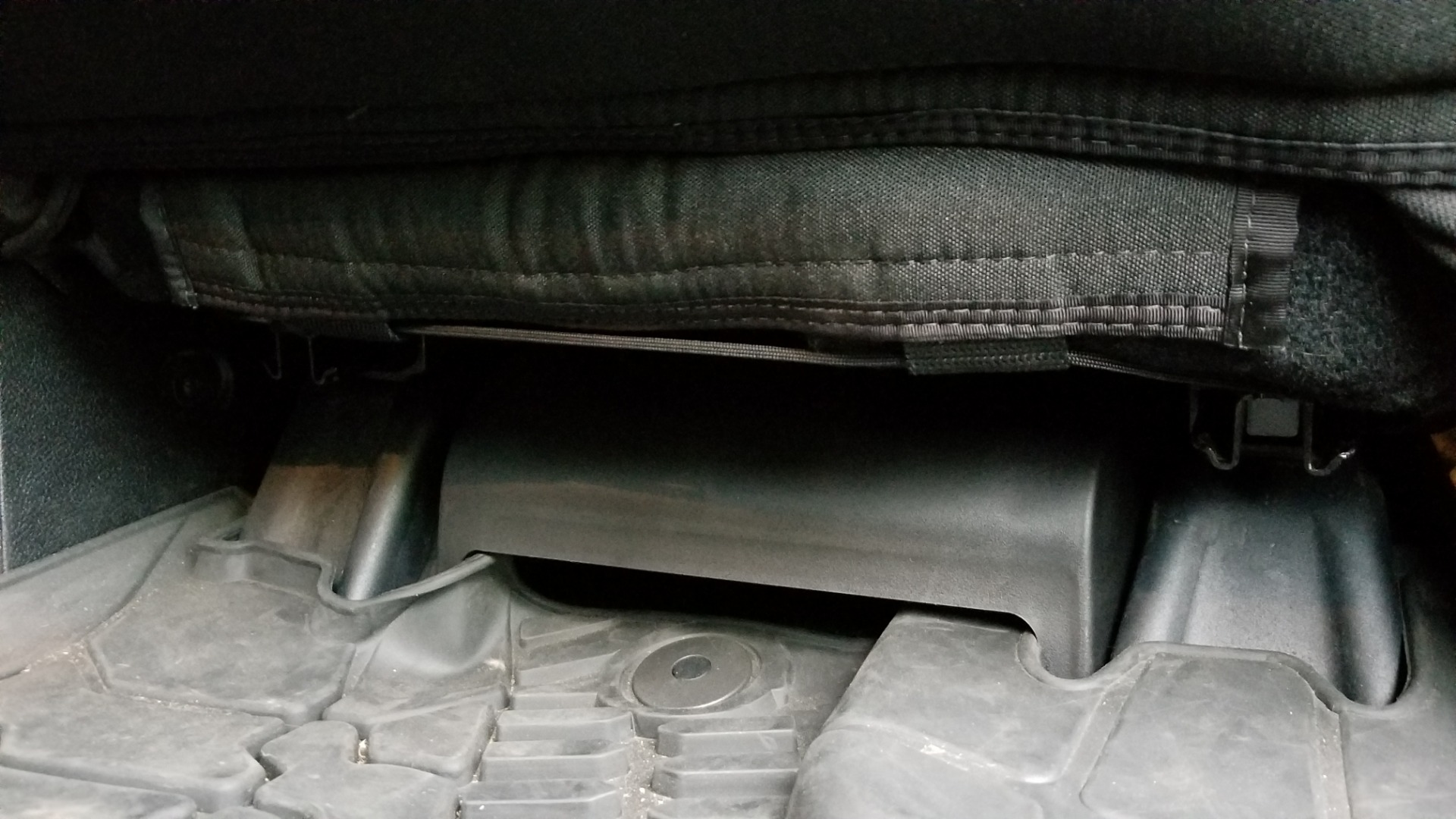

Mounting: The Alpine subwoofer installs under the passenger seat with no mounting hardware. The enclosure's shape allows it to be held firmly in place between the passenger seat brackets, so removing and re-installing the seat is all that's needed for mounting the sub.

Wiring: The SBV-10-WRA requires an outboard amplifier (sold separately) and includes a built-in 4" harness with a waterproof connector on the end. A matching connector with an additional 4" of bare 12 AWG wire plugs into this and is then extended to an amplifier.

Loading accessories...

Customer Q&A

Q
Crutchfield asked: Why did you buy this?
A
Adding low end while saving space in the Wrangler [ Quentin  Jul 05, 2020 ]
A
Chris was very helpful with his knowledge. [ JIM  Mar 27, 2020 ]
A
Perfect fit for my new Wrangler [ Jeremy  Aug 02, 2018 ]

15 questions already asked

Q
Will this fit in a 2019 JL? If not, has Alpine made a new version?
[ Robyn  Nov 19, 2019 ]
1 answer
A
This doesn't fit JL models. I've looked at Alpine's site and seen there is an upgrade with a powered subwoofer for the JLU model; but nothing for the JL model. This might change in the future so I'd recommend checking with an advisor by calling 1-800-324-9695
[ Paul  Dec 04, 2019 ]  Staff
Q
would this fit on my 2011 jeep wrangler 2dr with no modification to the seat would the seat move to the front location so someone can seat in the back seat with no problem ?
[ noylan  Oct 06, 2019 ]
3 answers
A
Yes, this subwoofer will mount underneath the passenger seat of your Jeep Wrangler. The seat stays in the same location, but you have to remove two small brackets and reroute a wiring harness to make room for the subwoofer (it takes up every inch of space). Back seat riders will not have a problem with the sub, but it will take away what room would have been available before the sub.
[ Jessica  Oct 07, 2019 ]
A
It fits perfect, and sounds amazing. You wont even know its there. I installed in a JK 4 door and it was mint. Double check fitment for the 2dr.
[ Richard  Oct 06, 2019 ]
A
Yes, this would work fine. It doesn't obstruct the seat movement at all.
[ JASON  Oct 06, 2019 ]
Q
If I already have the Alpine PWE-S8-WRA installed under my drivers seat, can I add the Alpine SBV-10-WRA under passenger too (using stock radio)?
[ SmokyJKinKS  Aug 16, 2019 ]
1 answer
A
Sure. You will need an amplifier, and wiring kit to power the SBV-10-WRA, and you will have to tap into your speaker wires for signal, but you could make it work for sure.
[ Calvin  Aug 25, 2019 ]  Staff
Q
My alpine amp is under passenger seat, so if I get this where would my amp go?
[ Jay  Jun 02, 2019 ]
5 answers
A
If it is the FACTORY AMP, then you will have to find another subwoofer option. If this is an AFTERMARKET amp, then if you want to use this sub then you will have to find another place to mount your amp.
[ Jessica  Jun 15, 2019 ]
A
I mounted a small Rockford Fosgate amp under the back seat. It's angled and still allows the seat to fold down. Depending on the size of your amp you could mount it under the drivers seat or in the factory amp location under the steering wheel.
[ Gary  Jun 15, 2019 ]
A
we installed our amp under the drivers seat. There's a guy on eBay that makes and sells an amp bracket/shelf that's perfect for under the drivers seat of a Wrangler JK and it keeps everything off the floor.
[ JASON  Jun 14, 2019 ]
A
I mounted my alpine amp under the driver's seat
[ John  Jun 14, 2019 ]
A
I have since sold my Jeep, but... I mounted and wired it underneath the rear passenger seat. Logistically placed so the folding mechanism would clear it when seats folded down. Not much room, was able to do it so the wiring wasn't impacted.
[ JOHN  Jun 14, 2019 ]
Q
I know this sub will work for my 2017 jeep, but will there be an issue with the fit since the connectors/brackets for the heated seats is directly under the seat? Thanks for your time with my question.
[ cruz  May 12, 2019 ]
4 answers
A
You will have to remove the bracket and zip tie the harness to the seat so that it doesn't interfere with the sub.
[ Jessica  May 24, 2019 ]
A
You will need to remove the bracket and use a zip tie to attach the wire connector in place.
[ Doug  May 13, 2019 ]
A
It will not be an issue. The mounting bracket for the wires going to the heater and seat belt indicator will be removed during installation. The wires will be moved out of the way. I saved the mounting bracket and used it under the driver seat to mount the amp. There is another bracket under the driver. The two together with a little modification make a great area for the amp. Up off the carpet and lower enough under the seat so heat from the amp won't be an issue.
[ DONALD  May 12, 2019 ]
A
You can relocate any brackets and harnesses with zip ties. You will have to do this for the seat belt harness as well
[ Ron  May 12, 2019 ]
Q
Can I also put one under the driver seat if I wanted more base? I have a 2015 Jeep Wrangler 4 door
[ Cassandra  Jan 04, 2019 ]
8 answers
A
No, because the box is built asymmetrically. It won't fit under the driver's seat. This enclosure and sub, with adequate power (I used a 350w amp) is more than adequate thump and bass for your Jeep. I run it at about half gain to keep the sound balanced, in my opinion. I am unexpectedly pleased with its performance.
[ Jay  Jan 08, 2019 ]
A
I think you can choose a version for driver or passenger side. We have a passenger version. We have a 5 channel amp with around 375 watts to this woofer. To say it simply, it sounds so good, even the installer couldn't believe how good it sounded. Highly recommended!
[ Michael  Jan 06, 2019 ]
A
I'd say no, the way it is molded fits perfectly under the passenger seat. It wouldn't fit under the driver's seat as designed.
[ JOHN  Jan 05, 2019 ]
A
This sub is meant for under passenger seat mounting only. The contour of the box will not allow you to install under driver seat
[ Jeremy  Jan 05, 2019 ]
A
NO. This subwoofer is made to fit the PASSENGER SIDE ONLY.
[ Jessica  Jan 04, 2019 ]
A
No. Its shape is specific to passenger side.
[ Ron  Jan 04, 2019 ]
A
No, this item only fits under the passenger side seat.
[ JASON  Jan 04, 2019 ]
A
Should be able to?
[ Jak  Jan 04, 2019 ]
Q
Will this system fit in a 2 door (not unlimited) jeep jk? Will swing mechanism interfere?
[ Brian  Jul 28, 2018 ]
1 answer
A
Yes: The Alpine SBV-10-WRA pre-loaded sub enclosure is designed to fit under the passenger seat of 2007 - 2017 Jeep Wrangler JK models. The Alpine subwoofer installs under the passenger seat with no mounting hardware. The enclosure's shape allows it to be held firmly in place between the passenger seat brackets, so removing and re-installing the seat is all that's needed for mounting the sub.
[ Ryan  Aug 01, 2018 ]  Staff
Q
I have the PSS-21 WRA system. Can I buy this and swap it out for the PWE-S8?
[ Johnny  Jul 24, 2018 ]
1 answer
A
This is not a powered sub. It requires an amp. I mounted an amp under the driver's seat and the Alpine sub goes under the passenger seat.
[ Ron  Jul 24, 2018 ]
Q
Will this fit a 2011 Sahara Unlimited? The description says 2007-2018 but the vehicle figment feature says it doesn't fit. Also other websites say this fits only 15-18 jeeps
[ Eric L  Jul 09, 2018 ]
1 answer
A
It is recommended for the 2011, yes. You can download the Alpine manual (which shows the compatible vehicle year range) by clicking the link for it under the "What's in the Box" heading on the enclosure's main webpage. For additional assistance and personalized recommendations, feel free to contact us directly by phone or through our online chat service: https://www.crutchfield.com/support/ContactUs.aspx
[ Ryan  Jul 14, 2018 ]  Staff
Q
Is this plug n play or do i need to purchase an amp to go with it?
[ BRANDON  Jul 08, 2018 ]
1 answer
A
The SBV-10-WRA requires an external amplifier to power it. It's rated to handle up to 350 watts RMS and presents a 2 Ohm impedance. For additional assistance and personalized recommendations, feel free to contact us directly by phone or through our online chat service: https://www.crutchfield.com/support/ContactUs.aspx
[ Ryan  Jul 12, 2018 ]  Staff
Q
Will this fit underneath the driver seat of a 2012 Jeep Wrangler unlimited?
[ Ken  Jun 29, 2018 ]
1 answer
A
Sorry, no. The enclosure is made to mount under the passenger's seat specifically.
[ Ryan  Jul 05, 2018 ]  Staff
Q
What is the actual speaker mounting depth of the Alpine SBV-10-WRA subwoofer only? Just curious in case I want to change the sub itself.
[ Jacob  Apr 29, 2018 ]
1 answer
A
Unfortunately the depth of the subwoofer itself is not provided for Alpine's SBV-10-WRA. For more information on that, you may want to contact Alpine's support directly; or searching the Alpine Support page from their website: https://www.alpine-usa.com/index.php/support
[ Larry  May 09, 2018 ]  Staff
Q
The website says this fits my vehicle but it is listed as only fitting a 2007-2018 jeeps not a 2004? so will it fit in my jeep or not?
[ ogman  Apr 22, 2018 ]
1 answer
A
Hi Owen. There was an issue with the way this item was filtered, and it was showing up for incorrect vehicles. This should be corrected now, but it doesn't appear that this will work with the 2004.
[ Jeff  May 04, 2018 ]  Staff
