Alpine X-S65C

X-Series 6-1/2" component speaker system

Item # 500XS65C

If you've been an Alpine devotee from car to car, their X-Series speakers are your opportunity to take the leap to...

Find what Fits your car

If you've been an Alpine devotee from car to car, their X-Series speakers are your opportunity to take the leap to...

California customers:
Please click here for your Proposition 65 warning.

Need help?
Contact our Virginia-based experts.
3 advisors available

Item # 500XS65C

Ships free

In stock

Other options

Add to wishlist

About the Alpine X-S65C

Premium Alpine components

If you've been an Alpine devotee from car to car, their X-Series speakers are your opportunity to take the leap to premium sound. Designed with a laser-focus on superior imaging, this X-S65C 6-1/2" component speaker system will bring out the very best in your audio system. And an all-new magnet design in a cast aluminum frame allows these speakers to have a low profile, so they can fit in a wide array of vehicles.
Alpine Authorized Online Dealer

Premium Alpine components

If you've been an Alpine devotee from car to car, their X-Series speakers are your opportunity to take the leap to premium sound. Designed with a laser-focus on superior imaging, this X-S65C 6-1/2" component speaker system will bring out the very best in your audio system. And an all-new magnet design in a cast aluminum frame allows these speakers to have a low profile, so they can fit in a wide array of vehicles.

All about the build

Alpine uses a powerful magnet and a super-efficient motor structure to make the 6-1/2" woofer really strong in the lower frequencies. The woofer cone itself uses a specialized fiber for extreme rigidity while Alpine's proprietary High Amplitude Multi-Roll surround ensures durability in the face of extreme temperatures.

Serious power handling

The separate 1" carbon graphite dome tweeter handles the high frequencies with satisfying accuracy, and its extended frequency response lends a sense of realism and atmosphere unmatched by lesser tweeters. Driven by an aftermarket amplifier, you'll really have a soaring system, thanks to power handling up to a whopping 120 watts RMS.


Product highlights:

  • component speaker system includes two woofers, two tweeters and two external crossover networks
  • 6-1/2" nano-fiber woofer with High Amplitude Multi-Roll surround
  • 1" carbon graphite dome tweeter
  • handles up to 120 watts RMS (330 watts peak power)
  • frequency range: 55-50,000 Hz
  • sensitivity: 89 dB
  • woofer top-mount depth: 2-5/16"
  • grilles included
  • warranty: 1 year
  • Our 60-day money-back guarantee
  • MFR # X-S65C

What's in the box:

  • 2 Woofers
  • 2 Woofer grilles
  • 2 Grille badges
  • 2 Tweeters (each has a 26" length of wire attached)
  • 2 Tweeter grilles (installed)
  • 2 Surface mount housings (with tweeters installed)
  • Two tweeter crossovers (each has attached 32" input and 14" output wires)
  • 2 Rectangular adhesive backed pads (crossover)
  • 2 Circular adhesive backed discs (tweeter)
  • Eight 1-1/8" Screws
  • Eight 5/8" Screws
  • 8 Speed-clips
  • 4 Speed nuts
  • Four 5" Zip ties
  • Warranty information
  • Important Notice
  • On-line product registration information
  • Templates and specs on box

Featured video:

Customer reviews

Loading reviews...

Alpine X-S65C reviews

Average review:

4 reviews

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:


Ken from Wenonah, NJ on 1/29/2019

2016 Jeep Wrangler Unlimited

Verified customer (What's this?)
Verified employee purchase (What's this?)

This speaker was paired with Alpine i209 and an Alpine X-A70F amp. 1 week in the vehicle and the sound is distorted all the time. Pretty disappointed that something so new and so expensive wouldn't last a week. I don't see how a 120w speaker can't handle the power from the matching amp.


Cons: Expensive Not Durable

Crutchfield response on 1/30/2019
Ken, we're sorry you're having issues with your speakers. Whenever you encounter a problem with anything you purchase from Crutchfield, please contact our Tech Support team. They can help you solve the problem or set up a return within 60 days of purchase. Lifetime tech support comes with every Crutchfield purchase.

4 of 7 found this helpful


Michael from Crystal Lake, IL on 8/12/2018

2015 Chevrolet Silverado 1500

Verified customer (What's this?)
Verified employee purchase (What's this?)

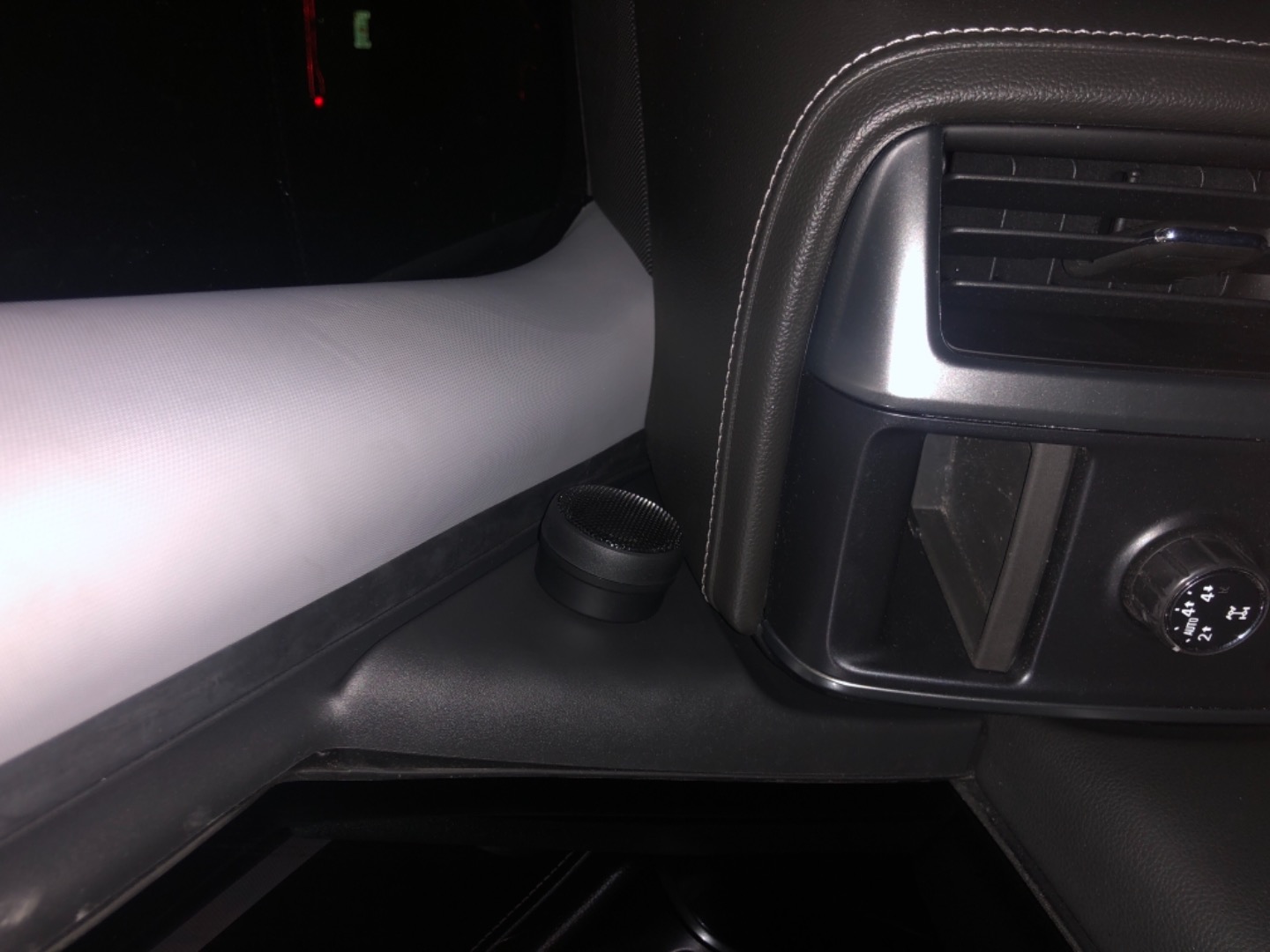

Had these in my car for a little over a month, paired with a pdx-v9, birthed at 132rms x 4 at 4 ohms and gained with a dd-1. Doors are sound deadened and have fast rings. I'll just start with the one negative about these , and that's the tweeter mounting options. These can only be surfaced mounted, so no flush mounting in a -pillars, sail panels, dashes. Luckily for me I had them mounted to the sail panels and when the doors closed it blends in nicely but sticks out like a sore thumb when the doors open. But all is forgiven because the sound quality on these are fantastic! These can play every genre of music incredible, and even when I'm really putting the strain on my equipment these stay strong, warm and clear as the volume goes up. The mid bass is great, but you have to spend the time to prepare your doors for these speakers. If your just gonna drop these in without any deadner, you're not gonna get as great of results. Anothe Great thing about these is that you don't need a big bulky crossover to wire up, the mid naturally rolls off, so it just needs a high pass filter for the bottom end and the tweeter has a inline crossover with 3 dB attenuations, -3, 0, and +3. If your debating between these or the alpine r type components up and buy these.

Pros: Warm sound that will rival any $500-$750 speaker.

Cons: Tweeter mounting

Crutchfield response on
Customer review photo Customer review photo

5 of 5 found this helpful


Jesse from Azusa, CA on 11/24/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Fantastic, best component speaker set I have ever owned, put my image dynamic xs65 to rest for this pair and have no regrets

Pros: Loud, crisp, clear couldn't ask for a better set of components , tweeters are very clean an clear sounding , I have them set on 0 on crossover and they do not sound harsh at high volumes at all being fed by an alpine pdx f6 amp

Cons: not much hardware included for tweeter install, or options to mount them

Crutchfield response on

6 of 6 found this helpful

Audiophile Sound Quality / Short on Accessories

Kenneth from McDonough, GA on 6/24/2017

2008 Honda Ridgeline

Verified customer (What's this?)
Verified employee purchase (What's this?)

Amazingly clear and extremely loud components. The Alpine X-S65C definitely fulfills Alpine's goal of creating a component speaker that not only gets loud but also provides an audiophile listening experience. Why only four stars? Well, although the speakers sound divine, I would expect a component set in this price range to have come with more accessories. The carbon graphite tweeter is rather large and can only be flush mounted. Components costing much less usually come with hardware for other mounting options. Also, the speaker terminals are larger than my previous Alpine SPR-60c's. Crutchfield provided a set of speaker harnesses for my vehicle which was nice of them, but they didn't fit. Alpine should have included the connectors. The baskets are larger than on the type R's, and although Crutchfield lists these speakers as a fit for my 2008 Honda Ridgeline they do not fit without cutting sheet metal or installing 1" speaker rings. I chose the latter, but I cut down the factory speaker baffles inside the door panels and installed a set of Fast Rings to couple the speaker to the factory grills. An Alpine pdx f4 is sending a certified 114 watts RMS per channel to these speakers up front and a set of JL Audio C5 Evolutions in the rear. Under the rear seat is a JL Audio CP208LGW3v3 powered sub. Head unit is a Kenwood DDX392. I plan to replace the Kenwood with the Pioneer AVIC-8200NEX. Entire cab is sound deadened. Volume at 16 is rock concert quality or better!

Pros: Accurate sound reproduction, distortion free at high volumes, plenty of mid bass, beautiful midrange and highs

Cons: Lacking hardware for tweeter mounting options, tweeter flush mount only and rather large, price is rather high, doesn't fit 2008 Honda Ridgeline without modifications

Crutchfield response on

22 of 22 found this helpful

Verified customer (What's this?)
Verified employee purchase (What's this?)



Crutchfield response

<< >>

More details on the Alpine X-S65C

Pat M.

Features & specs

Speaker Size 6 1/2
Design 2-way
Tweeter Design 1" Dome
Impedance (Ohms) 4
Tweeter Composition Carbon Graphite
Woofer Composition Nano-Fiber
Woofer Surround Rubber
Parts Warranty 1 Year
Labor Warranty 1 Year
Sensitivity (1W at 1 meter) 89
Sensitivity at 2.83 volts N/A
Frequency Response 55 - 50k Hz
Minimum RMS Wattage ---
Maximum RMS Wattage 120
Peak Power Handling (Watts) 360
Top-mount Depth (Inches) 2 3/8
Bottom-mount Depth (Inches) N/A
Cutout Diameter or Length (inches) 5 7/16

Product Research


Cast Aluminum Frame: The woofers feature a cast aluminum frame. The frame is lightweight, yet rigid, to resist flexing during long cone excursions to deliver powerful bass.

Woofer Size: Some manufacturers, including Alpine, call this size woofer a 6-1/2". Because it requires a larger cutout than a standard 6-1/2" speaker, Crutchfield has traditionally referred to this size woofer as a 6-3/4". Please enter your vehicle information to confirm fit.

Neodymium Woofer Magnets: Because neodymium produces a much stronger magnetic field than ferrite (of the same size), the magnet size and mounting depth are reduced.

Tweeter Mounting Options: The tweeters come installed in a surface-mount housing. No flush mount option is included. The installed tweeter dimensions are:

  Surface Mount
Mounting Depth N/A (screw depth)
Mounting Height 1.335"
Frame Diameter 1.968"

Crossovers: The tweeters' high-pass crossovers are in-line between the woofers and tweeters. Two-sided tape is included to mount the high pass crossovers and their dimensions are:

  • Width: 1.81"
  • Height: 1.21"
  • Depth: 2.76" (3.25" including wire)

Tweeter Attenuation: Each crossover has three tweeter level options, allowing you to precisely tune the high frequencies to the car interior and tweeter placement. Using the supplied jumpers select -3 dB, 0dB (flat), or +6dB. Other jumpers allow reversing the tweeter phase.

Loading accessories...

Customer Q&A

Crutchfield asked: Why did you buy this?
Pumping out 125w Rms off their 4 channel , adding these components to a full range system. [ herbert  Mar 28, 2018 ]
upgrade existing car [ Garrett  Sep 12, 2017 ]

4 questions already asked

What amp would you use to power these?
[ Manic  Jun 22, 2018 ]
1 answer
Thanks for your question. For information on selecting the best amp for your speakers I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They will be able to help determine the differences between the amp models and help you make the best choice for your system.
[ Krissy  Jul 02, 2018 ]  Staff
I'm wondering about the crossover network. From what i can see the crossover module only has one input and output for the tweeter. What's stopping the woofer from reproducing high end frequencies?
[ Stuart  May 11, 2018 ]
1 answer
The crossover for the XS65c is not the traditional signial in with mid and tweeter out. One set of the crossover wires connects to one of two sets of terminals on the mid woofer, and the other set connects to connectors coming off the tweeter. I can assure you that the most d woofer isn't receiving high frequencies. This is one of the best sounding sets of component speakers that I have ever heard. Alpine is known for producing high quality equipment, and the X series are their flagship models.
[ Kenneth  May 12, 2018 ]
Caponet speaker best?
[ Ricky  Mar 17, 2018 ]
1 answer
There are applications and audio goals that do make them the best, but then there are also times when coaxial speakers are the best choice. I recommend calling an advisor on 1-800-324-9695 for a personal recommendation My Bio:
[ Paul  Apr 02, 2018 ]  Staff
does it fit front door of 2009 Toyota rav4?
[ poisson  Jun 18, 2017 ]
1 answer
You can check to see if this will fit your vehicle by using our Outfit My Car tool: For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
[ Krissy  Jun 18, 2017 ]  Staff
