About the Soundstream Reserve RS2.1200
An amp with the power you want
Soundstream designed their Reserve Series RS2.1200 2-channel amplifier to supply your speakers or subs with clean power, and give you the ability to tune the amplified sound to match each driver. The RS2.1200 can send each of a pair of speakers 150 watts RMS, for some very loud rockin'. Or, you can power a subwoofer with up to 440 watts RMS from bridged channels.
An amp with the power you want
Soundstream designed their Reserve Series RS2.1200 2-channel amplifier to supply your speakers or subs with clean power, and give you the ability to tune the amplified sound to match each driver. The RS2.1200 can send each of a pair of speakers 150 watts RMS, for some very loud rockin'. Or, you can power a subwoofer with up to 440 watts RMS from bridged channels.
Tuning the sound
Tuning features include variable high-pass and low-pass filters to match the sound to your speakers and subs, along with a selectable bass boost to add some punch. The RS2.1200 employs AB amp technology, in order to achieve the highest fidelity for your full-range system.
Soundstream Reserve
Soundstream knows that Crutchfield offers free lifetime tech support for the gear we sell — and that's one of the reasons why we can offer you their Reserve line of powerful car amplifiers.

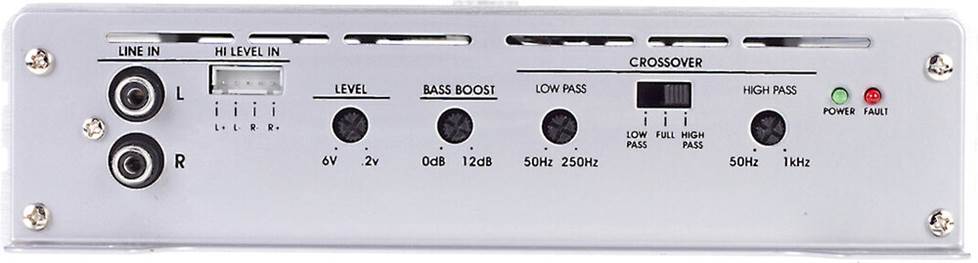

RS2.1200 input and control panel
Product highlights:
- 2-channel car amplifier
- 150 watts RMS x 2 at 4 ohms
- 220 watts RMS x 2 at 2 ohms
- 440 watts x 1 bridged at 4 ohms
- Class AB amp technology
- variable high-pass filter (50-1000 Hz, 12 dB/octave)
- variable low-pass filter (50-250 Hz, 12 dB/octave)
- variable bass boost (0-12 dB at 45 Hz)
More Info:
- preamp and speaker-level inputs
- wiring and hardware not included with amplifier
- 8-gauge power and ground wire recommended
- fuse rating: 40A x 1
- dimensions: 12-1/4"W (including wire) x 2-3/16"H x 8-3/16"D
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # RS2.1200
What's in the box:
Soundstream Reserve RS2.1200 owner's manual
- 2-channel amplifier
- 11" Speaker level input harnesses
- 40-amp ATO fuse (installed)
- Four 1" Screws
- 4 Flat washers
- 4 Split lock washers
- Owner's manual
Customer Q&A
Q
can I run 2 MTX TN12-02 with this amp bridged?
A
Should be OK, I'm running 2- 10" kickers bridged from my amp
12 reasons to shop with us
#12
Trusted since 1974
Here talking gear for many a year.
REVIEWS
Customer reviews
Loading reviews...
Soundstream Reserve RS2.1200 reviews
Average review:
Thanks for submitting your review
Most reviews are processed and published within 5 business days. You will receive a confirmation email once your review has been published.
Customer photos
More details on the Soundstream Reserve RS2.1200
Researched by Crutchfield's Mark G.
Features & specs
| Performance | ||
|---|---|---|
| RMS Power Output (Watts x Channels) |
150 x 2 | |
| Peak Power Output (Watts x Channels) | 600 x 2 | |
| Power at 2 Ohms (Watts x Channels) | 220 x 2 | |
| Bridged Power (Watts x Channels) | 440 x 1 | |
| Minimum Impedance Bridged | 4 | |
| Minimum Impedance Unbridged | 2 | |
| Minimum Impedance | 2 | |
| Best Frequency Response | 15-25k Hz | |
| THD at Rated RMS Power | 0.05% | |
| Signal to Noise Ratio | 105 dB | |
| Input Voltage | --- | |
| Features | ||
| Amplifier Class | AB | |
| Low-Pass Crossover Frequency | 50-250 Hz | |
| Low-Pass Slope (dB/octave) | 12 dB/octave | |
| High-Pass Crossover Frequency | 50-1,000 Hz | |
| High-Pass Slope (dB/octave) | 12 dB/octave | |
| Bass Boost | 0-12 dB | |
| Bass Boost Frequency | 45 Hz | |
| Fan Cooled | No | |
| Fuse Rating | 40 | |
| Speaker Level Inputs | Yes | |
| Preamp Outputs | No | |
| Width (inches) | 12-1/4 | |
| Height (inches) | 2-3/16 | |
| Depth (inches) | 8-3/16 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
Product Research
Features
Power Output:
- 4Ω: 150 watts RMS x 2-channels
- 2Ω: 220 watts RMS x 2-channels
- Bridged: 440 watts RMS x 1-channels into 4Ω
Controls
- Level Control (Gain): rotary dial; adjustable from 0.2 Volts to 6.0 Volts
- Crossover Mode: 3-position switch; choose Full Range (crossover is bypassed), High Pass, or Low Pass; both crossover slopes are 12 dB/octave
- Frequency: the high pass and low pass crossover
points are independently set:
- High Pass: rotary dial; 50-1,000 Hz
- Low Pass: rotary dial; 50-250 Hz
- Bass Boost: rotary dial; 0 dB (flat) to +12 dB; centered at 45 Hz
Connections
- Power/Ground/Remote Turn-on: The amplifier has screw terminals for the power, ground, and remote turn-on, and will accommodate spade connectors. The power and ground terminals are 0.5" wide and the remote turn-on terminal is 0.35" wide.
- Speaker Output: Two pair of screw terminals are provided for connecting the speakers. The terminals are 0.35" wide, and accommodate spade connectors.
- Line Input: The amplifier has one pair of RCA input jacks.
- Speaker Level Input: When an RCA line level signal is not available, use the included 11" speaker level input harness.
- Fuse: The amp has one 40-amp ATO blade fuse.
Loading accessories...
Customer Q&A
4 questions already asked
Q
can I run 2 MTX TN12-02 with this amp bridged?
[ alex Aug 19, 2021 ]
1 answer
A
Should be OK, I'm running 2- 10" kickers bridged from my amp
[ ZEBB Aug 20, 2021 ]
Q
Can this be run at 2 ohms bridged and if so what is the RMS?
[ Cody Jul 26, 2021 ]
1 answer
A
This amp is not 2 ohm stable when bridged to 1 channel. We offer other amps and a few are 2 ohm stable when bridged and mono amps that can run a 2 ohm load. I recommend contacting an advisor by calling 1-800-324-9695 to discuss your gear and get a personal recommendation on a matched system
[ Paul Jul 31, 2021 ] Staff
Q
I have a vintage Mercedes and I just purchased two pairs of Infinity Reference speakers. I would like to get a bit more punch than the 2x25 that the stock stereo outputs. The stereo has 2-channel low level line out. All the wiring is factory and currently there is an external fader that sends the 2-channels to the 4 speakers. Can I put this between the fader and the stereo? I have 4 speakers but only a 2-channel stereo, will this setup work?
[ Stephen Jun 13, 2021 ]
1 answer
A
You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.
[ Calvin Jul 12, 2021 ] Staff
Q
What is the current draw on this particular amplifier?It would be adapted to home use. Hard to get that information to determine power supply requirements. Thanks
[ Karl May 21, 2021 ]
1 answer
A
This amplifier can pull up to 40A DC
[ Paul Jun 09, 2021 ] Staff
