PAC OS-2C-CTSX Wiring Interface

Connect a new car stereo and retain OnStar®, warning chimes, and the amplified audio system in 2003-07 Cadillac CTS or SRX models

Item # 541OS2CTSX

PAC's OS-2C-CTSX interface lets you replace the radio in 2003-07 Cadillac CTS and SRX models while...

Find what Fits your car

PAC's OS-2C-CTSX interface lets you replace the radio in 2003-07 Cadillac CTS and SRX models while...

California customers:
Please click here for your Proposition 65 warning.

Need help?
Contact our Virginia-based experts.

Item # 541OS2CTSX

Ships free today

In stock
$99.99
Add to wishlist

About the PAC OS-2C-CTSX Wiring Interface

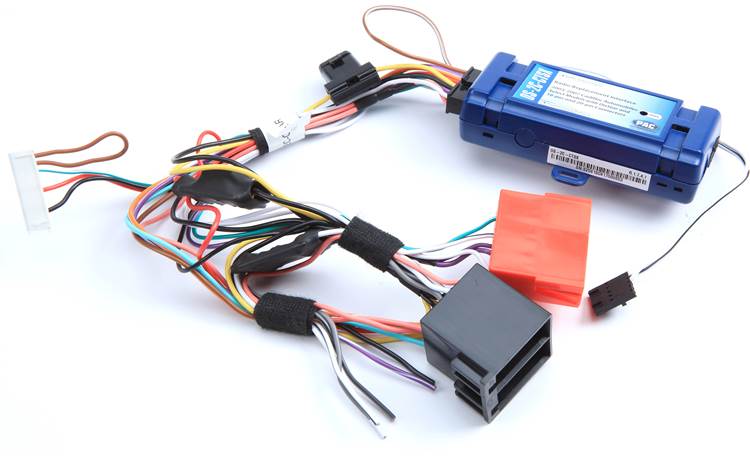

PAC OS-2C-CTSX

PAC's OS-2C-CTSX interface lets you replace the radio in 2003-07 Cadillac CTS and SRX models while maintaining operation of the OnStar® system, warning chimes, and rear parking assist chimes. OS-2C-CTSX will work with standard GM or Bose amplified audio systems. This harness also plugs right into a PAC steering wheel control adapter (not included) so you can retain those convenient controls. Warranty: 1 year.

PAC OS-2C-CTSX

PAC's OS-2C-CTSX interface lets you replace the radio in 2003-07 Cadillac CTS and SRX models while maintaining operation of the OnStar® system, warning chimes, and rear parking assist chimes. OS-2C-CTSX will work with standard GM or Bose amplified audio systems. This harness also plugs right into a PAC steering wheel control adapter (not included) so you can retain those convenient controls. Warranty: 1 year.

Note: You'll lose the factory XM receiver and the ability to fade from front to rear speakers when you install an aftermarket stereo. This interface will not work with 2004-06 SRX models with Cadillac navigation radios. Please enter your vehicle information or call an Advisor at 1-888-955-6000 to find out if this model is compatible with your vehicle.

READ LESS

What's in the box:

  • Radio replacement interface module
  • Wiring harness
  • Installation Instructions
MFR #OS-2C-CTSX

Customer reviews

Loading reviews...

PAC OS-2C-CTSX Wiring Interface reviews

Average review:

11 reviews

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Great interface!

Crutchfield customer from Rural Hall, NC on 7/15/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

Good documentation, easy install. Great service from Crutchfield

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

PAC OS-2C-CTSX Wiring Interface

Crutchfield customer from Kenosha, WI on 7/12/2019

2005 Cadillac CTS

Verified customer (What's this?)
Verified employee purchase (What's this?)

Works great all my controls work properly

Pros:

Cons:

Crutchfield response on

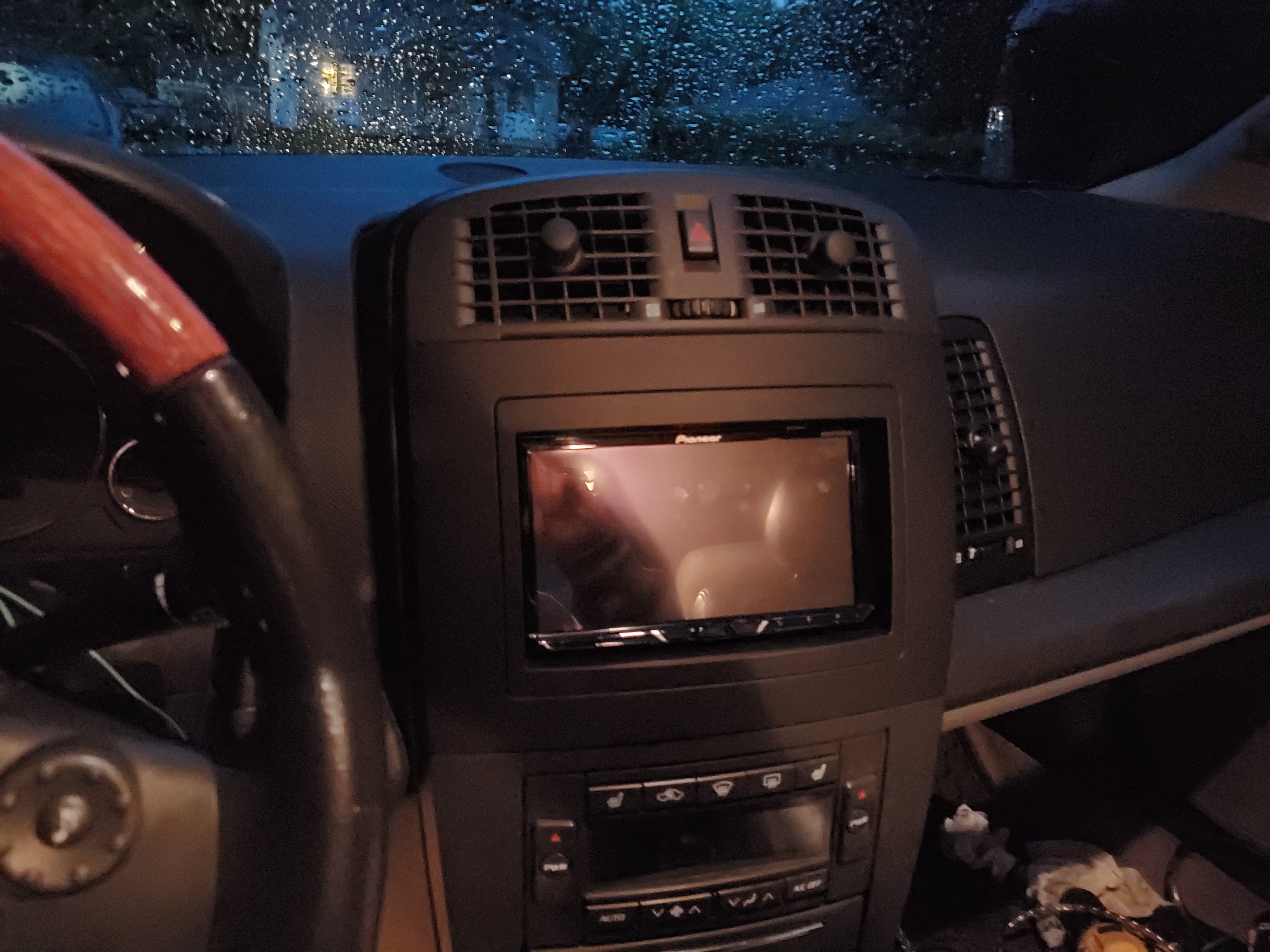

Customer review photo

0 of 0 found this helpful

PAC OS-2C-CTSX Wiring Interface

Guest from Buckingham, VA on 3/28/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

Works great

Pros: Plug and play

Cons:

Crutchfield response on

0 of 0 found this helpful

PAC OS-2C-CTSX Wiring Interface

Crutchfield customer from Blue Point, NY on 2/18/2019

2006 Cadillac CTS

Verified customer (What's this?)
Verified employee purchase (What's this?)

Saved my OnStar. Works great.

Pros: Easy hook up. Saved my Onstar.

Cons:

Crutchfield response on

0 of 0 found this helpful

PAC OS-2C-CTSX Wiring Interface

Crutchfield customer from Lexington, KY on 1/3/2019

2006 Cadillac CTS

Verified customer (What's this?)
Verified employee purchase (What's this?)

Did what it was supposed to do

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

PAC OS-2C-CTSX Wiring Interface

carl from San Antonio, TX on 12/3/2018

2005 Cadillac CTS

Verified customer (What's this?)
Verified employee purchase (What's this?)

Made install of aftermarket multimedia receiver unit easy

Pros: Easy to hook up

Cons:

Crutchfield response on

0 of 1 found this helpful

PAC OS-2C-CTSX Wiring Interface

Ed from Center Moriches, NY on 10/23/2018

2004 Cadillac CTS

Verified customer (What's this?)
Verified employee purchase (What's this?)

Made install of aftermarket Bluetooth unit easy

Pros: Easy to hook up

Cons: Wish the wiring diagram matched better with stereo wiring diagram Better definition of wires

Crutchfield response on

0 of 0 found this helpful

PAC OS-2C-CTSX Wiring Interface

Crutchfield customer from Fort Wayne, IN on 2/27/2018

2005 Chevrolet Silverado 1500

Verified customer (What's this?)
Verified employee purchase (What's this?)

Was alright did not transfer the steering wheel controls

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

PAC OS-2C-CTSX Wiring Interface

Crutchfield customer from Munster, IN on 1/24/2018

2003 Cadillac CTS

Verified customer (What's this?)
Verified employee purchase (What's this?)

It's nice, I get static sometimes

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

The practical functionality of the OS-2C-CTSX PAC

Lawrence from Fremont, Ohio on 12/15/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

My issue with the aftermarket installation kit is not only do U lose your DIC screen, U also forfeit all it's important information and functions and all the vital things it controls. How do I retain that important information will it automatically interface with my aftermarket double-din stereo

Pros: It has options

Cons: Options are very limited on retaining viral and important DIC information. ie: oil, transmission, battery, speed, cruise, and other vital functions. It's hard to believe with so much available technology Cadillac and affiliates haven't found a way around this VITAL issue.

Crutchfield response on

1 of 1 found this helpful

PAC OS-2C-CTSX Wiring Interface

Crutchfield customer from Fairfield, MT on 12/2/2017

2003 Cadillac CTS

Verified customer (What's this?)
Verified employee purchase (What's this?)

Not happy with the design of dash kit and how the stereo is recessed significantly

Pros:

Cons:

Crutchfield response on

3 of 6 found this helpful

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the PAC OS-2C-CTSX Wiring Interface

Stacey B.

Product Research

Features

Radio Replacement Interface: The PAC OS-2C-CTSX Radio Replacement Interface Module allows the installation of an aftermarket radio into select Cadillac CTS and SRX vehicles equipped with OnStar and factory amplified audio system, while retaining select factory features. It also supports PAC steering wheel control adapters (sold separately).

Vehicle Compatibility: The PAC OS-2C-CTSX Radio Replacement Interface Module supports 2003-2007 Cadillac vehicles with OnStar, Bose factory amplified audio system, and 16-pin/20-pin connectors.

Make Model Year
Cadillac CTS 2003-2007
SRX 2004-2005
Note: You may use this interface even if the vehicle does not have OnStar, but does have the factory amplified audio system.

Retained Features: The PAC OS-2C-CTSX radio replacement interface retains the following factory features of your vehicle.

  • OnStar Compatible: The interface retains your vehicle's factory OnStar system. It allows audio from the OnStar system to play through the vehicle's two front speakers when OnStar is active, and mutes the output of your new aftermarket radio.
  • Factory Amplifier: The PAC radio replacement interface lets you retain your vehicle's Standard or Bose factory amplifier. Due to the design of the factory amplified system, there is currently no way of fading from the front to rear with an aftermarket radio.
  • RAP: Your aftermarket head unit will continue to operate with the vehicle's RAP (Retained Accessory Power) system. The aftermarket radio will stay on after the vehicle's key is turned off and then stays on for approximately 10 minutes or until a door is opened.
  • Safety & Warning Chimes: The vehicle's factory safety and warning chimes are also fully retained.
Note: The interface does not retain the factory XM receiver, you will lose this option when the factory radio is replaced with an aftermarket head unit.

+12V/10A Accessory Output: The OS-2C-CTSX provides a +12V/10A switched accessory output; no more searching for switched +12-volts in the fuse box or kick panel.

Navigation Outputs: The PAC OS-2C-CTSX provides navigation outputs (VSS, Parking Brake, and Reverse) to help ease the installation process of an aftermarket navigation radio.

Optional Steering Wheel Control Adapter: The OS-2C-CTSX radio replacement interface supports PAC's SWI-CP2 or SWI-RC steering wheel control adapter (both sold separately), allowing you to retain your vehicle's factory steering wheel controls. The included wiring harness plugs directly into the compatible SWC adapter. You will need to program the SWC adapter.

Wiring Connection Chart: The included harness features the following wires which will need to be hardwired (solder or crimped) to your aftermarket head unit's wiring harness.

Wire Color Function
Red +12 Volt Accessory (10A)
Yellow +12 Volt Constant
Black Ground
Orange/White Illumination
White Left Front Speaker +
White/Black Left Front Speaker -
Gray Right Front Speaker +
Gray/Black Right Front Speaker -
Pink (2) VSS (Vehicle Speed Signal)
Violet/White Reverse Output (+)
Light Green Parking Brake (-)
Brown Mute (-)
Note: Installation tools, hardware, & accessories are not included & sold separately.

Loading accessories...

Customer Q&A

Q
Crutchfield asked: Why did you buy this?
A
It was reccomended [ teresa  Aug 19, 2019 ]
A
Because you had the part i was looking for at a very good price [ Mingo  Nov 06, 2018 ]
A
because, i needed it [ timothy  Jul 15, 2018 ]
A
For my Cadillac [ Tommie  Feb 09, 2018 ]
A
It was part of the package i bought [ Herbert  Oct 30, 2017 ]
SHOW MORESHOW LESS

4 questions already asked

Q
will this work with my 2007 Ctsv with navigation ,if not which wire harness would work? thank you
[ komaximov  Jul 15, 2019 ]
1 answer
A
This harness can work in the 2007 CTS's including the V edition! There are other install parts needed to get a radio into them. I recommend contacting an advisor on 1-800-324-9695 to get a complete list of the gear you need.
[ Paul  Jul 21, 2019 ]  Staff
Q
I have the os-2c-CTS. I am trying to install the Alpine ILX 107. Will it still work?
[ TlatelpaJ  Aug 02, 2018 ]
2 answers
A
I ordered the kit Crutchfield has available and all works as it should. It does change the ring/chirp type which is louder and annoying. Otherwise all's good.
[ Carrie A.  Aug 02, 2018 ]
A
Yes:(!
[ Zackari  Aug 02, 2018 ]
Q
I have the os-2c-CTS. I am trying to install the Alpine ILX 107. Will it still work?
[ TlatelpaJ  Aug 02, 2018 ]
1 answer
A
Hello TJ, I used mine with a Sony deck in a 2006 Cadillac CTS. But the cable is generic. It should work. Everything you need is with it. The main thing I would check is -- at the point where the os-2c-CTS plugs into your car cable harness in the dash, just make sure the power, ground and antenna wires (usually red, black,and yellow or orange) in the plugs line up and match each other at the plug connection. Especially the Power and Ground. Also depending on the car type, you may lose the stereo controls in the steering wheel (not a big deal - I never used them anyway. The blue box with the new os-o2 cable will replace your warning chimes. Cable looks more complex than it really is. Good Luck. Larry M
[ Lawrence  Aug 06, 2018 ]
