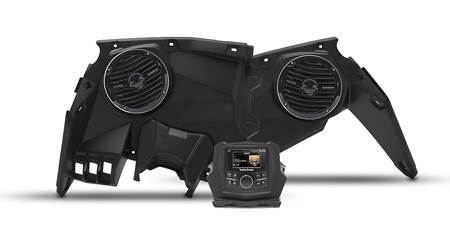

About the Rockford Fosgate X317-STAGE2
Great sound for the great outdoors
Great sound for the great outdoors
Can-Am's Maverick X3 is a high-performance side-by-side with plenty of power, and Rockford Fosgate's Stage 2 Maverick X3 kit is the easiest way to add more power to your audio system. With a marine digital media receiver and two powerful marine speakers, this system will add some serious thump to your off-road adventures.
No cutting and no modification needed
Rockford Fosgate designed this package to fit right into your Maverick, with no cutting and no modification needed (minimal drilling required). It also comes with all the parts and pieces needed for a smooth, hassle-free installation. Each component is tough enough for trail duty, so you won't have to worry about your audio gear getting swamped.
A rugged and rockin' receiver
Rockford Fosgate's Punch PMX-2 digital media receiver packs a lot of features into a compact, water-resistant package. This trail-ready stereo features built-in Bluetooth®, so you can stream music stored on your phone, or tune into Pandora® and enjoy your favorite playlists. If you prefer to plug in, you'll find an aux input, plus a USB input that will charge your phone while you're playing music. Speaking of charges, the PMX-2 also has a low-voltage warning alert built-in, so you won't accidentally drain your battery. This kit includes a custom-designed kit that holds the receiver and blends into your Maverick's dash.
Better speakers for bigger sound
The package includes a pair of Prime Series RM1652B marine speakers that are built for off-road and marine use. The durable poly cones withstand moisture and sunlight, as do the 1" volcano dome tweeters in the grilles. They're really easy to install, too, thanks to the made-for-the-Maverick X3 speaker enclosures included in this kit. These rugged enclosures bolt right in using the factory mounting holes with just a little bit of drilling.
Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.
iPod®/smartphone note: If you're going to use your iPod or smartphone with this receiver, be sure to check "Details" for compatibility information.
- system includes marine digital media receiver, two speakers, dash kit, speaker enclosures, and wiring
- compatible with Smart-Lok
Rockford Fosgate PMX-2 marine digital media receiver (does not play CDs)
- built-in amplifier (20 watts RMS/50 peak x 4 channels)
- works with Apple and Android smartphones
- global AM/FM/Weather tuner (antenna not included)
- 2.7" color display
- warranty: 2 years
Rockford Fosgate Punch PM1652B 6-1/2" 2-way marine speakers
- power handling up to 75 watts RMS (150 watts peak)
- UV-stable Centrex® injection-molded plastic parts
- 1" volcano dome tweeters
- warranty: 2 years
- Our 60-day money-back guarantee
- MFR # X317-STAGE2
What's in the box:
- Marine digital media receiver
- Mounting plate
- Mounting bracket
- Wiring harness
- Rear support
- 4 Machine screws
- 4 Hex-nuts
- Installation/Operation booklet
- Main dash housing
- Metal mounting-plate
- 2 Trim-bezels
- PMX-2 Speaker harness
- PMX-0 Power/ground harness (inline 15A ATC fuse)
- Two 24mm screws
- Eight 14mm screws
- Twelve 7" wire-ties
- Installation guide
- Two 2-way marine speakers (with fixed grilles)
- Eight 1-1/4" Stainless steel Allen head screws
- 3mm Allen head bit
- 8 Speed clips
- Installation/Operation manual
- 2 Speaker panels
- Left front speaker harness
- Right front speaker harness
- Five 7" wire-ties
- One 30mm machine-screw
- 1 Flat-washer
- 1 Nut
- Installation instructions
Thanks for submitting your review
More details on the Rockford Fosgate X317-STAGE2
Overview: The Rockford Fosgate X317-Stage 2 kit lets you easily add a PMX-2 powersports headunit and front 6-1/2" speakers with enclosures to select 2017-up Can-Am Maverick X3 vehicles.
Compatibility: The X317-Stage 2 kit is specifically designed for the following 2017-up Can-Am Maverick X3 model vehicles.
|Can-Am||Maverick X3 Turbo||2017-2019|
|Maverick X3 Turbo R|
|Maverick X3 DS Turbo|
|Maverick X3 RS Turbo|
|Maverick X3 Max Turbo|
|Maverick X3 Max Turbo R|
|Maverick X3 Max DS Turbo R|
|Maverick X3 Max RS Turbo R|
Marine Receiver: The PMX-2 powersports headunit has been fully tested against UV radiation degradation as well as tested to IPX6 water intrusion standards. It has also been fully tested for ever changing environmental conditions such as temperature extremes, as well as vibration testing to make sure they can take a bump and keep performing. The PMX-2 is protected against Dust, UV, Temperature, Water, Corrosion & Vibration.
- Dust: The unit's display and motor structure are sealed up tight so they look as clear as possible and perform day in and day out no matter how many times you hit the trails.
- UV Inhibitor Materials: Centrex and ASA plastic materials are used for UV radiation resistance and components are tested in accordance with ASTM D4329 testing and certification procedures.
- Thermal Shock Tested: Tested for extreme temperature operation as well as severe fluctuations in ambient temperature. Components are taken to both low and high temperature extremes and then tested to ensure operational capabilities.
- Water Tested: IPX5 and IPX6 Ratings allow for the components to be directly sprayed with water without water incursion.
- Corrosion Protection: Two part epoxy coated PCB boards prevent corrosion of critical components due to exposure in moisture rich environments.
- Vibration: Subjected to full vibration and shock testing to ensure that it will take abuse and keep performing to our stringent standards.
Bluetooth Music Streaming: The Rockford Fosgate PMX-2 offers built-in Bluetooth (version 3.0+EDR) for wireless music playback from your Bluetooth-enabled Apple iPod/iPhone/iPad, Android smartphone/tablet, Windows phone, Blackberry, and more. You are able to stream stored music and music apps from your Bluetooth device to the PMX-2 marine receiver. You can control basic playback functions like Play/Pause, Previous Next/Track and Repeat/Shuffle for stored music and music apps on your device. When using a Bluetooth AVRCP 1.4 compatible device like the Apple iPhone (iOS 5.0+) or an Android smartphone (OS 4.0+), you can even browse your stored music by category (Playlist/Artist/Song/Genre). The PMX-2 will also display your device's song/artist information with album art.
Note: This unit does not support Bluetooth hands-free communication for phone calls.
Optional Wired Remotes: The PMX-2 features a wired remote input which is compatible with Rockford Fosgate's PMX-1R & PMX-0R wired remote controllers (both sold separately). In most cases you will need one of Rockford Fosgate's extension cables (sold separately) to connect a wired remote controller. Up to 3 remotes can be added to one marine receiver using PMXYC Y-cable (sold separately).
USB Port: The Rockford Fosgate features a rear-panel USB (type-A) port for connection of a USB mass storage class device, like a USB thumbdrive or flashdrive. The unit supports playback of MP3 or WMA music files loaded onto a USB MSC device. You are able to browse your music by folders, as well as control basic playback functions like Play/Pause, Previous/Next Track and Repeat/Random.
Note: The unit's USB port is not compatible with Android.
iPod/iPhone Direct Connection: The Rockford Fosgate PMX-2's USB port can be used to connect your Lightning-connector or 30-pin dock connector iPod/iPhone to the head unit. Simply use the cable that came with your iPod/iPhone device or a 3rd party Apple certified cable (sold separately). The PMX-2 supports audio playback, music navigation, information display (including album art), and charging of your compatible Apple device.
- Music Control: The PMX-2 lets you navigate your Apple device's stored music by Playlist, Artist, Album, Song, Genre, Podcast, Composer, or Audiobook. The head unit also offers basic playback functions like Play/Pause, Previous/Next Track, and Random/Repeat. Newer Apple devices with iOS 6.0+ will remain unlocked while connected, so you can access music apps on your device. Older Apple device's clickwheels & touchscreens will lock when connected to the PMX-2.
- Song/Artist Info + Album Art: The head unit will display your iPod/iPhone's stored music file information; including Track number, Elapsed playing time, Song title, and Artist/Artist name. It will also display album art.
- Charging: The head unit's USB connection provides 1A of current to power and charge your connected iPod/iPhone when your vehicle's ignition switch is set to the 'ACC' or 'On' position (if your iPod/iPhone has no initial battery charge, then the unit will not recognize it).
Pandora Internet Radio: The free Pandora App (either from Apple's App Store or Google Play) lets you play music from the Pandora music service through the Rockford Fosgate PMX-2 using your USB-connected or Bluetooth-paired Apple iPhone (iOS 9.0+), or Bluetooth-paired Android smartphone. Your Apple iPhone must be connected to the PMX-2 via the appropriate the Dock-/Lightning-cable that came with your iPhone or via Bluetooth. Your Android smartphone must support A2DP/AVRCP/SPP Bluetooth profiles and be paired with the marine receiver. Your iPhone or Android smartphone will also need an active Data Plan account with connection to the Internet via 3G, EDGE, or WiFi. The PMX-2 provides control over the Pandora music service and displays Artist, Album, and Song information.
- Station List: You can select Pandora stations from your Station List by date or alphabetically.
- New Station: Based on a currently playing track or artist, you can create a new station and save it to your Pandora account.
- Skip Songs: You can skip song tracks within a station. You cannot skip back to a previous song. Pandora limits the number of skips allowed.
- Thumbs Up/Down: You can give songs a thumbs up or thumbs down to help Pandora personalize stations to suit your preferences.
- Bookmarking: The song or artist currently being played can be bookmarked & stored in your Pandora account.
Note: Access to these online service will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or smartphone to connect to the Internet. Pandora is not supported in Canada and only available in the United States.
Apple Device Compatibility Chart: The Rockford Fosgate PMX-2 is "Made for iPod/iPhone" compatible and supports the following iPod/iPhone model features (as of 7/2019):
|Apple Device||Generation||Tested Version||Media Type||Control Type||Display Type||Bluetooth||Charge|
|Audio||Video||Head Unit||iPod/iPhone||Pandora||Album Art||Artist/Song Text||Track Info||Phone||Audio|
Note: Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the head unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.
Aux Input: The Rockford Fosgate PMX-2 is fitted with a rear-panel stereo RCA AUX input to connect an external audio source. You can give the Aux input a custom name.
AM/FM Tuner: The PMX-2 features a built-in AM/FM tuner with manual, seek, and preset tuning. You can store up to 18 FM and 12 AM preset stations; these presets can be stored manually or automatically. You can set the tuner to Local or Distance tuning. The Local option tunes to nearby radio stations with sufficiently strong signals for good reception. In areas where reception is poor, switching to Distance tuning enables the unit to tune in to more distant stations. You can choose between US or European tuning.
Weather Band: The Rockford Fosgate PMX-2 is also equipped with a built-in weather band tuner. Select from weather band frequencies between 162.40 to 162.55.
MOSFET Amplifier: The PMX-2 is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit.
- Full Bandwidth Power: 25 watts RMS x 4 channels (at 4 ohms, 20-20kHz, 1% THD)
- Maximum Output Power: 50 watts x 4 channels (200 watts total)
Note: The power specifications for the marine receiver are compliant with the CEA2006 Mobile Amplifier Power Testing and Measurement standards from the Consumer Electronics Association (CEA). These standards were developed as a way to equitably compare power specs from model to model and between manufacturers.
2V/4Ch Preouts + Sub Control: The Rockford Fosgate PMX-2 is equipped with two pair of 2-volt preamp outputs (Front & Rear/Sub). You can configure the Rear/Sub pre-out for rear speakers with fading capability or as a non-fading sub output. You can turn off the unit's internal amplifier, you plan on using only external amps. When the sub out is activated, you can independently adjust its volume level from 0 to 40.
Equalizer: The PMX-2 is equipped with a variety of EQ presets, and 7-Band EQ, and Rockford Fosgate's Punch EQ.
- Presets: Select between seven EQ presets - FLAT, ROCK, CLASSIC, ACOUSTIC, DANCE, ELECTRONIC, or HIP-HOP.
- 7-Band EQ: Use the built-in 7-band EQ to custom tailor the sound of your music to your liking.
- Punch EQ: Punch EQ is an onboard equalizer with up to +18dB at 45Hz and/or up to +12dB boost at 12.5kHz.
High-Pass & Low-Pass Crossovers: The PMX-2 provides a high-pass crossover for the front & rear channels which can be set to 60Hz, 80Hz, 120Hz, or Full-Range. The unit also provides a low-pass crossover for the subwoofer output that can be set to 60Hz, 80Hz, 120Hz, or Full-Range.
Source Gain: You can adjust the gain of each source so they all play at the same volume level. Select between -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB for each source.
Key Beep: A beep tone will sound with any press of a button on the receiver. This can be turned on or off.
RFX3-PMXDK Installation Kit: The included dash kit is designed to facilitate the addition of the Rockford Fosgate PMX-2 digital marine source unit into select Can-Am Maverick X3 model vehicles. This kit is custom molded to match the existing dash and mounts in place of the factory sound system. All mounting hardware for the source unit and dash kit are provided.
RM1652B Speakers w/ Enclosures: The two fiber reinforced composite blend 6.5" front speaker enclosures are designed to be a direct fit for select Can-Am Maverick X3 models, including models equipped with a Smart-Lok module. The included RM1652B marine speakers mount perfectly in these enclosures. Rockford Fosgate uses industry standard tests (ASTM B117 salt/fog and ASTM D4329 sunlight, moisture, and heat) to ensure the RM1652B speakers will provide optimum performance in the difficult outdoor environment. All necessary mounting hardware is included. The mounting hardware is stainless steel to resist corrosion.
- Tweeters: The 1" dome tweeters are made of LCP (liquid crystal polymer), a high strength/light weight material, die cast into a volcano design. The tweeters are bridge mounted, useful in a marine speaker because no opening through the middle of the woofer for the mounting post is needed.
- Woofers w/ VAST Surround: The woofer cones are injection molded, mineral filled polypropylene with UV inhibitors. This molding process assures a uniform cone thickness for superior linearity and clarity. It is also light weight and rigid for decreased distortion and improved bass response. The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket.
- ICC Crossover: The ICC (Integrated Concealed Crossover) simplifies installation and protects the crossover by concealing it inside the basket, creating a cleaner look and easier installation. The crossover is 6 dB/octave high pass.
- Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.
The Rockford Fosgate X317-STAGE2 replaces these items
- system includes marine digital media receiver, two speakers, dash kit, and wiring
- Rockford Fosgate PMX-2 marine digital media receiver (does not play CDs)
- Rockford Fosgate Punch PM1652B 6-1/2" 2-way marine speakers
