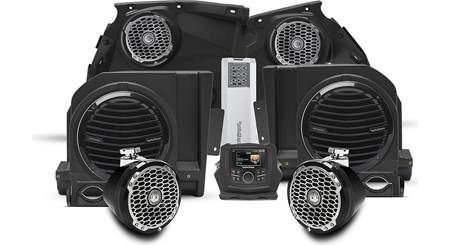

Rockford Fosgate X317-STAGE5

Stage 5 audio upgrade kit for select Can-Am Maverick X3 models: includes receiver, 4 speakers, 5-channel amp, and 2 subwoofers

Item # 575X317ST5

Rockford Fosgate's Stage 5 Maverick X3 kit is the ultimate in Maverick X3 audio systems. With a marine digital...

Find what Fits your car

Rockford Fosgate's Stage 5 Maverick X3 kit is the ultimate in Maverick X3 audio systems. With a marine digital...

Need help?
Contact our Virginia-based experts.
Ask a question

Item # 575X317ST5

Ships free

Low stock
$3,269.99

About the Rockford Fosgate X317-STAGE5

The biggest, baddest system around

Can-Am's Maverick X3 is one of the most extreme side-by-sides out there, so why not give yours the most extreme stereo performance around?  Rockford Fosgate's Stage 5 Maverick X3 kit is the ultimate in Maverick X3 audio systems. With a marine digital media receiver, four speakers, a 5-channel amp, and two 10" subwoofers, this system will rock your world.

The biggest, baddest system around

Can-Am's Maverick X3 is one of the most extreme side-by-sides out there, so why not give yours the most extreme stereo performance around?  Rockford Fosgate's Stage 5 Maverick X3 kit is the ultimate in Maverick X3 audio systems. With a marine digital media receiver, four speakers, a 5-channel amp, and two 10" subwoofers, this system will rock your world.

Smooth, hassle-free installation

Rockford Fosgate designed this package to fit right into your Maverick, with no cutting and no modification needed (minimal drilling required). It also comes with all the parts and pieces needed for a smooth, hassle-free installation. Each component is tough enough for trail duty, so you won't have to worry about your audio gear getting swamped.

Rock out with a rugged receiver

Rockford Fosgate's Punch PMX-2 digital media receiver packs a lot of features into a compact, water-resistant package. This trail-ready stereo features built-in Bluetooth®, so you can stream music stored on your phone, or tune into Pandora® and enjoy your favorite playlists. If you prefer to plug in, you'll find an aux input, plus a USB input that will charge your phone while you're playing music. Speaking of charges, the PMX-2 also has a low-voltage warning alert built-in, so you won't accidentally drain your battery. This kit includes a custom-designed kit that holds the receiver and blends into your Maverick's dash.

Four speakers deliver awesome sound

The package includes front and rear sets of Prime Series RM2652B marine speakers that are built for off-road and marine use. With poly cones that withstand moisture and sunlight, as do the 1" bridge-mounted tweeters in the grilles. They're really easy to install, too, thanks to the “made-for-the-Maverick-X3” front and rear speaker enclosures included in this kit. These rugged enclosures bolt right in using the factory mounting holes with just a little bit of drilling.

Not one, but two 10" subs

This awesome audio kit includes a pair of marine-rated RM110D2B 10" subs that fit into your Maverick X3 using the included direct-fit enclosures that install under the front seats. The bolt-on enclosures are made from a durable composite material that blends right into the interior.

A 5-channel amp for plenty of power

A system like this requires serious juice and the Power Series TM1000X5ad marine amp has all you need and more. This 5-channel amp will send 100 watts each to all four speakers, plus 300 watts to each sub. The kit comes with mounting plates and wiring, so installation won't be a hassle.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.

READ LESS

Product highlights:

  • system includes marine digital media receiver, 2 sets of speakers, 5-channel amp, 2 10" subwoofers, speaker and sub enclosures, installation parts and wiring
  • compatible with Smart-Lok
Rockford Fosgate PMX-2 marine digital media receiver (does not play CDs)
  • built-in amplifier (20 watts RMS/50 peak x 4 channels)
  • works with Apple and Android smartphones
  • global AM/FM/Weather tuner
  • 2.7" color display
  • warranty: 2 years
Rockford Fosgate Punch PM2652B 6-1/2" 2-way marine speakers
  • power handling up to 85 watts RMS (170 watts peak)
  • UV-stable Centrex® injection-molded plastic parts
  • 1" bridge-mounted aluminum alloy tweeter
  • warranty: 2 years
Rockford Fosgate Punch PM2652W-MB 6-1/2" mini roll bar speakers
  • 1" bridge-mounted aluminum dome tweeters
  • true marine-grade design stands up to the elements
  • high-density sealed polyethylene enclosures with stainless steel grilles
  • warranty: 2 years
Rockford Fosgate Prime RM110D2B 10" dual 2-ohm marine subwoofers (two)
  • handle up to 200 watts RMS (400 watts peak)
  • Vertical Attach Surround Technique (VAST) increases cone area
  • patent-pending motor technology
  • durable Santoprene rubber surrounds
  • impedance: 1 or 4 ohms
  • warranty: 2 years
Rockford Fosgate TM1000X5AD 5-channel amp
  • 100 watts RMS x 4 at 4 ohms + 600 watts x 1 at 1 ohm
  • variable low- and high-pass filters (50-250 Hz at 12 dB/octave)
  • conformal-coated circuit board — suitable for power sports and marine applications
  • warranty: 2 years
  • Our 60-day money-back guarantee
  • MFR # X317-STAGE5

What's in the box:

  • PMX-2:
  • Marine digital media receiver
  • Trim-ring
  • Mounting plate
  • Mounting bracket
  • Wiring harness
  • Rear support
  • 4 Machine screws
  • 4 Hex-nuts
  • Installation/Operation booklet
  • RFX3-PMXDK:
  • Main dash housing
  • Metal mounting-plate
  • 2 Trim-bezels
  • PMX-2 Speaker harness
  • PMX-0 Power/ground harness (inline 15A ATC fuse)
  • Two 24mm screws
  • Eight 14mm screws
  • Twelve 7" wire-ties
  • Installation guide
  • PM2652B:
  • Two 2-way marine speakers
  • 2 Metal-mesh grilles
  • Eight 1-3/4" Stainless steel hex-socket screws
  • Four 1" Stainless steel hex-socket screws
  • 3mm Hex-socket bit
  • 8 Speed clips
  • Installation/Operation manual
  • RFX317-FSE:
  • 2 Speaker panels
  • Left front speaker harness
  • Right front speaker harness
  • Five 7" wire-ties
  • One 30mm machine-screw
  • 1 Flat-washer
  • 1 Nut
  • Installation instructions
  • RM110D2B (x2):
  • 10" Woofer
  • Grille
  • 8 Hex-socket screws
  • Hex-head bit
  • Installation Instructions
  • RFX317-FWE (x2):
  • Subwoofer enclosure (attached 27" internal speaker wire)
  • 2 Mounting brackets
  • 9.5' Loomed subwoofer harness
  • 15" Section of red wire (18AWG)
  • Fourteen 7" wire-ties
  • Four 6" wire-ties w/ push-fasteners
  • Six 12mm flange-screws
  • Instruction manual
  • TM1000X5ad:
  • 5-Channel amplifier
  • Two 7" Speaker output harnesses (Molex plug on one end and bare wire on the other)
  • Three 14" Input harness (Molex plug on one end and female stereo RCA jacks on the other)
  • Four 3/4" Phillips-head screws
  • 4 Flat-washers
  • 3mm Allen key
  • Setup disk (CD-ROM)
  • Quickstart guide
  • Amplifier Performance Verification Certificate
  • PM2652W-MB:
  • 2 Wakeboard tower speakers
  • 2 Mounting couplers
  • Two 16" Speaker harnesses
  • T45 Torx key
  • Loctite thread-locker (syringe)
  • 4 Plastic grommets
  • 4 Mounting bolts
  • 2 Security bolts (pre-installed)
  • 4 Nuts
  • 2 Safety lanyards
  • 2 Lanyard washers
  • 2 Adhesive Rockford Fosgate logos
  • Installation & Operation Manual
  • PM-CL2B:
  • 2 Mounting clamps
  • RFX3-RSW16:
  • 15.5' Left rear speaker harness
  • 15.5' Right rear speaker harness
  • Sixteen 7" wire-ties
  • Six 6" wire-ties w/ push-fasteners
  • Installation instructions
  • RFX3-K4:
  • 11.5' Power/ground harness w/ inline 100A maxi-fuse
  • 4' Speaker/signal harness (attached to power/ground harness with remote turn-on wire)
  • Amplifier mounting bracket
  • 9" Y-harness
  • 2 Bracket-clamp halves
  • Four 10mm machine-screws
  • 2 Nuts
  • 1 Flange-nut
  • Fourteen 7" wire-ties
  • Four 6" wire-ties w/ push-fasteners

Customer reviews

We don't have any reviews, yet.
Submit a review and then enter to win a $350 rewards card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the Rockford Fosgate X317-STAGE5

Stacey B.

Product Research

Digital Media Receiver & Installation Kit
4-Channel Amplifier
Speakers & Subwoofer

Digital Media Receiver & Installation Kit

Overview: The Rockford Fosgate X317-Stage5 kit lets you easily add a PMX-2 powersports headunit, front 6-1/2" speakers with enclosures, rear waketower/roll-bar enclosed speakers, a 10" subwoofer with enclosure, and a 1000 watt 5-channel amplifier, to select 2017-up Can-Am Maverick X3 vehicles.

Compatibility: The X317-Stage5 kit is specifically designed for the following 2017-up Can-Am Maverick X3 model vehicles.

Make Model Year
Can-Am Maverick X3 Turbo 2017-2019
Maverick X3 Turbo R
Maverick X3 DS Turbo
Maverick X3 RS Turbo
Maverick X3 Max Turbo
Maverick X3 Max Turbo R
Maverick X3 Max DS Turbo R
Maverick X3 Max RS Turbo R

 Marine Receiver: The PMX-2 powersports headunit has been fully tested against UV radiation degradation as well as tested to IPX6 water intrusion standards. It has also been fully tested for ever changing environmental conditions such as temperature extremes, as well as vibration testing to make sure they can take a bump and keep performing. The PMX-2 is protected against Dust, UV, Temperature, Water, Corrosion & Vibration.

  • Dust: The unit's display and motor structure are sealed up tight so they look as clear as possible and perform day in and day out no matter how many times you hit the trails.
  • UV Inhibitor Materials: Centrex and ASA plastic materials are used for UV radiation resistance and components are tested in accordance with ASTM D4329 testing and certification procedures.
  • Thermal Shock Tested: Tested for extreme temperature operation as well as severe fluctuations in ambient temperature. Components are taken to both low and high temperature extremes and then tested to ensure operational capabilities.
  • Water Tested: IPX5 and IPX6 Ratings allow for the components to be directly sprayed with water without water incursion.
  • Corrosion Protection: Two part epoxy coated PCB boards prevent corrosion of critical components due to exposure in moisture rich environments.
  • Vibration: Subjected to full vibration and shock testing to ensure that it will take abuse and keep performing to our stringent standards.

Bluetooth Music Streaming: The Rockford Fosgate PMX-2 offers built-in Bluetooth (version 3.0+EDR) for wireless music playback from your Bluetooth-enabled Apple iPod/iPhone/iPad, Android smartphone/tablet, Windows phone, Blackberry, and more. You are able to stream stored music and music apps from your Bluetooth device to the PMX-2 marine receiver. You can control basic playback functions like Play/Pause, Previous Next/Track and Repeat/Shuffle for stored music and music apps on your device. When using a Bluetooth AVRCP 1.4 compatible device like the Apple iPhone (iOS 5.0+) or an Android smartphone (OS 4.0+), you can even browse your stored music by category (Playlist/Artist/Song/Genre). The PMX-2 will also display your device's song/artist information with album art.

Note: This unit does not support Bluetooth hands-free communication for phone calls.

Optional Wired Remotes: The PMX-2 features a wired remote input which is compatible with Rockford Fosgate's PMX-1R & PMX-0R wired remote controllers (both sold separately). In most cases you will need one of Rockford Fosgate's extension cables (sold separately) to connect a wired remote controller. Up to 3 remotes can be added to one marine receiver using PMXYC Y-cable (sold separately).

USB Port: The Rockford Fosgate features a rear-panel USB (type-A) port for connection of a USB mass storage class device, like a USB thumbdrive or flashdrive. The unit supports playback of MP3 or WMA music files loaded onto a USB MSC device. You are able to browse your music by folders, as well as control basic playback functions like Play/Pause, Previous/Next Track and Repeat/Random.

Note: The unit's USB port is not compatible with Android.

iPod/iPhone Direct Connection: The Rockford Fosgate PMX-2's USB port can be used to connect your Lightning-connector or 30-pin dock connector iPod/iPhone to the head unit. Simply use the cable that came with your iPod/iPhone device or a 3rd party Apple certified cable (sold separately). The PMX-2 supports audio playback, music navigation, information display (including album art), and charging of your compatible Apple device.

  • Music Control: The PMX-2 lets you navigate your Apple device's stored music by Playlist, Artist, Album, Song, Genre, Podcast, Composer, or Audiobook. The head unit also offers basic playback functions like Play/Pause, Previous/Next Track, and Random/Repeat. Newer Apple devices with iOS 6.0+ will remain unlocked while connected, so you can access music apps on your device. Older Apple device's clickwheels & touchscreens will lock when connected to the PMX-2.
  • Song/Artist Info + Album Art: The head unit will display your iPod/iPhone's stored music file information; including Track number, Elapsed playing time, Song title, and Artist/Artist name. It will also display album art.
  • Charging: The head unit's USB connection provides 1A of current to power and charge your connected iPod/iPhone when your vehicle's ignition switch is set to the 'ACC' or 'On' position (if your iPod/iPhone has no initial battery charge, then the unit will not recognize it).

Pandora Internet Radio: The free Pandora App (either from Apple's App Store or Google Play) lets you play music from the Pandora music service through the Rockford Fosgate PMX-2 using your USB-connected or Bluetooth-paired Apple iPhone (iOS 9.0+), or Bluetooth-paired Android smartphone. Your Apple iPhone must be connected to the PMX-2 via the appropriate the Dock-/Lightning-cable that came with your iPhone or via Bluetooth. Your Android smartphone must support A2DP/AVRCP/SPP Bluetooth profiles and be paired with the marine receiver. Your iPhone or Android smartphone will also need an active Data Plan account with connection to the Internet via 3G, EDGE, or WiFi. The PMX-2 provides control over the Pandora music service and displays Artist, Album, and Song information.

  • Station List: You can select Pandora stations from your Station List by date or alphabetically.
  • New Station: Based on a currently playing track or artist, you can create a new station and save it to your Pandora account.
  • Skip Songs: You can skip song tracks within a station. You cannot skip back to a previous song. Pandora limits the number of skips allowed.
  • Thumbs Up/Down: You can give songs a thumbs up or thumbs down to help Pandora personalize stations to suit your preferences.
  • Bookmarking: The song or artist currently being played can be bookmarked & stored in your Pandora account.
Note: Access to these online service will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or smartphone to connect to the Internet. Pandora is not supported in Canada and only available in the United States.

Apple Device Compatibility Chart: The Rockford Fosgate PMX-2 is "Made for iPod/iPhone" compatible and supports the following iPod/iPhone model features (as of 7/2019):

Apple Device Generation Tested Version Media Type Control Type Display Type Bluetooth Charge
Audio Video Head Unit iPod/iPhone Pandora Album Art Artist/Song Text Track Info Phone Audio
iPhone
3GS 5.1.1 Y N Y N N Y Y Y N Y Y
4 7.1.2 Y N Y Y N Y Y Y N Y Y
4S 9.3.5 Y N Y Y Y Y Y Y N Y Y
SE 10.3 Y N Y Y Y Y Y Y N Y Y
5/5C/5S 10.3 Y N Y Y Y Y Y Y N Y Y
6/6+/6S/6S+ 10.3 Y N Y Y Y Y Y Y N Y Y
7/7+ 10.3 Y N Y Y Y Y Y Y N Y Y
8/8+ - Y N Y Y Y Y Y Y N Y Y
X/XS Max - Y N Y Y Y Y Y Y N Y Y
touch
3rd 5.1.1 Y N Y N N Y Y Y N Y Y
4th 6.1.2 Y N Y Y N Y Y Y N Y Y
5th 9.3.5 Y N Y Y Y Y Y Y N Y Y
6th 10.3 Y N Y Y Y Y Y Y N Y Y
nano
6th 1.2 PC Y N Y N N Y Y Y N N Y
7th 1.02 PC Y N Y N N Y Y Y N Y Y
Note: Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the head unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.

Aux Input: The Rockford Fosgate PMX-2 is fitted with a rear-panel stereo RCA AUX input to connect an external audio source. You can give the Aux input a custom  name.

AM/FM Tuner: The PMX-2 features a built-in AM/FM tuner with manual, seek, and preset tuning. You can store up to 18 FM and 12 AM preset stations; these presets can be stored manually or automatically. You can set the tuner to Local or Distance tuning. The Local option tunes to nearby radio stations with sufficiently strong signals for good reception. In areas where reception is poor, switching to Distance tuning enables the unit to tune in to more distant stations. You can choose between US or European tuning.

Weather Band: The Rockford Fosgate PMX-2 is also equipped with a built-in weather band tuner. Select from weather band frequencies between 162.40 to 162.55.

MOSFET Amplifier: The PMX-2 is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit.

  • Full Bandwidth Power: 25 watts RMS x 4 channels (at 4 ohms, 20-20kHz, 1% THD)
  • Maximum Output Power: 50 watts x 4 channels (200 watts total)
Note: The power specifications for the marine receiver are compliant with the CEA2006 Mobile Amplifier Power Testing and Measurement standards from the Consumer Electronics Association (CEA). These standards were developed as a way to equitably compare power specs from model to model and between manufacturers.

2V/4Ch Preouts + Sub Control: The Rockford Fosgate PMX-2 is equipped with two pair of 2-volt preamp outputs (Front & Rear/Sub). You can configure the Rear/Sub pre-out for rear speakers with fading capability or as a non-fading sub output. You can turn off the unit's internal amplifier, you plan on using only external amps. When the sub out is activated, you can independently adjust its volume level from 0 to 40.

Equalizer: The PMX-2 is equipped with a variety of EQ presets, and 7-Band EQ, and Rockford Fosgate's Punch EQ.

  • Presets: Select between seven EQ presets - FLAT, ROCK, CLASSIC, ACOUSTIC, DANCE, ELECTRONIC, or HIP-HOP.
  • 7-Band EQ: Use the built-in 7-band EQ to custom tailor the sound of your music to your liking.
  • Punch EQ: Punch EQ is an onboard equalizer with up to +18dB at 45Hz and/or up to +12dB boost at 12.5kHz.

High-Pass & Low-Pass Crossovers: The PMX-2 provides a high-pass crossover for the front & rear channels which can be set to 60Hz, 80Hz, 120Hz, or Full-Range. The unit also provides a low-pass crossover for the subwoofer output that can be set to 60Hz, 80Hz, 120Hz, or Full-Range.

Source Gain: You can adjust the gain of each source so they all play at the same volume level. Select between -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB for each source.

Key Beep: A beep tone will sound with any press of a button on the receiver. This can be turned on or off.

RFX3-PMXDK Installation Kit: The included dash kit is designed to facilitate the addition of the Rockford Fosgate PMX-2 digital marine source unit into select Can-Am Maverick X3 model vehicles. This kit is custom molded to match the existing dash and mounts in place of the factory sound system. All mounting hardware for the source unit and dash kit are provided.

5-Channel Amplifier

5-Channel Amplifier: The included TM1000X5ad is a full-range 1000W amplifier rated at 100 watts x 4-channel (4Ω) + 600W x 1 (2Ω). As part of the X317-Stage5 installation package, the 5-channel amplifier powers both pairs of the included full-range speakers, while the 5th mono channel powers the included subwoofer. Pre-formed wiring harnesses for the amplifier and the speakers are provided, greatly reducing the installation time.

  • Class-AD: The TM1000X5ad features Rockford Fosgate's proprietary Class-AD technology, allowing it to produce more power with less current draw from the vehicle's charging system.
  • Constant Power: Constant Power is a patented circuit topology that provides instantaneous delivery of output power with varying impedance loads. This means the amp can provide 100 watts of continuous power (RMS) into either a 4- or 2-ohm load.
  • C.L.E.A.N. Setup: The TM1000X5ad features clip LED indicators for both inputs and outputs, helping you easily match the source to the amp.
  • 3-Stage Airflow: Air vents in all 4 corners of the amp provide air-flow through internal channels on both sides of the circuit boards. Working in conjunction with laterally mounted heat-sinks, this effectively exhausts heat, allowing the amp to run cooler for optimum performance.
  • DSM (Discrete Surface Mount): In the manufacturing process high speed robotics are used to place 1% tolerance parts and large board traces. DSM improves the efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
  • Element Ready: Rockford Fosgate's "Element Ready" classification means the TM1000X5ad is well protected against dust, UV rays, and corrosion, with conformal coated PCB boards and stainless steel hardware.
  • Controls: The TM1000X5ad offers a variety of controls to fine tune your system.
    • Clip Indicators: Both sets of input channels include Clip indicators for both the inputs and outputs.
    • Input Level: The front and rear channels have independent input level (gain) controls, adjustable from 150mV to 12V.
    • 2/4 Channel: When using only one set of inputs, set this switch to 2-channel and connect the inputs.
    • Crossover: The front and rear channels have independent 3-way crossover switches. Each can be set to low-pass, all-pass (crossover is bypassed), or high-pass.
    • Frequency: Working in conjunction with the Crossover Switches, two Frequency dials determine the cutoff frequency, ranging from 50Hz - 250Hz.
    • Punch EQ: This control also works in conjunction with the Crossover by creating a boost at the cutoff frequency, either for high-pass or low-pass settings. If the Punch EQ is turned up when the Crossover is set to AP (all-pass), both bass and treble frequencies will be boosted.
    • Power LED: The Power/Protect LED on the front of the amp illuminates blue when the amp is turned on and operating normally; it illuminates red when one of the protection circuits has engaged (short circuit, impedance too low, or temperature too high).
  • Connections: The TM1000X5ad features the following power, signal input, and speaker output connections.
    • Power Connections: The power, ground, and remote turn-on terminals are c-clamps on a removable plug, with each terminal accommodating up to 8-gauge wire. A Phillips-head screwdriver (not supplied) is required to tighten/loosen the terminals.
    • Signal Input:  The TM1000X5ad is compatible with either line-level (RCA) or speaker-level inputs. The included input harnesses have Molex plugs on one end (plugs into the amp) and female RCA plugs on the other. When using speaker-level inputs the RCA end is removed and the four individual wires are used.
    • Speaker Output: The included speaker output harnesses have Molex plugs on one end (plugs into the amp) and bare wires on the other.
    • Remote Punch Level: An RJ-45 socket is provided for plugging in an optional wired remote control (sold separately), such as the PMX-1R marine wired remote control.

Speakers & Subwoofer

PM2652B Speakers w/ Pods: The two fiber reinforced composite blend 6.5" front speaker enclosures are designed to be a direct fit for select Can-Am Maverick X3 vehicles. The included PM2652B marine speakers mount perfectly in these enclosures.  Rockford Fosgate uses industry standard tests (ASTM B117 salt/fog and ASTM D4329 sunlight, moisture, and heat) to ensure the PM2652B speakers will provide optimum performance in the difficult outdoor environment.  All necessary mounting hardware is included. The mounting hardware is stainless steel to resist corrosion.

  • Tweeters: The 1" aluminum dome tweeters are designed for high output and sonic clarity and are coated to protect them from the elements and UV radiation. The tweeters are bridge mounted, useful in a marine speaker because there's no opening through the middle of the woofer for the mounting post is needed. This also allows full excursion of the woofer cone.
  • Woofers: The woofer cones are injection molded, mineral filled polypropylene with UV inhibitors. This molding process assures a uniform cone thickness for superior linearity and clarity. It is also light weight and rigid for decreased distortion and improved bass response. The woofer cone is held in place by a Thermo-Plastic Elastomer (TPE) surround, designed for maximum cone control and excursion. Both drivers are mounted in a Centrex plastic, injection-molded frame assembly that has been treated for UV radiation and salt/fog resistance.
  • ICC Crossover: The ICC (Integrated Concealed Crossover) simplifies installation and protects the crossover by concealing it inside the basket, creating a cleaner look and easier installation. The crossover is 12 dB/octave high pass.
  • Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.

PM2652W-MB Enclosed Speakers: The Rockford Fosgate PM2652W-MB "Element Ready" speakers consist of a set of PM2652 marine-grade speakers loaded into sealed enclosures. The enclosure & grille are constructed of high density poly-ethylene and coated with a UV inhibitor to withstand mud and dirt, as well as the harsh marine environment.  Both speakers and enclosures conform to UV and Salt-Fog industry standards.

  • Two-Way Driver Design: The Rockford Fosgate PM2652W-MB wakeboard tower speakers come loaded with Rockford's Punch Series PM2652 marine drivers.
    • 1" Tweeter: The 1" aluminum dome tweeters are designed for high output and sonic clarity.  The tweeters are bridge mounted, useful in a marine speaker because no opening through the middle of the woofer for the mounting post is needed.
    • 6.5" Woofer w/ VAST Surround: The 6.5" woofer cones are injection molded, mineral filled polypropylene with UV inhibitors. This molding process assures a uniform cone thickness for superior linearity and clarity. It is also light weight and rigid for decreased distortion and improved bass response. The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket.
    • ICC Crossover: The ICC (Integrated Concealed Crossover) protects the crossover by concealing it inside the basket. The crossover is 12 dB/octave high pass.
    • Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.
  • Marine Tested: Rockford Fosgate uses industry standard tests (ASTM B117 salt/fog and ASTM D4329 sunlight, moisture, and heat) to ensure the PM2652W-MB will provide optimum performance in the difficult marine environment.
    • ASTM B117 salt/fog test standard provides accelerated aging in a controlled corrosive environment to produce relative corrosion resistance information for specimens of metals and coated metals.
    • ASTM D4329 test standard is intended to induce property changes associated with end-use conditions, including the effects of sunlight, moisture, and heat.

PM-CL2B Mounting Clamps: The Rockford Fosgate PM2652W-MB speakers come with cast-aluminum mounting hardware to mount the wakeboard tower speakers to an ATV roll-bar. The Rockford Fosgate Polaris audio system also includes a set of PM-CL2B mounting brackets that allow the speaker to be mounted to tubing from 1" to 2" in diameter. The brackets allow the speakers to be rotated almost 360˚ for unlimited flexibility.

RFX3-RSW16: This kit provides two 15.5' lengths of pre-loomed speaker wire for connecting the rear enclosed speakers.

RM110D2B Subwoofer: The RM110D2B is a 10", dual 2-ohm Prime R1 subwoofer rated at 200W RMS/400W Peak that has been designed for marine watercraft or powersports applications. It features color matched grille and is UV and moisture resistant. The woofer is fitted with spring-post speaker terminals.

  • VAST Surround: Rockford Fosgate's proprietary surround technique, VAST, provides up to a 25% increase in the speakers effective radiating cone area without complicated installation issues. This design alters the typical design and manufacturing technique by eliminating the large flat glue surface area (the landing), which allows the surround to be shifted for increased cone area. In turn, both nominal efficiency and maximum output capabilities are dramatically improved.
  • Anodized Aluminum Voice Coil Former: Rockford Fosgate subwoofer uses an anodized aluminum voice coil former for superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps the subwoofer cool during high SPL conditions.
  • Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.

Subwoofer Enclosure: The 10" Prime R1 woofer mounts to the included roto-mold designed, sealed enclosure which is designed to be a direct fit for select Can-Am Maverick X3 vehicles. The down-firing enclosure can be mounted under either the driver's or passenger's seat, front or rear, with no interference with the seat adjustment. The enclosure re-uses the OEM mounting holes, requiring minimal drilling.

Loading accessories...

Customer Q&A

Loading articles...

TOP
