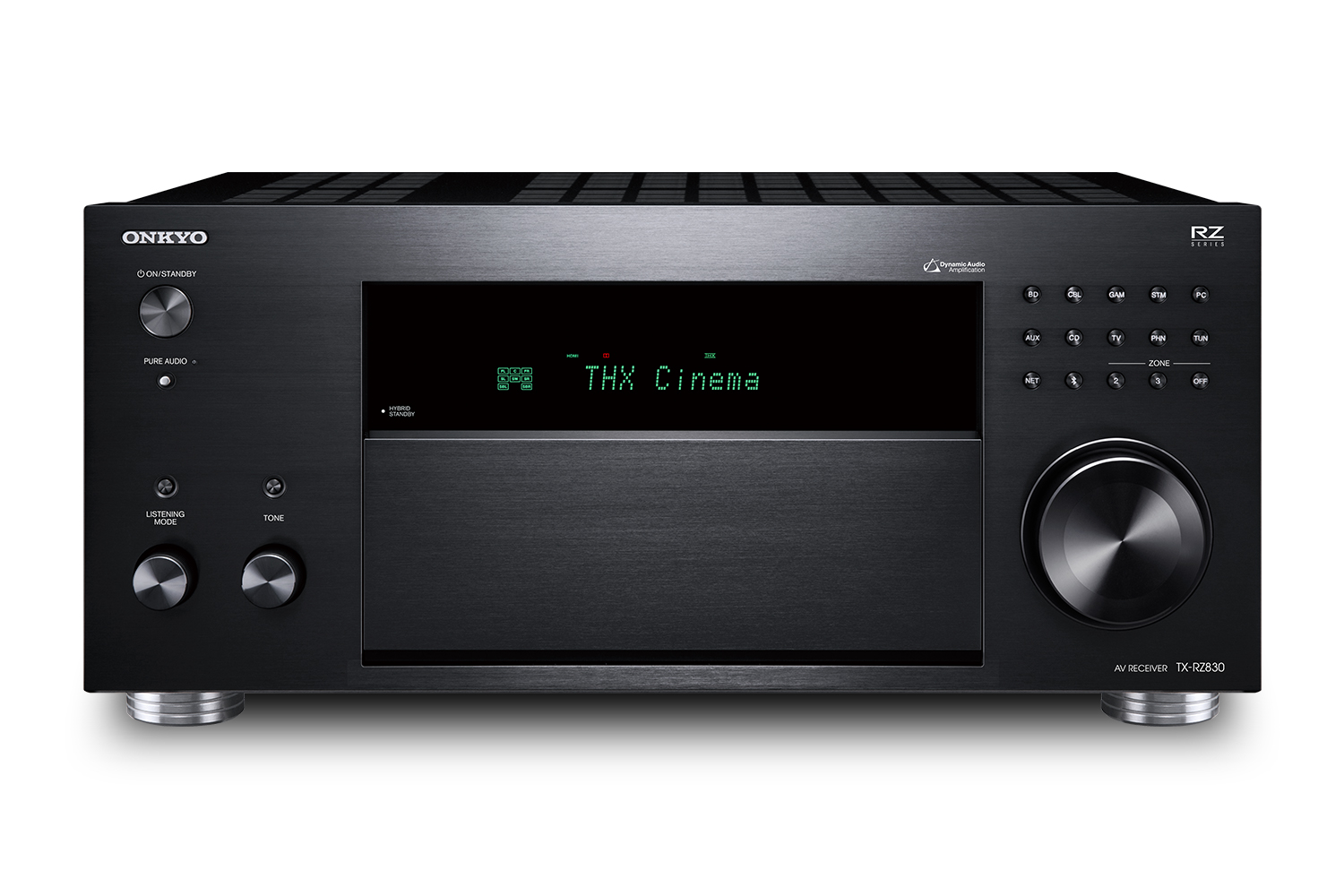

Onkyo TX-RZ830

9.2-channel home theater receiver with Wi-Fi®, Bluetooth®, and Chromecast built-in

Item # 580RZ830

If you love thrilling surround sound, the Onkyo TX-RZ830 delivers clean, powerful audio performance at...

If you love thrilling surround sound, the Onkyo TX-RZ830 delivers clean, powerful audio performance at...

Need help?
Contact our Virginia-based experts.
Discontinued item
21 questions - 67 answers

Item # 580RZ830

About the Onkyo TX-RZ830

Put yourself in the middle of the action

If you love thrilling surround sound, the Onkyo TX-RZ830 delivers clean, powerful audio performance at any volume. This 120-watt-per-channel 4K-compatible receiver decodes the latest formats for immersive, three-dimensional effects to complement your TV's lifelike Ultra HD picture quality. THX® certification means you'll get spot-on, distortion-free reproduction of movie soundtracks. Convenient wireless music options, multi-room music, and easy app control make this receiver a winner for movie nights, parties, and everyday entertainment.

Put yourself in the middle of the action

If you love thrilling surround sound, the Onkyo TX-RZ830 delivers clean, powerful audio performance at any volume. This 120-watt-per-channel 4K-compatible receiver decodes the latest formats for immersive, three-dimensional effects to complement your TV's lifelike Ultra HD picture quality. THX® certification means you'll get spot-on, distortion-free reproduction of movie soundtracks. Convenient wireless music options, multi-room music, and easy app control make this receiver a winner for movie nights, parties, and everyday entertainment.

The RZ Series difference

Onkyo's premium RZ Series home theater receivers deliver music and movie soundtracks with detail and accuracy. The 'RZ830 is constructed with quality components like large custom capacitors for consistently great sound throughout the frequency range. Its advanced amp circuit layout prevents phase shifting, for a clearly focused audio image and reduced distortion even at high volume levels.

Plenty of wireless music choices

The 'RZ830 gives you all kinds of options for wireless listening. Built-in Wi-Fi gives you access to popular streaming services like Spotify® and Pandora®, along with tracks you have stored on your networked computer. Apple® AirPlay® lets you stream from compatible iOS® devices, and Bluetooth adds even more streaming music options.

Use the Onkyo Controller app to control streaming from your Apple or Android™ device.

Chromecast built-in and Google Home voice control

Chromecast built-in lets you use your phone, tablet, or computer to stream music to the receiver from over 100 audio apps. With a Google Home voice assistant or the Google Home app, you can use your voice to control playback and connect with other Chromecast built-in devices for wireless music throughout your home.

Works with Sonos

The 'RZ830 also works great as a component in your Sonos wireless multi-room music system. Just add a Sonos Connect and you can send any music or audio source from the Sonos app to the receiver. It'll even automatically turn on and switch to the correct input when you fire it up in the Sonos app.

DTS Play-Fi for a flexible wireless multi-room music system

DTS Play-Fi gives you the freedom to mix and match Play-Fi devices from different brands. Use the Play-Fi app to queue up songs, play and pause music, and control multiple Play-Fi speakers and components throughout your home.

Customizable speaker connections

The 'RZ830 has outputs for 11 speakers, allowing for different home theater and wired multi-room music configurations (just remember, its nine amplifier channels can't power more than nine speakers at once). You can use all nine channels in a 5.1.4 or 7.1.2 Dolby Atmos or DTS:X system, or you can go with a more modest surround sound setup and repurpose the extra channels in one of a few ways.

The receiver's "Height 1" speaker outputs can be used to bi-amp your front left and right speakers for more powerful sound. Or you can connect a pair of speakers for stereo sound in another room. If you're happy with 5.2-channel surround sound in your living room, you can have two wired stereo music zones in other rooms.

You can also connect a stereo receiver or amplifier through line-level Zone 2 and Zone 3 connections and use the 'RZ830 as a preamp, so you can use all nine channels for surround sound in your home theater and still get stereo sound in up to two additional rooms. Whole House Audio mode lets you turn on and synchronize all audio zones with a push of a button.

READ LESS

Product highlights:

    Power and Processing:
    • 9-channel amplifier
    • 120 watts per channel into 8 ohms (20-20,000 Hz) at .08% THD, with 2 channels driven
    • Dolby® and DTS® surround sound decoding
      • Dolby Atmos® processing for use with in-ceiling or "height" speakers for more enveloping home theater sound
      • DTS:X™ for an immersive, 3-dimensional soundstage
    • THX® Certified Select™ theater reference sound
    • AccuEQ automatic speaker calibration optimizes your system's sound for your room (microphone included)
      • AccuReflex technology aligns phase of up-firing "height" speakers with the sound coming directly from your other speakers
    Digital and Streaming Music Options:
    • built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services
      • includes support for Pandora®, Spotify®, and TIDAL, Deezer, and TuneIn (subscription required for some services)
    • Chromecast built-in for wireless music streaming from compatible devices
    • compatible with Sonos Connect — receiver turns on automatically and sets the right input when selected in the app
    • DTS Play-Fi lets you stream music and create a multi-room music system with other Play-Fi speakers and components
    • built-in Bluetooth for wireless music streaming from a compatible smartphone, tablet, or computer
    • Apple® AirPlay® for streaming music from an iPhone®, iPad®, iPod touch®, or computer running iTunes®
    • plays high-resolution digital music files via USB storage device or a networked computer
      • PCM files up to 24-bit/192kHz resolution; DSD files up to 11.2 MHz
    Multi-room Audio/Video:
    • three-zone/three-source output
      • powered stereo audio outputs for 2nd and 3rd rooms
      • using powered 2nd- and 3rd-room outputs allows 5.2-channel home theater in main room
      • line-level 2nd- and 3rd-room outputs for use with a separate amplifier or powered speakers
      • HDMI and optical/coaxial digital audio sources cannot be output to Zone 3
      • Whole House Audio Mode lets you turn on and synchronize all audio zones with a single button
      • Zone 2 HDMI output allows you to watch different video content simultaneously on two TVs
    Audio Performance Features:
    • high-current amplifier design
    • 32-bit/384kHz digital-to-analog converter for clear sound from digital sources
    • Music Optimizer function enhances the sound quality of compressed music files and Bluetooth streams
    • bi-amp capability with compatible front speakers by reassigning height channels
    • VLSC (Vector Linear Shaping Circuitry) minimizes noise across front left and right channels
    • Direct/Pure mode allows cleaner sound with analog audio sources
    Connections:
    • HDMI audio/video switching: 7 in, 2 out (includes front-panel input)
      • HDCP 2.2 technology ensures compatibility with 4K Ultra HD sources and TVs
      • HDR-compatible for extended picture contrast and brightness with compatible 4K TVs and HDR-encoded content
    • supports HDR10, Dolby Vision™, and HLG
    • 2 component video inputs
    • 2 composite video inputs
    • digital audio inputs: 2 optical and 1 coaxial
    • 6 analog stereo audio inputs
    • MM (moving magnet) phono input for connecting a turntable
    • 11.2-channel preamp outputs for connection to a separate power amplifier
    • rear-panel USB port for audio playback from USB storage devices
    • Ethernet port for network connection
    • outputs for 11 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Height 1 L/R, Zone 2 L/R)
    • receiver can power a maximum of nine channels at once
    • RS-232, IR, and 12-volt trigger connections for use with external controllers
    General Features:
    • free Onkyo Remote app lets you use your Apple or Android™ device as a Wi-Fi remote
    • 4K/60p and 3D video pass-through
    • HDMI standby pass-through allows access to all HDMI connected devices without having to power on the receiver
    • 40 AM/FM presets
    • remote control
    • detachable power cord
    • 17-3/16"W x 7-15/16"H x 16-5/8"D
    • weight: 30.9 lbs.
    • warranty: 3 years
    • Our 60-day money-back guarantee
    • MFR # TXRZ830

    What's in the box:

    • 9.2ch AV receiver
    • 6' AC power cord
    • Remote control (RC-911R)
    • 2 "AAA" batteries
    • Setup microphone
    • AM loop antenna
    • FM wire antenna
    • Initial Setup Guide
    • Safety Information
    • Chromecast built-in instructions
    • Onkyo Next Generation Audio brochure
    • Onkyo Music brochure
    • Product Registration/Warranty Information

    Customer reviews

    Loading reviews...

    Onkyo TX-RZ830 reviews

    Average review:

    66 reviews

    Thanks for submitting your review

    Filter by rating

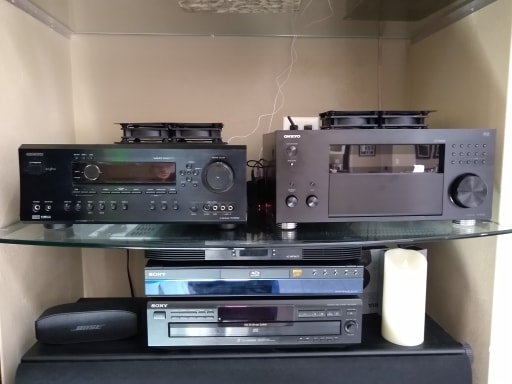

    Customer photos

    Sort reviews

    Sort by:
    Items per page:
    View page:

    Verified customer (What's this?)
    Verified employee purchase (What's this?)

    Pros:

    Cons:

    Crutchfield response

    << >>

    More details on the Onkyo TX-RZ830

    Stacey B.

    Features & specs

    Amplification
    Number Of Channels 9
    Stereo RMS Power (watts) 120
    THD in Stereo 0.08 %
    Frequency Bandwidth (stereo) 20-20k Hz
    Minimum Impedance L/R 4 ohms
    Minimum Impedance Center 4 ohms
    Minimum Impedance Surround 4 ohms
    General Features
    Internet-ready Yes
    Bluetooth Built-in
    Apple AirPlay AirPlay 2
    Alexa-compatible No
    Google Assistant-compatible Yes
    Chromecast built-in Yes
    DTS Play-Fi Yes
    App Remote Control Yes
    USB port for iPod/iPhone No
    FM Sensitivity Not Given
    HD Radio Tuner No
    On-Screen Display Thru HDMI
    Auto Speaker Calibration AdvAccuEQ/AccuReflex
    Plays Copy-protected 4K Yes
    HDR-compatible HDR10, Dolby Vision, HLG
    HDMI Standby Pass-through Yes
    4K Video Upscaling No
    HDMI to HDMI Upconversion No
    DLNA Certified
    MHL-compatible No
    Multibrand Remote Control No
    Learning Remote No
    LCD Remote
    Width (inches) 17-3/16
    Height (inches) 7-15/16
    Depth (inches) 16-5/8
    Weight (pounds) 30.9
    Parts Warranty 3 Years
    Labor Warranty 3 Years
    Multi-room Audio/Video
    Powered Multi-room Audio Output Yes
    Preamp Multi-room Audio Output Yes
    Multi-room HDMI Output Yes
    Playback from Digital Audio Inputs Yes
    Playback from Streaming Sources Yes
    Surround Processing
    Dolby Digital DD, TrueHD, DD+
    Dolby Atmos up to 5.1.4 or 7.1.2
    DTS DTS, HD, HDMA, ES, 96/24
    DTS:X Yes
    Inputs & Outputs
    Phono Input 1
    Audio-Video Inputs 7
    Audio-only Inputs 2
    Component Video Inputs 2
    Component Video Monitor Outputs None
    Optical Digital Inputs 2
    Coaxial Digital Inputs 1
    Optical Digital Outputs None
    Coaxial Digital Outputs None
    HDMI Inputs 7
    HDMI Monitor Outputs 2
    Subwoofer Outputs 2
    Discrete Subwoofer Outputs No
    Multi-Channel Analog Input No
    Multi-channel Preamp Output Yes
    Main Speaker Output Pairs 1
    Main Speaker Terminals Posts
    Ethernet Port 1
    USB Connections 1 Rear
    Removable Power Cord IEC 2-prong

    Product Research

    Audio Section
    Video Section
    Network & Tuner Functions
    Bluetooth/AirPlay/USB Integration
    Multiroom Audio/Video Playback
    Remote & App Control
    Convenience Features

    Audio Section

    RZ Series: Onkyo's premium RZ series AV receivers feature upgraded components, such as a massive transformer and custom capacitors that provide high instantaneous current for lightning-fast transient response and a frequency range that extends down to 5Hz. Discrete amp circuits prevent phase shifting, clearly focusing the audio image and cutting distortion even at extreme volume levels. The RZ series amplifier delivers a significant boost to the dynamics, detail, and accuracy of music and movie soundtracks for a listening experience that packs a stunning emotional impact. The RZ series is backed by a 3 year parts & labor warranty.

    Dynamic Audio Amplification: The TX-RZ830 AV receiver features Onkyo's Dynamic Audio Amplification with a 9-channel amplifier rated at 120 watts (into 8-ohms, at 20Hz-20kHz, with 0.08%, driving 2 channels). Onkyo's new Dynamic Audio Amplification technology incorporates a Hi-Current, non-phase shift amplifier design with discrete output stage circuitry and a H.C.P.S (High Current Power Supply) capable of driving 4-16 speakers with dynamic control, while producing clear, detailed sound.

    • Hi-Current Amp Design w/ Discrete Output Stage: The unique elements of Onkyo's Dynamic Audio Amplification system comprise high-current, low-impedance architecture with discrete output stage circuitry & custom audio capacitors for instantaneous high-current power and precisely control of your loudspeakers for dynamic, accurate sound.
    • Non-Phase-Shift Amplification Circuitry: Onkyo's Wide Range Amp Technology (WRAT) circuit layout prevents phase shifting by pushing the roll-off point higher than the listening-level frequency. Amplifying sound without phase shift creates an uncommonly well-focused and realistic audio image.
    • H.C.P.S. (High Current Power Supply): The receiver's High Current Power Supply (H.C.P.S.) transformer features an isolated power supply design and high-capacity filter capacitors to deliver large amounts of power necessary for reproducing the wide dynamics of movie soundtracks and the detail and clarity of your music.
    • Optimum Gain Volume Circuitry: Optimum Gain Volume Circuitry adjusts the gain so that less than half the amount of attenuation is needed, ensuring the signal never comes close to the noise floor. This protects the signal against noise, resulting in a dramatically clearer sound.
    • Solid Aluminum Front-Panel: A solid aluminum front-panel aid in the receiver's anti-resonance performance.

    Amplifier Assignment: The 9-channel amplifier can be configured in a variety of ways to match your type of speaker setup.

    • For Dolby Atmos & DTS:X:
      • 5.1.2ch Bi-Amp: Assigns all nine amplifiers of the receiver to the Main Zone with the front speakers bi-amped. The 5.1.2ch speaker system consists of Front, Center, Surround, & Dolby Atmos speakers (Surround Back speakers not available in this mode). In this mode, Zone 2 and Zone 3 must be powered by a separate amplifier.
      • 5.1.2ch + Zone 2 or Zone 3: The nine amplifier channels of the receiver are assigned to power a 5.1.2ch speaker system in the Main Zone and stereo speakers in either Zone 2 or Zone 3 (not both). The 5.1.2ch speaker system consists of Front, Center, Surround, & Dolby Atmos speakers (Surround Back speaker are not available in this mode).
      • 5.1.4Ch: The nine amplifier channels of the receiver are assigned to power a 5.1.4ch speaker system in the Main Zone. The 5.1.2ch speaker system consists of Front, Center, Surround, & two sets of Dolby Atmos speakers. In this mode, Zone 2 and Zone 3 must be powered by a separate amplifier.
      • 5.1.4Ch + Zone 2: The nine amplifier channels of the receiver are assigned to power a 5.1.4ch speaker system in the Main Zone and a pair of loudspeakers in Zone 2. The 5.1.4ch speaker system consists of Front, Center, Surround, & two sets of Dolby Atmos speakers. When Zone 2 speakers are active, the Main Zone's Height 1 speakers are inactive, limiting the Main Zone to 5.1.2ch. Zone 3 must be powered by a separate amplifier.
      • 7.1.2Ch: Assigns all nine amplifiers of the receiver to the Main Zone for a 7.1.2ch configure which consists of Front, Center, Surround, Surround Back, and Dolby Atmos speakers. Zone 2 and Zone 3 speakers must be powered by separate amplifiers.
      • 7.1.2Ch + Zone 2: In this configuration the receiver's nine channel amplifier powers the Front, Center, Surround, Surround Back, and a pair Dolby Atmos speakers in the Main Zone, while also powering a pair of Zone 2 speakers in another room. When Zone 2 speakers are active, the Main Zone's Height 1 speakers are inactive, limiting the Main Zone to 7.1ch. Zone 3 speakers must be powered by a separate amplifier.
      • 7.1.4Ch (requires separate amp): In this configuration the receiver's nine channel amplifier powers the Front, Center, Surround, and two sets of Dolby Atmos speakers in the Main Zone, while the Surround Back speakers of the Main Zone are powered by a separate amplifier. Zone 2 and Zone 3 must be powered by separate amps.
      • 7.1.4Ch + Zone 2 (requires separate amp): In this configuration the receiver's nine channel amplifier powers the Front, Center, Surround, and two sets of Dolby Atmos speakers in the Main Zone, while also powering a pair of Zone 2 speakers in another room. The Main Zone's Surround Back speakers are powered by a separate amplifier. When Zone 2 speakers are active, the Main Zone's Height 1 speakers are inactive, limiting the Main Zone to 7.1.2ch. Zone 3 speakers must be powered by a separate amplifier.
    • For Dolby Digital & DTS:
      • 7.1Ch Bi-Amp: Assigns all nine amplifiers of the receiver to the Main Zone with the front speakers bi-amped. The 7ch speaker system consists of Front, Center, Surround, and Surround Back. In this mode, Zone 2 and Zone 3 must be powered by a separate amplifier.
      • 7.1Ch + Zone 2 or Zone 3: The nine amplifier channels of the receiver are assigned to power a 7ch speaker system in the Main Zone and stereo speakers in either Zone 2 or Zone 3 (not both). The 7ch speaker system consists of Front, Center, Surround, and Surround Back.
      •  5.1Ch Bi-Amp + Zone 2: Assigns seven amplifiers of the receiver to the Main Zone with the front speakers bi-amped and two amplifier channels assigned to Zone 2 to power a pair of speakers in another room. The 5ch speaker system consists of Front, Center, and Surround (Surround Back speaker channels are not available in this mode). This amplifier configuration is not compatible with Dolby Atmos or DTS:X.
      • 5.1Ch + Zone 2/3: Assigns five amplifier channels to the main zone for 5ch playback and four amplifiers to Zone 2 and Zone 3 for stereo playback in each zone. The 5ch speaker system consists of Front, Center, and Surround (the receiver's Surround Back and Height amplifier channels are reassigned to power both Zone 2 and Zone 3).

    32-Bit Architecture: The Onkyo TX-RZ830 AV receiver utilizes 32-Bit architecture with Dual 32-Bit DSP Engines and a 384kHz/32-Bit Hi-Grade DAC for exceptional sound quality.

    • Dual 32-Bit DSP Engines: The Onkyo TX-RZ830 employs powerful and highly accurate 32-bit DSP (Digital Signal Processor) engines for better surround sound reproduction.
    • 384kHz/32-Bit Hi-Grade DAC: The AV receiver utilizes one premium-quality AK4458 digital-to-analog converter from Asahi Kasei for all channels. This 384kHz/32-bit DAC implements unique low-distortion filtering technologies for clear sound, and unlocks the full potential of practically any audio format; including compressed, lossless, and hi-res audio (MP3, WMA, AAC, Apple Lossless, FLAC, WAV, DSD, LPCM, and Dolby TrueHD).

    Advanced Circuitry: The Onkyo TX-RZ830 incorporates a variety of advanced circuitry to eliminate jitter & distortion for cleaner, clearer sound reproduction.

    • Vector Linear Shaping Circuitry (Front Channels Only): Onkyo developed Vector Linear Shaping Circuitry (VLSC) to reassemble the signal in its original form following processing. Unlike conventional filters, VLSC removes pulse noise generated in D/A conversion, allowing the sound wave to be reproduced with extremely high fidelity for a smooth analog signal. The signal's data is converted between sampling points and joined with analog vectors in real time to produce a smooth output wave form. The result is a virtually noiseless, smooth, analog signal that brings out even the most subtle of nuances in music sources.
    • PLL Jitter-Cleaning Circuit Technology: PLL (Phase Locked Loop) jitter-cleaning circuit technology reduces jitter by comparing the input and output phases of the digital signal and creating an accurate clock waveform. This enhances the precision of digital signal processing and noticeably improves audio quality. Jitter-cleaning technology works for S/PDIF audio signals only.

    AccuEQ Advance Calibration w/ AccuReflex: The TX-RZ830 incorporates AccuEQ Advance calibration technology and comes with an auto calibration microphone. AccuEQ Advance calibration technology reveals the true potential of your speakers by eliminating standing waves from your listening space using multipoint measurements. These acoustic peaks distort the audio image and prevent your loudspeakers from voicing the sound as their designers intended. AccuEQ Advance also utilizes Partial Band Equalization and only corrects frequency response below a certain point, leaving high-order harmonics untouched - so your speakers are free to reproduce the emotion in the recording faithfully and naturally. In addition, AccuEQ Advance includes three memory presets you can use to save your own customized EQ settings, perhaps tailored to suit different content such as movies, music, or games.

    • Speaker Measurement: The first-round of AccuEQ Advance measurements set the distance, sound pressure level, and crossover of your speakers. Distance and level calibration ensure all channels are treated equally. Crossover measurement selects the correct point to roll off low-frequency sound to the subwoofer for seamless speaker integration.
    • Room Measurements: In the second round of AccuEQ Advance measurements, your room's sonic characteristics are evaluated. Using this information, AccuEQ Advance is able to prevent standing waves from forming by adjusting frequency response. AccuEQ Advance even listens and compensates for the subtlest background noise (such as the hum of an HVAC) to ensure a higher degree of measurement precision.
    • AccuReflex Measurements: AccuEQ Advance also incorporates AccuReflex technology to align the phase of up-firing "height" speakers with the sound coming directly from your other speakers. Any delay is resolved so that everything arrives at your ears at the same time. The result is cohesive reproduction of object-based soundtracks.

    Note: You can choose to bypass AccuEQ Advance for your front speakers or all speakers, and manually set the distance, crossover, EQ, and level of each speaker.

    THX Certified Select: THX Certified Select guarantees the same high-volume sound you experience at a commercial theater in your home. To gain certification, amplifiers must pass the industry's most severe bench-tests covering every aspect of audio performance to satisfy THX requirements. THX spends 40-60 hours testing over 2000 data points ensuring that the receiver is capable of meeting rigorous audio and video performance standards for reference level, distortion-free playback. THX delivers superior sound quality for movie, music, and gaming soundtracks through the use of the following advanced technologies and listening modes.

    • ASA (Advanced Speaker Array): ASA is a technology patented by THX to provide a broad surround sound experience by adjusting the side and back surround speaker sounds respectively. When installing the surround back speakers, first select the distance between the two surround back speakers in the THX Audio settings. This setting optimizes the surround sound environment.
    • Adaptive Decorrelation: In a movie theater, a large number of surround speakers help create an enveloping surround sound experience. If a home theater only has two sidewall surround speakers, the surround speakers may sound similar to headphones lacking spaciousness and envelopment. Surround sounds will also collapse toward the closet speaker as you move away from the middle seating position. Adaptive Decorrelation slightly changes one surround channel's time and phase relationship with respect to the other surround experience as in a movie theater using only two rear speakers.
    • RE-EQ & Timbre Matching: Many movie soundtracks are mixed in studios for playback in large cinema auditoriums with an array of speakers. When played on home systems, they may appear abrasive and edgy. Re-EQ establishes a more accurate tonal balance when enjoying movies in your home. Your ears hear different tonal qualities in sounds coming from different directions. Timbre Matching restores the frequency balance between your front and surround speakers ensuring seamless and smooth panning between the front to back of the room.
    • Boundary Gain Compensation (BGC) & THX Loudness Plus: Sitting near a wall may result in distorted bass response. BGC corrects the way low frequency sound is perceived when seated near a wall. This results in a more accurate bass response. THX Loudness Plus is a volume control technology that automatically adjusts the front-to-back speaker level relationship as you turn the volume down. With THX Loudness Plus home theater audiences can now experience surround sound at any volume level.
    • Listening Modes: Choose between 4 THX Listening Modes - THX Cinema, THX Game, THX Music, and THX Surround EX. THX Cinema recreates the ambiance of the movie theater by positioning the 5.1, 7.1and immersive mixes to submerse you in the movie's soundtrack. THX Game distributes the sound effects and dialogue generated by the game engine by placing the audio from a 5.1, 7.1 or immersive mix to the appropriate "action" location - creating 360-degree gaming experience. THX Music emulates the original studio environment for the 5.1, 7.1 or immersive mix for an accurate and increased sense of spaciousness and localization - placing you directly in the recording session. THX Surround EX decodes the third surround channel from the traditional two surround channels to create a more immersive entertainment experience.
    Note: THX Certified Select is suitable for medium sized rooms, up to 2,000 cubic feet in size, with a 10-12 foot viewing distance from the screen.

    Compatible Digital Audio Formats: The AV receiver supports the following stereo & multichannel digital audio formats through its HDMI jacks and optical/coax digital inputs.

    Digital Audio Connector Audio Signal Type Audio Signal Format
    HDMI (7 Inputs/2 Outputs) High Definition Audio Bitstream Dolby Atmos, Dolby Digital Plus, Dolby TrueHD
    DTS:X, DTS-HD Master Audio, DTS-HD High Resolution, DTS Express
    Bitstream Dolby Digital, DTS, DTS-ES, DTS 96/24
     PCM 2ch to 8ch (32-192kHz, 16/20/24-bit)
    DSD 2ch (2.8/5.6MHz, 1-bit)
    Optical (2 Inputs)/Coaxial (1 Input) Bitstream Dolby Digital, DTS, DTS ES, DTS 96/24
    PCM 2ch to 6ch, (32-96kHz, 16/20/24-bit)

    Immersive Surround Sound: The Onkyo TX-RZ830 AV receiver goes beyond regular surround with the latest immersive surround sound formats, including Dolby Atmos, & DTS:X. The TX-RZ830 also supports Dolby Surround & DTS Neural:X that enhances two-channel and multichannel content and decoding formats with immersive surround sound.

    • Dolby Atmos: The Onkyo AV receiver will enhance properly designed systems with Dolby Atmos where sound comes alive from all directions, including overhead, to fill the home theater with astonishing clarity, power, detail and depth. The TX-RZ830 has the processing power to run a more enveloping 7ch, 9ch, or 11ch Dolby Atmos layout using a 5.1.2, 5.1.4, 7.1.2, or 7.1.4* configuration with ceiling mounted, or Dolby Atmos-enabled speakers (sold separately). *A 7.1.4 configuration requires an additional power amplifier to power the Surround Back speakers.
    • DTS:X: DTS:X will be enabled through an online firmware update coming later this year. DTS:X is the next generation object-based, multi-dimensional audio technology from DTS. Unbound from channels, DTS:X conveys the fluid movement of sound to create an incredibly rich, realistic and immersive soundscape - in front of, behind, beside and above the audience - more accurately than ever before. DTS:X offers the ability to automatically adapt the audio to the speaker layout that best fits your space.
    • Dolby Surround: Dolby Surround offers an enhanced cinema experience to your 2ch or multichannel movie soundtracks using your existing 5.1ch, 7.1ch or Dolby Atmos speaker setup. Dolby Surround enhances audio definition by improving the spatial dimension and overall audio definition of movie soundtracks. It does this by using four distinct surround zones that provide greater control over the exact placement of each detail in a movie sound track, so audio can be matched more accurately to the video on screen; this means more depth and greater realism for your movies. As a result, individual sounds are clearer and more distinct. It also improves the surround sound experience across the entire theater by widening the listening "sweet spot".
    • DTS Neural:X: DTS Neural:X will be enabled through an online firmware update coming later this year. DTS:X incorporates Neural:X, the latest spatial remapping technology from DTS, which provides a fully immersive output for all types of source content; this includes DTS bitstreams and non-encoded (PCM) data. Neural:X delivers a thrilling sense of immersive sound to your speaker layout regardless of the original source format.

    Onkyo Original DSP Modes: Onkyo's Original DSP Modes, combined with Dolby Digital & DTS processing, produce more realistic, powerful sound effects for your movie and music sound tracks based on the type of content and your home theater setup. You can choose from the following:

    • Orchestra: Suitable for classical or operatic music. This mode emphasizes the surround channels in order to widen the sound image, and simulates the natural reverberation of a large hall.
    • Studio-Mix: Suitable for rock or pop music. Listening to music in this mode creates a lively sound field with a powerful acoustic image, like being at a club or rock concert.
    • TV Logic: Suitable for TV shows produced in a TV studio. This mode enhances the surround effects to the entire sound to give clarity to voices and create a realistic acoustic image.
    • Unplugged: Suitable for acoustic instruments, vocals and jazz. This mode emphasizes the front stereo image, giving the impression of being right in front of the stage.
    • Multichannel (Multich)/Game: Multichannel mode is suitable for playing sources recorded in multichannel PCM. The receiver also offers four different Gaming modes - RPG, Action, Rock, and Sports.
    • Stereo/All Channel Stereo (AllCh Stereo): In Stereo mode, sound is output from the front left and right speakers and subwoofer. In All Channel Stereo Mode, stereo sound is output from all speakers - ideal for background music.
    • Mono/Full Mono: In Mono mode, when the input signal is analog or PCM, the left and right front speakers output the sound in monaural. In Full Mono mode, all speakers output the same sound in mono, so the sound you hear is the same regardless of where you are within the listening room.
    • Theater-Dimensional (T-D): In this mode, you can enjoy a virtual playback of multichannel surround sound even with only two or three speakers. This works by controlling how sounds reach the listener's left and right ears

    Audiophile Listening Modes: The Onkyo TX-RZ830 offers two audiophile listening modes which bypass the receiver's tone & DSP processing for higher sound quality performance. In Direct mode, audio from the input source is output without surround-sound processing. This mode delivers pure sound with minimum sound quality adjustment and filtration. In Pure Audio mode, the display and video circuitry are turned off, minimizing possible noise sources for the ultimate in high-fidelity audio reproduction.

    Audio Enhancements: The Onkyo TX-RZ830 receiver provides various audio enhancements to deliver a high-quality listening experience every time.

    • CinemaFilter: The CinemaFilter softens overly bright movie soundtracks. Movie soundtracks are typically mixed for a large theater (relative to your home theater) with lots of soft seats and thick curtains on the walls. Home theater settings often lack these high frequency absorbing wall treatments, making the soundtrack sound too bright. CinemaFilter accounts for this and for many movies sounds more natural at home.
    • Music Optimizer: The Music Optimizer function enhances the sound quality of compressed music files. The Music Optimizer function only works with PCM digital audio input signals with a sampling rate below 48kHz, analog input signals, and Bluetooth audio.
    • Late Night Feature: The Late Night feature limits the dynamic range of Dolby Digital recordings. Limiting the dynamic range makes it easier to find a volume that ensures the quiet sounds are not too quiet and the loud sounds are not too loud for night time listening. This allows you to comfortably listen to without the need to constantly adjust the volume to keep from waking family/neighbors. The choices are: Off, Low, and High. This feature only works with Dolby Digital Encoded software and the depth of the feature will vary based on the individual software package.

    Bass Management: The Onkyo AV receiver offers Tone Control and Double Bass feature to get the most bass impact out of your system. You can independently adjust the Bass (20Hz) and Treble (20kHz) of the receiver's Front L/R channels from -10 to +10 dB. You can also activate the Double Bass function in order to boost bass output even more by feeding bass sounds to the front left/right speakers, center-channel, and powered subwoofer.

    ARC + eARC (via available Firmware Update): ARC (Audio Return Channel) allows the receiver's HDMI monitor output allows audio to be sent from your compatible TV to the receiver through the same HDMI cable already being used to send audio and video to your HDTV. This eliminates the need for extra cables connected to your television. The receiver will also support eARC (Enhanced Audio Return Channel) via an available firmware update. eARC will support uncomprerssed audio formats like Dolby TrueHD, Dolby Atmos, DTS:X, & DTS HD Master Audio - where standard ARC was limited to Dolby Digital, Dolby Digital Plus, DTS, DTS HD, and PCM.

    Volume & Level Setup: The Onkyo AV receiver provides the following volume & level settings.

    • IntelliVolume: With IntelliVolume, you can set the input level for each input (+/-12dB) selector individually. This is useful if one of your source components is louder or quieter than the others. This function does not work in Zone 2 or 3.
    • Maximum Volume: Use this feature to set the receiver's maximum volume level for the Main Zone, Zone 2, and Zone 3. This feature is useful to avoid turning the volume too loud by mistake. You can set the Max Volume from 50-99 (max), or Off (disabled).
    • Power On Volume: Use this feature to set the volume level when the power is turned on in the Mainz Zone, Zone 2, and Zone 3. You can choose between Last (same as the volume when the unit was turned off), Min (0), or 1-99.
    • Mute Level: Set the volume lowered from the listening volume when "Mute" is selected. Choose from 0, -40dB, or -20 dB.
    • Headphone Level: With this setting, you can specify the headphone volume (+/-12dB) relative to the main volume. This is useful if there's a volume difference between your speakers and your headphones.

    Analog Audio Outputs: The Onkyo TX-RZ830 is outfitted with the following analog audio outputs.

    • Binding-Post Speaker Terminals: There are binding-post terminals for all speaker connections - Front, Center, Surround, Surround Back, Height, and Zone 2. The binding post terminals will accept bare-wire, pin-connectors, and banana plugs (single only). Use 4- to 16-ohm speakers.
    • 11.2ch Pre-Outs: The Onkyo TX-RZ830 features 11.2ch pre-outs (Front, Center, Surround, Surround Back, Height 1, Height 2, and Dual Subwoofer) for connection of an external power amplifier or amplifiers. The pre-outs are variable. The dual sub outputs are wired in parallel and share the same input signal (they are not discrete).
    • Headphones: When headphones are plugged into the full-size 1/4" jack on the front panel, all the speakers are automatically muted.

    Phono Input: The TX-RZ830 has a discrete low-noise phono pre-amp and is outfitted with Phono (MM) input for connection of a turntable with a moving magnet cartridge so you can enjoy listening to your vinyl records. There is also a ground screw terminal.

    Front-Panel Aux Input: The TX-RZ830 is fitted with a front-panel 3.5mm Aux input for connecting a portable audio player.

    Video Section

    HDMI 2.0b: The Onkyo TX-RZ830 has seven HDMI 2.0b inputs (6 rear/1 front) and dual HDMI 2.0b outputs. Thanks to the latest HDMI 2.0b specification, the receiver can support 4K/60 Hz Ultra-HD video, HDCP 2.2 compatibility, 4:4:4 color sub-sampling, High Dynamic Range (HDR), and BT.2020 Wide Color Gamut.

    • 4K/60Hz: The TX-RZ830 supports up to 4K (3840x2160 pixels) video @ 60 frames per second on all of its HDMI inputs and outputs. It will also pass a 480p, 720p, 1080i, or 1080p video signals via HDMI (not compatible with 480i video signals).
    • HDCP 2.2: The receivers HDMI inputs and HDMI monitor output support HDCP 2.2, which fully complies with the latest copyright protection standard for 4K video transmission.
    • 4:4:4 Color Subsampling: The receiver's HDMI inputs and HDMI monitor output support RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0 color subsampling (@ 60Hz or 50Hz). With 4:4:4 color subsampling, luminance (brightness) and chroma (color) are sampled at the same rate; resulting in an RGB color palette as big as the video sampling rate for a video image with more colors, plus greater color accuracy and detail.
    • Wide Color Gamut (BT.2020): The BT.2020 color standard delivers a much wider color gamut and represents about 75% of the total visual color spectrum, while the current Rec. 709 color standard selected as the color space for HDTVs and early generation 4K Ultra HDTVs covers only 35% of the total visual color spectrum.
    Note: Use a premium high-speed 18Gbps HDMI cable for the best 4K/HDR performance.

    HDR (High Dynamic Range): HDR (High Dynamic Range) video provides enhanced picture quality by simultaneously enabling greater detail for both the dark and bright parts of an image. HDR reproduces a greater dynamic range of luminosity or brightness levels, creating greater contrast. This increased contrast reveals the subtle nuances of the image, from detailed blacks and shadows to the brightest whites and colors, plus greater depth. This receiver supports three HDR formats - HDR 10, HLG, & Dolby Vision.

    • HDR 10: HDR 10 is an open standard and currently the most popular HDR format on the market. It supports 10-bit color and 1,000 nits. It uses static metadata at the start of a movie to tell the receiver and your TV that the video content is encoded using HDR.
    • HLG: HLG (Hybrid-Log Gamma) is primarily designed for live video feed and over-the-air broadcasts. It uses no pre-encoded metadata and is backwards compatible with SDR. HLG's native compatibility allows much of today's existing SDR infrastructure to be re-used for HDR in the future.
    • Dolby Vision: Unlike HDR 10 which contains static metadata and HLG which uses no metadata, Dolby Vision utilizes dynamic metadata which adjusts brightness, color, and contrast automatically for each scene. Dynamic metadata carries information that maps every image to your TV's display capabilities, so you see more of what the content creator intended. Dolby Vision supports 12-bit color and 10,000 nits.

    Analog Video-to-HDMI Conversion: Analog composite and component video signals (480i only) input to the receiver will be converted to HDMI signals and then output from the receiver via its main HDMI monitor output to your TV. The resolution remains the same and is not upscaled.

    Dual HDMI Outputs: The dual HDMI outputs can simultaneously output the same audio/video signal to two TVs, or you can assign the second HDMI output to Zone 2 to display a different HDMI source (1-2-3 inputs) in another room; video is output at the resolution supported by both TVs.

    HDMI Through: When enabling the HDMI Through function, regardless of whether the AV receiver is "O" or in "Standby", both audio/video streams from an HDMI input will be output to your television, via the receiver HDMI monitor output. You can select between three HDMI Through modes.

    • Auto: Detects the signal and automatically selects the input sources.
    • Source: Selects the HDMI input source for which the HDMI Through function in enabled.
    • Last: The HDMI Through function is activated on the input source selected at the time of setting the AV receiver to the "standby" mode.

    Other HDMI Features: The TX-RZ830 AV receiver's HDMI connectivity also offers 3D video pass-through, Deep Color & x.v. Color support, as well as an auto LipSync function.

    • Deep Color & x.v.Color Support: The AV receiver supports Deep Color and x.v.Color content, which can display a larger color range than standard-definition schemes. The result is a more lifelike, vibrant picture.
    • 3D-Ready: All HDMI jacks will accept 3D video from your 3D-ready Blu-ray player and output the video signal in 3D to your 3D-ready flat-panel television.
    • Auto Lip-Sync: The Lip-Sync function can automatically synchronize HDMI audio and video (for any HDMI jack) that has gotten out of sync due to the complex digital video processing being performed by your HDMI-compatible TV. With HDMI Lip-Sync, the audio delay required to synchronize the audio and video is calculated and applied automatically by the AV receiver. You can also manually correct the audio delay from 0 (no delay) to 400 milliseconds; in 10 millisecond steps.

    Analog Video Inputs: The receiver features two composite video inputs and two component video inputs which support 480i video signals only. All analog video input signals are converted to digital and sent via HDMI to your TV at 480i (no upscaling). The component video input is not capable of high-definition video.

    Video Select: It is possible to play audio and video from different sources. For example, you can play audio via Bluetooth and video from your BD/DVD player. This function is only effective when an input with audio only (Network, Bluetooth, or Tuner) has been selected initially.

    Network & Tuner Functions

    Wired or Wireless Network Connection: The Onkyo TX-RZ830 AV receiver supports a wired Ethernet (RJ-45) or wireless WiFi (802.11 a/b/g/n; 2.4/5GHz) network connection. Via the AV receiver's network connection, you can enjoy music files stored on your computer and listen to internet radio through a variety of online music services.

    • Ethernet (LAN) Jack: The Onkyo AV receiver is equipped with an Ethernet (RJ-45) jack for connecting the player to your home network and computer. Connecting the A/V receiver's Ethernet port to a 100Base-TX switched Ethernet network is recommended for best results. Use a shielded CAT-5 Ethernet cable to connect the receiver to your home network.
    • Built-in Wireless LAN: The AV receiver also features built-in WiFi that allows you to wirelessly connect to your home network, so you can enjoy the benefits of a cable-free network environment. A wireless connection requires a home network with a WiFi-enabled access point (IEEE 802.11 b/g/n; 2.4/5GHz). Supports WPS, WEP, and WPA security.
    Notes:
    • Network setup requires that the receiver be connected to your TV via HDMI for display of the on-screen menu. The receiver's network setup cannot be accessed through its front-panel display.
    • You can "Accept" or "Not Accept" for Onkyo to collect information about product usage when connected to the network and internet. However, if you do not accept the agreement you will get a "Onkyo Group Privacy Statement" each time the receiver is turned on.

    DLNA Certified: Because the TX-RZ830 is DLNA (ver.15) certified, you can play back music files stored on your Windows PC (w/ Windows Media Player 11 or 12) or a DLNA compliant media server through the stereo receiver. You can control basic playback functions of your music library from the included remote control and receiver's on-screen menu; such as Folder/File Select, Play/Pause, Stop, Fast Forward/Rewind, Previous/Next Track, and Repeat/Random. Compatible music files include -

    • Hi-Res Music Files: FLAC (8/16/24-bit; 44.1-192kHz), WAV (8/16/24-bit; 44.1-192kHz), AIFF (8/16/24-bit; 44.1-192kHz), ALAC (16/24-bit; 44.1-96kHz), DSD (1-bit; 2.8/5.6/11.2MHz)
    • Low-Res Music Files: MP3 (8-320kbps; 44.1-48kHz), WMA (5-320kbps; 44.1-48kHz), AAC (8-320kbps; 44.1-96kHz)

    Built-in Online Music Services: The Onkyo TX-RZ830 offers several built-in internet radio & online music services through its wired or wireless network connection.

    • TuneIn: With more than 100,000 radio stations and 2 million on-demand programs registered, TuneIn is a service where you can enjoy music, sports and news from all over the world.
    • Amazon Music (available firmware update): Amazon Music is an on-demand music streaming service that offers access to tens of millions of songs. The Amazon Music service requires that you have an Amazon Prime account or Amazon Music Unlimited account.
    • Pandora: Pandora is a personalized Internet radio service that plays the music you know and helps you discover music you'll love. You can select Internet radio stations by Artist, Song, or Genre.
    • Tidal: Tidal is a global streaming service that offers over 30 million songs in high-fidelity CD sound quality. Tidal has two pricing tiers; either $9.99 or $19.99 a month. Both pricing levels allow you to access Tidal's entire music library. The $19.99 tier has the added benefit of high-fidelity sound at CD-level quality.
    • Deezer: Deezer is an online music service offering over 43 million tracks starting at $9.99 a month. Discover the perfect playlist or make your own, as well as browse curated collections by genre.

    Spotify Connect: The integration of Spotify Connect will enable Spotify Premium users to instantly select and wirelessly stream music to the Onkyo AV receiver from within the Spotify app (Apple iOS or Android). Spotify is a digital music service that gives you on-demand access to one of the largest music libraries in the world (over 15 million tracks and counting). Spotify makes it easier than ever to discover, manage, and share music with your friends. You can browse music by artist, album, track, or most popular; and create your own music library with customized playlists.

    Chromecast Built-In: Chromecast built-in lets you instantly stream a variety of music apps from your Apple (iOS 7.0+) or Android (OS 2.3+) mobile device to the Onkyo stereo receiver. Chromecast built-in works over WiFi and allows you to connect more than one device at a time to the receiver, as well as control what's playing from anywhere in the house with your compatible mobile device.

    • Supported Content: Chromecast built-in offers Internet Radio apps like TuneIn & iHeart Radio; plus online music service apps like Pandora, Spotify (requires Premium subscription), Tidal, Google Play Music, and more. Click here for a complete list of compatible apps. You can even wirelessly stream exactly what's playing on your Android phone or tablet through the Onkyo receiver. Or, if you're on your laptop or computer, you can also cast any music streaming website through the Chrome browser.
    • Simple-to-Use: Simply tap the Cast button from a Chromecast Built-in compatible music app to start streaming to the Onkyo receiver. You can search, browse, play, skip, and turn up the volume directly from the music apps you know and love on your compatible phone, tablet or laptop. While you cast your music, you can still use your phone to answer a phone call, play a game, send a text, and even leave the room, all without interrupting what's playing on the receiver's speaker system.
    Note: To use Chromecast built-in, you must agree to Google's Privacy Statement.

    AM/FM Tuner: With the built-in tuner you can enjoy AM and FM radio stations. You can store your favorite stations as presets for quick selection. You can store a combination of up to 40 of your favorite FM/AM radio stations as presets.

    Bluetooth/AirPlay/USB Integration

    Built-in Bluetooth: The Onkyo TX-RZ830 features built-in Bluetooth (version 4.1+LE) with support for profiles A2DP 1.2 and AVRCP 1.3. You'll be able to wirelessly stream stored music and music apps from your Bluetooth-enabled Apple iPod/iPhone/iPad, Android smartphone/tablet, Windows Phone/PC, & Mac laptop/computer, as well as other Bluetooth compatible devices to the Onkyo receiver. The receiver has a 48' wireless Bluetooth range. You can even set the receiver to automatically turn on when a Bluetooth source device is paired and connected.

    • SBC + AAC Codecs: In addition to support for the standard SBC Bluetooth audio codec, the TX-RZ830 offers support of AAC. By supporting AAC, the receiver offers better audio performance of the music streamed from your Apple iPod, iPhone, or iPad.
    • Playback Control: You can use the receiver's IR remote control to operate basic playback functions, like Play/Pause & Previous/Next Track. Advanced music browsing will still need to be handled from your Bluetooth-enable device.
    • Song/Artist Information: The receiver will display song/artist information on its front-panel LCD and through its on-screen on your HDMI-connected TV. Album Art is not supported.
    Note: Due to the differences in Bluetooth technology, some Bluetooth enabled devices may be incompatible, function improperly, or may not support all features when used with the Onkyo receiver.

    AirPlay 2 (via available firmware update): Through an available firmware update, the Onkyo TX-RZ830 will support AirPlay 2. AirPlay 2 is an advanced and easy-to-use wireless multiroom audio platform for iTunes, Apple Music, and other compatible Apple iOS apps. With AirPlay 2 you can play any sound from your Apple iOS device (running iOS 11.4 or later) or Mac computer (running OS X 10.13.2) on the TX-RZ830 and other compatible AirPlay 2 components throughout your home. You will also be able to ask Siri-enabled devices (like your Apple iPhone, iPad, or Watch) to control playback of your Apple Music on the Onkyo TX-RZ830. With AirPlay 2, also get to see song/artist information and album art via the unit's on-screen menu (via HDMI). You can choose to play audio in one room, play the same audio in grouped rooms, or play the same audio in every room (you can control and group directly from Apple's Music App and Home app on your Apple iOS device). You can even watch videos and movies from YouTube and Netflix on your compatible Apple iOS device or Mac computer with perfectly synced audio on the Onkyo TX-RZ830.

    USB Mass Storage Class: This AV receiver is equipped with a rear-panel USB (type-A) port that allows you to enjoy a variety of music files from a USB mass storage class memory device, such as USB thumbdrive or portable digital audio player. The unit will recognize USB MSC devices formatted in FAT16 or FAT32 with up to 20,000 music files. You can control basic playback functions of your music library from the included remote control and receiver's on-screen menu; such as Folder/File Select, Play/Pause, Stop, Fast Forward/Rewind, Previous/Next Track, and Repeat/Random. USB portable audio players that can be charged via USB will be charged when plugged into the AV receiver's USB port (5V/1A); even in standby mode. Compatible music files include -

    • Hi-Res Music Files: FLAC (8/16/24-bit; 44.1-192kHz), WAV (8/16/24-bit; 44.1-192kHz), AIFF (8/16/24-bit; 44.1-192kHz), ALAC (16/24-bit; 44.1-192kHz), DSD (1-bit; 2.8/5.6/11.2MHz)
    • Low-Res Music Files: MP3 (8-320kbps; 44.1-48kHz), WMA (5-320kbps; 44.1-48kHz), AAC (8-320kbps; 44.1-96kHz)
    Notes: The receiver's USB port does not support Apple iOS and Android devices, USB hubs and card-readers, computers and laptops, or any MP3 player containing music files that are managed with special hardware.

    Multiroom Audio/Video Playback

    Zone 2 HDMI Output: The Onkyo TX-RZ830 provides a Zone 2 HDMI output, so two different HDMI audio/video feeds can be sent to two different displays at the same time directly from the receiver (HDMI 1-2-3 connected input sources only). HDMI Zone 2 will output up to 4K video and 2-channel audio for the HDMI input source selected. Video will be output at the highest resolution supported by both TVs. If you have the same HDMI source playing back in the main room and Zone 2, then the main room is also limited to 2ch PCM audio.

    • Compatible Sources: HDMI 1-2-3 connected input sources only (up to 4K/2ch PCM).
    • Incompatible Sources: Tuner, Analog, USB, Bluetooth, Network, and Optical/Coaxial Digital audio sources; plus analog video sources and HDMI 4-5-6-7 inputs.

    Zone 2: In addition to the main listening room, you can enjoy audio playback of the same source or a different source in another room of your home using the receiver's Zone 2 function. The receiver features Zone 2 line-outputs, as well as Zone 2 speaker terminals. You can play the same audio source in both Zones (Main & Zone 2) or play a different audio source in each zone. Zone 2 is compatible with analog, digital, network, and Bluetooth audio sources - see below for details.

    • Line-Level or Speaker-Level:
      • Line-Level Outputs: By using the line-level outputs on the TX-RZ830 you can connect an external receiver or integrated amplifier in a second room, allowing you to listen to 9.1ch or 7.1.2ch surround in the main room and play a different audio source in another room of your home. The volume of Zone 2 can be controlled from the TX-RZ830 or your add-on integrated amplifier/receiver.
      • Speaker Level Outputs: By using the speaker-level outputs on the TX-RZ830, you can directly connect a secondary pair of speakers in another room of your home, allowing you to listen to 7.1ch or 5.1.2ch surround sound in your main room and play a different audio source in the other room. The volume of Zone 2 is controlled from the receiver.
    • Source Compatibility:
      • Compatible Sources: AM/FM tuner, Analog audio inputs, HDMI 1-2-3 audio inputs (2ch PCM only), Optical/Coax digital audio inputs (2ch PCM only) , USB & Bluetooth Audio, Network (including DLNA, AirPlay, & built-in music apps) can be played back in Zone 2.
      • Incompatible Sources: HDMI video and analog video sources cannot be output to Zone 2. HDMI (4-5-6-7) inputs and DSD audio files cannot be played back in Zone 2. Chromecast built-in not supported in Zone 2.
    Notes:
    • As for Network, USB, and Bluetooth sources; you cannot select different inputs for the main room and Zone 2. For example, if a Network source has been selected in the main room and then Bluetooth is selected as a playback source in Zone 2, the input in the main room will also change to the Bluetooth source.
    • When listening to AM/FM or Internet radio, you cannot select different stations for the main room and Zone 2.

    Zone 3: In addition to the main listening room and Zone 2, you can also enjoy audio playback of the same source or a different source in a third room of your home using the receiver's Zone 3 function. The receiver features Zone 3 line-outputs, as well as Zone 3 speaker terminals. You can play the same audio source in each Zone or play a different audio source in every Zone. Zone 3 is compatible with analog, network, digital (USB only), and Bluetooth audio sources - see below for details.

    • Line-Level or Speaker-Level:
      • Line-Level Outputs: By using the line-level outputs on the TX-RZ830 you can connect an external receiver or integrated amplifier in a second room, allowing you to listen to 9.1ch or 7.1.2ch surround in the main room and play a different audio source in another room of your home. The volume of Zone 3 can be controlled from the TX-RZ830 or your add-on integrated amplifier/receiver.
      • Speaker Level Outputs: By using the speaker-level outputs on the TX-RZ830, you can directly connect a secondary pair of speakers in another room of your home, allowing you to listen to surround sound in your main room and play a different audio source in the other room. If you are only powering Zone 3 from the receiver (and Zone 2 is using line-level and an external amplifier), the receiver is limited to 7.1ch or 5.1.2ch in the main room. If you are powering both Zone 2 and Zone 3 from the Onkyo TX-RZ830, the receiver will be limited to 5.1ch surround in the main room. The volume of Zone 3 is controlled from the receiver.
    • Source Compatibility:
      • Compatible Sources: AM/FM tuner, Analog audio inputs, USB & Bluetooth Audio, Network (including DLNA, AirPlay, & built-in music apps) can be played back in Zone 3.
      • Incompatible Sources: HDMI audio/video and analog video sources cannot be output to Zone 3. Optical/Coax digital audio inputs and DSD audio files cannot be played back in Zone 3. Chromecast built-in not supported in Zone 3.
    Notes:
    • As for Network, USB, and Bluetooth sources; you cannot select different inputs for the main room, Zone 2, and Zone 3. For example, if a Network source has been selected in the main room and then Bluetooth is selected as a playback source in Zone 2 or Zone 3, the input in the main room will also change to the Bluetooth source.
    • When listening to AM/FM or Internet radio, you cannot select different stations in different Zones.

    Whole House Mode: The Whole House Mode is useful when you want to simply add extra background music to your home party. This mode allows you to enjoy the same stereo music as the main room in separate rooms (Zone 2/3). The Whole House Mode selects the same input source for Zone 2/3 as the main room. During the Whole House Mode, All Stereo playback is selected for the Main Zone and Stereo playback for the other two Zones. The Main Zone, Zone 2, and Zone 3 will all have independent volume control.

    Note: Whole House Mode cannot be used if headphones are connected or audio is output from the speakers of the TV.

    Google Home Multiroom: Using the Google Home app for Apple iOS 8.0+ and Android OS 4.0.3+, you can sync multiple speakers with Chromecast built-in in multiple rooms of your home to play the same song from a Chromecast built-in music app throughout your house at the same time. Friends and family can even use their own Chromecast compatible phone or tablet to cast music to your system by connecting to your home's WiFi network.

    DTS Play-Fi (Firmware Update Available): DTS Play-Fi combines DTS and WiFi to wirelessly stream high quality audio through out your home using the Play-Fi app for Apple iOS 8.0+, Android OS 4.0+, & Windows 7 PC or later. Supported music formats up to 24-bit/192kHz (including MP3, AAC, FLAC, WAV) are wirelessly streamed to the receiver or to multiple DTS Play-Fi players at up to 16-bit/48kHz (CD quality sound). You can connect multiple DTS Play-Fi products together from different brands and manufacturers on the same home network to create a whole-home streaming experience. Play the same source in every room or a different song in each room. Due to the bandwidth limitations of most wireless networks, no more than 16 wireless DTS Play-Fi products on a single WiFi network at one given time is recommended. DTS Play-Fi has a range of up to 100' from your wireless router. Compatible sources include -

    • Source Devices: DTS Play-Fi provides you with the ability to stream your music wirelessly in high-quality lossless audio from Apple iOS & Android devices, Windows laptops & desktop computers, as well as DLNA-servers on your existing home WiFi network to the Onkyo receiver. Up to eight separate wireless source devices, each with its own source, are supported simultaneously and any wireless source device can stream to eight DTS Play-Fi playback devices.
    • Online Music Services: DTS Play-Fi enables wireless audio streaming from the world's most popular music services, including - Pandora, SiriusXM, TIDAL, Amazon Music, iHeartRadio, Napster, & more.
    • DTS Play-Fi Compatible Products: All DTS Play-Fi enabled products work seamlessly together, so there's no hassle adding more components, or choosing more than one audio brand (like Onkyo, Integra, Klipsch, MartinLogan, McIntosh, Paradigm, Phorus, Polk Audio, SVS, Wren, and more) in your home.
    Note: This unit does not support the following DTS Play-Fi functions - Spotify Connect, Wireless Surround Sound, Line-In Rebroadcast, Interent Radio, Criticaly Listening Mode, and L/R Stero Speaker Pairing.

    Sonos Connect Ready: Instantly upgrade the music streaming capability of your Onkyo receiver with Sonos Connect (sold separately) and a free over-the-network firmware update. With the Sonos Connect connected to the Onkyo receiver via a set of stereo RCA cable, the audio system you've built around the receiver can now be part of a Sonos Wireless Multiroom Audio System (components sold separately). After a simple set up, the Onkyo receiver will seamlessly tie into Sonos, instantly turning on from network standby, changing inputs and playing at the volume you command through the Sonos controller app on your compatible Apple iOS or Android device.

    • Functionality: Once the Onkyo receiver is connected to the Sonos Connect you will be able to send any music or source on the Sonos app to the receiver. You will also be able to group the receiver to other Sonos devices on the network or use it independently. Whenever you start playing music back from your Sonos app and the Onkyo receiver is selected, the receiver will automatically turn on and switch to the correct input.
    • Compatibility: The Onkyo receiver can be used with the Sonos One, Play:1, Play:3, Play:5 or any combination of these speakers (all sold separately). You can even use the Onkyo receiver with a Playbar or Playbase (sold separately) that is located in a different room. Just remember that you need to have a Sonos Connect to connect the Onkyo receiver to the Sonos multiroom audio system.
    Note: Click here to learn even more about Onkyo and Sonos working together to give you the ultimate home theater and multiroom audio experience.

    FlareConnect MultiRoom Audio: FlareConnect powered by Blackfire mirrors network audio sources and any external analog source playing through the receiver (from streaming audio to vinyl) on optional FlareConnect/Blackfire wireless speakers (such as the Onkyo NCP-302, sold separately). Sampling rates up to 48 kHz are supported. FlareConnect powered by Blackfire is stable, fast, and easy to control with Onkyo's Controller app for Apple iOS and Android.

    Note: Onkyo cannot guarantee the compatibility with other devices featuring FlareConnect or Blackfire.

    Remote & App Control

    Onkyo Controller App: The Onkyo Controller app (for Apple iOS 8.0+ & Android OS 4.0.3) features an intuitive, user-friendly interface that allows you to conveniently operate the Onkyo receiver from your compatible Apple iOS or Android device. This app not only has the usual remote control functions, it also has a multiroom functionality for Zone 2 and wireless multiroom audio setups.

    • Remote Control: You can operate general control functions (play/stop, control the volume, select the input source, etc.) from your compatible smartphone or tablet.
    • Source Device Playback: Operation of connected products (like a Blu-Ray player or TV) that are connected to the receiver via HDMI.
    • Streaming Audio: Lets you play audio from built-in music streaming services (such as Pandora, Spotify, TIDAL), the music library on your Apple iOS or Android device, and your Windows PC or other DLNA-compatible server. You can also access music from Bluetooth and USB source devices.
    • Multiroom Audio: Provides control over Zone 2 and wireless multiroom audio (such as FireConnect by Blackfire).

    Google Home Voice Commands: With a Google Home voice-activated speaker (sold separately - see Accessories Tab) and the Google Home App (for Apple iOS 8.0+ or Android OS 4.2+), you can use your voice to control select functions of the Onkyo AV receiver. With a simple voice command, you can play music from Chromecast compatible music services by artist, song, genre, album, playlist, mood or activity. You can also turn up the volume, skip to the next track, or stop the music - all without lifting a finger.

    IR Remote: The receiver comes with an IR remote control for wireless operation of this receiver and other HDMI-connected sources (via HDMI CEC).

    HDMI Control: This function allows HDMI-CEC compatible components or RIHD-compatible components connected via HDMI to be controlled with the TX-RZ830. The AV receiver offers the following HDMI-CEC controls.

    • The AV receiver will enter Standby mode when the power of the TV is turned to Standby.
    • You can set on the menu screen of the TV to either output the audio from the speakers connected to the AV receiver, or from the speakers of the TV.
    • It is possible to output the audio/video from the antenna or from the input jack of the TV from the speakers connected to the AV receiver.
    • Input to the AV receiver can be selected with the remote controller of the TV.
    • Operations such as volume adjustment or similar for the AV receiver can be performed from the remote controller of the TV.

    Custom Control Integration: The TX-RZ830 offers custom control integration. The TX-RZ830 features a 12V/100mA trigger output (3.5mm) to power on an external component with a 12-volt trigger input, and an IR input (3.5mm) for remote control range extension. It also supports IP (web) control and RS-232, enabling configuration via PC and integration into a home automation system.

    Convenience Features

    On-Screen Menu w/ Setup Assistance (HDMI only): The Onkyo AV receiver offers an on-screen (GUI) menu system through its HDMI output. The simple on-screen display combines text and graphics that make setup and other operations extremely easy. The initial setup assistant takes you step-by-step through speaker configuration, source connection, remote programming, and network connection.

    Note: Initial setup requires that the receiver be connected to your TV via HDMI for display of the on-screen menu. Many of the receiver's setup functions can only be found via the on-screen menu and not the front-panel display.

    Gapless Playback: Many live and classical albums have no gaps in the music. Gapless playback ensures that there are no pauses between audio files. This provides playback with no interruptions, the way it was meant to be heard. Compatible with WAV, FLAC, and ALAC music files via USB.

    Name Edit: You can enter a custom name for each individual input selector and radio preset for easy identification. When entered, the custom name will appear on the display. This function cannot be used for the AM/FM, Network, USB, and Bluetooth input selectors.

    Display Dimmer: The front-panel display brightness has three settings - Dim, Dimmer, and Normal.

    Auto Standby & Sleep Timer: The receiver features a programmable Auto Standby function & programmable Sleep Timer. The AV receiver will automatically go into Standby mode, if there is no operation for 20 minutes with no audio/video signal input. From the remote, you can set the unit to automatically turn off after 30, 60, or 90 minutes.

    Firmware Updates: Future firmware updates are available from the Onkyo website through the receiver's Network or USB connection. Visit Onkyo's online Download Center for the latest firmware updates.

    Loading accessories...

    Customer Q&A

    Q
    Crutchfield asked: Why did you buy this?
    A
    Needed to upgrade from a Pioneer SC-61 A/V which is a fabulous unit. Needed 4K capabilities to keep up with newer technologies. Based on all the 5 Star reviews, will see if this is indeed a 5 star upgrade for my need to upgrade. [ Lionel  Jul 18, 2019 ]
    A
    it s awesome and it is ONKYO [ Thomas Andrew  Jul 17, 2019 ]
    A
    Replacing a 4month old RZ830, house was struck by lightning receiver got fried. My advice is to purchase the extra warranty that will cover surges. The RZ830 worked perfectly sounded great, had no issue's highly recommend it, and Crutchfield is great to do business with. [ J S  Jul 09, 2019 ]
    A
    Looked like an amazing product at a very affordable price. [ louis  Jul 03, 2019 ]
    A
    Have a Onkyo 7.1 system, upgraded to 9.2 for Dolby Atmos / DTS X for media room. [ Kent  Jun 29, 2019 ]
    A
    Excellent price and prior experience with Onkyo brand. This is replacing a trusted NR818. [ Jose  Jun 26, 2019 ]
    A
    Excellent Price + Crutchfield [ Gyorgy  May 27, 2019 ]
    A
    Multi room, newer networking ability for input and Chromecast. [ Scott  May 22, 2019 ]
    A
    This home theater receiver is for my mothers home. I choose not only because it was only sale, and I saved 700 on it, but because it is one of Onkyo flagship receivers, and it supports 3 zones and Sonos for wireless speaker capabilities, and it supports dolby atoms. [ D  May 15, 2019 ]
    A
    good bang for the buck [ Venchito  May 08, 2019 ]
    A
    Have had Onkyo's before and they always sound great in my home theater. Tried a Sony but it sounded terrible. Hopefully this one won't have the "dropped sound" issue. [ Andrew  May 04, 2019 ]
    A
    I have an Onkyo that I have like very much. Looking to up grade to the latest technologies in home theater experience. great pricing! [ JEFF  Apr 30, 2019 ]
    A
    Great quality, amazing price, work as Sonos unit saves the additional cost of getting a separate Sonos component. Upgrading from the 626, need the 4K connections and the 9.2 channels and the 3 zones. [ YHarpaz  Apr 25, 2019 ]
    A
    I replace the AV surround receiver about every 2 years. This receiver is replacing a TX-RZ800, which has done good work - the annual HOA yard sale is coming up, and electronics are always hot items. The TX-RZ830 is comparable to what it is replacing and I look forward to hopefully have 2 more years of good performance at a good cost. [ Roy W.  Apr 23, 2019 ]
    A
    It was a good deal, and a monster of a receiver ! My wife is gonna kill me! HA! [ Damon  Apr 23, 2019 ]
    A
    Price and functionality. [ Rob  Apr 23, 2019 ]
    A
    Price and excellent reviews. [ James  Apr 22, 2019 ]
    A
    It's a replacement for another Onkyo receiver damaged by lightning that we also purchased from you. Love the reduced price and your excellent service. [ Lela Anne  Apr 21, 2019 ]
    A
    Has all the features I want at a price point I need to be at. This is replacing 3 previous Onkyo receivers over 10 years that have had the "no sound", HDMI chip issues - here's to hoping that problem is fixed by now!! [ A  Apr 20, 2019 ]
    A
    I've had two previous Onkyo receivers, all great devices and my sons now have my hand me downs. This model being 9.2 with 120 watts per channel at this price was irresistible. [ James  Apr 19, 2019 ]
    A
    Performance. Value. Experience with Onkyo! Upgrade! [ Michael  Apr 02, 2019 ]
    A
    The price for the options available in this unit made it hard to pass up. [ John  Mar 31, 2019 ]
    A
    Good reviews, have purchased other Onkyo receivers, and a good sale price. [ GREGORY V  Mar 27, 2019 ]
    A
    Had the right features I was looking for and It was on Sale. [ Ken  Mar 26, 2019 ]
    A
    Features, sound and quality [ Licinio  Mar 26, 2019 ]
    A
    Seems like the best "bang for the buck". [ DAVID  Mar 25, 2019 ]
    A
    My son recommended this product and the sale price was the clincher. [ William  Mar 24, 2019 ]
    A
    price! [ R  Mar 19, 2019 ]
    A
    I have a Onkyo reciever and I know the performance of Onkyo recievers,I did not want to take a chance on any other brand. [ Carlyle  Mar 18, 2019 ]
    A
    OPTIONS [ ELENA  Mar 17, 2019 ]
    A
    Love Onkyo Receiver. Sound, style [ PABLO  Mar 14, 2019 ]
    A
    Excellent value and good reviews, meets all my criteria for a new receiver for my home theater. I admire Crutchfield's excellent reputation and will never hesitate to buy from you guys, as I know I can get your advice and support with one phone call. [ Jeffrey  Feb 25, 2019 ]
    SHOW MORESHOW LESS

    21 questions already asked

    Q
    will it support sirius xm internet radio?
    [ dennis  Jul 06, 2019 ]
    4 answers
    A
    I don't know. I really didn't look closely at the internet radio functions
    [ jamjam  Jul 16, 2019 ]
    A
    Not internally, if your device has bluetooth it will connect to the receiver through it. Or you can use a home dock and connect it.
    [ Christian  Jul 12, 2019 ]
    A
    I don't know. I bought the receiver for our new house which will be completed in September. It is still in the box at my daughter's house.
    [ Edward  Jul 12, 2019 ]
    A
    Sort of. It's not an app that's supported in the Onkyo app, however, if you Bluetooth link you can play it, or if you have an Apple device you can use Airplay.
    [ Wyatt  Jul 12, 2019 ]
    Q
    how much power does this reciever have. My tx-nr828 has 130w per channel. This one has 120w per channel, is there a difference in power?
    [ R  Jun 29, 2019 ]
    5 answers
    A
    This receiver has 120w per channel @ 8ohms (2 channel driven). I have an older Onkyo TX NR717 (no atmos) which only has 110w per channel. When both receiver volume is set to -60db, my old Onkyo sounds much louder, so I have to set the volume on this at -50db. The RZ830 has a very good sounding bass, it will rumble your house.
    [ Venchito  Jul 09, 2019 ]
    A
    No this thing has plenty of power I like this reciever
    [ david  Jul 08, 2019 ]
    A
    You will not hear a difference of only 10 watts unless you are running it at max all of the time and your speakers are not efficient. Also you need to figure out what you are doing with it, as in only listening to music, watching movies, etc. For price this unit is hard to beat.
    [ Steven  Jul 07, 2019 ]
    A
    I had a Tx 905 140w/ch and can't tell a lot of difference.
    [ Wayne  Jul 07, 2019 ]
    A
    There really isn't much of a difference in the power. It also depends on what you have connected to it
    [ Tyrone  Jul 07, 2019 ]
    Q
    can i use my ipod dock?
    [ R  Jun 29, 2019 ]
    2 answers
    A
    Im sorry, I don't know the answer to your question.
    [ VAUGHN  Jul 04, 2019 ]
    A
    I'm not sure about that. However, it does have a lot of inputs available. It's a great home theater amp and it does a good job with music. If you're just wanting an amp for music I'd consider other options.
    [ JAMES  Jun 29, 2019 ]
    Q
    Does this receiver upscale to 4K?
    [ Elaine  Jun 27, 2019 ]
    3 answers
    A
    there is no up-scaling, only pass through
    [ Venchito  Jul 09, 2019 ]
    A
    From what I see in the manual, no.
    [ Bryan  Jun 27, 2019 ]
    A
    No it does not, just a 4k pass through. Ken Jones
    [ KENNETH  Jun 27, 2019 ]
    Q
    Does the 830 support Apple 4K?
    [ Jose  Jun 15, 2019 ]
    3 answers
    A
    yes, it does.
    [ Venchito  Jul 09, 2019 ]
    A
    I have Amazon 4K attached and all services that supply 4K like Amazon video and YouTube work so I would think that Apple 4K would work as well.
    [ ROBERT B  Jun 20, 2019 ]
    A
    Yes. The receiver doesn't discriminate the source just the signal if it's 4K, 1080p, etc
    [ Richard  Jun 19, 2019 ]
    Q
    Any way to get this receiver in 220-240V?
    [ New User  May 28, 2019 ]
    3 answers
    A
    I really don't think it can interchange or adapt to that kind of power. But ask Crutchfield for the right correct answer.
    [ Kent  May 29, 2019 ]
    A
    Let me add to my past answer. Looking at the rear image on line, this is not an auto switching power supply. To use 220v-240v it would need the third lug, or ground lug on the power supply. You would need to order the "other" version.
    [ Daniel  May 28, 2019 ]
    A
    The manual lists North American as 120v, 60hz. Others are 220-240v. I do not know if this is an auto switching power supply, once installed I don't have easy access to the rear of the unit.
    [ Daniel  May 28, 2019 ]
    Q
    How do I to adjust dialogue level? on start up, it says Dialogue level +4.....thanks
    [ mholdr  May 19, 2019 ]
    2 answers
    A
    You would have to enter the manual set up mode and make that change. That was set by the tones during the testing for the setup
    [ Daniel  May 28, 2019 ]
    A
    I was wondering that myself I have not found an answer and I have not called helpdesk on it because I just keep forgetting about it
    [ Timothy  May 20, 2019 ]
    Q
    Will you match amazon $499 price on TX-RZ830? Also can you add extended warranty?
    [ Kevin  May 18, 2019 ]
    2 answers
    A
    I attempted such but was told no because it was from a third party seller on Amazon.
    [ J  Jun 09, 2019 ]
    A
    We price match Amazon on select items that are shipped and sold by them. You can connect with one of our product advisors via chat, phone or email to see if that Onkyo is an item that is currently eligible for a price match. You can reach us here: https://bit.ly/2QNxGQB
    [ Cosmo  May 31, 2019 ]  Staff
    Q
    What is the warranty on TX-RZ830?
    [ Kevin  May 18, 2019 ]
    3 answers
    A
    3 YEARS
    [ Dung  May 25, 2019 ]
    A
    3 years
    [ Tyrone  May 24, 2019 ]
    A
    3 years
    [ Jim  May 24, 2019 ]
    Q
    How do I run through the initial setup without a tv? I'm using the receiver to run 8 speakers in 3 zones purely for house audio.
    [ Mike  May 18, 2019 ]
    4 answers
    A
    Hi: You need to download the remote app from the play store yo your cell phone or computer then run the setup and follow the instructions. Alex
    [ alexander  May 21, 2019 ]
    A
    You should be able to use the LED screen on the amplifier, everything that shows up on a TV shows up on the amplifier screen that I am aware of.Enter an answer to this question.
    [ David  May 18, 2019 ]
    A
    I CAN NOT ANSWER QUESTION. CHeck the manual or ask tech.
    [ Fred  May 18, 2019 ]
    A
    This is a home theater unit, it's meant to have video. I can't think of any means to complete setup without a monitor. Everything is driven via the GUI interface displayed thru the HDMI output to a TV. If you have a computer monitor that accepts HDMI you could probably just use that temporarily to complete the setup, then remove. At least it would be more portable than a television.
    [ REGINA  May 18, 2019 ]
    Q
    Will this run 4 RP-8000F and 1 RP-450C Klipsch speakers? They are 150 watt speakers and this looks to be 120 watts receiver.
    [ Brian  May 08, 2019 ]
    6 answers
    A
    Speakers list max power handling, not minimum. Never try to exceed that max power rating. Most times the audio signal is way below that 120 watt, 120 watts would only be used during moments of loud sounds. Cannons, explosions and the such to move the speakers a distance within their coils.
    [ Daniel  May 28, 2019 ]
    A
    The receiver is easily able to power the speakers. I checked on that before buying the receiver and nothing that I read lead to any cautions.
    [ ROBERT B  May 18, 2019 ]
    A
    Yes, it will power those speakers fine. Mine is running the RF7III and RC64III with 4 surround speakers totaling 7.2 and it is fine for movies.
    [ Thomas  May 17, 2019 ]
    A
    Yes it will Klipsch speakers don't need the full wattage to run. I have some Klipsch in my set up they sound great! The Klipsch where much louder then my Polk Audio speakers but Receiver self compensates for it with self setup! Best receiver I have ever owned hands down and the price is unbeatable.
    [ Eli  May 17, 2019 ]
    A
    Yes, it'll run those speakers as the speakers are max RMS 150watts. Really to get to that power level and clean power you may go to a dedicated amp as most home receivers on the higher end peak around 130watts per channel. My polks recommend up to 250watts rms and this onkyo amp is driving them just beautifully.
    [ Richard  May 17, 2019 ]
    A
    You can always use more of the channels to double up on your speakers. I'm a little surprised the Klipsch are so inefficient. Perhaps that is their max power handing capability rather than what is needed to run them?
    [ John  May 17, 2019 ]
    Q
    Is it possible to have 4 atmos speakers?
    [ Michael  May 05, 2019 ]
    5 answers
    A
    Yes you can, just use the high 1 and the high 2. Keep in mind the the unit has only 9 amplified Chanel's, so buy using the 5 channels for the normal surround and the 4 Atmos, Zone 2 will not work, as there will be no more amp to drive it.. in the event you neee the zone 2, you will have to disconnect the high 2..
    [ YHarpaz  May 06, 2019 ]
    A
    Quite frankly I would think so. Mine is hooked up to a couple of Klipsch tower speakers and a Klipsch subwoofer. It just about blew out my back windows when I cranked it up, power is awesome! And if I'm not mistaken, there are ample plug-ins for what you need. This receiver is a wolf in sheep's clothing. Rock on!
    [ Damon  May 06, 2019 ]
    A
    Download the instruction manual. In the Speaker set up section there are all the various set ups possible. There are also diagrams of the back of the unit showing the wiring hook up.
    [ Anthony  May 06, 2019 ]
    A
    Yes by using the preamp outs and a two channel power amp.
    [ Adam  May 06, 2019 ]
    A
    Yes, it will support 2 pair. You can download the manual from Onkyo support to see how they are connected.
    [ Roy W.  May 05, 2019 ]
    Q
    Will i be able to get firmware update if I were to bring back to Asian country?
    [ New User  May 02, 2019 ]
    2 answers
    A
    You can always VPN to have it think you are wherever you want to be.
    [ Richard  May 17, 2019 ]
    A
    You need to contact Onkyo support and ask them that directly.
    [ Sean  May 02, 2019 ]
    Q
    This is listed as a 9.2 system, but in the owners manual it only shows up to a 7.1 speaker hook up for speakers, why is that ? Am I missing something ?
    [ David  Apr 24, 2019 ]
    1 answer
    A
    David, this receiver is intended for Dolby atmos set ups: 5.1.2, 5.1.4, 7.1.2, or 7.1.4 ( with extra amp), or you can use it as a 7.1, with a zone 2. If you have more specific questions, you should give one of our advisors a call! https://www.crutchfield.com/support/ContactUs.aspx
    [ Calvin  May 06, 2019 ]  Staff
    Q
    I am building a garage and want to make it my "zone 2". Everything says that if I go with zone 2, it turns my main to a 5.2. I have a two channel amp. Is there a way to run the amp so that I can keep my 7.2 in my main and power zone 2?
    [ Adam  Apr 13, 2019 ]
    5 answers
    A
    I'm doing 7.1.4 for my theater room and a 2-channel zone 2 - based on reading through the manual, it looks like this is possible as long as you have an additional amplifier and use a the pre-amp outputs on the TX-RZ830 to connect a separate amp for 2 of the speakers. The manual suggests using the amp for surround back - not sure why those specifically, but I suspect you could use the amp for any 2 speakers. I haven't been able to test my setup yet because I still need to install my in-wall speakers, but I can say that I successfully wired it up in the way I described.
    [ Marshall  Apr 24, 2019 ]
    A
    Wish I could help...I'm kinda in the same boat. I'm still learning all the Onkyo can do. So -far I love it! I would suggest one of the Crutchfield tech guys...I'm having issues with Directv and HDMI from Onkyo to my Epson projector--Directv wants me to buy their latest model Genie-Lite satellite receiver -- something about HDMI control shut off switch. Good luck on your garage and enjoy your new Onkyo--it's really great!
    [ BILL  Apr 24, 2019 ]
    A
    I'm back. Look at page 46 of the manual. The trick might be that you need to set up a 7.1 system instead of the 7.2 in order to have a second zone.
    [ Bryan  Apr 24, 2019 ]
    A
    Onkyo RZ-830 is a 9.2 channel receiver. Hook up your garage two speakers to 2 of the 9.2 channel receiver and you still have your 7.2 channel option. You could also take your 2 channel receiver and plug it in the Pre amp on the Onkyo that would work as well , probably better actually..
    [ Crawford  Apr 24, 2019 ]
    A
    I'm going to have to do some reading on this. I thought it could be set up for 7.2 in the main zone and still use the other 2 channels for a second zone. I hope so. It is a 9.2 receiver so surely you can.
    [ Bryan  Apr 24, 2019 ]
    Q
    Does this work well with the Logitech Hub ?
    [ Aaron  Apr 12, 2019 ]
    5 answers
    A
    I'm using the Harmony 650 w/no issues
    [ Richard  May 17, 2019 ]
    A
    I'm sorry but I have no idea. I am not using any universal remotes.
    [ William  Apr 15, 2019 ]
    A
    I am using a Logitech universal controller. It is not the most sophisticated but it works along with Google Chromecast
    [ Licinio  Apr 13, 2019 ]
    A
    Hello Aaron, I apoligize I wouldn't be able to answer your question. I didn't purchase the Logitech Hub. I'm sure one of the excellent Crutchfield experts can help.
    [ CHRISTOPHER  Apr 13, 2019 ]
    A
    It does work good for me
    [ Juvenal  Apr 13, 2019 ]
    Q
    if I hook up a separate amp to the right left center preamps would the unit still power those thru this unit also?
    [ Brian  Apr 03, 2019 ]
    2 answers
    A
    Yes, it will, the pre out is in parallel to the power out put
    [ YHarpaz  May 06, 2019 ]
    A
    Yes
    [ Juvenal  Apr 13, 2019 ]
    Q
    So on first set I set it 6ohms but I need it to be at 8ohms. Now the receiver only gives me the option of 4ohms or 6ohms! How do I get it to give my 8ohms option again?
    [ Eli  Mar 23, 2019 ]
    2 answers
    A
    Page 133 of the English manual addresses this. There are only 2 settings. 6ihms for 6 and above and 4 ohms if any speakers hav an impedance of 4-6 ohms. Hopefully all your speakers are the same. Not sure what to do if you had some 6 or above and some below.
    [ Bryan  Mar 24, 2019 ]
    A
    Mine will not give the option of 8 ohm either.
    [ opie  Mar 24, 2019 ]
    Q
    Does this receiver allow firmware updates? If so, any idea if future updates will enable Amazon music and Alexa voice control? These are two things I need in my new receiver.
    [ Dan  Mar 16, 2019 ]
    3 answers
    A
    Yes, just click update and it does it all for you over wifi.
    [ Richard  May 17, 2019 ]
    A
    It's a new reciever, so any plans about an upgrade are up in the air, but it does support voice controls through Google home and Google assistant.
    [ ROBERT A  Mar 20, 2019 ]
    A
    This receiver does allow firmware updates like for enhanced ARC for HDMI on televisions. But I don't recall anything about Amazon music and Alexa voice in the support area. Ken
    [ KENNETH  Mar 20, 2019 ]
    Q
    Have they fixed the hdmi issues with this model?
    [ Eric  Mar 11, 2019 ]
    4 answers
    A
    I guess I got lucky with my previous Onkyo the TX-NR818 , which I still have (exercise room duty). Needed to upgrade to 4K. So far, no handshake issues with Xbox One X, Roku 4K, Vizio 2018 P75 streaming apps (Netflix, etc) and Spectrum cable. Only have had for a week but so far so good.
    [ Ryan  Mar 15, 2019 ]
    A
    Well I Recently purchased this Receiver and It's been working GREAT for me,And it's strange How onkyo is kind of known for their Alleged HDMI board problems but this is my FOURTH onkyo Receiver and i have Had nary an issue with ANY of them.
    [ JUSTIN  Mar 11, 2019 ]
    A
    I purchased this unit about 3 weeks ago and have no hdmi issues and have utilized every port.
    [ Jimmie  Mar 11, 2019 ]
    A
    I am going to say yes, because my Receiver is working great !!
    [ Al  Mar 11, 2019 ]
    Q
    Can you hook up a separate equalizer to this amp?
    [ Charles  Feb 23, 2019 ]
    1 answer
    A
    This receiver does not have a monitor loop to add an equalizer to it. But it does have preamp outputs. This means you could use the preamp outputs to connect the equalizer, and then connect a separate amp to the outputs on the equalizer My Bio: https://www.crutchfield.com/bio/Paul
    [ Paul  Mar 04, 2019 ]  Staff
    SHOW MORESHOW LESS

    Loading articles...

    TOP
