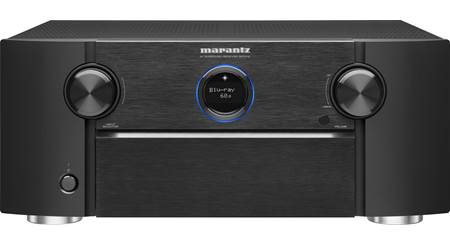

About the Marantz SR7013
Precision engineering for top-quality sound
Precision engineering for top-quality sound
The Marantz SR7013 delivers thrilling sound for movies, TV, and music. This powerful nine-channel receiver lets you enjoy immersive Dolby Atmos® and DTS:X™ surround sound. 4K upscaling for analog and digital sources lets you enjoy just about any video content in stunning Ultra High Definition.
You can expand your system with a "Zone 2" HDMI output, plus wired and wireless options for playing music in different rooms.
Make the most of every music source
The SR7013 offers playback of high-resolution audio formats from a networked computer or USB thumb drive. Special processing cleans up lower-resolution audio formats, letting you get the most out of the ample streaming music choices you get through Wi-Fi, Bluetooth®, and Apple® AirPlay®.
Streamline your music with HEOS Built-in
HEOS Built-in technology lets you access all your music — from your personal library, internet radio, and popular streaming services like Pandora®, Spotify®, and TIDAL — through the SR7013.
This receiver can be easily integrated into a wireless multi-room audio system. Stream music to HEOS wireless speakers and components in different rooms, and control each room's sound independently with the free HEOS app. The app lets you control playback, browse music sources, and select which rooms you want to use. Play the same music throughout your home, or listen to something different in each room.
Just ask Alexa
The HEOS Home Entertainment skill for Amazon Alexa lets you use your Echo or Echo Dot to issue voice commands to the SR7013. You can easily switch inputs and control volume and playback on the receiver and other HEOS enabled devices. Alexa can also help you search for music and stream different content to different rooms in your multi-room HEOS system.
Customizable speaker connections for your ideal setup
The SR7013's 9-channel amplifier gives you extra flexibility to expand your system into other rooms of your house. In your living room, you can set up a 7.1-channel surround sound system, or a 5.1.2-channel Atmos system with a pair of upward-firing or overhead speakers. That leaves you with two amplifier channels you can reassign to power a set of speakers outdoors or in another room.
If you're happy with a 5.1-channel system in your home theater, this receiver can power speakers in two additional zones. Or the extra height channels can be used to bi-amp a pair of compatible front speakers for more powerful sound.
Power and Processing:
- 9-channel amplifier
- 125 watts per channel into 8 ohms (20-20,000 Hz) at 0.05% THD, with 2 channels driven
- Dolby® and DTS® surround sound decoding
- Dolby Atmos® and DTS:X™ for more enveloping home theater sound
- supports 5.1.2, 5.1.4, and 7.1.2 Atmos setups
- DTS Virtual:X® simulates height effects without height speakers
- Auro-3D® built-in for three-dimensional soundfields
- IMAX Enhanced certification for improved performance with IMAX Enhanced content (via future firmware update)
- video upscaling (up to 1080p and 4K) for analog and HDMI sources
- Audyssey speaker calibration and system optimization includes:
- MultEQ® XT32 auto setup and room calibration delivers balanced, dynamic sound with enhanced surround performance for as many as eight seating positions
- Audyssey Dynamic Volume mode to keep listening levels steady
- Audyssey Dynamic EQ for fuller sound at lower listening levels
- Audyssey Low Frequency Containment reduces the amount of bass that bleeds into other rooms
- Audyssey Sub EQ HT provides individual calibration for dual subwoofers, for even bass response throughout the room
- Audyssey MultEQ Editor app for further audio customization (paid app; not included)
Digital and Streaming Music Options:
- built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services
- HEOS Built-in technology wirelessly connects compatible HEOS components for whole home audio
- includes support for Pandora®, SiriusXM, and Spotify® (subscription required for some services)
- free HEOS app offers easy Wi-Fi control, settings adjustments, and music selection and playback
- works with Amazon Alexa-compatible voice control assistants
- Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music
- supports multi-room audio with compatible wireless speakers
- built-in Bluetooth® for wireless music listening with smartphones, tablets, and compatible computers
- plays high-resolution digital music files via USB storage device or a networked computer (PCM up to 24-bit/192kHz resolution; DSD up to 5.6MHz)
- MDAX2 (Marantz Dynamic Audio eXpander 2) for better sound from MP3s and other digital music files
- three-room/three-source output
- play music from three different sources in up to three rooms simultaneously
- powered and line-level stereo outputs for 2nd and third rooms allow 5.2- or 7.2-channel sound in main room
- amp assign function lets you use Height 1 and Height 2 speaker outputs for Zone 2 and 3, or for bi-amping front speakers
- All Zone Stereo mode ensures that both zones stay in sync when playing the same source
- HDMI dual-zone switching for watching video content from different sources in two zones simultaneously
- supports 2nd zone output from digital sources
Audio Performance Features:
- Marantz's Hyper Dynamic Amplifier Module (HDAM) offers improved dynamic range and detail while reducing noise
- current feedback circuit for accurate, natural sound at all volume levels
- Pure Direct mode turns off unused circuitry for cleaner audio signals
- HDMI audio/video switching: 8 in (includes 1 front-panel input), 3 out
- HDCP 2.2 technology ensures compatibility with 4K Ultra HD sources and TVs (all HDMI inputs and outputs)
- HDR-compatible for extended picture contrast and brightness with compatible 4K TVs and HDR-encoded content
- supports HDR10, Dolby Vision™, and HLG
- component video switching: 3 in, 1 out
- composite video switching: 4 in, 1 out (includes front-panel input)
- digital audio inputs: 2 optical and 2 coaxial
- 6 analog stereo RCA audio inputs (includes front-panel input)
- MM phono input for connecting a turntable
- 7.1-channel preamp inputs
- 11.2-channel preamp outputs include outputs for 2 powered subwoofers
- front-panel USB port for audio playback from USB memory devices
- outputs for 11 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Height1 L/R, Height2 L/R)
- receiver can power a maximum of 9 channels at once
- Ethernet port for wired network connection
- RS-232C, remote (IR), and 12 volt-trigger connections for use with external controllers
- 1/4" headphone output
- detachable power cord
- 4K/60p and 3D video pass-through
- free Marantz AVR Remote app lets you use your Apple or Android™ device as a Wi-Fi remote
- Setup Assistant guides you through the initial connection process and settings
- intuitive, full-color on-screen guide
- 4 smart select function buttons for one-touch power-up, source selection and recall of volume and Audyssey configuration
- Video Select lets you listen to music while watching video from a different source
- HDMI standby pass-through allows HDMI switching without powering up receiver
- AM/FM tuner
- remote control
- 17-5/16"W x 7-5/16"H x 16-1/4"D (9-3/4"H with Wi-Fi antennas raised)
- weight: 31.1 lbs.
- warranty: 3 years
- Our 60-day money-back guarantee
- MFR # SR7013
What's in the box:
- 9.2ch AV receiver
- 6' AC power cord
- Remote control (RC036SR)
- Two "AAA" batteries
- 2 WLAN/Bluetooth antennas
- Sound calibration microphone (ACM1HB)
- Microphone stand
- FM wire antenna
- AM loop antenna
- Quick Start Guide
- Safety Instructions
- Notes On Radio
- Warranty Information
- Microphone Stand Assembly Instructions
- Sheet of self-adhesive cable labels
- Spotify brochure
Marantz SR7013 reviews
Thanks for submitting your review
More details on the Marantz SR7013
Features & specs
9-Channel Discrete Amplifier: The Marantz SR7013 is equipped with a power amplifier that reproduces high-fidelity sound in surround mode with equal quality and power for all channels, true to the original sound. The power amplifier circuit adopts a discrete-circuit configuration that achieves high-quality surround sound reproduction. The 9 channel amplifier is rated at 125 watts with 2 channels driven (20-20kHz, 8Ω, 0.08% THD).
- HDAM (Hyper Dynamic Amplifier Module): Featuring exclusive Marantz HDAM (Hyper Dynamic Amplifier Module) technology found on our Reference Series components, the SR7013 incorporates multiple HDAM modules which provide superior low noise wideband performance in an all-discrete configuration, compared to conventional op amp ICs. HDAM technology provides an ultra fast slew rate for true wideband response and maximum dynamic range to deliver optimum sound quality with today's high resolution audio formats.
- Current Feedback Topology: In addition to HDAM technology, the SR7013 also features Current Feedback instead of the typical voltage feedback configuration. A Marantz innovation introduced on their very first audiophile amplifiers more than 60 years ago, Current Feedback technology provides a wide closed-loop bandwidth and very high slew rate, delivering superior fidelity with wideband audio sources.
Amplifier Assignment: The SR7013's nine discrete amplifier channels can be configured to accommodate your type of home theater setup. You can even connect up to eleven speakers at a time and the receiver will intelligently and automatically select which speakers need power based on audio source and surround sound format.
- 11ch: Provides 11ch playback by assigning all nine internal amplifiers to the receiver's main zone and using an external 2ch amplifier for either the Front or Height 2 channels. Up to nine speakers can be powered by the receiver's amplifier, while two speakers are powered by an external amplifier. This amplifier configuration is compatible with up to 11.2ch and 7.2.4ch applications.
- 9ch: Assigns all nine amplifiers within the receiver for the Main Zone to power the Front, Center, Surround, Surround Back, and Height speakers. You can connect up to eleven speakers to the receiver's amplifier and the receiver will automatically allocate the nine amplifier channels to power up to nine speakers at a time. This amplifier configuration will automatically switch between 9.2ch and 7.2.2ch / 5.2.4 applications.
- 7ch Bi-Amp: Assigns all nine amplifiers of the receiver to the Main Zone with the front speakers bi-amped. Up to nine total speakers can be connected at one time - including Front, Center, Surround, Surround Back and Height speakers. The receiver will automatically switch for playback between 7.2ch and 5.2.2ch applications. The receiver's Height 2 amplifier channels are assigned to bi-amp the front speakers. A bi-amplification connection uses two amplifiers for one speaker. One amplifier is connected to the woofer section of a loudspeaker while the other is connected to the combined midrange and tweeter section. With this arrangement each amplifier operates over a limited frequency range, making its job easier.
- 7ch + Zone 2 or Zone 3: The nine amplifier channels of the receiver are assigned to power a 7ch speaker system in the Main Zone and stereo speakers in either Zone 2 or Zone 3 (not both). Up to nine total speakers can be connected in the Main Zone - including Front, Center, Surround, Surround Back and Height speakers. The receiver will automatically switch for playback between 7.2ch and 5.2.2ch applications. The receiver's Height 2 amplifier channels are assigned to power Zone 2.
- 7ch + Zone2/3-Mono: Assigns seven of the amplifier channels of the AV receiver for 7ch playback in the main zone and one amplifier each to Zone 2 and Zone 3 for mono audio in each zone. Up to nine total speakers can be connected in the Main Zone - including Front, Center, Surround, Surround Back and Height speakers. The receiver will automatically switch for playback between 7.2ch and 5.2.2ch applications. The receiver's Height 2 amplifier channels are assigned to power both Zone 2 and Zone 3 for mono sound.
- 7ch + Front B: Assigns seven amplifier channels of the receiver to the Main Zone for up to 7ch playback and two amplifier channels to power another pair of front speakers in the Main Zone for stereo playback only. This is useful when you want to have a dedicated pair of 2ch speakers, in addition to your home theater speakers. If you choose to play the Front A and Front B speakers at the same time, Front B will play the same exact audio source and audio signal as Front A without down-mixing. Up to eleven total speakers can be connected in the Main Zone - including Front, Center, Surround, Surround Back, Height, and Front B speakers. The receiver can automatically switch for playback between 7.2ch and 5.2.2ch application. The receiver's Height 2 amplifier channels are assigned to power the Front B speakers.
- 5ch Bi-Amp + Zone 2: Assigns seven amplifiers of the receiver to the Main Zone with the front speakers bi-amped and two amplifier channels assigned to Zone 2 to power a pair of speakers in another room. The 5ch speaker system will consists of Front, Center, and Surround. The receiver's Height channels are reassigned to bi-amp the front speakers and power Zone 2. Surround Back speaker channels are not available in this mode. This amplifier configuration is not compatible with Dolby Atmos.
- 5ch + Zone 2/3: Assigns five amplifier channels to the main zone for 5ch playback and four amplifiers to Zone 2 and Zone 3 for stereo playback in each zone. The 5ch speaker system will consists of Front, Center, and Surround. The receiver's Surround Back and Height amplifier channels are reassigned to power both Zone 2 and Zone 3. This amplifier configuration is not compatible with Dolby Atmos.
Note: The receiver's Height 1 & 2 amplifier speaker channels in a 9ch or 7ch amplifier configuration can be configured as Top Front, Top Middle, Top Rear, Front Dolby, or Surround Dolby for Dolby Atmos or DTS:X.
Advanced 32-Bit D/A Conversion On All Channels: For optimum fidelity and the widest dynamic range with lowest distortion, the SR7013 features advanced reference-class 32-bit AKM D/A converters (AK4458) on all channels. This ensures consistent high fidelity and precise channel matching across all channels for the ultimate listening experience. In addition, the receiver utilizes a Hybrid PLL Clock Jitter Reducer to eliminate distortion caused by jitter errors for a more accurate reproduction of the recording the way the artist intended.
Compatible Digital Audio Formats: The AV receiver supports the following stereo & multichannel digital audio formats through its HDMI jacks and optical/coax digital inputs.
|Digital Audio Connector||Audio Signal Type||Audio Signal Format|
|HDMI (8 Inputs/2 Outputs)||High Definition Audio Bitstream|| Dolby Atmos, Dolby Digital Plus, Dolby TrueHD |
DTS:X, DTS-HD Master Audio, DTS-HD High Resolution, DTS Express
|Bitstream||Dolby Digital, Dolby Digital EX, DTS, DTS ES, DTS 96/24|
|DSD||2ch to 6ch (2.8MHz, 1-bit)|
|PCM||2ch to 8ch (32-192kHz, 16/20/24-bit)|
|Optical/Coaxial (2 Optical Inputs/2 Coaxial Inputs)||Bitstream||Dolby Digital, Dolby Digital EX, DTS, DTS ES, DTS 96/24|
|PCM||2ch to 6ch, (32-96kHz, 16/20/24-bit)|
Immersive Surround Sound: The Marantz SR7013 AV receiver goes beyond regular surround with the latest immersive surround sound formats, including Dolby Atmos, DTS:X, & AURO-3D.
- Dolby Atmos:
Dolby Atmos surround sound technology
dispenses with channel-based coding in favor of more advanced object-based
coding, giving the soundtrack designer the ability to precisely place sounds
anywhere in the 3-dimensional space. Now you can enjoy this same
award-winning technology at home with the SR7013 that lets you connect a 5.1
or 7.1 surround sound speaker system and 2-4 additional overhead speakers or
2-4 Dolby Atmos elevation speakers for the ultimate home theater experience.
- A 5.1.2 configuration is based on a traditional 5.1 speaker layout complemented by 2 overhead or Dolby Atmos-enabled speakers.
- A 5.1.4 configuration is based on a traditional 5.1 speaker layout complemented by 4 overhead or Dolby Atmos-enabled speakers.
- A 7.1.2 configuration is based on a more advanced 7.1 speaker layout complemented by 2 overhead or Dolby Atmos-enabled speakers.
- A 7.1.4 configuration is based on a more advanced 7.1 speaker layout complemented by 4 overhead, or Dolby Atmos-enabled speakers (two of the overhead or Dolby Atmos-enabled speakers must be powered by an external 2ch amp).
- DTS:X: The latest immersive surround sound system, DTS:X features object-based audio coding that lets the soundtrack designer place sonic elements anywhere in the 3D acoustic soundspace, and provides for overhead speakers to deliver a stunning surround sound experience. Along with DTS:X decoding, the SR7013 features DTS-HD Master Audio decoding and other DTS audio technologies.
- AURO-3D: This receiver is equipped with an Auro-3D decoder. With Auro-3D, Front Height, Surround Height and Top Surround are added to a conventional 5.1-channel system to achieve a natural and realistic soundfield that is three-dimensional and fully immersive. You will be able to fully enjoy Auro-3D playback if you properly place the speakers for Auro-3D. Auro-3D does not support a Dolby Atmos configuration using Top Front, Top Middle, Top Rear, or any Dolby Atmos Enabled speakers. But it is possible to support both an Auro-3D and Dolby Atmos by adding Front Height and Rear Height speakers to a 5.1 configuration. For an optimum Auro-3D experience Surround Height speakers are strongly recommended.
Post Decoding Formats: The Marantz AV receiver supports Dolby Surround & DTS Neural:X to enhance 2-channel and multichannel decoding formats. It will also be able to support DTS Virtual:X through a future firmware update (no ETA).
- Dolby Surround: Dolby Surround offers an enhanced cinema experience to your 2ch or multichannel movie soundtracks using your existing 5.1ch, 7.1ch, or Dolby Atmos speaker setup. Dolby Surround enhances audio definition by improving the spatial dimension and overall audio definition of movie soundtracks. It does this by using four distinct surround zones that provide greater control over the exact placement of each detail in a movie sound track, so audio can be matched more accurately to the video on screen; this means more depth and greater realism for your movies. As a result, individual sounds are clearer and more distinct. It also improves the surround sound experience across the entire theater by widening the listening "sweet spot".
- DTS Neural:X: Further, DTS:X incorporates Neural:X, the latest spatial remapping technology from DTS, which provides a fully immersive output for all types of source content; this includes DTS bitstreams and non-encoded (PCM) data. Neural:X delivers a thrilling sense of immersive sound to your speaker layout regardless of the original source format.
- DTS Virtual:X (via Future Firmware Update): DTS Virtual:X bridges the gap between DTS:X and the reality of so many consumers' homes, allowing you to enjoy multi-dimensional sound regardless of room size, layout, or speaker configuration. DTS Virtual:X can be used with any content (from 2ch to 5.1ch soundtracks), while delivering virtual height & virtual surround processing based on psychoacoustics (not reflective surfaces).
IMAX Enhanced Technology (Firmware Update Scheduled for January 2019): Get the most premium at-home entertainment experience with IMAX Enhanced; the latest technology program from IMAX that sets a new standard for image, sound, scale and content quality. This new certification and licensing program combines IMAX digitally re-mastered 4K HDR content and DTS audio technologies to offer a new level of quality in immersive sight and sound experiences in the home. IMAX Enhanced lets you experience premium content digitally remastered by IMAX, so you can watch the highest-quality 4K movies with immersive audio delivered by DTS. Not only will IMAX Enhanced content look and sound amazing, but other audio/video content will also look and sound great too.
- Remastered 4K/HDR Video: It utilizes a sophisticated, advanced algorithm designed to produce the highest-quality, sharpest 4K HDR images. This advanced process accurately reduces noise and grain under the filmmaker's guidance to best optimize the content for a much higher quality, higher brightness 4K HDR display format. Select IMAX Enhanced titles that were shot with IMAX cameras or specially formatted for IMAX theatres will also include an expanded aspect ratio for the film's home release to show you more picture on your TV. IMAX Enhanced certified TVs must be at least 65" with support for HDR10 and dynamic, as well as specific calibration, resolution, color, brightness, contrast, and scale of image capabilities.
- Remastered DTS:X Audio: IMAX and DTS will also partner with award-winning Hollywood sound mixers to use a special variant of its DTS:X codec technology integrated in home audio equipment to deliver an IMAX signature sound experience that is dynamic, immersive, theatrical, and powerful. IMAX Enhanced supports both 5.1 and 11.1 formats, but the recommended speaker layout for an IMAX Enhanced system is 7.2.4 with seven horizontal speakers, two subwoofers and four height speakers; 5.1.4 is the minimum layout for IMAX Enhanced. However, due to various constraints you may opt to install only a 5.1ch speaker system. In such cases, DTS Virtual:X is required to properly render and remap audio to the available speakers.
- Available IMAX Content: IMAX is working with its global studio and other content partners to build a steady stream of IMAX Enhanced versions of movies and other programming using the newest, proprietary post-production process developed by IMAX. IMAX will be announcing and releasing IMAX Enhanced versions of a wide range of films both for 4K/HDR streaming and Ultra HD Blu-ray Discs.
- To take full advantage of IMAX Enhanced, you need an IMAX Enhanced certified 4K/HDR TV (65"-up) or Projector and an IMAX Enhanced certified DTS:X enabled AV receiver or soundbar.
- IMAX and DTS developed the IMAX Enhanced program out of their decades of combined expertise in image and sound science to make it easier for consumers to select the products and content that will deliver the highest-quality, sharpest 4K HDR images and powerful, immersive sound at home.
- To qualify and carry the IMAX Enhanced logo, the highest-end TVs, AV receivers, projectors, sound bars, and must meet stringent performance standards established by IMAX, DTS and Hollywood's leading colorists in order to create a consistent and higher bar for image and sound performance on premium devices.
Audyssey Suite: The Marantz SR7013 features the Audyssey suite of powerful DSP features - including MultEQ XT32, Sub EQ HT, LFC (Low Frequency Containment), Dynamic Volume, and Dynamic EQ.
- MultEQ XT32: Via the supplied measuring microphone, Audyssey MultEQ32 measures all the speakers in your home theater during setup, including the subwoofer, and then generates multiple high precision DSP room acoustic correction filters, which together provide smoothest and most natural tonal balance, regardless of the brand or model of the various speakers. Audyssey MultEQ32 incorporates Up to eight listening positions can be measured, configured, and recorded. MultEQ XT32 compensates for both time and frequency characteristics of the listening area based on "Audyssey Setup" measurement results. Selection is done from three types of compensation curves - Reference (default and recommended, L/R Bypass, Flat, and Off).
- Sub EQ HT: Audyssey Sub EQ HT provides individual DSP tailoring of each subwoofer in a dual subwoofer setup, for deeper bass with improved definition, compared to a single subwoofer configuration.
- LFC (Low Frequency Containment): Audyssey Low Frequency Containment uses advanced psychoacoustic algorithms to deliver a full range tonal balance, including deep bass, but without disturbing close-by neighbors or family members in other rooms, and features a multi-step adjustment that lets you dial in the amount of containment to your preference.
- Dynamic Volume: Audyssey Dynamic Volume features advanced psycho-acoustic processing to deliver clear dialog and wide range sound at reduced volume levels so that you can enjoy theater-level clarity at whatever listening level you choose.
- Dynamic EQ: Audyssey Dynamic EQ also features advanced DSP processing to deliver full range wide-band response, even at reduced volume levels. Dynamic EQ Reference Level Offset provides three offsets from the film level reference (5 dB, 10 dB, and 15 dB) that can be selected when the mix level of the content is not within the standard.
Listening Modes: The Marantz SR7013 features a variety of Listening modes to choose from, so you can enjoy your movie or music soundtrack the want you to hear it.
- Auto Detection: In Auto Mode, the Listening Mode switches automatically to the corresponding type of audio input signal (Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-HD, or multichannel PCM) that is detected. If the input signal is analog or PCM (2-channel), stereo playback is used.
- Direct Modes: The Marantz SR7013 offers two Direct Listening Modes which bypass the receiver's tone & DSP processing for higher sound quality performance. Source Direct provides playback of 2ch or Multichannel audio in its original form, without any surround or tone processing. Pure Direct goes a step further by turning off the receiver's display and analog video circuitry to minimize the possibility of any noise being added to the audio signal.
- Stereo Modes: The Marantz SR7013 surround receiver also provides two-channel stereo and multi-channel stereo playback, as well a virtual surround from two stereo speakers. The 2CH Stereo mode is for playing in two channel stereo; bass and treble can be adjusted and sound is output from the front left and right speakers, along with a connected subwoofer. Multi-Channel Stereo mode lets you enjoy stereo sound from all speakers. Virtual Speaker mode lets you enjoy surround effects using only the front speakers or headphones.
Audio Enhancements: The Marantz SR7013 receiver provides various audio enhancements to deliver a high-quality listening experience every time.
- CINEMA EQ (Cinema Equalizer): The Cinema EQ function gently decreases the level of the extreme high frequencies, compensating for overly-bright sounding motion picture soundtracks. Select this function if the sound from the front speakers is too bright. This function only works in the Dolby Digital &DTS modes.
- M-DAX: Compressed audio formats such as MP3, WMA (Windows Media Audio) and MPEG-4 AAC reduce the amount of data by eliminating signal components that are hard for the human ear to hear. The M-DAX function generates the signals eliminated upon compression, restoring the sound to conditions near those of the original sound before compression. It also corrects the sense of volume of the bass to obtain richer sound with compressed audio signals.
- Dynamic Range Compression (DRC): Motion picture soundtracks have tremendous dynamic range (the contrast between very soft and very loud sounds). For listening late at night, or whenever the maximum sound level is lower than usual, Compressing the dynamic range allows you to hear all of the sounds in the soundtrack with reduced dynamic range. DRC works when playing program sources recorded in Dolby Digital or DTS.
- Center Spread & Dialog Control: Center Spread expands the center channel signal to left and right front speakers to create a wider frontal audio image for the listener, when in Dolby Surround mode. Dialog Control adjusts the volume of dialog in movies and vocals in music so they can be heard more easily, when in DTS:X mode.
- LFE + Main: The LFE + Main setting boots the bass sound by feeding the low-frequency signal to both the loudspeakers and the powered sbuwoofer, regardless of audio format or listening mode.
ARC + eARC (via available Firmware Update): ARC (Audio Return Channel) allows the receiver's HDMI monitor output allows audio to be sent from your compatible HDTV to the receiver through the same HDMI cable already being used to send audio and video to your HDTV. This eliminates the need for extra cables connected to your television. The receiver will also support eARC (Enhanced Audio Return Channel) via an available firmware update. eARC will support uncomprerssed audio formats like Dolby TrueHD, Dolby Atmos, DTS:X, & DTS HD Master Audio - where standard ARC was limited to Dolby Digital, Dolby Digital Plus, DTS, DTS HD, and PCM.
Volume & Level Settings: The Marantz SR7013 offers the following volume & level settings.
- Volume Settings: You can choose to display an Absolute volume scale (0-98) or Relative volume scale (-79.5 to 18dB). You can also set a maximum volume level of 0 (80), -10 (70), or -20 (60) dB to limit the receiver's total volume output. In addition, you can define the volume setting that is active when the power is turned on; select "Mute", -79 to +18dB (1-98), or Last. These settings can be set independently for the Main Zone, Zone 2, and Zone 3.
- Mute Level: You can set the amount of attenuation for the audio muting circuit; -40dB or -20dB below current volume, or full mute (sound turned off entirely). The Mute Level can be set independently for the Main Zone, Zone 2, and Zone 3.
- Channel, Center, & Subwoofer Level: The volume level (-12 to +12dB) of each channel can be changed while listening to audio for each input source. You can also adjust the center channel volume level (-12 to +12dB) independently from the channel level to clarify the dialog for all sources. In addition, you can adjust the subwoofer channel volume level (-12 to +12dB) independently from the channel level to emphasize low frequencies for all input sources.
- Source Level: This function adjusts the playback level of the currently selected input source's audio input. Use this feature if there are differences in the input volume levels between different sources. You can correct the playback level of the audio input from -12 to +12dB.
Audio Outputs: The Marantz AV receiver features color-coded binding-post speaker terminals, 11.2ch pre-outs, and a front-panel headphone jack.
- Color-Coded Speaker Terminals: The receiver has binding-post terminals for all speaker connections. The binding-post terminals can accept bare wire, pin connectors, and banana plugs (single/dual). The receiver will accept speaker impedances of 4 to 16-ohm. The AV receiver comes with color-coded labels to easily identify which channel a speaker cable should be connected to. Since the speaker cables have labels in the same colors as the connectors on the SR7013's rear panel, there's no longer any confusion about which terminals they should be connected to.
- 11.2Ch Pre-Outs: The AV receiver features 11.2ch pre-amp outputs (Front L/R, Center, Surround L/R, Surround Back L/R, Height 1 L/R, Height 2 L/R, and Dual Subs) for connection to external power amplifiers. The pre-outs are variable. For compatibility with dual subwoofer home theater systems, the SR7013 features two discrete subwoofer outputs. With dual subwoofers, which can be placed in different parts of the room, you'll benefit from response averaging, which helps provide smoother and more detailed deep bass, compared to a conventional single subwoofer speaker system.
- Headphone Jack: When headphones are plugged into the full-size 1/4" jack on the front panel, all the speakers are automatically muted.
Phono Stage w/ HDAM: The Marantz SR7013 is outfitted with a Phono input (MM), so you can connect your turntable and listen to your vinyl records with high-quality sound. The HDAM component of the SR7013's phono preamp outperforms op-amp solutions due to its high speed and maintains a clean audio signal for exceptional sound performance
7.1 Channel Input: The SR7013 features a 7.1 Channel input (Front left, Front right, Center, Surround left, Surround right, Surround Back left, Surround Back right and Subwoofer) for connecting a DVD Audio player, Super Audio CD multi-channel player, or other component that has a multi-channel port so you can playback the audio with 5.1 channel or 7.1 channel surround sound.
HDMI 2.0b: Featuring eight HDMI inputs (7 rear/1 front) and three HDMI outputs, the SR7013 incorporates an advanced video section that features the latest HDMI 2.0b specification, including support for 4K/60 Hz Ultra-HD video, BT.2020 Wide Color Gamut, High Dynamic Range (HDR), & 4:4:4 Pure Color sub-sampling and 21:9 video pass-through, along with support for 3D content. The SR7013 also features HDCP 2.2 compatibility, a requirement for 4K Ultra HD copy-protected content.
- 4K/60Hz + HDCP 2.2: The SR7013's HDMI inputs and monitor output support up to 4K (3840x2160 pixels) video @ 60 frames per second. All of the HDMI jacks support HDCP 2.2, which fully complies with the latest copyright protection standard for 4K video transmission. The receiver will also pass a 480i, 480p, 720p, 1080i, or 1080p video signals via HDMI.
- 4:4:4 Color Subsampling: The HDMI inputs and monitor output support RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0 color subsampling (@ 60Hz or 50Hz). With 4:4:4 color subsampling, luminance (brightness) and chroma (color) are sampled at the same rate; resulting in an RGB color palette as big as the video sampling rate for a video image with more colors, plus greater color accuracy and detail. The front-panel HDMI only supports 4K 60/50Hz using format YCbCr 4:2:0 only.
- Wide Color Gamut (BT.2020): The BT.2020 color standard delivers a much wider color gamut and represents about 75% of the total visual color spectrum, while the current Rec. 709 color standard selected as the color space for HDTVs and early generation 4K Ultra HDTVs covers only 35% of the total visual color spectrum.
- 21:9 Aspect Ratio: By supporting 21:9 aspect ratio, this receiver can show films recorded in the Cinema Scope format on your TV for a much more immersive video experience. When these types of films are viewed in the usual 16:9 ratio, you see black bars at the top and bottom of the screen; 21:9 eliminates these bars.
Note: Use a premium high-speed 18Gbps HDMI cable for the best 4K/HDR performance.
HDR Compatibility: HDR provides enhanced picture quality by simultaneously enabling greater detail for both the dark and bright parts of an image. HDR reproduces a greater dynamic range of luminosity or brightness levels, creating greater contrast. This increased contrast reveals the subtle nuances of the image, from detailed blacks and shadows to the brightest whites and colors, plus greater depth. The receiver supports HDR 10, Dolby Vision, and HLG.
- HDR 10: HDR 10 is an open standard and currently the most popular HDR format on the market. It uses static metadata at the start of a movie to tell the receiver and your TV that the video content is encoded using HDR.
- Hybrid-Log Gamma: HLG (Hybrid-Log Gamma) is primarily designed for live video feed and over-the-air broadcasts. It uses no pre-encoded metadata and is backwards compatible with SDR. HLG's native compatibility allows much of today's existing SDR infrastructure to be re-used for HDR in the future.
- Dolby Vision: Unlike HDR 10 which contains static metadata and HLG which uses no metadata, Dolby Vision uses dynamic metadata technology which sets individual color and brightness levels for each and every scene. Dolby works directly with filmmakers at major Hollywood studios to create superior HDR video masters of blockbuster movies.
4K Video Upconversion & Upscaling: The Marantz AV receiver's sophisticated video processor provides upconversion from standard definition (480i/480p) and high definition (720p/1080i/1080p) sources to 4K Ultra HD (3840x2160 pixels), which lets you connect all your analog (composite/component) or digital (HDMI) video sources to the SR7013 and then connect to your TV with just a single HDMI cable. Only the receiver's main HDMI output supports video upconversion.
Note: When composite or component video signals are used, only 480i video signals are converted to HDMI (up to 4K).
Three HDMI Outputs: The two parallel HDMI outputs distribute the same video signal simultaneously to two separate displays, while the discrete HDMI output allows you to play a different audio/video source in another zone (Zone 2). HDMI Zone 2 and the HDMI monitor out 2 do not offer HDMI upscaling.
HDMI Standby Pass-Through: When the AV receiver is in "Standby" mode and the HDMI Standby Pass-Through function is enabled, both audio/video streams from the receivers HDMI input will be output to your television, via the AV receiver's HDMI monitor output. Once the receiver is turned "On", only video will pass through the monitor output to your TV and the audio is directed to the receiver's speaker outputs.
- HDMI Input: Selects the HDMI Input for which the HDMI Standby Pass-Through function is enabled.
- Last: The HDMI Standby-Through function is activated on the input source selected at the time of setting the AV receiver to the "Standby" mode.
- Off: The HDMI Standby Pass-Through function is disabled.
Other HDMI Features: The Marantz SR7013 AV receiver's HDMI connectivity also offers 3D video pass-through, Deep Color & x.v.Color support, as well as an auto LipSync function.
- Deep Color & x.v.Color Support: The AV receiver supports Deep Color and x.v.Color content, which can display a larger color range than standard-definition schemes. The result is a more lifelike, vibrant picture
- LipSync: This function adjusts the delay between audio and video output. You can do this manually or have the receiver set the LipSync function automatically. When connected to a TV via HDMI the receiver automatically adjusts audio output timing (0-500ms) if the TV supports an automatic LipSync function. You can also manually delay the sound output up to 500ms to synchronize it with the video image.
- 3D Ready: The SR7013 AV receiver supports 3D video pass-through (720p/1080p only) from connected 3D-compatible Blu-ray, games and broadcast devices to 3D-compatible HDTVs (all 3D components must be connected via HDMI). Special eyewear will be required for viewing 3D content.
Component & Composite Video: The receiver features three composite video inputs and one composite video output, as well as a Zone 2 composite video output. There are also two component video inputs and one component video output that can be assigned as a monitor output or Zone 2 output. Both the composite and component video jacks only support up to 480i (not compatible with 480p, 720p, or 1080i/p).
Advanced ISFccc Video Calibration: The SR7013 is certified by the Imaging Science Foundation to deliver top video quality, and the unit also features advanced ISFccc video calibration controls that allow for precision fine-tuning of the connected HDTV, even if it's not an ISF certified set. You can choose from a variety of Picture Modes - Standard, Movie, Vivid, Streaming, ISF Day, ISF Night, Custom, or Off. The Custom mode lets you manually adjust Contrast, Brightness, Saturation, Noise Reduction, and Enhancer (sharpness).
Video Modes: You can set the video processing method to match the type of video content. Choose from Movie, Game, or Auto.
Video Select Function: This receiver can display video from a different source on your connected TV during audio playback from CD (analog input only), Tuner, HEOS, or Phono.
Wired or Wireless Network Connection: The Marantz SR7013 offers a wired or wireless network connection. Either network connection gives the receiver access to HEOS music apps (like Pandora, Amazon, or Tidal), TuneIn Internet Radio, Spotify Connect, your music library on your Apple iOS or Android device, as well as music content on your Windows PC or DLNA music server.
- Ethernet Jack: The Marantz SR7013 receiver is fitted with a RJ-45 Ethernet (LAN) port to make a wired connection from the receiver to your home network.
- Built-in WiFi: The receiver also offers built-in WiFi (IEEE 802.11 a/b/g/n; 2.4/5GHz) for a wireless network connection; WPS, WEP, WPA-PSK (TKIP), WPA-PSK (AES), WPA2-PSK (AES) security protection is supported. Wireless network setup can be done via WPS button, Access Point Scan, Manual Setting, PIN Code, or even through your Apple iOS device (7.0+).
Note: Network setup requires that the receiver be connected to your TV via HDMI for display of the on-screen menu. The receiver's network setup cannot be accessed through its front-panel display.
TuneIn Internet Radio: The Marantz SR7013 includes access to more than 100,000 free internet radio streams from all corners of the globe via the built-in TuneIn online music service. Simply select TuneIn from the receiver's on-screen menu using the included remote and browse among the 100,000 stations neatly organized into popular categories and select a station that appeals to you.
Spotify Connect: If you subscribe to Spotify and have the Spotify App on your Apple iOS or Android mobile device, you can stream Spotify to the Marantz AV receiver. Spotify is a digital music service that gives you on-demand access to one of the largest music libraries in the world (over 15 million tracks and counting). Spotify makes it easier than ever to discover, manage, and share music with your friends. You can browse music by artist, album, track, or most popular; and create your own music library with customized playlists.
HEOS Music Apps: With built-in HEOS technology and the HEOS app (for Apple iOS 8.0+ and Android OS 4.0) on your compatible Apple iOS or Android mobile device, you'll be able to stream a wide variety of online music services (fees may apply), plus the music library of your mobile device through the Marantz AV receiver.
- Online Music Services: Using the HEOS app, you'll be able to stream your favorite online music services like Amazon Music (including HD), Pandora, TIDAL, iHeart Radio, SiriusXM, Napster, TuneIn, & Spotify (some services will require a paid subscription, purchases, and/or other fees). The HEOS app on your Apple iOS or Android device will serve as the controller for these apps and provide song/artist information with Album Art. You can create a "Favorite" station list, so you can quickly access your favorite internet radio stations and online music channels.
- Mobile Device Streaming: Using the HEOS app on your Apple iOS or Android mobile device, you are able to stream your device's music library to the Marantz AV receiver. You'll be able to browse your music library by Artist, Album, Genre, and Song; control music playback functions like Play/Pause and Previous/Next Track; and view song/artist info with Album Art from the app on your compatible mobile device. You can even type in an artist name or song title to find music in your mobile device's library.
- Prior to using the HEOS system, you'll need to setup up your free HEOS account. Your HEOS account remembers all your settings and preferences such as all your music service logins and HEOS playlists. When you'd like to add multiple smartphone or tablet controllers to your system, you only need to sign in to each new device with your HEOS user name and password. Instantly all your music services and HEOS playlists are available in the new controller too.
- If you prefer, HEOS supports multiple accounts in a single household. This way, each family member can enjoy their own personalized Pandora, Spotify, or other online music account settings and still share all the same speakers in the home.
DLNA 1.5 Certified: The SR7013 is DLNA (Digital Living Network Alliance) 1.5 and Windows 7/8/10 compliant for audio networking. This means it's easier for you to access and enjoy digital music stored on your Windows PC. The receiver can wirelessly playback High-Res music content from your PC, while using the included remote control to browse your music library. The receiver supports ID3-Tag (ver.2) and META tag information; so song title, artist name, and album name can be displayed on the unit's front-panel or on-screen menu. In addition the unit will display Album Art on a connected television. The Marantz SR7013 supports the following audio formats, sampling frequencies, and bit rates via its wired network connection.
|Resolution||Compatible Audio Formats||Sampling Frequencies||Bit-Rate/Bit-Depth||Extension|
|Hi-Res||WAV (PCM)||32/44.1/48/88.2/96/176.4/192 kHz||16/24-bit||.wav|
|FLAC (Free Lossless Audio Codec)||16/24-bit||.flac|
|ALAC (Apple Lossless Audio Codec)||16/24-bit||.m4A|
|Compressed||MP3 (MPEG-1 Audio Layer-3)||32/44.1/48 kHz||32-320 kbps||.mp3|
|WMA (Windows Media Audio)||48-192 kbps||.wma|
|AAC (MPEG-4)||16-320 kbps||.aac/.m4a|
Note: Your computer must meet the following system requirements - Windows Media Player Network Sharing Service or Windows Media DRM10. Album Art is only displayed when using Windows Media Player (ver.11/12).
Roon Tested: Roon is a feature rich music library and playback application that compiles all the music files available to your network and makes them easily available to play on the Marantz receiver and any other Roon enabled audio devices. Roon manages digital music files (including FLAC, WAV, AIFF, ALAC, and DSD) collected on hard drives and networked storage devices. It can also integrate your iTunes library, and optionally merge with the Tidal and Qobuz music streaming services. Roon software can be installed on your Windows or Mac computer, while a Roon Remote app is available for Apple iOS 11.0+ and Android OS 5.0+). When you access the Roon software or remote app, it will display your complete audio library together with its metadata and artwork along with the available Marantz receiver and other Roon enabled devices. Simply select the music you wish to play and the Marantz receiver or Roon device in which you want to hear it on.
- To use Roon you will need a Roon Core running on the same network as the Marantz receiver. The Core is media server software that runs on your computer, NAS, or component (like Nucleus or ROCK - sold separately), located on the network within your home.
- Make sure your Marantz product has the latest firmware/software update installed.
AM/FM Tuner: The Marantz AV receiver features a built-in AM/FM tuner with 56 station auto-preset memory tuning. You can also set your presets manually. You can create an 8-character name for each preset station. You can even directly enter a station number using the receiver's on-screen menu and remote control.
Software Updates: Using the receiver's network/internet connection, you can check for and update the latest firmware from the online Marantz server. Visit Marantz's Owner's Circle for access to downloads to keep the Marantz receiver up-to-date.
Front-Panel USB Port: The Marantz receiver is equipped with a front-panel USB (type-A) port that allows you to enjoy a variety of music files from a USB mass storage class memory device; such as a USB thumbdrive or portable HDD (a portable hard disk drive will require an external power supply). Compatible USB storage devices must be formatted in FAT 16 or FAT32 (a FAT16 device can have up to 2GB of storage, while a FAT32 device can have up to 2TB of storage). The unit can recognize up to 500 folders/500 files. You can use the receiver's on-screen menu (via HDMI) and remote control to navigate your stored music files on your connected USB memory device. Song/artist information will display on your HDMI-connected TV and the receivers front-panel display. USB devices that can be charged via USB will be charged when plugged into the AV receiver's USB port (5V/1A); even in standby mode.
|Resolution||Compatible Audio Formats||Sampling Frequencies||Bit rate||Extension|
|Hi-Res||WAV (PCM)||32/44.1/48/88.2/96/176.4/192 kHz||16/24-bit||.wav|
|FLAC (Free Lossless Audio Codec)||16/24-bit||.flac|
|ALAC (Apple Lossless Audio Codec)||16/24-bit||.m4A|
|Compressed||MP3 (MPEG-1 Audio Layer-3)||32/44.1/48 kHz||32-320 kbps||.mp3|
|WMA (Windows Media Audio)||48-192 kbps||.wma|
|AAC (MPEG-4)||16-320 kbps||.aac/.m4a|
Note: The receiver's USB port is not compatible with Apple iPod/iPhone/iPad, Android OS devices, USB hubs, and computers.
AirPlay 2 (via available firmware update): Through an available firmware update, the Marantz AV receiver will support AirPlay 2. AirPlay 2 is an advanced and easy-to-use wireless multiroom audio platform for iTunes, Apple Music, and other compatible Apple iOS apps. With AirPlay 2 you can play any sound from your Apple iOS device (running iOS 11.4 or later) or Mac computer (running OS X 10.13.2) on the Marantz receiver and other compatible AirPlay 2 speakers throughout your home. You will also be able to ask Siri-enabled devices (like your Apple iPhone, iPad, or Watch) to control playback of your Apple Music on the Marantz receiver. With AirPlay 2, also get to see song/artist information and album art via the receiver's on-screen menu (via HDMI). You can choose to play audio in one room, play the same audio in grouped rooms, or play the same audio in every room (you can control and group directly from Apple's Music App and Home app on your Apple iOS device). You can even watch videos and movies from YouTube and Netflix on your compatible Apple iOS device or Mac computer with perfectly synced audio on the Marantz receiver.
Built-in Bluetooth: The Marantz SR7013 features built-in Bluetooth (version 3.0+EDR) with a 98.4' wireless range for music streaming (A2DP 1.2) and control (AVRCP 1.5). You'll be able to wirelessly connect to smartphones (including iPhone & Android), tablets (including iPad & Android), laptops (including Microsoft Surface & Macbook), computers (including Windows PC & Mac), and other Bluetooth-enabled devices. Up to eight Bluetooth devices can be remembered by the SR7013, so family members as well as friends can enjoy their favorite tracks (only one device can be used at a time).
- Wireless Music Streaming: You'll be able to wirelessly stream stored music, music apps, and other audio content from your Bluetooth-enabled source device to the Marantz receiver. The receiver supports the Bluetooth SBC codec only.
- Wireless Music Control: You will also be able to control basic playback functions (Play/Pause, FF/RW, Skip) using the receiver's remote control. Advanced music operation will still need to be handled from your Bluetooth-enable device. There is no song/artist information display on the receiver or connected TV. Continue to use your Bluetooth device's screen to view song/artist info.
Auto On & Select: The receiver can be setup to automatically re-connect with previously paired devices, as well as turn on automatically when you start streaming audio from a Bluetooth source device.
- Bluetooth hands-free communication for making and answering phone calls is not supported.
- Due to the differences in Bluetooth technology, some Bluetooth enabled devices may be incompatible, function improperly, or may not support all features when used with the Marantz AV receiver.
HDMI Zone 2: The SR7013 also incorporates multi-zone HDMI audio/video distribution for Zone 2 with the inclusion of its HDMI matrix switching functionality. The receiver can send two different HDMI video feeds to two displays at the same time directly from the receiver. HDMI Zone 2 also supports 2ch PCM audio from the HDMI input source selected. The HDMI Zone 2 function is only compatible with the HDMI 1-7 input connectors. It is not compatible with the HDMI 8 input connector or any other input source. Volume of HDMI Zone 2 is controlled from the TV or additional receiver in Zone 2.
- HDMI Zone 2 does not offer HDMI upscaling and does not support the output of analog audio/video signals.
- If the receiver's Main Zone and HDMI Zone 2 are set to the same HDMI input source, the Main Zone audio will be mixed down to 2-channel audio.
Zone 2 (Audio/Video): Zone 2 allows stereo audio/video playback of another source connected to the receiver in another room of your home via RCA line-level output or speaker-level output, as well as composite or component video. To enjoy a video source in Zone 2, you must connect the same video connection to your second display monitor as connected to your receiver for that particular source (there is no video-conversion for Zone 2). When using the SR7013 to power speakers in a second room of your home, the main zone is restricted to 7.2-channels. When using the receiver's line output terminals for the second room you need an additional amplifier to power your Zone 2 speakers; the main Zone of the receiver remains 9.2-channel. The volume of Zone 2 can be controlled by the Marantz receiver using either configuration or from your add-on amplifier when using the line-output.
- Compatible Sources:
- HDMI audio (2ch PCM only)
- Optical/Coaxial digital inputs (2ch PCM only)
- Analog audio/video (including Composite, Component, & Phono)
- AM/FM Tuner (cannot select different stations for each zone)
- USB & Bluetooth Audio (cannot select USB & Bluetooth in separate zones)
- HEOS Music Apps (including Pandora, Tidal, Amazon, and more); cannot select different HEOS music apps for each zone
- Network Sources (including TuneIn Internet Radio, Spotify Connect, AirPlay, & DLNA); cannot select two different network sources for Zone 1 and Zone 2
- HDMI video
- DSD audio files
Note: Unfortunately, you cannot select USB, Bluetooth and Network sources exclusively for each Zone. For example, if you select a network source for Zone 2 when a USB source is selected for the Main Zone, the input source in the Main Zone also switches to the same network source as Zone 2.
Zone 3 (Audio Only): Zone 3 allows you to play a different stereo audio source connected to the receiver in a third room of your house. Zone 3 features pre-outs or speaker outputs, so you can use this amp or a separate amp to power speakers in another room. When using the SR7013 to power speakers in a second and third room of your home, Zone 2 and 3 are limited to mono playback, while the Main Zone is limited to 7.2 channels. When using the receiver's pre-outs for the 2nd & 3rd Zone, you need additional amplifiers in those rooms to power those speakers; the Main Zone of the receiver remains 9.2-channel. The volume of Zone 3 can be controlled by the Marantz receiver using either configuration or from your add-on amplifier when using the line-output.
- Compatible Sources:
- Optical/Coaxial digital inputs (2ch PCM only)
- Analog Audio Inputs (including Phono)
- AM/FM Tuner (cannot select different stations for each zone)
- USB & Bluetooth Audio (cannot select USB & Bluetooth in separate zones)
- HEOS Music Apps (including Pandora, Tidal, Amazon, and more); cannot select different HEOS music apps for each zone
- Network Sources (including TuneIn Internet Radio, Spotify Connect, AirPlay, & DLNA); cannot select two different network sources in multiple zone.
- Incompatible Sources:
- HDMI Audio/Video
- Analog Video
- DSD audio files
Note: Unfortunately, you cannot select USB, Bluetooth and Network sources exclusively for each Zone. For example, if you select a network source for Zone 3 when a USB source is selected for the Main Zone, the input source in the Main Zone also switches to the same network source as Zone 3.
All Zone Stereo Function: The All Zone Stereo function allows you to enjoy the AV receiver's Main Zone audio source in Zone 2 and Zone 3 simultaneously (regardless of input audio signal types - analog, digital, or wireless). During the All Zone Stereo mode, only the "Multi Ch Stereo" and "Stereo" sound modes can be selected. You will have independent volume control in each zone. All Zone Stereo mode is useful when you want to enjoy the same music at the same time in multiple rooms during a get together or party.
HEOS Wireless Multiroom Audio: Built-in HEOS technology enables the SR7013 to become part of the HEOS wireless multi-room audio eco-system, allowing you to stream and control all of your local and online music effortlessly from anywhere in your home with the HEOS App on your compatible Apple iOS or Android mobile device over a wireless WiFi network connection. The HEOS system is a true multi-room audio system that automatically synchronizes audio playback between multiple HEOS devices so that your music (up to 24-bit/192kHz Hi-Res audio) coming from different rooms is perfectly in sync and always sounds amazing. You can play the same audio source (other than your connected TV) in every room or any combination of rooms you choose, including a different song in every room.
- Systems & Groups: The HEOS wireless multi-room sound system can support up to 32 HEOS speakers, receivers, amplifiers, and/or pre-amplifiers (all sold separately) on a single wireless network (IEEE 802.11 g/n; 2.4/5GHz). You can join or group up to eight individual Heos devices into a group that function as if they were a single source. The HEOS eco-system is flexible enough where you can create up to 16 Groups (2 Heos devices per Group). You can easily group 16 rooms together with Party Mode by simply using a "pinch" gesture.
- Compatible Sources: The following sources can be
distributed through the HEOS multi-room audio system -
- Receiver's analog, HDMI, & optical/coax digital inputs (2ch PCM only) - not compatible with HDMI ARC
- Built-in AM/FM tuner and TuneIn Internet Radio
- HEOS music apps (including Amazon, Pandora, Tidal, and more), plus Spotify Connect
- Windows PC & DLNA music servers
- Bluetooth & USB audio (AirPlay is not supported)
- Music libraries stored on your Apple iOS or Android mobile device.
Note: The Marantz AV receiver only supports a single HEOS music stream. If you desire a second HEOS music stream through the receiver's multizone output, you will need to connect the HEOS Link to one of the AV receiver's analog inputs.
HDMI Monitor 2: The receiver's second HDMI monitor output lets you send the same HDMI audio/video input signal that is being played in the main zone to a second zone (video is output at the resolution supported by both TVs). The HDMI monitor 2 output does not offer HDMI upscaling. The HDMI monitor 2 does not support the output of analog video inputs.
AVR Remote App: The new Marantz AVR Remote App lets you control the Marantz SR7013 AV receiver using your Apple (iOS 7.0) or Android (OS 4.0+) device. From this free app on your compatible Apple iOS or Android device, you'll be able to control the Marantz AV receiver's basic functions; such as power, volume, input, surround modes, and other settings. You'll also be able to control separate Zones of the receiver, as well as navigate the AV receiver's network and Internet content from the app. In addition, you get you get unique features likes a landscape orientation control screen for tablet devices, the ability to create playlists, and control over a Marantz Blu-ray player.
- Landscape Orientation Control Screen: With a landscape orientation control screen for tablet devices, you can easily browse and navigate through your network music services or personal digital music collection with ease, and at the same time view now-playing information and cover art all on a single screen.
- Create Playlists: The app's playback screen allows you to easily build your own personal music playlists on the fly with the ability to Drag & Drop files into your queue, or tap to "Play Now", "Play Next", "Play Next and Replace Queue" or "Add to End of Queue". You can then save your queue as a playlist for easy recall.
- Marantz Blu-ray Player Control: The app allows control over select Marantz Blu-ray players (UD7007/5007) that are connected to the AV receiver via HDMI.
Note: This AV receiver is not compatible with last year's older Marantz Remote App.
HEOS App: You'll need to download the HEOS App (for Apple iOS 8.0+ and Android OS 4.0) onto your compatible Apple iOS or Android mobile device to enjoy HEOS functionality through the SR7013 receiver. Using your compatible mobile device and the HEOS app, you can setup, browse, explore, and control HEOS system right in the palm of your hand, from anywhere in your home. Your compatible Apple iOS or Android device must be connected to the same home wireless (WiFi) network as the AV receiver and your entire HEOS system. The HEOS app consists of 4 control screens.
- Settings: The "Settings" screen enables you to connect one or more HEOS speakers, receivers, amplifiers, and/or pre-amplifiers to your home's wireless network.
- Rooms: From the app on your Apple iOS or Android device, you can select which rooms you want playing. You can play the same music in multiple rooms by grouping rooms together, or you can listen to a different source in each room.
- Music/Sources: You can select what music and which source you want to listen to from the app. Choose from online music services like Pandora, Spotify, TuneIn, Tidal, etc.; your music library on your Apple iOS or Android device, Windows PC/DLNA server, or USB thumbdrive; analog, digital, and HDMI inputs; as well as Bluetooth on the HEOS AVR. You can also select music from Playlists you've created, Favorites you've saved, and your recent listening History.
- Now Playing: The "Now Playing" screen displays song, artist, and album information; along with Album Art. You also get basic playback controls like Play/Pause and Previous/Next Track, plus Volume controls Up/Down and Mute. In addition the "Now Play" screen functions unique to the selected online music service or music library.
Alexa Compatible: HEOS and Amazon Alexa customers can now enjoy the convenience of Alexa voice control plus high-quality wireless home audio. In addition to controlling your HEOS components with the HEOS app on your mobile device or tablet, you can now control them with Amazon Alexa voice technology and an Amazon Alexa device (such as the Echo or Echo Dot, sold separately). Your HEOS components and the Alex-enabled devices must be on the same network. Voice control features include -
- Alex voice commands include Volume (up/down, specific volume number, & mute); Playback (Play, Pause, Stop, Next, Previous, Resume); and Power on/off. And thanks to the latest firmware update, you can even use Alexa to switch inputs on HEOS enabled AV receivers and soundbars.
- You can group your HEOS-enabled devices using the HEOS app with an Alexa-friendly name. Once they are grouped, Alexa voice commands will control the group as a whole. If you want to play audio content from only one HEOS-enabled device in the group, you must ungroup the device within the HEOS app.
- You are able use voice commands to search for songs, albums and artists and even podcasts and internet stations from HEOS & Alexa compatible music apps - like Amazon Music, Pandora, TuneIn, iHeartRadio, Spotify Connect, & SiriusXM.
Google Assistant Support (via firmware update): Ask your Google Home, the Google app (for Apple iOS 10.0+ and Android OS 4.4+), or other devices with Google Assistant built-in to control HEOS content across your listening environment. Once you start music in the HEOS app, you can ask the Google Assistant to control volume, play, pause, skip tracks, and more. Once you have grouped your HEOS-enabled devices using the HEOS app, you can use the Google Assistant and voice commands to control a group of HEOS devices as a whole. Make sure the unit has the latest HEOS software and firmware update installed.
- A firmware update (scheduled for 2019) will allow you to use the Google Assistant and your voice to queue up music services, power on/off devices, switch inputs and more.
- Click here for more info on Google Assistant for HEOS.
Josh.ai Smart Home Voice Automation: An elevated voice agent for the high-end smart home, Josh.ai offers flexible voice control for nearly any aspect of your day-to-day experience and entertainment environment. Use voice commands to control the Marantz AV receiver, thermostat, lights, home appliances, powered speakers, and more. Josh.ai is installed by custom integrators and accessed through the Josh - Home Automation app on your Apple iOS 10.3+ or Android OS 4.4+ device.
MultEQ Editor App ($19.99): Download the MultEQ Editor App onto your Apple iOS 8.0+ or Android OS 4.0+ devices for further sound customization and detailed tuning to more precisely tailor the sound to your room and personal preferences. This app lets you view the speaker detection results to check correct installation, view before and after results of the Audyssey calibration making it easy to identify room problems, edit the Audyssey target curve for each channel pair to suit your tastes, adjust the EQ frequency adjustment range for each channel pair, switch between 2 high frequency roll-off target curves, enable/disable midrange compensation to make the vocal region brighter or smoother, as well as save and load calibration results.
IR Remote: The Marantz SR7013 comes with an IR remote for wireless operation of the AV receiver. It also supports HDMI-CEC and Smart TV Control.
- HDMI CEC: HDMI CEC allows you to link operation of the receiver with other audio/video components (like your TV, Blu-ray player, or satellite/cable box) that are connected via HDMI. Linked functions include Power On/Off, which turns the receiver On or Off when you power on or off an HDMI CEC connected component; and Source Switching, which automatically switches the receiver to the input of the HDMI CEC component that has begun playback. The HDMI CEC function can be disabled, if your prefer. Not all HDMI CEC compatible devices will function in the same way.
- Smart TV Control: You can even control the Marantz SR7013 with your Smart TV remote via an HDMI connection and the HDMI CEC functionality associated with your Smart TV. Simply set "HDMI Control" to ON in the receiver, then set "Smart Menu" to ON and begin controlling the SR7013 with your TV's remote. The Smart Menu home screen provides you quick access to source and surround mode selections, the AVR's setup menu and four Smart Selects (or "Quick Selects").
Custom Integration: The Marantz SR7013 provides advanced remote connectivity and control features often required for custom home integration and theater applications using premium control systems. These features include Remote In/Out, Flasher In, DC Trigger Outs, RS-232C port, and IP control.
- Remote In/Out: These RCA input/output connectors allow you to connect the SR7013 to a Marantz component equipped with remote control (RC-5) terminals.
- Flasher In: This 3.5mm input is used to control the SR7013 from an external key-pad (sold separately).
- 12V Trigger Outputs: The SR7013 has two minijack outputs to send a 12-Volt DC turn-on signal to another component that accepts a 12V trigger, such as a power amplifiers in Zone 2 and Zone 3. The conditions under which the trigger output activates is programmable.
- RS-232C Port: The RS-232C port is used for connection to an external whole-house control system, from companies such as AMX, Crestron, etc.
- IP Control: The receiver can be set up and operated by a home computer on the network via IP control, either via wired LAN connection or Wi-Fi, and also features Control4 SDDP (Simple Device Detection Protocol) certification for quick and easy integration with Control4 home automation equipment.
Remote Monitoring: In today's custom install environment, it's critical for integrators to provide quick, reliable assistance and service to their clients, even after the install is complete. To support this effort, the Marantz AV receiver features "ihiji Invision" and "Domotz Pro" remote system monitoring and management technology. These programs allow custom integrators to monitor the status of connected products and troubleshoot remotely from the office or on the go, reducing the time it takes to address the issue.
Crestron Connect Intelligence: By embedding Crestron Connect intelligence in the Marantz SR7013, it allows for seamless communication with Crestron home automation solutions, giving installers a simplified home theater solution and homeowners complete control of their home entertainment system.
Advanced OSD w/ Setup Assistant (via HDMI): Once you connect your TV to the SR7013 via HDMI, the exclusive Marantz Setup Assistant appears on your TV screen to walk you through setup, step-by-step. With Marantz's advanced on-screen menu and setup assistant, you can connect, configure, and use your home theater system with ease. The OSD and setup assistant features clear on-screen graphics and text that optimizes critical system settings for your particular home theater setup.
- The on-screen menu and setup assistant is required for initial setup and is only available through the receiver's HDMI output.
- The on-screen menu is only supported by the main HDMI monitor output (not the HDMI Zone 2 out).
- The video being played will not appear in the background of the menu when the menu is operated during playback of 4K, HDR, or 3D video; or if the video aspect ratio is not 16:9 or 4:3.
Smart Select: On the SR7013's front-panel, you'll find four Smart Select buttons that let you quickly choose from the most popular input sources; the ergonomically designed remote also includes Smart Select function buttons. With Smart Select, the SR7013 remembers not only your preferred inputs but also your preferred audio settings, so you can enjoy precisely tailored sound with each one.
Gapless Playback: Many live and classical albums have no gaps in the music. Gapless playback ensures that there are no pauses between audio files. This provides playback with no interruptions, the way it was meant to be heard. Compatible with FLAC, WAV, ALAC, and DSD music files via USB or DLNA.
Input Name & Delete: You can change the display name (up to 12 characters) of a selected input source. If an input isn't being used, you can delete it from the display so you don't have to scroll past it when you change sources.
Lock Functions: To prevent accidental operation of the AV receiver, you can disable operation of the buttons on the front-panel. You can also disable the receiver's IR sensor to prevent accidental operation of the receiver from the remote control. You can even disable operation of only Zone 2 from the remote control.
Timers: The Marantz AV receiver features a programmable Sleep Timer and Auto Standby function.
- Sleep Timer: This function allows you to automatically set the power to standby after a predetermined amount of time has passed; set the sleep timer up to 120 minutes in 10 minute increments.
- Auto Standby: The unit enters standby mode automatically when no commands are sent to the unit for the set time (15/30/60 minutes). Before it enters the standby mode, "Auto Standby" is displayed on the front-panel display of this unit and the on-screen menu.
Smart ECO Mode: This receiver is equipped with a Smart ECO Mode function that allows you to enjoy music and movies while reducing the power consumption during use, Smart Eco Mode adjusts the maximum power available according to the volume level selected to reduce power consumption.
Personal Memory Plus: For each input, the receiver automatically memorizes the settings for input mode, surround mode, HDMI output mode, audio delay, etc. When the input source is switched, the settings last used for that source are automatically recalled. The surround parameters, tone control settings, and playback levels for the different output channels are memorized for each surround mode.
Protection Circuit: This is a function to prevent damage to components within the power supply when an abnormality such as an overload, excess voltage, or over-heating occurs. In this unit, the power indicator blinks and the unit enters standby mode when an abnormality occurs.
The Marantz SR7013 replaces these items
- 9-channel amplifier; 125 watts per channel with 2 channels driven
- Dolby Atmos and DTS:X processing for use with in-ceiling or "height" speakers for more enveloping home theater sound
- built-in HEOS technology offers internet music streaming and wireless whole home audio with compatible components
13 questions already asked
