JBL Stadium BassHub Package

Includes Stadium BassHub 11" sealed enclosure and A600 Club series 600 watt mono amp

Item # 700BASS600

This JBL bass package includes their innovative Stadium BassHub 11" sealed enclosure and the A600 Club Series...

This JBL bass package includes their innovative Stadium BassHub 11" sealed enclosure and the A600 Club Series...

California customers:
Please click here for your Proposition 65 warning.

Nemo
Need help?
Contact our Virginia-based experts.
New

Item # 700BASS600

Ships free

Temporarily out of stock Why?

Ship date unknown

$652.90
Nemo
Need help?
Contact our Virginia-based experts.

About the JBL Stadium BassHub Package

Easy-to-fit package

This JBL bass package includes their innovative Stadium BassHub 11" sealed enclosure and the A600 Club Series 600-watt mono amplifier. The BassHub enclosure mounts to your spare tire to give you great bass in minimal space, while the A600's small size lets you tuck it into an out-of-the-way spot.

Easy-to-fit package

This JBL bass package includes their innovative Stadium BassHub 11" sealed enclosure and the A600 Club Series 600-watt mono amplifier. The BassHub enclosure mounts to your spare tire to give you great bass in minimal space, while the A600's small size lets you tuck it into an out-of-the-way spot.

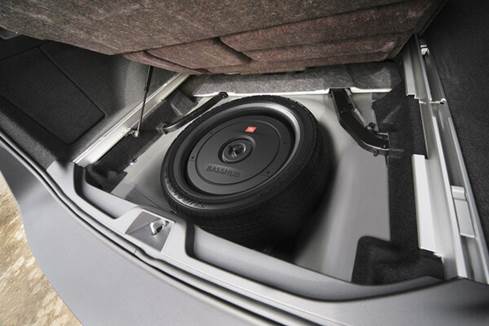

BassHub in trunk

The BassHub tucks neatly into the rim of your spare tire.

Innovative enclosure

The BassHub sealed enclosure mounts over the hub of your spare tire to give you maximum bass and maximum space savings. Its 11" subwoofer features a tough fiberglass cone and rubber surround that'll hold up at high volumes. The BassHub's cast aluminum enclosure stands up to the stresses of the road, while its plug-in wiring harness makes it simple to remove so you can access the spare tire.

Solid sound

JBL's Club Series A600 mono subwoofer amplifier punches out 600 watts RMS, making it a perfect match for the BassHub. Its low-pass filter and variable bass boost let you dial in the sub's performance and a phase switch ensures that the bass will blend well with your full-range speakers. The A600 also includes a wired remote to control the bass level from the front seat.

Installation Note: The Stadium BassHub is designed to mount inside the spare tire rim. You'll need to turn your spare tire upside down to install this sub. It should only be used in vehicles that have the spare tire inside the vehicle and feature a removable spare tire post; not compatible with welded spare tire posts.

READ LESS

Product highlights:

  • Includes Stadium BassHub 11" sealed enclosure and A600 Club series 600 watt mono amp
Stadium BassHub enclosure:
  • one 11" dual voice coil subwoofer wired for 2-ohm impedance
  • sealed enclosure
  • power handling: 600 watts RMS
  • frequency response: 20-150 Hz
  • sensitivity: 90 dB
  • enclosure dimensions: 6.5"H x 14.13"D
  • warranty: 1 year
A600 Club Series mono amplifier:
  • 600 watts RMS at 2 ohms
  • variable low-pass filter (32-320 Hz, 12 dB/octave)
  • variable bass boost (0-12 dB at 45 Hz)
  • phase switch (0, 180 degrees)
  • wired remote bass control module included
  • fuse rating: 30A x 2
  • dimensions: 8-11/16"W x 2-1/16"H x 7-1/8"D
  • warranty: 1 year
  • Our 60-day money-back guarantee
  • MFR # BassHub A600

What's in the box:

  • This JBL bundle contains 2 individually packaged items:
  • Club A600 Amplifier
  • Mono amplifier
  • Four 30A fuses (2 installed/2 spares)
  • 2 Speaker to RCA adapters
  • RBC Remote level control w/ attached 16.5' cable (RJ-25 terminated)
  • Four 2-1/8" screws
  • Two 3/8" screws
  • Logo badge w/ adhesive backing
  • Owner's manual (Eng/Span/Fren/Others)
  • Stadium BassHub 11" Spare Tire Subwoofer
  • Passive 11" subwoofer enclosure
  • 12" 8-Pin wiring harness
  • Mounting post
  • Mounting post adapter
  • 2.5mm Allen key
  • Instruction manual (Eng/Span/Fren)

Customer reviews

We don't have any reviews, yet.
Submit a review and then enter to win a $350 gift card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the JBL Stadium BassHub Package

Pat M.

Product Research

Amplifier Features
Amplifier Controls
Amplifier Connections
Subwoofer

Amplifier Features

Mono-Power Amp Design: The JBL Club A600 is designed with specific features to power subwoofers, providing 350W RMS @ 4Ω and 600W RMS @ 2Ω. This amplifier is not designed to power a full-range speaker.

  • Note: The JBL Club A600 does not include any wiring; an 8 ga. amp wiring kit is recommended (sold separately).

Class D Design: The Club A600 is equipped with a high-performance Class D switching power supply, which is more efficient than traditional class AB power supplies. This allows the amp to run cooler and provide high output with less current draw from your vehicle's charging system.

Low Noise & Distortion: The A600 amplifier features balanced differential inputs to ensure low noise and distortion, even at high output levels. This also makes it less susceptible to line induced, radiated engine noise.

Protection Circuitry: The amp features 3-way protection, and will shut itself down in the following cases:

  • Temperature: Amplifier is overheated
  • Over/Under Voltage: Voltage at the +12V (Battery) terminal is less than 8.5V or more than 16V
  • Short Circuit: Short circuit in speaker or speaker wire

Power/Protection LED: The amplifier features a Power/Protection LED on the input side of the unit. The Power/Protect LED lights solid when the amplifier is operating normally, and will flash when the amplifier goes into protect mode.

Compact Size: The Club A600 is housed in a compact chassis with a small footprint, allowing it to fit in more vehicles where mounting space is limited.

Amplifier Controls

Hidden Control Panel: The top panel of the Club A600 can unsnap and slide off to access all of the amp's controls. A plastic trim-ring must be unsnapped from around the perimeter of the amp before the top panel can be removed.

Gain: Rotary control to match the level of the preamp input signal. When using RCA preamp inputs, the Gain sensitivity has a range from 200mVrms to 2.0Vrms. When using high-level speaker inputs, the sensitivity range is from 2Vrms to 20Vrms.

Low Pass Filter: The Club A600 has a variable 12dB per octave, 32-320Hz low pass filter to prevent unwanted high-frequencies from reaching your subwoofers so they can play deeper and louder.

Bass Boost: The Bass Boost control allows you to enhance the bass output of your system at 45Hz with an adjustment range of 0-12dB.

Phase Switch: Allows you to select normal or reverse for best bass.

Turn-On Mode: Lets you select whether you are using high- or low-level input signals.

  • DC: Allows the amp to power on/off with speaker-level signals.
  • REM: Allows the amp to power on/off when the REM terminal gets +12V from the headunit's remote output. This should be selected when using the RCA low-level inputs.

RBC Remote Level Control: The amp has an RJ-25 jack for use with the included RBC (Remote Bass Control) remote sub-level control module. The control module includes a 16.5' cable to connect the remote to the amplifier. This sub-level controller allows the subwoofer level to be adjusted from the listening position and includes hardware to mount it under the dash.

Amplifier Connections

Preamp & Speaker Input: A single pair of RCA jacks is used for both low-level and high-level signals. If using high-level, 2 speaker wire-to-RCA adapters are provided. These feature an RCA plug on one end and 2 wire ports with set-screws on the other end. These can accept up to 18 ga. speaker wire.

Speaker Output: Features 4 set screw terminals for connecting speaker wires; accommodating up to 10 ga. (16 ga. minimum recommended).

Note: There are two sets of terminals to make it easier to connect multiple subwoofers. The terminals are connected internally in parallel.

Remote Level Control: RJ-25 socket for use with the provided RBC remote sub-level control.

Power:

  • +12V: Set screw terminal for power wire from battery; handles up to 4 gauge wire (8 gauge minimum recommended)
  • Remote: Set screw terminal for remote turn-on lead; handles up to 10 gauge wire (18 gauge minimum recommended)
  • Ground: Set screw terminal for ground; handles up to 4 gauge wire (8 gauge minimum recommended)

Fuses: 2 Slots for 30A ATC fuses (installed). Two spare 30A fuses are also provided.

Amplifier Dimensions:

  • Width: 8.60"
  • Height: 2.0"
  • Depth: 7.0"

Subwoofer

Mounting: The JBL Stadium Basshub is an enclosed 11" subwoofer designed to mount inside most spare tires.

Note: The JBL Stadium Basshub should only be used in vehicles that have the spare tire inside the vehicle and feature a removable spare tire post; not compatible with welded spare tire posts.

Construction: Made of durable die-cast aluminum, the spare-tire enclosure features an 11" shallow-mount subwoofer with a fiberglass-woven cone and a rubber surround. The dual 4Ω voice coil subwoofer can handle up to 600W RMS (1200 peak), and can be wired for either a 2Ω or 8Ω load.

Wiring: The Stadium Basshub includes an 8-pin Molex wire harness for connection to an amplifier (sold separately). The 12" wire harness terminates in 4 bare-ended wires that can be connected in series, for an 8Ω load, or in parallel for a 2Ω load. The wire harness connection is protected by a removable metal cover (2.5mm Allen key provided).

Subwoofer Dimensions:

  • Outer Diameter: 14.13"
  • Inner Diameter: 12.63"
  • Flange Thickness: 1.50"
  • Total Height: 6.5"
  • Mounting Height: 2.30"
  • Mounting Depth: 4.20"

Loading accessories...

Customer Q&A

1 question already asked

Q
Is the spare tire sub not already powered?
[ W. Dunning  Oct 29, 2021 ]
1 answer
A
There is a version of the enclosed subwoofer that does have an amp built into it. The one in this package does not have the amp built in with the sub/enclosure and will use the included amp to power it.
