Bose® L1 Compact System

Portable line array PA system

New

Item # 700BL1PLA

In Stock

 Ships FREE

Add to Cart

Consult a pro audio advisor

Our VA-based experts can help.

1.800.555.9369

Chat

Overview

Our take on the Bose® L1 Compact System

You'll get a surprising amount of loud, clear sound out of this slick-looking PA system. Using a six-element articulated speaker array perched 6 feet above a bass woofer/power stand, Bose's L1 Compact loudspeaker system will work perfectly in an exercise studio, for a classroom presentation, for a small acoustic or solo act, or for a DJ performing for audiences of up to 100 people.

Tall skinny tower of big Bose sound

You'll get a surprising amount of loud, clear sound out of this slick-looking PA system. Using a six-element articulated speaker array perched 6 feet above a bass woofer/power stand, Bose's L1 Compact loudspeaker system will work perfectly in an exercise studio, for a classroom presentation, for a small acoustic or solo act, or for a DJ performing for audiences of up to 100 people.

Wide coverage

Bose's Spatial Dispersion™ loudspeaker technology gives the L1 Compact nearly 180 degrees of horizontal coverage, so audience members off to the sides will hear the same sound as those front and center. In fact, many musicians position their L1 Compact array behind themselves on stage, so they won't need a floor monitor, and will hear exactly the same music the audience will hear. For smaller events, you can plug the speaker array module directly into the power stand and set the whole thing up on a table or stand for a class or business meeting.

Seriously portable

You won't mind toting this PA around. The disassembled system can be carried with two hands — the power stand in its slip cover weighs under 25 pounds, while the speaker extensions in their carrying bag weigh under 5 pounds. And of course the system will fit in any trunk or back seat for transport.

Bose L1

L1 Compact power stand and speaker array

Power stand: bass speaker, amplifiers, and mixer

The system's power stand includes an 8" bass speaker, two amplifiers, and the speaker array, along with a 2-channel mixer optimized for voice and acoustic guitar. Channel 1 is a mic input with Bose's customized ToneMatch® preset for a handheld dynamic microphone. Channel 2's ToneMatch preset is optimized for the sound of an acoustic guitar — but you can switch that off for other instruments and playback devices.

Product Highlights:

  • compact portable PA system
    • for audiences of up to 100 people
  • 6-element articulated line array speaker
  • two 32-1/2" extensions (elevate speaker array over the power stand)
  • power stand includes amplifiers, 8" bass speaker, and 2-channel mixer
  • speaker array plugs into power stand for storage or small-scale operation
2-Channel Mixer:
  • channel 1:
    • microphone (XLR): ToneMatch optimized for a dynamic vocal mic
    • clip indicator, volume, treble, bass
  • Channel 2:
    • 1/4" TRS: ToneMatch optimized for an acoustic guitar
    • other inputs: 3.5mm stereo, RCA stereo
    • ToneMatch can be switched off for line level inputs
    • clip indicator
  • line outputs for connecting another powered speaker (1/4" TRS, RCA)
More Features:
  • built-in carrying handle on power stand
  • slip cover for power stand and carrying bag for extensions included
  • total weight: 29.2 lbs.
  • speaker array: 16" H x 2-3/4" W x 2-3/4" D
  • power stand: 16-1/2" H x 13-1/4" W x 16-3/4" D
  • 2 speaker extensions (each): 32-1/2" H x 2-3/4" W x 2-3/4" D
  • assembled height: 78-1/2" (6-1/2 feet)
  • warranty: 2 years
  • Our 60-day money-back guarantee

What's in the Box:

  • This package contains two separate boxes that include the following parts:
  • L1 Compact Power Stand
  • Loudspeaker Array (pre-installed in Compact Power Stand)
  • 2 Compact extensions
  • AC Power cord
  • Power Stand slip-cover
  • Extensions carry-bag
Reviews
Details

Hands-on research

Features and Specs

General
Mic inputs (1) XLR (balanced)
Line inputs (1) 1/4" TRS
Phantom power No
Channel EQ Y
Master EQ N
Monitor outputs 0
Built-in effects N
Speakers
Number of speakers 2
Drivers per speaker ---
Woofer Size (inches) (1) 8"
Tweeter Size (inches) (6) 2.5"
System Frequency response 65-14kHz

Product Research

Features

Overview: The Bose L1 Compact is Bose's smallest and most portable 2-way PA system for an audience of up to 100 people. It features a 6-speaker articulated line array and a low-frequency driver all powered from a built-in 130 watt amplifier. Other features include a 2-channel mixer, with Bose ToneMatch presets on each channel, and a modular design that makes for easy setup and teardown. The L1 Compact is ideal for indoor applications such as for solo musicians, mobile DJs, business presentations, schools, and houses of worship.

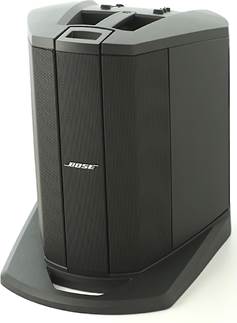

Articulated Line Array: The L1 Compact system includes a Power Stand, with an 8" bass driver, along with a Loudspeaker Array that includes six 2" high-frequency drivers, all powered from the built-in amplifier. Configuration of the array is made flexible with the inclusion of 2 extension pieces. In its most compact form, the Loudspeaker Array sits inside the Power Stand, not only for storage and transport, but can be used in this configuration as well for a more compact setup that's only 16.5" high. The 2 included Compact Extensions can be used together, placing the Loudspeaker Array at approximately 6.5' off the floor, or with one extension, placing the speaker array at approximately 4' high. The L1's Articulated Line Array design provides up to 40˚ of vertical and 180˚ of horizontal coverage for uniform sound throughout the entire listening area.

Mixer: The L1 Power Stand includes a 2-channel mixer, located on the top panel for quick access. The mixer panel includes a Power LED, that lights blue when the Power Stand is on. Each input channel includes its own Volume control and a Signal/Clip indicator. This will light green when receiving a signal and red if the signal starts to clip. Inputs also include the following:

  • Channel 1: This input is specifically designed for use with a microphone.
    • Microphone Input: This balanced XLR jack has its sensitivity pre-configured for use with a microphone. Signals on this input pass through a Bose ToneMatch signal processing preset that features an equalization curves for dynamic microphone.
    • Bass and Treble: Channel 1 includes individual controls for Bass and Treble.
  • Channel 2: This acts as utility channel for instruments and sound sources.
    • 3.5mm Stereo Input: Used for connecting audio sources like portable media players and laptops.
    • Stereo RCA Input: This can be used for consumer devices such as a CD player or a DJ mixer.
    • 1/4" Input: Balanced input used for instruments or other line-level devices. Can be used with either balanced or unbalanced cables.
    • ToneMatch: This 2-way selector switch determines how the 1/4" input is used. One position activates a ToneMatch preset, designed for use with an acoustic guitar, the other position sets the input for a line-level signal.
  • Rear Panel Outputs: The L1 Power Stand's rear panel includes 2 outputs that can be used for daisy-chaining multiple L1 Compact systems, or for running the output signal to a house PA or a personal monitor. Outputs include:
    • 1/4": This provides a mono output signal and can accept either TRS balanced or TS unbalanced cables.
    • RCA: Left and right RCA jacks can be used to run a mono signal out to a CD or flash memory recorder.

Specification:

  • System Type: Self-powered, 2-way
  • Frequency Response (-3dB): 65Hz - 14kHz
  • Frequency Range (-10dB): 50Hz - 16kHz
  • System Power Rating: 130 Watts
  • Maximum SPL @ 1m: 106dB SPL (112dB SPL peak)
  • Distortion at Rated Power: 0.1% Max (30Hz - 15kHz)
  • Crossover Frequency: 400Hz 4th order Butterworth
  • Nominal Dispersion: 180˚ H x 40˚ V
  • Drivers: Six 2" HF drivers, One 8" LF driver
  • Channel 1:
    • Input: (1) Balanced XLR
    • Channel Gain: ∞ to +50dB
    • Max Input Signal: +8dBu
    • Input Impedance: 2.4kΩ
    • Tone Controls: Bass (+/-5dB shelving filter @120Hz), Treble (+/-5dB shelving filter @4kHz)
  • Channel 2:
    • Inputs: (1) 1/4" TRS/TS, (1) 1/8" TRS/TS, (pair) RCA
    • Channel Gain:
      • 1/4": ∞ to +40dB
      • 1/8": ∞ to +24db
      • RCA: ∞ to +24dB
    • Maximum Input Signal: +12dBu (1/4", 1/8", RCA)
    • Input Impedance:
      • 1/4": 800kΩ
      • 1/8": 14kΩ
      • RCA: 12.5kΩ
  • Line Outputs:
    • 1/4" (TRS or TS): Nominal +2.2dBu, Max +20dBu
    • RCA (pair): Nominal -3.8dBu, Max +14dBu
  • Materials:
    • Power Stand: Polypropylene
    • Extensions and Array: ABS Plastic
    • Grille: Powder-coated perforated steel
  • Dimensions:
    • Width: 13.250"
    • Height (extended): 78.50"
    • Height (collapsed): 16.50"
    • Depth: 16.750"
  • Total Net Weight: 29.2 lbs.
