Name: Boyo VTL17IRTJ
Brand: Boyo
SKU: 707V17IRTJ
Price: 59.99 USD
Availability: InStock
Rating: 4.5 (179 reviews)

Overview

See where you're headed (in reverse)

Improve your parking lot skills. Boyo's VTL17IRTJ all-weather backup cam will have you parallel parking like a pro, thanks to active parking lines that bend to match your trajectory. Boyo makes installation more straightforward by mounting this cam onto a sturdy strap that stealthily attaches behind any license plate. Once you power the camera and run the included video cable to the screen in your dash, you'll see a 170º wide-angle view when you're backing up your vehicle. Selectable reverse image and parking lines make this a perfect choice if you want a front camera.

KEEP READING

See where you're headed (in reverse)

Enhanced infrared night vision and more

Boyo builds in powerful IR lights to ensure the best possible picture when light is limited. You'll get a good look behind you, even in the darkest parking garage.

Installing this camera yourself? Here's what you should know.

What does it do? Unless otherwise noted, a backup camera is only intended for use backing up your vehicle. (If you require a front-view or constant rear-view camera, check for that capability.)

What tools and supplies will I need? A panel tool, a wire cutter/stripper, a soldering iron, and a rosin-core solder with heat shrink tubing are recommended, along with whatever tools are needed to remove the radio from the dash.

How much wiring is required? Wiring instructions vary from camera to camera. Some cameras have power wiring that can only be connected near the radio. Others let you power the camera at compatible reverse lights. In all cases, the camera must be wired for power and ground, the camera's video output must be connected to the radio/monitor, and the radio/monitor must be connected to a reverse trigger in your vehicle. Some radio replacement interfaces supply a reverse trigger wire for the radio -- using that wire to power your camera will damage the interface.

Will the included video cable be long enough? You'll need to route the camera's video cable from its mounting location outside your vehicle into your vehicle's cabin and all the way to the screen in the dash. This often requires drilling a small hole in your vehicle or filing some metal and or plastic. You'll also need to estimate the length of cable needed to run from the camera to the dash, which will not be a straight shot. Each camera's cable length is listed.

READ LESS

Product highlights:

waterproof backup camera and bar-style mount with infrared lights and active parking lines
universal fit
compatible with any radio with an RCA video input (most aftermarket models, only a few factory)
170-degree wide angle
selectable reverse image and parking lines
works in low light
resolution: 600 TV lines (720 x 480)
25' RCA extension cable
warranty: 1 year
Our 60-day money-back guarantee
MFR # VTL17IRTJ

What's in the box:

Boyo VTL17IRTJ owner's manual

Backup camera with license-plate bracket (attached 58" cable)
25' RCA/Power cable (with male composite video plug on one end)
RCA female-to-female coupler
Surface-mount bracket
2 Self-tapping screws (3/8" length)
2 Screws (M2.5 x 20mm)
2 Screws (M6 x 24mm)
Dual-sided adhesive tape
User Manual
Warranty Card
Product Registration Card

Featured review

This backup camera is a great addition to my vehicle, it is a good quality camera, clarity is great! Will recommend to friends in need of one for sure. The staff at crutchfield are all very knowledgeable about all their products and help tremendously when purchasing equipment for my vehicle.

Joseph from Warren, MI

See all 179 reviews

Customer Q&A

I have a Pioneer DMH-WT8600NEX and do not like the straight parking lines. Will this camera work with my head unit? And will the active parking lines work as well?

The Boyo VTL17IRTJ has active parking lines that move with the vehicle. It will work on any stereo that has a backup camera input.

12 reasons to shop with us

#11

Eco-friendly "peanuts"

Biodegradable and made in-house

See all reasons

Reviews

Loading reviews...

Boyo VTL17IRTJ reviews

Average review:

179 reviews

Thanks for submitting your review

Most reviews are processed and published within 5 business days. You will receive a confirmation email once your review has been published.

Filter by rating

Customer photos

Verified customer

Verified employee purchase

Pros:

Cons:

Have questions for

Crutchfield response

Helpful?

Yes

<< >>

Details

Researched by Crutchfield's Russ B.

Features & specs

Features and Specs
Camera Type	Rear or Front
Resolution	720 x 480
Parking Guidelines	Active
Lux Rating	0
Selectable Views	N
Reversed Image	Both
Horizontal Viewing Angle	---
Vertical Viewing Angle	---
Wireless	No
Plug type	Composite

Product Research

Features

Front or Backup Camera: The Boyo VTL17IRTJ can be used as a backup camera with a mirror image or front camera with a normal image. To use as a front camera, you'll need to cut the white wire loop labeled "mirror image/non-mirror switch".

Note: The Boyo VTL17IRTJ is meant as a driving aid only; never solely rely on the camera. In addition to using the camera, always look around you to make sure everything is clear.

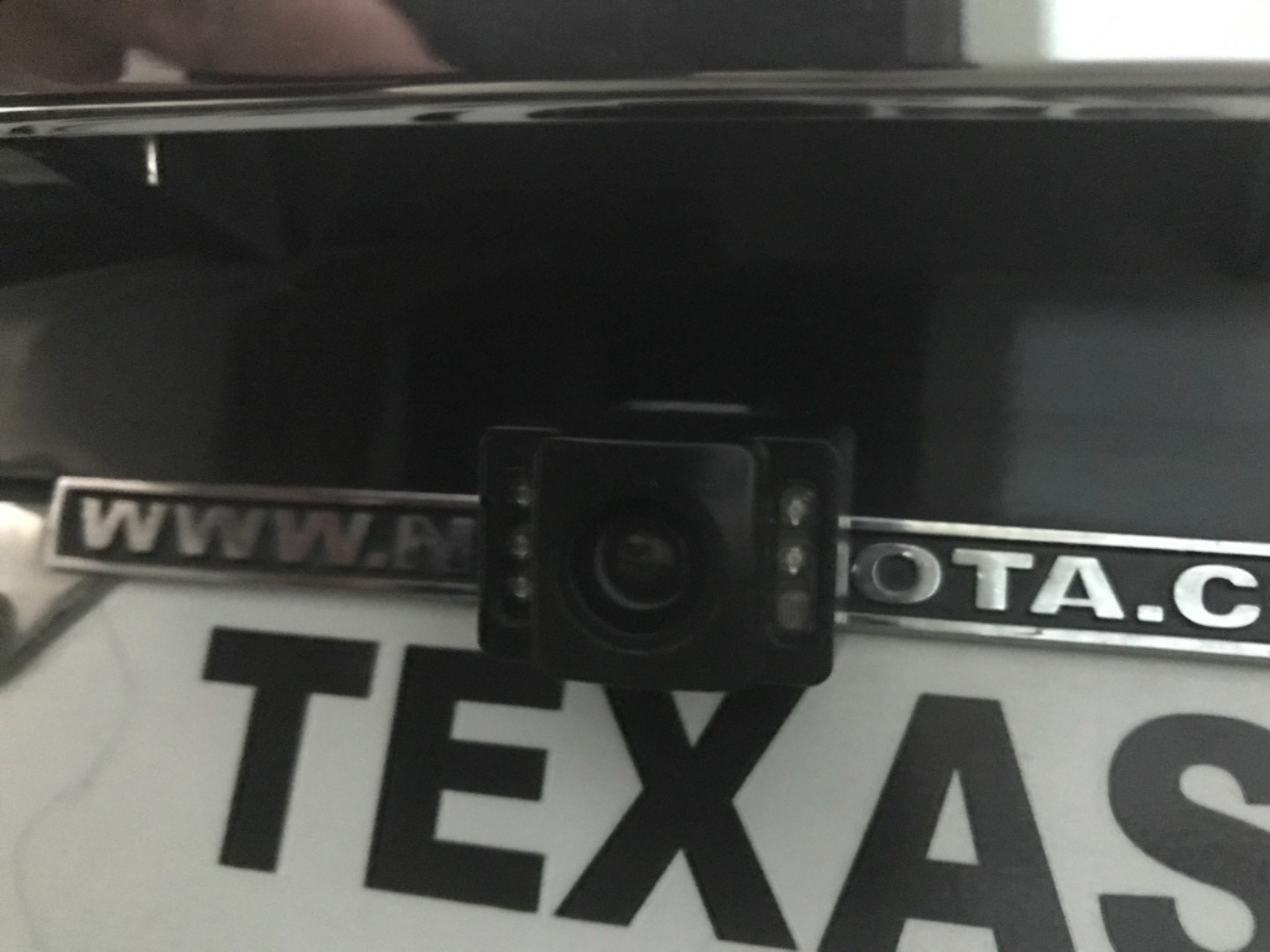

CMOS Image Sensor w/ Built-in IR(s): The Boyo VTL17IRTJ backup camera is equipped with a CMOS image sensor with a 720 (h) x 480 (v) resolution for high quality video. Integrated IR(s) on either side of the camera provide excellent visibility at night.

Wide Viewing Angle + Angle Adjustment: The VTL17IRTJ backup camera offers a 170° wide viewing angle (diagonal), so you can see more of what's behind you. You can also physically angle the camera's mounting bracket up or down (between 30°-40°) for the best view behind your vehicle.

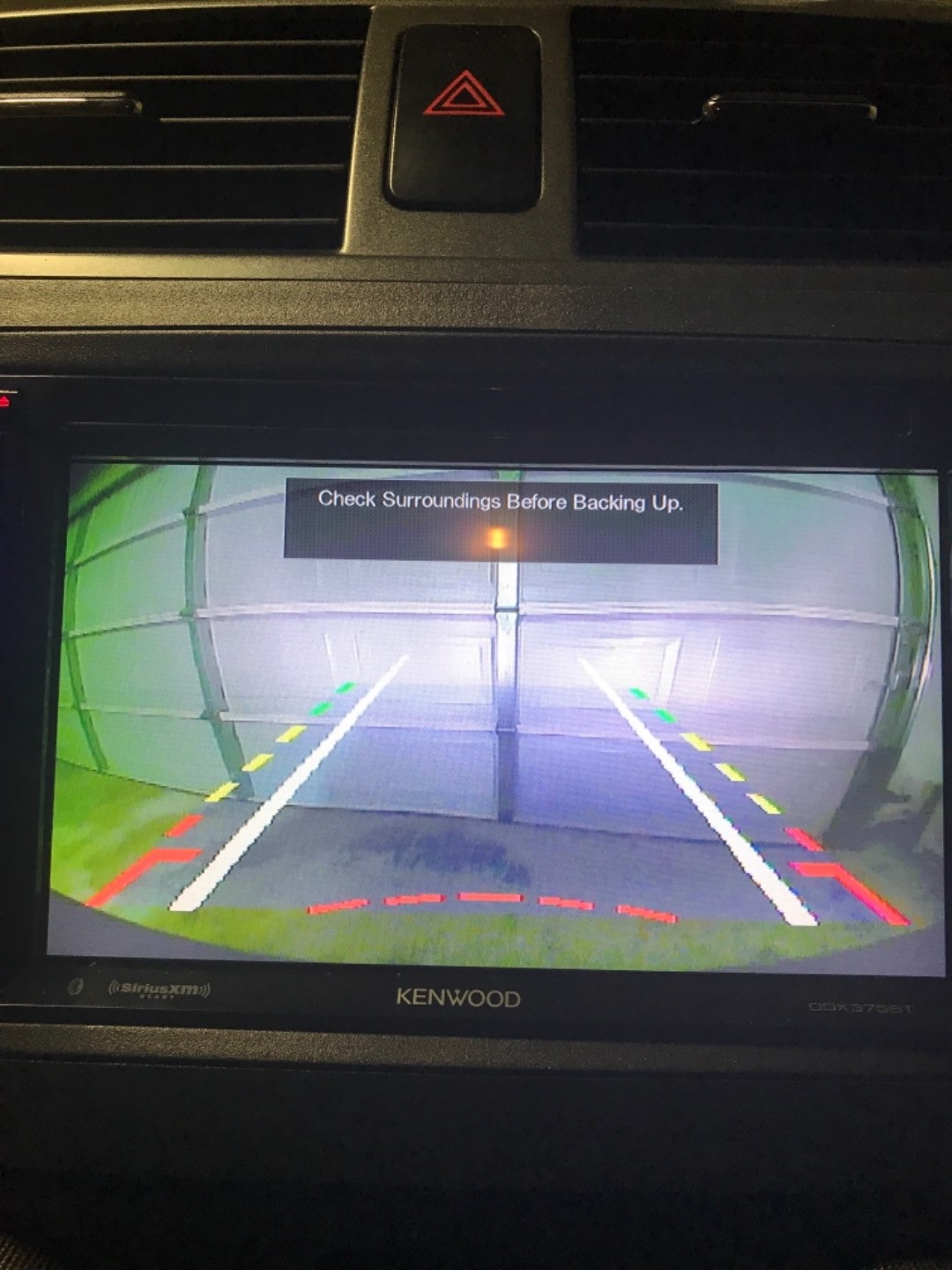

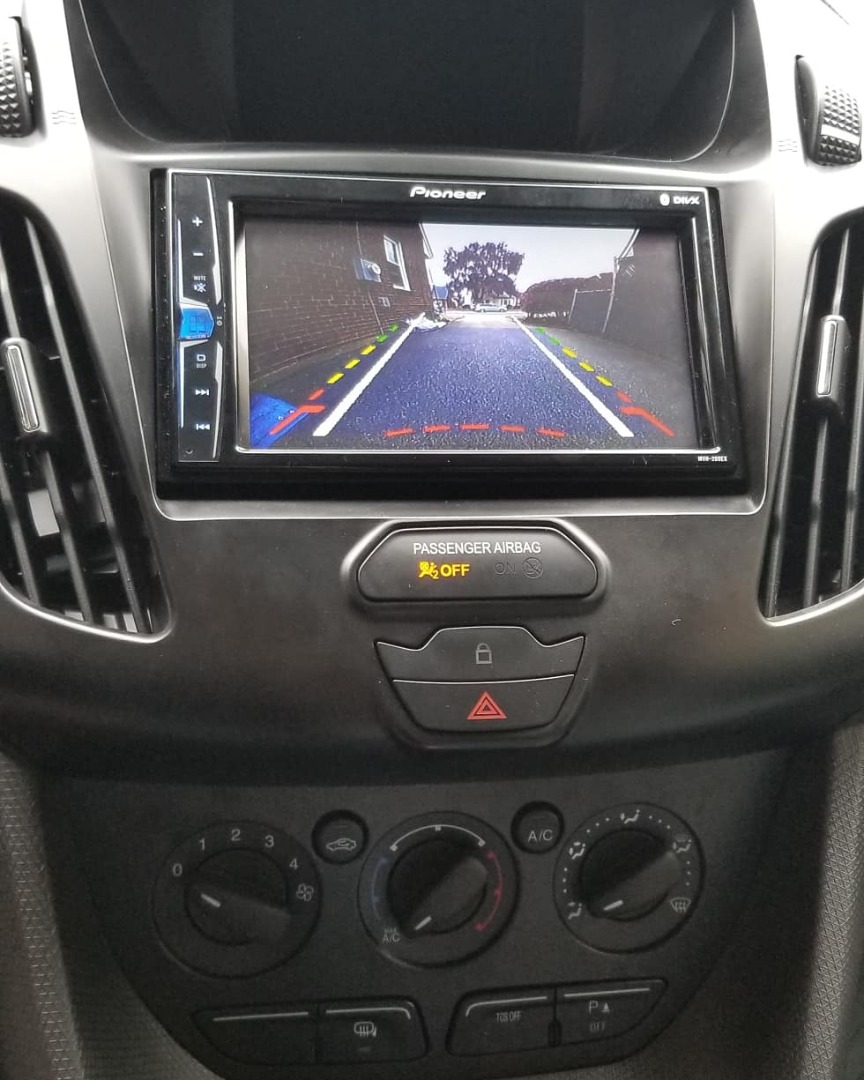

Dynamic Park Assist Lines: The Boyo VTL17IRTJ will display park assist lines on your connected monitor to aid you in backing up into a parking spot. A built-in gyro-sensor allows the park assist lines to dynamically curve as you steer and angle your vehicle.

Note: The dynamic park assist lines can be turned on or off. To disable the dynamic park assist lines, you must cut the blue wire loop labeled "parking lines on/off".

Waterproof (IP67): The Boyo VTL17IRTJ features a waterproof (IP67) housing to protect it from the elements. It's totally protected against dust and protected against the effect of immersion between 15cm and 1m for the duration of 30 minutes.

Composite Video Output: The camera has a composite video output (RCA via the included adapter) which makes it compatible with virtually any in-dash receiver with integrated video monitor and a composite video camera input. The total length of the camera's composite video cable is 30'.

Power & Ground: The 30' power wire & 6' ground wire will need to be hardwired. Power can be obtained from your vehicle's reverse light circuit or from the reverse gear wire of your aftermarket stereo (if applicable). The ground will need to be connected to your vehicle's metal chassis.

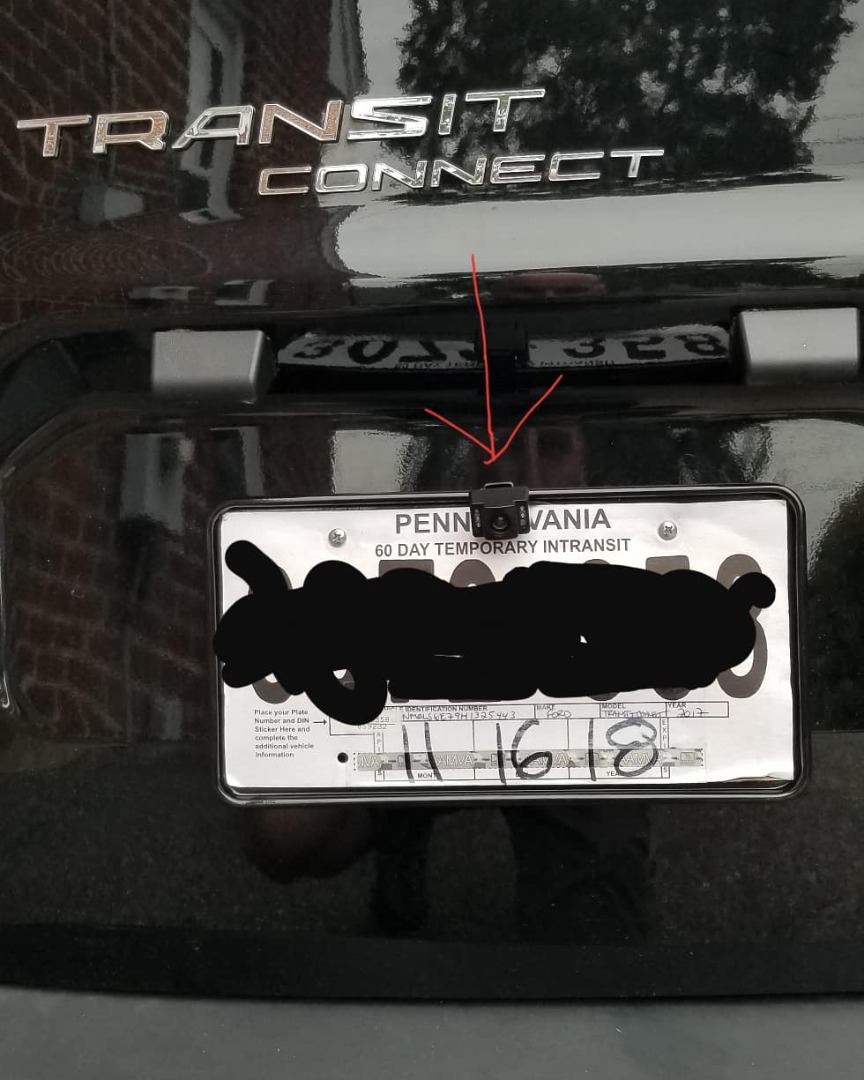

Mounting Options: The Boyo VTL17IRTJ backup camera features an integrated license plate bracket which mounts behind your vehicle's license plate frame (mounting hardware is included). A surface-mount bracket is also included, if prefer to not use the license plate mounting bracket.

Notes:

The Boyo VTL17IRTJ is designed to work best on vehicles that have a license plate located at the center and above the bumper. If your vehicle has a plate location that is offset to the left side, right side or your plate is located under the bumper then the VTL17IRTJ may not provide optimum performance.

The backup camera must be mounted at a 30° to 40° angle for proper sensitivity, accuracy, and performance. It should not be mounted horizontally or vertically straight.

Accessories

Loading accessories...

Q&A

15 questions already asked

I have a Pioneer DMH-WT8600NEX and do not like the straight parking lines. Will this camera work with my head unit? And will the active parking lines work as well?

[ Ed May 08, 2022 ]

1 answer

The Boyo VTL17IRTJ has active parking lines that move with the vehicle. It will work on any stereo that has a backup camera input.

[ Thomas J. May 15, 2022 ] Staff

Does it have an attached 58 inch cable and an additional 25 foot extension cable to reach the screen/head unit?

[ Allison Jan 17, 2022 ]

2 answers

Yes it did. I received all needed cables and hardware with mine

[ GBoh Jan 17, 2022 ]

yes

[ BRAD Jan 17, 2022 ]

Does the camera give a parabolic image Where things are closer than they appear or a true life image?

[ Jonathan Aug 07, 2021 ]

1 answer

You get a true life image..

[ AKEEM R Aug 09, 2021 ]

Is this camera compatible with the Sony XAV-AX 1000?

[ Bullit Mar 06, 2021 ]

3 answers

Yes it's compatible with any stereo with the camera as an addition

[ Carl Mar 11, 2021 ]

I have an older version on that unit and it works fine. I don't see why there would be a problem with that unit.

[ Ward Mar 06, 2021 ]

Yes, it works great!

[ GWYN Mar 06, 2021 ]

Just bought a Pioneer AVH-W1400NEX. I'd like to purchase 2 cameras. One for the rear and one for the front. Can I use both cameras while the vehicle is in drive not just reverse? Great for spotting as you drive over obstacles. Is this camera waterproof? As I may cross streams or rivers. Also looking at purchasing the pioneer ND-BC8 for the front.

[ Orlando May 17, 2020 ]

Can you adjust the camera to make it show clearer?

[ Keith Mar 25, 2020 ]

4 answers

There are no adjustments for this camera. I connected it to a Kenwood car stereo system, and the Kenwood draws reference lines on the image that I can reposition to match my car's rear travel range. There is no potentiometer on this camera to adjust brightness. It simply plugs into my stereo unit and it displays the image signal as is. I'm happy with the quality of the image based on the price I paid. There are probably better cameras, but this suits the need well enough for me for a camera in this price range. The color image is not great, and the image can be a little washed out in bright light. But it could be due to the relatively low quality of the car stereo display.

[ Antonio Apr 01, 2020 ]

do you mean focus or angle ? Focus ,no angle yes

[ Jay Mar 26, 2020 ]

Hi, no I don't think you can.

[ Richard Mar 26, 2020 ]

I don't think it will be perfect since it is a lower end camera but mine seemed to be a little better the more I pointed it down. Hope that helps!

[ Jason Mar 25, 2020 ]

Does this work if I don't have a screen in my car?

[ Ryan Jan 03, 2020 ]

4 answers

No. It doesn't come with a screen and you need one to view what the camera is seeing.

[ JEFFREY Jan 03, 2020 ]

[ David Jan 03, 2020 ]

No it requires a screen.

[ Nate Jan 03, 2020 ]

No. You will have to have an aftermarket radio or a display screen that accepts an RCA video cable to use this camera.

[ Nathan Jan 03, 2020 ]

I recently purchased a Pioneer AVH-1440NEX stereo and a BOYO 17LTJ backup camera. I didn't see a specific wiring diagram for the camera and could use you help. On the camera end of the wiring, there is a green wire lead, can you tell me what that is supposed to tie in with? The on the mail lead to confirm, at the RCA end, there is a red lead, do I leave that unattached to anything, and at the other end, I am assuming that the red and black tie into my rear lamp (black for ground, and red for hot). Would like to use camera also when not in reverse. Thank You

[ Michael Feb 11, 2019 ]

2 answers

Green wire is always ground and should be hooked to the chassis of the vehicle.As for the others, the consumer advocate at Crutchfield should reply

[ Louise Feb 11, 2019 ]

I wired into the reverse light, and the red wire next to the RGB doesnt get used

[ Daniel Feb 11, 2019 ]

Can the Boyo VTL17IRTJ's guidelines be turned off (via software or cord-cutting)?

[ James Oct 12, 2018 ]

5 answers

Yes. There is a jumper that can be cut to turn off guide lines.

[ Shelby Oct 16, 2018 ]

I can no longer find my instructions but I seem to remember it being a jumper or wire connection that turned them on and off.

[ Roger Oct 16, 2018 ]

I don't have an answer for this. I use mine every time.

[ Louise Oct 16, 2018 ]

You can cut a wire to turn the lines off.

[ James Oct 16, 2018 ]

Yes cord cutting turns them off. I did it on mine

[ Tyler Oct 16, 2018 ]

Does it have to be centered? I drive a rav4 which has it's license plate off center.

[ Andy Aug 05, 2018 ]

2 answers

The camera tilts up and down but not side to side. If you install it off center you'll get the view directly in front of the camera. You can turn off the parking guide lines by cutting the corresponding looped wire. The camera does have a fairly wide view.

[ Paula Aug 08, 2018 ]

No. I installed mine on an FJ Cruiser, which similarly has the license plate off center (to the passenger side). It makes no real difference, the field of view is quite wide.

[ Lewis Aug 08, 2018 ]

Is there anyway to increase the accuracy of the active parking lines on the BOYO Vision Backup Camera VTL17IRTJ?

[ Ashton Jul 27, 2018 ]

2 answers

I didn't find a way to improve accuracy. Tried adjusting angle but never got the transitions I was hoping for. I ended up just using the static parking lines in my head unit.

[ Shelby Jul 27, 2018 ]

I have noticed that the lines get a little better over time but they are still not good. I pull a trailer about half the time and that seems to really confuse whatever program is controlling the accuracy. The lines are active but not very accurate. A gimmick in my opinion.

[ James Jul 27, 2018 ]

Does this model work on a jeep wrangler? Is the spare tire an obstruction?

[ teebone Jun 09, 2018 ]

1 answer

Its universal and straight up attaches to the license plate, so if that's not obstructed, it won't be... works really well and has a yellow RGB cable connect

[ Daniel Jun 09, 2018 ]

is the bracket removable if I wanted to mount it elsewhere?

[ Jeff Nov 08, 2017 ]

3 answers

Yes it is. Just two small screws hold it to the bracket. There is also a small bracket with a self-adhesive tape on it that you can use instead of the license plate bracket. It's notched so you can easily mount using machine screws if you'd prefer. Fairly versatile.

[ Timothy Nov 09, 2017 ]

Not by design. It is hinged to move up and down so pretty sure you can get it apart. You're probably wanting this for the active lines? They are a joke. Buy the camera that will work where you want it to go.

[ James Nov 08, 2017 ]

Yes it is, it comes with another small mounting piece with 3M tape.

[ Julian Nov 08, 2017 ]

How are you supposed to run the wire to the head unit? Does it require a hole through the back of the license plate or something?

[ Bron Oct 18, 2017 ]

3 answers

I already had a hole near my plate in the bumper. It also looked like I could have run it through the gap between the trim piece and bumper. But, yes you will need to put a hole in the bumper if these are not options. The hole is easy to hide behind the plate though.

[ Jeremy Oct 20, 2017 ]

We got it installed by pro, but there is a tiny hole that was drilled in back of license plate

[ Kumar Oct 19, 2017 ]

If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer, or try our online support center: http://crutchfield.custhelp.com/app/answers/list/kw/.

[ Krissy Oct 19, 2017 ] Staff

Does the radio have to be compatible with the active parking lines? How does it know when you are turning the wheel?

[ Jason's Z71 Oct 10, 2017 ]

2 answers

The active lines are crap and totally unreliable... cut that wire... my stereo had it's own adjustable lines I use instead... also, dont wire it to reverse or that's the only time it will work

[ Daniel Jun 09, 2018 ]

All of the current aftermarket "active parking lines" work essentially the same way. There is a small gyroscope inside the camera with senses sideways inertia, and represents as much on screen of any video radio. It is not connected directly to the can-bus, therefore is not as accurate as OEM active parking lines. The receiver does not need to be compatible with Active Parking lines for this to work.

[ Jeff Oct 18, 2017 ] Staff
