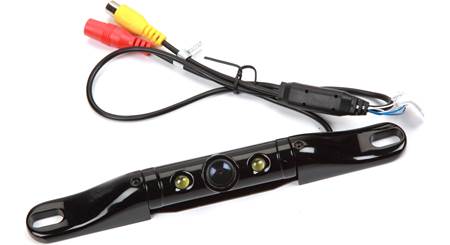

About the Boyo VTL425TJ
Mount over your license plate
Mount over your license plate
This Boyo backup camera is housed in a slim-profile bar that doesn't obscure your license plate, making it a solid choice in all fifty states. Boyo uses a sturdy zinc metal frame for a long life and mounts the waterproof rear-view camera on an up/down swivel, so you can get exactly the picture you want.
Active parking lines
Be more precise when you back up with active parking lines that curve as you turn. This cam predicts your trajectory and shows you where you're headed in reverse so no spot is too tight.
A great picture
Boyo uses a CMOS image sensor that gives you the best picture possible, and they include a composite video cable that runs from the camera to the video screen up front.
Installing this camera yourself? Here's what you should know.
What does it do? Unless otherwise noted, a backup camera is only intended for use backing up your vehicle. (If you require a front-view or constant rear-view camera, check for that capability.)
What tools and supplies will I need? A panel tool, a wire cutter/stripper, a soldering iron, and a rosin-core solder with heat shrink tubing are recommended, along with whatever tools are needed to remove the radio from the dash.
How much wiring is required? Wiring instructions vary from camera to camera. Some cameras have power wiring that can only be connected near the radio. Others let you power the camera at compatible reverse lights. In all cases, the camera must be wired for power and ground, the camera's video output must be connected to the radio/monitor, and the radio/monitor must be connected to a reverse trigger in your vehicle. Some radio replacement interfaces supply a reverse trigger wire for the radio -- using that wire to power your camera will damage the interface.
Will the included video cable be long enough? You'll need to route the camera's video cable from its mounting location outside your vehicle into your vehicle's cabin and all the way to the screen in the dash. This often requires drilling a small hole in your vehicle or filing some metal and or plastic. You'll also need to estimate the length of cable needed to run from the camera to the dash, which will not be a straight shot. Each camera's cable length is listed.
Product highlights:
- color backup camera in a bar-type license plate mount
- super-slim zinc bar mounts at the top of your license plate
- includes 24-foot video cable
- active parking lines
- universal fit
- compatible with any radio with an RCA video input (most aftermarket models, only a few factory)
- 140-degree wide angle
- waterproof (IP67 rating)
- resolution: 960 x 480 pixels
- night vision rating: 0.1 Lux
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # VTL425TJ
What's in the box:
- License plate backup camera (black) with attached 31" video cable (4-pin plug)
- 24' Video extension cable (4-pin plug on each end)
- 14" 4-Pin to composite video adapter cable (attached 6" power/ground wires along with blue & white loop-wires)
- Two 1-1/4" Hex-head bolts
- 2 Lock-washers
- 2 Flat-washers
- 2 Nuts
- 1.5mm Allen key
- Instruction manual
- Warranty information
- Product registration card
Reviews
Customer reviews
Loading reviews...
Boyo VTL425TJ reviews
Average review:
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Boyo VTL425TJ
Features & specs
| Features and Specs | ||
|---|---|---|
| Camera Type | Rear or Front | |
| Resolution | 960x480 | |
| Parking Guidelines | ||
| Lux Rating | 0.1 | |
| Selectable Views | N | |
| Reversed Image | Both | |
| Horizontal Viewing Angle | --- | |
| Vertical Viewing Angle | --- | |
| Wireless | No | |
| Plug type | Composite video | |
Product Research
Features
Overview: The Boyo VTL425TJ backup camera features an integrated bracket designed to mount to any license plate. The built-in CMOS camera can provide a clear, 140° (diagonal) wide picture of what's behind your vehicle, even in low light conditions.
- Note: The Boyo VTL425TJ is meant as a driving aid only; never solely rely on the camera. In addition to using the camera, always look around you to make sure everything is clear.
Universal Fit: Along with the built-in license plate mount, the VTL425TJ provides a total of 29.5' of video cable, allowing it to be installed in most consumer vehicles. The camera angle can also be adjusted up or down to match any license plate height. The included 4-pin video extension cable gets run from the rear of the vehicle to the front. A 14" adapter is provided, converting the 4-pin cable to a standard composite video plug, allowing it to be used with most aftermarket in-dash video screens. The camera includes a built-in 31" video cable with 4-pin connector.
Wire Loop Switches: The VTL425TJ includes blue and white loop wires on the 4-pin-to-composite video adapter cable that can be used for selecting or de-selecting Dynamic Park Assist Lines and Image Selection.
- Dynamic Park Assist Lines: The Boyo VTL425TJ will display park assist lines on your connected monitor to aid you in backing up into a parking spot. A built-in gyro-sensor allows the park assist lines to dynamically curve as you steer and angle your vehicle. The camera comes default with the parking guide lines On; cutting the blue loop wire will remove the parking guide lines.
- Image Selection: Designed primarily as a backup camera, the VTL425TJ's default display is a Reverse (Mirror) image. If a Normal image is desired, or if the camera will be mounted on the front of a vehicle, the white loop wire can be cut for a Normal display.
Weatherproof: The Boyo VTL425TJ's camera and zinc-plated mount carry an IP67 rating for long-lasting outdoor use.
