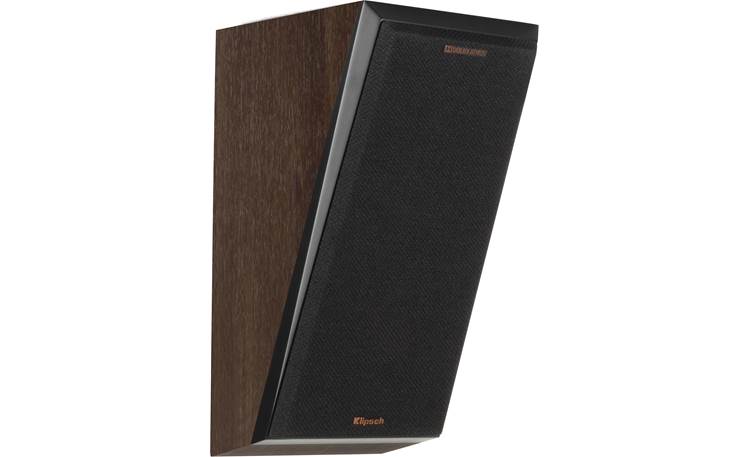

Klipsch Reference Premiere RP-500SA

Dolby Atmos® enabled add-on speakers (Walnut)

Item # 714RP500SW

Building a Dolby Atmos® home theater system with Klipsch Reference Premiere speakers?

Building a Dolby Atmos® home theater system with Klipsch Reference Premiere speakers?

California customers:
Please click here for your Proposition 65 warning.

Need help?
Contact our Virginia-based experts.

Item # 714RP500SW

Ships free

In stock
$574.00 pair

Other options

About the Klipsch Reference Premiere RP-500SA

3-dimensional Klipsch surround sound

Building a Dolby Atmos® home theater system with Klipsch Reference Premiere speakers? Then I recommend these voice-matched "toppers" to experience overhead sound effects without having to install in-ceiling speakers.

3-dimensional Klipsch surround sound

Building a Dolby Atmos® home theater system with Klipsch Reference Premiere speakers? Then I recommend these voice-matched "toppers" to experience overhead sound effects without having to install in-ceiling speakers.

Each RP-500SA sits on top of a compatible Reference Premiere floor-standing or bookshelf speaker. An upward-firing 5-1/4" spun-copper woofer and 1" horn-loaded tweeter in each cabinet reflect sound off the ceiling for immersive overhead effects.

Do you have an Atmos-capable receiver?

Since these speakers connect to your receiver's "height" channels for power and signal, a home theater receiver with Dolby Atmos is required for operation.

READ LESS

Product highlights:

  • pair of Dolby Atmos add-on speakers for home theater
  • designed to sit on top of Klipsch Reference Premiere floor-standing speakers
  • drivers are angled upward to reflect sound off of the ceiling for immersive overhead sound effects
  • connect to a Dolby Atmos-compatible home theater receiver's height channels for power and signal
  • can also be used as standard left- or right-channel surround speakers when mounted to the wall
  • 90° x 90° Hybrid Cross-Section Tractrix® horn with 1" LTS (Linear Travel Suspension) titanium diaphragm tweeter
  • 5-1/4" Cerametallic™ cone woofer with rigid voice coil
  • frequency response and sensitivity specs conform to Dolby Atmos specifications
  • recommended amplification: up to 75 watts RMS (300 watts peak)
  • impedance: 8 ohms compatible
  • acoustic suspension (sealed) cabinet design
  • keyhole slot for easy wall-mounting
  • walnut vinyl finish with scratch-resistant design
  • 6-7/8"W x 7-7/16"H x 12-3/4"D
  • weight: 8 lbs. (each)
  • warranty: 5 years
  • Our 60-day money-back guarantee
  • MFR # 1066508

What's in the box:

  • 2 Dolby Atmos-enabled surround loudspeakers
  • 2 Grilles (installed)
  • 8 Self-adhesive rubber feet
  • User Manual
  • Important Safety Instructions
  • Warranty Information

Customer reviews

Loading reviews...

Klipsch Reference Premiere RP-500SA reviews

Average review:

28 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the Klipsch Reference Premiere RP-500SA

Stacey B.

Product Research

Features

Dolby Atmos Elevation Speaker: Enhance your home theater system with the overhead sound effects of the Klipsch RP-500SA Dolby Atmos speaker. By leveraging Klipsch proprietary horn-loaded controlled directivity technology, the RP-500SA bounces sound off the ceiling to create an astonishing, immersive listening experience.

Note: Dolby Atmos delivers captivating, object-based sound that places and moves audio anywhere in the room to bring entertainment alive all around the audience. With Dolby Atmos sound comes alive from all directions, including overhead, to fill a home theater with astonishing clarity, power, detail and depth. Learn more out Dolby Atmos here.

Application & Mounting Options: In addition to delivering overhead sound effects as a Dolby Atmos speaker topper for Klipsch and other brands of floorstanding and bookshelf loudspeakers; the RP-500SA is designed to be wall-mounted as a front, rear or side elevation speaker; or as a versatile side or rear surround sound speaker. There is a threaded keyhole slot on the back, as well as four integrated rubber feet on the bottom of the speaker.

  • Dolby Atmos "Topper" Dimensions: Keep in mind the RP-500SA's dimensions when using it as a Dolby Atmos topper, as it must be able to rest on top of your floorstanding or bookshelf loudspeaker. It measures 6.8125" (w) x 7.4375" (h) x 11.1875".
  • Wall-Mount Dimensions: When wall mounted, the RP-500SA measures 6.8125" (w) x 11.1875" (h) x 7.4375" (d).
Note: The RP-500SA features a rear-panel crossover swtich that changes between Atmos and Surround speaker modes, for optimized performance as a Dolby Atmos Elevation speaker, or a wall-mounted side or rear surround.

1" Horn-Loaded Tweeter: The Klipsch RP-500SA loudspeaker features a 1" Titanium LTS Vented Tweeter with a Hybrid Tractrix Horn technology exceptional high frequency response, detail, and dispersion. Klipsch proprietary Tractrix horn-loaded technology ensures high-frequency energy of the RP-500SA speakers are aimed directly at the listener and reduces unwanted, artificial reverb caused by indirect sound bouncing off walls - meaning you experience the most clear, detailed, lifelike sound possible.

  • Titanium LTS Vented Tweeter: The titanium tweeter diaphragm's light weight yet rigid composition exceeds the performance of aluminum, polymer or silk tweeters. A vented tweeter design reduces standing waves behind the tweeter diaphragm for a smoother high frequency reproduction. Klipsch award-winning Linear Travel Suspension technology leverages a piston motion of the titanium diaphragm that lowers distortion and delivers real-to-life sound. A ceramic magnet housing provides premium performance,
  • Hybrid Tractrix Horn Technology: This redesigned 90°x90° Hybrid Tractrix Horn utilizes a circular horn throat paired to a square horn mouth to further improve high-frequency response and extension, while enhancing imaging and dynamics. The Hybrid Tractrix Horn's compressed molded silicon face adds high frequency damping to reduce harshness and horn resonance for a smoother frequency response with improved detail - creating a clean and natural sound. Klipsch also utilizes computer modeled phase plugs that act as a mechanical filter to further ensure a smooth, flat frequency response while protecting the tweeter from damage.

5.25" Cerametallic Woofer: The RP-500SA loudspeaker utilizes a 5.25" Klipsch Proprietary Cerametallic woofer. Cerametallic consists of extremely light, rigid materials that can hold shape while being able to deliver lower frequencies with maximum efficiency. The Klipsch Cerametallic cone is matted to a dual-layer, copper-wound voice coil for exceptional conductivity. The 5.25" woofer is housed in a non-resonating, stamped-steel basket that's secured to a large magnet motor for exceptional efficiency and low distortion.

MDF Cabinet: The Klipsch RP-500SA speaker features a MDF cabinet with a scratch-resistant, textured wood grain vinyl that seamlessly integrates into almost any room or decor. The enclosure's reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy. The MDF enclosure also features a satin painted baffle with a scratch resistant design for an elegant look without the grille.

Acoustically Transparent Grille: The Klipsch RP-500SA loudspeaker comes with a removable, black cloth grille that is magnetic and acoustically transparent. This strong magnetic grille provides protection and a sleek aesthetic look to compliment your home's decor.

Binding Posts: The Klipsch Reference Premiere series speaker is fitted with sturdy  binding posts to ensure a secure connection to many types of cable and connectors. The binding post terminals will accept banana plugs (single only), pin-connectors, spade-lugs and bare wire (up to 10AWG). Two plastic caps will need to be removed to use banana plugs.

Reference Premiere Series: The Klipsch Reference Premiere series utilizes a redesigned hybrid 90°x90° Tractrix Horn, a vented LTS titanium tweeter, Cerametallic woofer construction, and Tractrix geometry port technology for sound that will envelope you and blow you away. The Reference Premiere series by Klipsch consists of a variety of floorstanding, bookshelf, center, and surround speakers (all sold separately). Click on the Accessories Tab to find more Reference Premiere series speakers for your home system.

Optional Powered Sub: For bigger & deeper bass response, pair the Klipsch Reference Premiere series loudspeaker with one of Klipsch's powered subwoofers (sold separately - click on Accessories Tab).

Loading accessories...

Customer Q&A

Q
Crutchfield asked: Why did you buy this?
A
great reputation and I need two reflecting Atmos speakers! [ Michael  Aug 08, 2019 ]
A
Performance/price [ O  Jul 01, 2019 ]
A
I have 2-rp8000 , 2- r-110sw, 2- rp 502s and a rp504c why would I buy some inferior speaker after all Klipsch is one of the best. [ Peter  May 21, 2019 ]
A
Jenny helped me out. [ Johnny  Feb 09, 2019 ]
A
Reviews [ Dominick  Jan 20, 2019 ]
A
Did not want to buy new towers to get Dolby Atmos as my RF-3s have been going strong for many years, so these sitting on top were the best choice, plus the larger driver (than 140s) was better for my setup. [ THOMAS  Nov 16, 2018 ]
A
I LIKE THE PRICE [ DONALD  Nov 15, 2018 ]
A
Because the versatility [ Pedro C. Pagan  Oct 27, 2018 ]
A
Upgrading from 2 to 4 Klipsch ATMOS speakers. The rest of my system are Klipsch speakers and the reviews for this set is extremely positive. [ Thomas  Aug 16, 2019 ]
A
Because they match my Polk S60's [ ANDREW  Feb 25, 2019 ]
A
Absolutely love my other Klipsch speakers, so choosing these to add to my system for Dolby Atmos is a no-brainer. Just wish they offered therse in cherry finish, to match them. [ Rick R.  Feb 18, 2019 ]
A
Have some Klipsch bookshelf speakers that match, but mostly specs showed these could handle more power than other atmos height speakers. Didn't want to start over with floor standing speakers, thought this addition would be great without installing ceiling speakers. [ Jeff  Nov 23, 2018 ]
SHOW MORESHOW LESS

5 questions already asked

Q
Dolby Atmos versus DTS-HD 7.1? I have three classification of Blue rays and wondering if all three will play via these speakers. They are Dolby Atmos(obviously yes) DTS-HD 7.1 and THX. I have a Denon X2500 receiver. Amp selection would be Dolby Front but there are multiple possibilities for sound mode (Dolby Audio-Dolby Sound; DTX Neural:X; DTX Virtual:X; Multi Ch Stereo. Which Sound Mode setting for DTS-HD 7.1 and THX. For those not familiar with THX it's used on Star Wars and Indiana Jones movies. Thanks, David
[ David  Aug 22, 2019 ]
2 answers
A
These speakers will play whatever signal you give them. They are designed with Atmos in mind, but can be used with other formats. The speaker itself will play the signal it is given. You would need to assign the speaker layout within the receiver settings, and properly place the speakers.
[ Calvin  Sep 13, 2019 ]  Staff
A
I would suggest doing an internet search for 'Surround Sound Formats - Dolby Digital vs DTS vs THX'. This may help answer your question.
[ Matthew  Sep 11, 2019 ]
Q
can I use 2 pair of these speakers as both my back and rear surrounds ans set all four to Dolby Atmos in conjunction with a Klipsch RP8060FA in front?
[ James  Aug 10, 2019 ]
2 answers
A
If you already own them sure, but Klipsch sells bookshelf speakers about the same size and quality for a much lower price than these specialty speakers.
[ troy  Aug 10, 2019 ]
A
Yes. You can set them up however you wish using your receiver's menus. Keep in mind these speaker are actually bigger than the pictures lead you to believe. They sound amazing
[ Matt  Aug 10, 2019 ]
Q
What is the sensitivity of this speaker? There is no specific information about this any where
[ Sriram  Nov 30, 2018 ]
1 answer
A
I've searched too and only found where they said it conforms to dolby atmos specifications(whatever these are).
[ Craig  Dec 05, 2018 ]
Q
Can you mount on the ceiling facing down for atmos?
[ Chris  Nov 19, 2018 ]
1 answer
A
Sorry no; there is no provision for the speakers to be ceiling mounted. They can be placed on top of your front left & right (tower or bookshelf) speakers, firing upwards to bounce the effects off the ceiling (and back down into the listening area) or they can be wall-mounted for use as side or rear surround sound speaker. They have a rear-panel crossover switch that changes between Atmos and Surround speaker modes for optimized performance.
[ Ryan  Nov 24, 2018 ]  Staff
Q
If I install them as elevated Atmos speakers, do I leave the switch on Atmos or do I change it to surround?
[ Felix  Dec 28, 2018 ]
4 answers
A
Enter an answer to this The Atmos mode switch enables a special crossover that adds a "squiggle" in the high frequency response to enhance the bounce effect. This should ONLY be used when they are up-firing. If used in a normal direct-firing application the switch should be set to the other position. In the AVR they will he called "heights".question.
[ Mike  Sep 22, 2019 ]
A
Leave it on Atmos
[ Matt  Dec 30, 2018 ]
A
i'm sorry,i can't answer that question because i put the Atmos on top of the front speakers.
[ ADONIS H  Dec 28, 2018 ]
A
I currently have my speakers on surround while elevate on my wall because my receiver does not have atmos. But when it is upgraded I will change the switch to atmos.
[ LaTasha  Dec 28, 2018 ]
SHOW MORESHOW LESS
