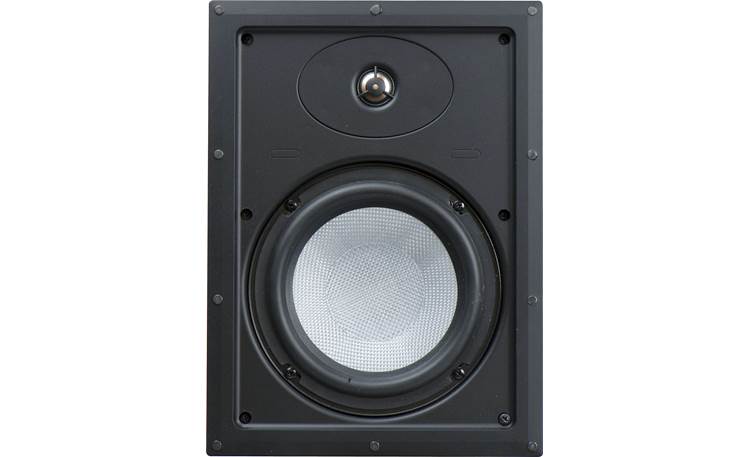

About the Nuvo NV-4IW6 Series Four
Great in-wall sound
Great in-wall sound
Nuvo's NV-4IW6 speakers deliver detailed, nuanced sound. They work well as rear or side surrounds in a home theater setup, or as the main speakers in a two-channel music system. The best part: they don't take up any floor space. The included rimless grilles make the speakers blend in seamlessly with your wall.
Drivers crafted for premium reproduction
Each speaker sports a single 6-1/2" glass fiber woofer that delivers powerful midrange and bass, which brings action sequences and music to life. They also have a 3/4" aluminum tweeter for crisp and clear highs. Plus, their tweeters are aimable so you can still have accurate imaging even if your listening position is a bit off-center.
DIY installation
If this is a do-it-yourself install, check out our guide to installing in-wall speakers, along with our selection of in-wall speaker wire.
Product highlights:
- 6-1/2" glass fiber woofer
- 3/4" aluminum tweeter
- aimable tweeter to better direct high frequencies to your listening position
- rimless, paintable magnetic grille for a seamless look
- frequency response: 55-20,000 Hz (± 3dB)
- power handling: up to 75 watts RMS
- impedance: 8 ohms
- sensitivity: 88 dB
- overall size: 8-13/16"W x 11-15/16"H
- cutout required: 7-5/8"W x 10-3/4"H
- mounting depth: 3-5/16"
- weight: 4.35 lbs. (each)
- warranty: lifetime
- Our 60-day money-back guarantee
- MFR # NV-4IW6
What's in the box:
Nuvo NV-4IW6 Series Four owner's manual
- 2 In-wall loudspeakers
- 2 Grilles
- Instruction Sheet
- Cutout Template
Reviews
Customer reviews
Loading reviews...
Nuvo NV-4IW6 Series Four reviews
Average review:
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Nuvo NV-4IW6 Series Four
Features & specs
| Features | ||
|---|---|---|
| Quantity in Package | Pair | |
| Tweeter | Hard-Dome | |
| Aimable Tweeter | Yes | |
| Woofer Composition | Glass fiber | |
| Woofer Surround | Rubber | |
| Connector Type | Spring post | |
| Bi-Amp Inputs | No | |
| Built-in Back-box | No | |
| Moisture Resistance | ||
| Indoor (Moisture-resistant) | No | |
| Outdoor (Partial Exposure) | No | |
| Outdoor (Full Exposure) | No | |
| Specs | ||
| Tweeter Size | 0.75 | |
| Midrange Size | N/A | |
| Woofer Size | 6.5 | |
| Speaker Shape | Rectangle | |
| Cutout Width | 7.625 | |
| Cutout Height | 10.75 | |
| Mounting Depth | 3.3125 | |
| Power Range (Watts) | up to 75 | |
| Sensitivity | 88 dB | |
| Impedance (Ohms) | 8 | |
| Frequency Response | 55-20kHz | |
| Parts Warranty | Lifetime | |
| Labor Warranty | Lifetime | |
Product Research
Features
2-Way Driver Design: The Legrand Nuvo Series Four NV-4IW6 in-wall loudspeaker utilizes a two-way driver design, featuring a 0.75" aluminum hard-dome tweeter with waveguide and one 6.5" glass fiber cone woofer with a butyl rubber surround for solid audio performance with well-balanced sound. The tweeter pivots, alloing you aim the sound at your targeted listening area.
Applications: The Legrand Nuvo Series Four NV-4IW6 can be used as a front or rear channel speaker in a home theater application. It can also be used in a 2ch stereo application or part of a distributed audio system.
Magnetic Grille: The Nuvo NV-4IW6 comes with a low-profile, rimless grille that attaches magnetically to the front-baffle of the in-wall speaker. The grille features a white finish, but can be painted to match your wall. The low-profile, magnetic grille only protrudes 0.1875" from the wall.
Spring-Post Terminals: The Nuvo NV-4IW6 in-wall loudspeaker is outfitted with a set of spring-post terminals to attach bare speaker wire (up to 12AWG), pin-connectors, or banana plugs (single only).
Mounting Options: The Series Four NV-4IW6 requires a rectangular cutout in the wall that measures 7.625" (w) x 10.75" (h) x 3.3125" (d). Six swivel "dog-leg" clamps with integrated mounting screws secure the speaker in the wall. There needs to be at least 0.75" of clearance around the inside of the cutout to accommodate the swivel "dog-leg" clamps. The "dog-leg" clamps will accommodate up to 1.5" drywall thickness.
