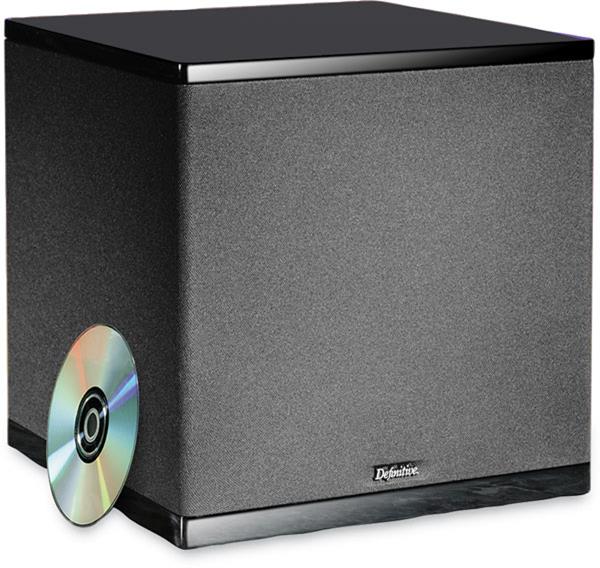

About the Definitive Technology SuperCube I
Huge bass from a compact subwoofer
Huge bass from a compact subwoofer
Definitive's SuperCube® I subwoofer easily fills any home theater room with exciting bass that'll make your spine tingle on your next movie night. The secret to its success is an active woofer/passive radiator combination that produces big sound despite the cabinet's small size. And a powerful built-in 1,500-watt amplifier really shows off this little sub's tight, accurate bass response.
A unique approach to rock-solid bass
The SuperCube I contains a 10" woofer pressure-coupled to two 10" radiators, for a total output around that of a traditional 18" woofer. This driver array gives the SuperCube I the advantage of far greater speed, musicality, and control than any large single-woofer sub could produce. The woofer is encased in an incredibly rigid basket engineered to hold the massive magnet structure and large voice coil in absolute alignment. The non-resonant cabinet is nearly 2" thick and uses multiple internal bracings to make sure that you hear clean bass without sound-muddying vibrations.
Flexible inputs and outputs and advanced controls
Line-level and speaker-level inputs let you connect this sub to just about any audio system. The continuously variable low-pass crossover allows you to precisely control the frequencies that your subwoofer handles. And the built-in high-pass crossover is a nice touch: it prevents your main speakers from overloading with low frequencies if you hook them up through the subwoofer's speaker-level outputs.
- bass-reflex (passive radiator) enclosure
- 10" long-throw woofer pressure-coupled to two 10" low bass radiators
- built-in 1,500-watt amplifier
- frequency response 13-200 Hz
- continuously variable low-pass 40-150 Hz crossover
- auto on/off
- phase control dial for fine-tuning bass performance
- speaker-level inputs and outputs
- 80 Hz fixed high-pass crossover for speaker-level outputs
- line-level inputs and outputs
- continuously variable high-pass 40-150 Hz crossover for line-level outputs
- LFE input for use with home theater receiver's subwoofer output
- piano-gloss black finish
- 14-5/16"W x 14-3/4"H x 15-7/16"D
- warranty: 5 years woofer, 3 years amplifier
- Our 60-day money-back guarantee
- MFR # LAZA
What's in the box:
- 10" Powered subwoofer
- 4 Threaded rubber-feet
- 4 Spike feet (hex-nut attached)
- Owner's Manual
- Online Product Registration card
Definitive Technology SuperCube I reviews
Thanks for submitting your review
More details on the Definitive Technology SuperCube I
Features & specs
|Woofer Size (inches)||10|
|Low-Pass Crossover Freq||40-150 Hz|
|High-Pass Crossover Freq||40-150 Hz|
|Amplifier Output (watts)||1500|
|Frequency Response||13-200 Hz|
|Speaker Parts Warranty||5 Years|
|Speaker Labor Warranty||5 Years|
|Amplifier Parts Warranty||3 Years|
|Amplifier Labor Warranty||3 Years|
Overview: The Definitive Technology SuperCube I is a compact, high-quality powered subwoofer intended for use in a music or home theater system. The SuperCube I powered subwoofer allows for easy, seamless integration into almost any two-channel or multichannel speaker system; delivering true, accurate, and extremely deep bass in any room. The SuperCube I is finished in a piano-gloss black lacquer finish with a black non-removable cloth grille.
Passive Radiator Design: The SuperCube I features a 1500-watt (RMS) class D amplifier driving a 10-inch SuperCube Technology woofer, pressure coupled to two side-firing 10-inch Ultra Low Bass Radiators. The total piston area of this design is 235 square inches; equivalent to an 18-inch diameter woofer, but with far greater speed, musicality, and control than a single large diameter woofer can deliver.
PowerField Technology Amplifier: The SuperCube I incorporates Definitive's proprietary PowerField technology, by which the amplifier is specifically engineered in conjunction with the driver for optimum load matching and power transfer characteristics. The SuperCube I is powered by a 1500-watt (RMS) class D amplifier. The result is high-definition bass performance extending effortlessly down to 13 Hz.
High-Definition Subwoofer: The powerful, high-definition 8" long-throw subwoofer driver is specifically engineered by Definitive Technology to deliver rock-solid low distortion bass, reaching down to the lowest subsonic frequencies (14-200Hz), with superior transient response. The special ultra-stiff, low-mass cone (for super-fast transient response) is joined to a specially formulated surround and long-throw voice coil and spider. The ultra-rigid basket is engineered to hold the woofer's massive magnet structure and large voice coil in absolute alignment. The high temperature voice coil is made of aluminum wound with triple insulated ultra-pure copper wire and baked in epoxy for increased power handling.
Non-Resonant Cabinet: The cabinet of a loudspeaker plays a large part in its sonic performance. Resonance and vibration can add unwanted distortion as well as drain away important energy from the system. The Definitive Technology SuperCube I powered subwoofer utilizes a monocoque cabinet, which has been specifically engineered to be totally inert and vibration free, to ensure you of pure sonic reproduction. Monocoque means that the cabinet is of a unitized construction where all panels are permanently joined together into one solid structure. The cabinet walls themselves are high-density medite fused together by space-age polymer adhesives. The front and rear panels nearly 2-inches thick and the cabinet, itself, incorporates multiple internal braces to ensure total solidity.
Protection Circuits: The Definitive Technology SuperCube I features two protection circuits that ensure that the subwoofer can never be overdriven.
Interchangeable Feet: The SuperCube I comes with 4 rubber feet and 4 spiked feet for safe and secure placement of the powered subwoofer on your carpet or hardwood floors.
Placement: The Definitive Technology powered subwoofer has been designed to operate at frequencies generally below 150 Hz. Because low-frequency information in this range essentially is non-directional, your subwoofer can be located anywhere in your listening room that is most convenient. Also the continuously variable low-pass filter operate at a very fast roll-off, ensuring great performance wherever you place the subwoofer. There are, however, some general rules that you should bear in mind when locating the powered sub.
- For maximum output the subwoofer should be placed in a corner or against the wall; leaving roughly 2- to 4-inches of clearance between the subwoofer and the wall(s).
- Corner placement will increase the subwoofer's efficiency, which in turn will increase your system's maximum output and improve the dynamic capability of the subwoofer.
Subwoofer Controls: A complete array of controls allow the SuperCube I to be perfectly integrated with any stereo or multi-channel audio system, and tuned for optimum performance in any room.
Volume Control: The SuperCube I features a rear-mounted volume control. This control is used to raise or lower the output level of the subwoofer in relation to the other speaker in your system.
Variable Low-Pass Crossover: The Definitive Technology powered subwoofer features a continuous variable low-pass filter control on the back-panel. This filter is continuously variable between 40 and 150 Hz. It "rolls-off" (24dB/oct) the high-frequency response of your subwoofer so only low-frequencies below the desired setting will be heard. This low-pass filter control is used to obtain the optimum transition between the subwoofer and your main speakers.
Variable High-Pass Crossover: The SuperCube I is equipped with a continuously variable high-pass filter (40-150Hz, 12dB/oct) which is used when you wire the low-level inputs of the subwoofer to a full-range signal and the low-level outputs of the subwoofer to the left and right channel inputs of your amplifier. When hooked up this way, it allows you to vary the low-frequency roll-off of your main speakers. This control only works using the low-level inputs and outputs.
Variable Phase Alignment: The powered subwoofer features a rear-panel variable phase control dial with a range of 0-180 degrees. This control is used to perfectly blend the output of your subwoofer with your main speakers to compensate for any possible problems due to placement constraints.
Auto Turn-On Circuit: The powered subwoofer has a special power circuit which automatically turns the powered subwoofer on when a signal is fed to the loudspeaker and turns it off when there is no signal present, so it does not require an on-off switch.
LED Indicator: The red LED on the back panel of the powered subwoofer will light up when a signal is sensed and the amplifier turns on. It will automatically turn off with the powered subwoofer, a little while after the signal is discontinued.
Line-Level & Speaker-Level Connections: The Definitive Technology SuperCube I powered subwoofer has a complete range of inputs and outputs to allow easy and effective hookup to any system. Both (high) speaker level and low-level inputs are provided in case you do not have a subwoofer output. In addition, the SuperCube I has a separate direct-in LFE low-level input (which bypasses the crossover network).
LFE Input: The LFE input on the SuperCube I is a mono-RCA input which is not affected by the subwoofer's low-pass filter or low-pass crossover control. It is designed to connect the SuperCube I to a receiver which features a dedicated subwoofer output which features its own low-pass crossover filter.
Low-Level Inputs: If your receiver does not feature a dedicated subwoofer output, but does feature stereo RCA outputs, you can use the SuperCube I's stereo RCA low-level inputs (which provide its own dedicated variable low-pass crossover circuit) to connect the subwoofer to your receiver,
Speaker Level In: The Speaker Level inputs (binding posts) are designed to be used on receivers or amplifiers that do not incorporate any RCA type subwoofer outputs. If your receiver is equipped with an RCA type subwoofer outputs, these speaker level inputs should not be utilized.
Low Level Output: The SuperCube I features a pair of low level outputs for connecting the powered subwoofer and your main speakers in a Pre-Amplifier/Power Amplifier configuration.
Speaker Level Output: The SuperCube I also features speaker level outputs (binding posts), so you can connect your front (main speakers) through the powered subwoofer. The SuperCube I has a built-in speaker level high-pass crossover preset at 80 Hz (6dB/oct).
