iDatalink HRN-HRR-FO2

Retain the factory steering wheel audio controls and factory amp on select Ford vehicles (ADS-MRR or ADS-MRR2 module also required)

Item # 794HRRFO2C

Working in conjunction with iDatalink's Maestro ADS-MRR or ADS-MRR2 module, iDatalink's HRN-HRR-FO2 wiring...

Find what Fits your vehicle

Working in conjunction with iDatalink's Maestro ADS-MRR or ADS-MRR2 module, iDatalink's HRN-HRR-FO2 wiring...

Item # 794HRRFO2C

Ships free today

In stock
$79.99

60-day returns

If you don't love it, send it back.

Free lifetime tech support

Whenever you need a hand.

Since 1974

Years of experience making people happy.

About the iDatalink HRN-HRR-FO2

Bob Bihlmayer

Retain your Ford's features

Working in conjunction with iDatalink's Maestro ADS-MRR or ADS-MRR2 module, iDatalink's HRN-HRR-FO2 wiring adapter allows you to connect a new car stereo in select Ford vehicles with the 4.3" My Ford radio. Once connected, you'll retain the use of your steering wheel audio controls, plus gain the ability to program two functions for each button. You'll also keep your factory backup camera and amplifier (if equipped), plus the harness provides the outputs necessary to install a radio with navigation functions, including accessory power, illumination, parking brake, VSS, and foot brake outputs.

Retain your Ford's features

Working in conjunction with iDatalink's Maestro ADS-MRR or ADS-MRR2 module, iDatalink's HRN-HRR-FO2 wiring adapter allows you to connect a new car stereo in select Ford vehicles with the 4.3" My Ford radio. Once connected, you'll retain the use of your steering wheel audio controls, plus gain the ability to program two functions for each button. You'll also keep your factory backup camera and amplifier (if equipped), plus the harness provides the outputs necessary to install a radio with navigation functions, including accessory power, illumination, parking brake, VSS, and foot brake outputs.

Extra functionality

With a compatible iDatalink-ready car stereo, you'll also be able to retain the use of most SYNC features, including the Media Player, hands-free calling, voice commands, and display of song information on the 4.3" screen. With these receivers, you'll also be able to set up gauges and other info that display on your screen, showing tire pressure, battery voltage, door status, engine codes, and visual parking assist.

Plug directly into your new stereo

This harness also features an in-line head-unit connector harness, which will plug into their new "Head-unit direct" harnesses for select radio brands, which eliminate the need to splice any wires. If you're installing a radio that doesn't work with a "Head-unit direct" harness, you simply cut off the plug and connect the wires to the harness included with your new radio.

Installation note: The HRN-HRR-FO2 harness must be used with the iDatalink Maestro ADS-MRR or ADS-MRR2 module to connect a new car stereo to your Ford vehicle.

READ LESS

Highlights:

  • allows installation of a new receiver in select Ford models (also requires the Maestro ADS-MRR or ADS-MRR2 module)
  • retains steering wheel controls, factory backup camera, and factory amp in select vehicles
  • retains most SYNC features with select Alpine, JVC, Kenwood, Pioneer, and Sony receivers
  • displays engine performance data on touchscreen with select Alpine, JVC, Kenwood, Pioneer, and Sony receivers
  • works with iDatalink's "Head-unit Direct" harnesses, eliminating need for splicing
  • warranty: 1 year
  • Our 60-day money-back guarantee
  • MFR # HRN-HRR-FO2

What's in the box:

  • Vehicle/radio installation harness
  • OBDII harness
  • Front speaker preout harness

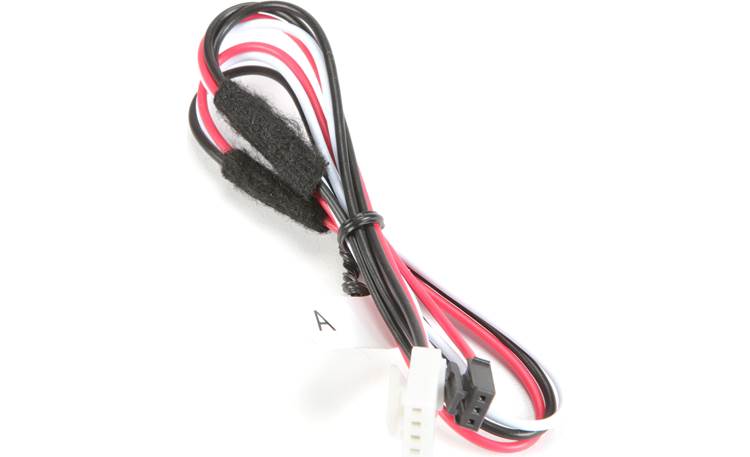

  • "A" harness
  • "B" harness
  • "C" harness

Customer reviews

Loading reviews...

iDatalink HRN-HRR-FO2 reviews

Average review:

3 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.

<< >>

More details on the iDatalink HRN-HRR-FO2

Stacey B.
The iDatalink HRN-HRR-FO2 replaces these items:

Product Research

Features

"My Ford" Harness: The iDatalink Maestro HRN-HRR-FO2 installation harness greatly simplifies the installation of the Maestro RR or RR2 Car Radio Replacement Interface module (sold separately) in select Ford vehicles with the "My Ford Radio" and 4.3" screen when replacing your factory radio with an iDatalink Serial Port compatible head unit from Kenwood, JVC, Alpine, Sony, and Pioneer.

  • Vehicle Compatibility: Click here for a list of compatible Ford vehicles with the "My Ford Radio" and 4.3" screen.
  • Radio Compatibility: Click here for a list of fully compatible aftermarket head units with an iDatalink Serial Port.

Note: The iDatalink Maestro HRN-HRR-FO2 installation harness requires the purchase of the iDatalink Maestro RR or RR2 (sold separately).

Head Unit Connection: The HRN-HRR-FO2 supports iDatalink's Direct T-Harnesses(sold separately) for direct connection to select iDatalink Serial Port compatible head units (including Kenwood, JVC, Alpine, Sony, and Pioneer radios) - replacing the wiring harness that comes with your aftermarket stereo (some hardwiring may still be required). If connecting to an aftermarket head unit that does not support an iDatalink Direct T-Harness, you'll need to cut off and remove the 20-pin black connector from the HRN-HRR-FO2 harness and splice each wire directly to the aftermarket radio's corresponding wire.

Flashing Module via Weblink Desktop: The iDatalink Maestro RR or RR2 will need to be loaded with correct firmware before installation. The included USB cable plugs into your computer and allows you to "flash" the Maestro RR with the appropriate firmware to prepare it for installation. Simply download Weblink Desktop (for Windows and Mac) onto your computer to access the appropriate firmware. System requirements include -

  • Windows PC (10/8.1/8/7/Vista/XP/2000) or Mac OS X (Mojave [10.14], HighSierra [10.13], Sierra [10.12], El-Capitan [10.11])
  • Available USB port (version 2.0 or 3.0)
  • 4GB RAM or more
  • 200MB available space on HDD
  • Internet connection

Retained Features: The following factory features (if applicable) are retained when replacing your factory radio with a compatible iDatalink Serial Port head unit from Kenwood, JVC, Alpine, Sony, or Pioneer using the Maestro RR or RR2 Car Radio Replacement Interface module and HRN-HRR-FO2 installation harness.

  • Ford Sync: Retains the Ford Sync system; including Bluetooth hands-free communication and audio streaming, as well as USB media player.
  • Factory Amplifier: Retains factory amplifier with turn-on (no fader control).
  • Climate Display & Control: The factory climate display and control can be accessed from the touchscreen of your compatible iDatalink aftemarket head unit.
  • Steering Wheel Controls: Factory steering wheel controls are retained with two function buttons and expandable radio functions.
  • Camera Features: Retains the factory backup camera with parking guideline overlay; aftermarket radio must be equipped with composite video backup camera input. If you add an aftermarket front camera (sold separately) to your idatalink compatible head unit with a front camera input, the vehicle's factory auto front camera switching feature is retained.

Extra Features: The following Extra features are added when replacing your aftermarket head unit with a compatible iDatalink Serial Port head unit from Kenwood, JVC, Pioneer, Sony, or Alpine using the Maestro RR or RR2 Car Radio Replacement Interface module and HRN-HRR-FO2 installation harness.

  • Vehicle Info: Tire Pressure Display, Battery Voltage Display, Read/Reset Engine Codes, and Door Open Status with Warning.
  • Gauges: Selectable Performance Gauges, "Track Pack" Gauges, and Read/Reset Check Engine Codes.

Outputs: The HRN-HRR-FO2 provides Navigation, Accessory Power, and Illumination Outputs to make installation simpler.

  • Navigation: Parking Brake, Reverse Light, and VSS (Vehicle Speed Sense).
  • Accessory Power Output: 12V/15A Accessory Power Output
  • Illumination Output: Illumination Output

Loading accessories...

Customer Q&A

1 question already asked

Q
Why was it recommended that I purchase this $80 accessory when the 2013 F150 dash kit comes with all the connectors?
[ Andrew  Mar 31, 2023 ]
1 answer
A
I do apologize for that frustration Andreas, it does look like that was a potential glitch on our package builder as you do have a duplicate harness now. No worry, please contact our Customer Support team at 1-800-955-9091 and we can issue a return label to get you a refund on that unnecessary duplicate harness. We do apologize for the snafu but are always here to help!
[ Bo  Mar 31, 2023 ]  Staff
