About the iDatalink HRN-HRR-MA1
iDatalink meets Mazda
iDatalink meets Mazda
iDatalink's iDatalink HRN-HRR-MA1 installation harness simplifies the installation of the Maestro ADS-MRR or ADS-MRR2 Car Radio Replacement Interface module (sold separately) in select Mazda vehicles when replacing your factory radio.
The package includes a harness that plugs in between the Maestro module, your factory radio's wiring plugs, and the serial port on your new car stereo. This harness features an in-line head-unit connector harness, which will plug into their new "Head-unit direct" harnesses for select radio brands. If you're installing a radio that doesn't work with a "Head-unit direct" harness, simply cut off the plug and connect the wires to the harness included with your new radio.
Retain factory features
The HRN-HRR-MA1 harness and interface module retains your vehicle's steering wheel audio controls, factory amplifier, and backup camera with any aftermarket receiver with a composite video camera input. The harness also supplies the outputs (parking brake, reverse, and VSS [Vehicle Speed Sense]) necessary for installation of a navigation receiver, plus illumination and accessory power outputs.
Extra features with an iDatalink-ready car stereo
If you're buying a compatible iDatalink-ready car stereo, you'll also be able to display gauges and vehicle info on your receiver's screen, plus read and reset engine codes. You'll also keep your side/front/lanewatch cameras if present (receiver must have 2nd composite video camera input).
Installation note: The HRN-HRR-MA2 adapter must be used with the iDatalink Maestro ADS-MRR or ADS-MRR2 module to connect a new car stereo to your vehicle.
- allows installation of a new receiver with iDatalink port in select Mazda vehicles (also requires the Maestro ADS-MRR or ADS-MRR2 module)
- retains the use of your steering wheel audio controls and factory amp
- retains rear-view camera, depending upon aftermarket radio inputs (iDatalink-ready car stereos also retain front, side, and 360 cameras)
- displays engine performance data on touchscreen with select Alpine, JVC, Kenwood, Sony, and Pioneer receivers
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # HRN-HRR-MA1

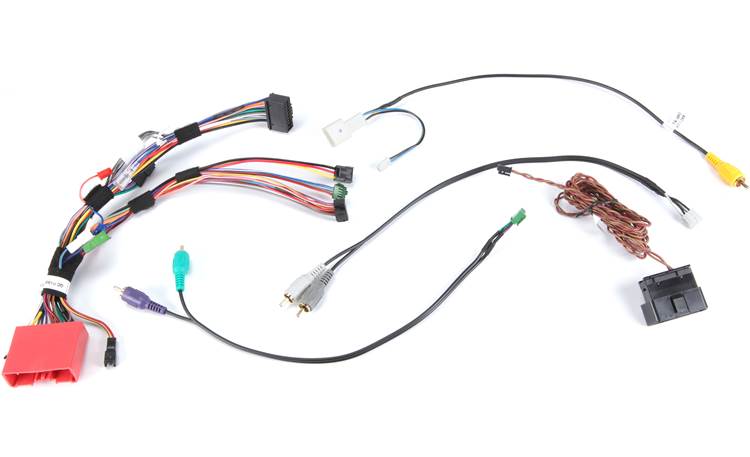

What's in the box:
iDatalink HRN-HRR-MA1 owner's manual
- Vehicle/interface installation harness
- Front speaker preout harness
- Rear speaker preout harness
- Backup camera harness
- OBDI connector harness
iDatalink HRN-HRR-MA1 reviews
Thanks for submitting your review
This review was collected as part of a promotion
More details on the iDatalink HRN-HRR-MA1
Mazda Harness: The iDatalink Maestro HRN-HRR-MA1 installation harness greatly simplifies the installation of the Maestro RR or RR2 Car Radio Replacement Interface module (sold separately) in select 2006-2018 Mazda vehicles when replacing your factory radio with an iDatalink Serial Port compatible head unit from Kenwood, JVC, Alpine, Sony, and Pioneer; or other aftermarket head unit.
- Vehicle Compatibility: Click here for a list of compatible Mazda vehicles.
- Radio Compatibility: Click here for a list of fully compatible aftermarket head units with an iDatalink Serial Port.
Note: The iDatalink Maestro HRN-HRR-MA1 installation harness requires the purchase of the iDatalink Maestro RR or RR2 (sold separately).
Head Unit Connection: The HRN-HRR-MA1 supports iDatalink's Direct T-Harnesses (sold separately) for direct connection to select iDatalink Serial Port compatible head units (including Kenwood, JVC, Alpine, Sony, and Pioneer radios) - replacing the wiring harness that comes with your aftermarket stereo (some hardwiring may still be required). If connecting to an aftermarket head unit that does not support an iDatalink Direct T-Harness, you'll need to cut off and remove the 20-pin black connector from the HRN-HRR-MA1 harness and splice each wire directly to the aftermarket radio's corresponding wire.
Flashing Module via Weblink Desktop: The iDatalink Maestro RR or RR2 will need to be loaded with correct firmware before installation. The included USB cable plugs into your computer and allows you to "flash" the Maestro RR with the appropriate firmware to prepare it for installation. Simply download Weblink Desktop (for Windows and Mac) onto your computer to access the appropriate firmware. System requirements include -
- Windows PC (10/8.1/8/7/Vista/XP/2000) or Mac OS X (Mojave [10.14], HighSierra [10.13], Sierra [10.12], El-Capitan [10.11])
- Available USB port (version 2.0 or 3.0)
- 4GB RAM or more
- 200MB available space on HDD
- Internet connection
Retained Features: The following factory features (if applicable) are retained when replacing your factory radio with a compatible iDatalink Serial Port head unit from Kenwood, JVC, Alpine, Sony, or Pioneer using the Maestro RR Car Radio Replacement Interface module and HRN-HRR-MA1 installation harness.
- Factory Amplifier: The factory amplifier will be retained with balance and fader. It can also be used in vehicle's with factory non-amplified systems.
- Steering Wheel Controls: Factory steering wheel controls are retained with two function buttons and expandable radio functions.
- Advanced Camera Functions: Factory backup camera is retained with dynamic parking guidelines, as well as Lane Assist camera. If you add an aftermarket front and/or side cameras (sold separately) to your idatalink compatible head unit that is equipped with multiple camera inputs, the vehicle's factory auto camera switching feature is also retained.
Note: When installing an aftermarket head unit without the iDatalink Serial Port, only the factory amplifier (if equipped), steering wheel controls, and the factory backup camera are retained.
Extra Features: The following Extra features are added when replacing your aftermarket head unit with a compatible iDatalink Serial Port head unit from Kenwood, JVC, Pioneer, Sony, or Alpine using the Maestro RR or RR2 Car Radio Replacement Interface module and HRN-HRR-MA1 installation harness.
- Vehicle Info: Tire Pressure Display, Battery Voltage Display, Read/Reset Engine Codes, and Door Open Status with Warning.
- Gauges: Selectable Performance Gauges, "Track Pack" Gauges, and Read/Reset Check Engine Codes.
Outputs: The HRN-HRR-MA1 provides Navigation, Accessory Power, and Illumination Outputs to make installation simpler.
- Navigation: Parking Brake, Reverse Light, and VSS (Vehicle Speed Sense).
- Accessory Power Output: 12V/15A Accessory Power Output
- Illumination Output: Illumination Output
