About the JBL PRV-275
A compact marine receiver with a color display
A compact marine receiver with a color display
JBL's PRV-275 marine digital media receiver will change the way you listen to music on your boat — without forcing you to modify your vessel. This multimedia receiver packs a lot of features into a compact design that fits into a standard gauge opening.
You'll enjoy AM/FM radio, of course, plus built-in Bluetooth® that lets you stream music from your smartphone. You can also use the rear aux input for your music player, or plug a thumb drive into the rear USB port to enjoy your favorite music. You'll see what's playing (including album artwork) on the 2.7" LCD color display.
Efficient and expandable
The PRV-275 features three pairs of rear-mounted preamp outputs, so you can expand your system with more speakers and marine amps whenever you're ready. The color display, UV-stable face, and easy-to-use knob and other controls will stand up to sun, salt and moisture when you're riding the waves.
Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.
- marine digital media receiver (does not play CDs)
- built-in Bluetooth for music streaming
- 2-3/4" color LCD display
- built-in amp (20 watts x 4 RMS/50 peak x 4 channels)
- marine-rated watertight face
- rotary encoder knob
- fits into a standard gauge opening
- inputs: rear USB input, rear aux input
- outputs: 3 sets of RCA preamp outputs
- face diameter: 4-1/8"
- required cutout: 3.375" (diameter)
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # JBLPRV275

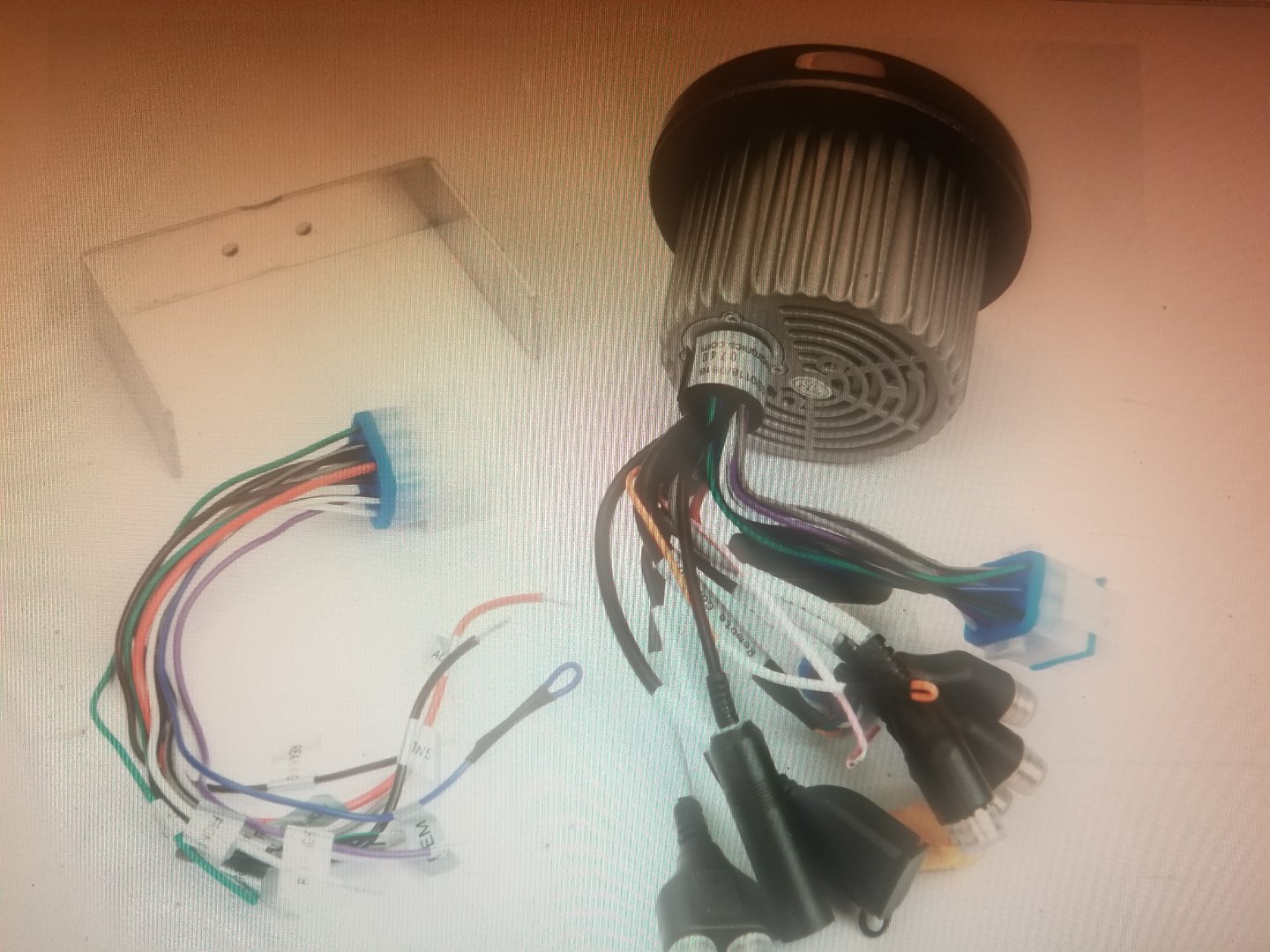

What's in the box:
- Marine receiver (15A fuse)
- Wiring harness
- Self-adhesive foam pad
- 2 Bolts
- 4 Flanged-nuts
- 2 Lock-washers
JBL PRV-275 reviews
Thanks for submitting your review
More details on the JBL PRV-275
Features & specs
|AUX Input||RCA (rear)|
|Backup Camera Input||No|
|Second Camera Input||No|
|Alexa Voice Control||N|
|Memory Card Slot||USB|
|Satellite Radio Ready||No|
|RMS Power (CTA-2006)||N/A|
|RMS Power (Manufacturer)||20 watts|
|Peak Output||50 watts|
|RMS Power Bandwidth||Not givenHz|
|Sub Preamp Outputs||Yes|
|Switchable Rear Preamp Outputs||No|
|Navigation App Compatible (iOS)|
|Navigation App Compatible (Android)|
|Preamp Voltage||2 volts|
|Key Button Color||White|
|Steering Wheel Control Compatible||No|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
|Radio Data System||No|
|Music File Playback||MP3, WMA|
|Second Camera Input Lane Watch||N|
Marine Certified: The JBLPRV275 gauge-style marine receiver has been engineered and tested for use in the harsh marine environment. The receiver features a solid aluminum chassis, front-panel protective gasket, and IP6 waterproof face. The receiver also meets or exceeds ASTM117 salt fog standards.
2.7" Color Screen: The gauge-style marine receiver is equipped with a 2.7" color screen for indicating song/artist/album information (no album art) and provides video display of a connected camera (sold separately). The brightness level of the display can be set from 0 to 5.
Built-in 4Ch Amplifier + 6Ch RCA Outputs: The JBLPRV275 marine receiver is equipped with a 50 Watts (Peak) x 4ch amplifier that is 2-ohm stable. The marine unit is also fitted with three pair of RCA outputs (Front/Rear/Sub) to connect external an amplifier(s) and/or powered subwoofer.
Audio Settings: The subwoofer output offers a variable low-frequency crossover (80/120/160Hz) and adjustable volume level (0-20). The marine receiver features 5 EQ preset modes - Flat, Classic, Pop, Rock, or Off. The marine head unit also offers independent Bass, Midrange, and Treble control (-7 to + 7); along with Balance (L12 to R12) & Fade (F12 to R12) adjustment. When listening to music at low volume levels, the Loudness feature will boost the bass & treble response. Every time a button is pressed the unit outputs a beep tone (this can be turned off).
AM/FM/WB Tuner: The JBLPRV275 marine receiver features a built-in AM/FM tuner with manual, seek, and preset tuning. You can select either US or European tuning. It also features a built-in weather band tuner. You can store up to 18 presets each for AM, FM, and WB. Stations can be stored manually or automatically. There is Preset Scan function that scans each preset station in the current band for 6 seconds.
Bluetooth Audio Streaming: The JBLPRV275 supports wireless audio playback (AD2P) and control (AVRCP) of a Bluetooth source device, such as your smartphone or tablet. You'll be able to wirelessly stream stored music, music apps and other audio content on your Bluetooth source device to the marine receiver. You'll also be able to control basic playback functions (such as Play/Pause & Previous/Next Track) from the receiver's front-panel. In addition, song/artist/album info (no album art) will be displayed on the unit's front-panel. You can only pair and connect one Bluetooth source device at a time.
Note: This unit does not support Bluetooth hands-free communication for making and answering phone calls.
USB Port: The JBLPRV275 is equipped with a rear-panel USB (type-A) port attached to the chassis by a 6.5" pigtail. The USB port allows you to connect a USB thumbdrive. The unit supports audio playback & control of MP3/WMA audio files stored on a compatible USB thumbdrive. The unit offers Play/Pause, Fast Forward/Reverse, Previous/Next Track, and Random/Repeat playback functions. The Intro Scan feature allows you to locate and play the first 6 seconds of each MP3/WMA track on a USB stick. This unit will also display song/artist information. The USB port (5V/0.5A) can also charge the battery of some USB devices.
Note: The unit's USB port does not support Apple iOS or Android OS devices.
Aux Input: This unit features a rear mounted, stereo RCA auxiliary input on a 6.5" pigtail so you can connect an external audio source. An RCA-to-Minijack cable (sold separately) will be required for the connection of a portable audio player with a headphone jack output.
Camera Input: This JBLPRV275 marine receiver features a composite video jack attached to rear chassis via a 6.5" pigtail for adding a marine-grade camera (sold separately).
Mounting Options: The marine receiver features a gauge-style design and fits into a 3.375" round opening. If you don't have an existing gauge-opening in your boat, you will need to make a 3.375" diameter cutout in the bulkhead. The integrated protective gasket, supplied U-bracket, and included hardware secure the unit in place against the mounting surface.
- Cutout Dimensions: 3.375" (diameter) x 3.4375" (depth)
- Front-Panel Dimensions: 4.235" (diameter) x 1.25" (depth)
Note: The receiver does not meet the dimensions or include a mounting sleeve or ISO-mount screw holes to accommodate standard automotive installation.
Optional Wired Remote: The JBLPRV275 supports the connection of the MIL-REM70 marine wired remote control (sold separately). The MIL-REM70 marine wired remote features a 2.375" (diagonal) LCD screen to indicate source and menu selection (does not display song/artist/album information). The MIL-REM70 marine wired remote offers the following push-button controls for your compatible marine stereo receiver.
- Power On/Off
- Mode (Source Selection)
- Volume Up/Down
- Select (Menu Select)
- Tune Up/Down (press once for Previous Next/Track or press-and-hold for Fast Forward/Rewind)
5 questions already asked
