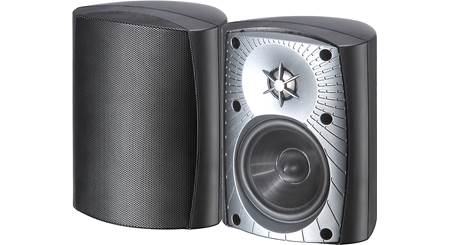

MartinLogan ML-55AW

Features

All-Weather Loudspeaker: The MartinLogan Installer Series ML-55AW all-weather loudspeakers are constructed from durable materials to provide years of trouble-free outdoor listening enjoyment (even under extreme weather conditions). The ML-55AW loudspeakers feature a fully-sealed mineral-filled reinforced enclosure that provides protection from harsh weather elements. They also have water & UV-resistant aluminum grilles, stainless steel & polymer mounting brackets, brass hardware, and gold-plated binding posts for superior toughness.

Note: MartinLogan recommends that you not place the ML-55AW loudspeaker in direct sunlight. The ultraviolet (UV) rays from the sun can cause deterioration of speaker cones, etc. For installation of these all-weather speakers MartinLogan recommends as little direct sunlight as your installation will allow.

Two-Way Driver Design: The Installer Series ML-55AW all-weather loudspeakers feature a 1" titanium dome tweeter and a 5.5" mineral-filled polypropylene woofer to ensure great high, midrange, and midbass frequency performance.

Gold-Plated Binding Posts: The ML-55AW speakers are outfitted with gold-plated binding posts that will accept bare wire (up to 10AWG), pin-connectors, spade-lugs, and banana plugs (single only). Use 16AWG speaker wire for wire runs of 15' or less, 14AWG speaker wire for wire runs of 30' or less, and 12AWG speaker wire for wire runs of 30' or less.

Mounting Options: The included U-brackets allow for installation in locations such as mounted to an exterior wall under a roof soffit (minimizing exposure to sunlight and rain), an exterior wall, in a gazebo, on a deck or railing, etc. The ML-55AW can be mounted horizontally or vertically. When mounted vertically, the U-brackets allow you to swivel the speakers left or right. When mounted horizontally, the brackets allow you to swivel the speaker up or down.

• Dimensions With Bracket:
  • Vertically: 7.0625" (w) x 9.75" (h) x 7.5625" (d)
  • Horizontally: 9.75" (w) x 7.0625" (h) x 7.5625" (d)
• Dimensions Without Bracket:
  • Vertically: 7.0625" (w) x 8.4375" (h) x 6.875" (d)
  • Horizontally: 8.4375" (w) x 7.0625" (h) x 6.875"

Note: The screws needed to mount the brackets to your exterior surface are not included and sold separately at your local hardware store.

Placement: Ideally you want to place the speakers far enough apart to achieve stereo imaging, but not so far apart that you are unable to hear both speakers simultaneously in the primary listening area. As a rule of thumb, distance between your speakers should equal 50-75% of the distance from the listening area. For example, if you have a grilling or lounging area 20' away, the speakers should be positioned 10'-15' feet apart.

Installer Series: The Installer Series by MartinLogan is a line of high-performance loudspeakers, featuring custom installation solutions for in-wall, in-ceiling, and outdoor applications. They have been manufactured to MartinLogan's highest standards of quality.
