About the SoundXtra Wall Mount
Mount your speaker for optimal room coverage
SoundXtra's wall mount provides solid support for your Bose® SoundTouch® 20 Series III wireless speaker. Its steel and ABS construction is designed to complement the look of the speaker for an attractive installation. You can tilt your speaker downwards by 20°. The bracket also lets you swivel it up to 25° left or right. So you can position your Bose® SoundTouch® 20 precisely where it needs to be for optimal sound.
- holds one Bose® SoundTouch® 20 Series III wireless speakers
- steel and ABS construction
- tilt range: -20°
- swivel range: ±25°
- holds speaker 2-3/16" from wall
- mounting hardware included
- 5-5/8"W x 6-1/4"H x 5-1/4"D
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # AAV-SDXBST20WM1011
What's in the box:
- Wall-mount bracket
- Installation Diagram
Thanks for submitting your review
More details on the SoundXtra Wall Mount

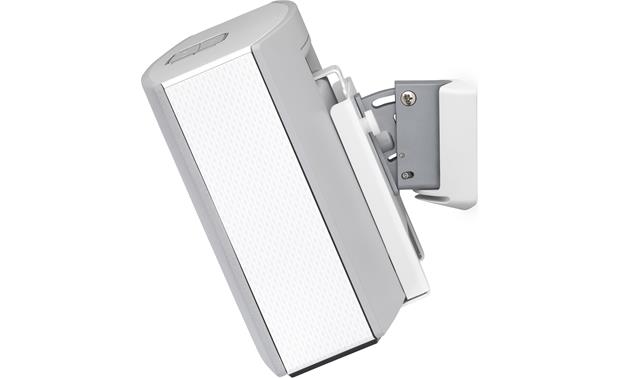

Compatibility: The SoundXtra ST20-WM Wall-Mount Bracket has been specifically engineered and designed to mount your Bose SoundTouch 20 speaker (sold separately) on a wall. It clamps onto your Bose SoundTouch 20 and mounts the speaker 2.25" from the wall.
High-Quality Construction: The SoundXtra ST20-WM Wall-Mount Bracket has been elegantly crafted and precision engineered in the UK with high-quality ABS and sturdy steel construction to maximize the great sound and look of your Bose speaker system. It is available in a Black or White finish.
Tilt & Swivel Mechanism: The SoundXtra ST20-WM Wall-Mount Bracket gives you great flexibility and functionality, including tilt and swivel motion so you can easily angle your sound to suit your application.
- Tilts Up: The ST20-WM tilts downward 20° (does not tilt up).
- Swivels Left & Right: The ST20-WM swivels 50° (25°left and 25°right).
Wall-Mount Installation: The SoundXtra ST20-WM consists of a speaker bracket and wall bracket. First, you will need to disconnect the wall bracket from the speaker bracket. The wall bracket mounts to a single wood stud using three screws (not included). Once the wall bracket is secured to the wall, the speaker bracket can slide onto the wall bracket. Once the speaker bracket is attached to the wall bracket, the speaker bracket then clamps to the bottom and back handle of the Bose SoundTouch 20 speaker.
- Overall Dimensions: 5.625" (w) x 6.25" (h) x 5.3125" (d)
- Speaker Bracket Dimensions: 5.625" (w) x 6.25" (h) x 5.0625" (d)
- Wall Bracket Dimensions: 2.4375" (w) x 3.3125" (h) x 1.1875" (d)
