About the Audiofrog G60S
Audiofrog quality in factory locations
Audiofrog quality in factory locations
Audiofrog made a name for themselves as a favorite among serious installers and car audio connoisseurs for their adaptable, top-performing speakers and crossovers. This G-Series G60S 6" component speaker system delivers high-fidelity audio you expect in a factory location-friendly package. Audiofrog includes woofer adapters for a variety of speaker openings as well as their very special tweeter mounting kit for flush- and surface-mounting. Small, high-quality inline crossovers for the woofers and tweeters also make installation much simpler.
Well reknowned sound

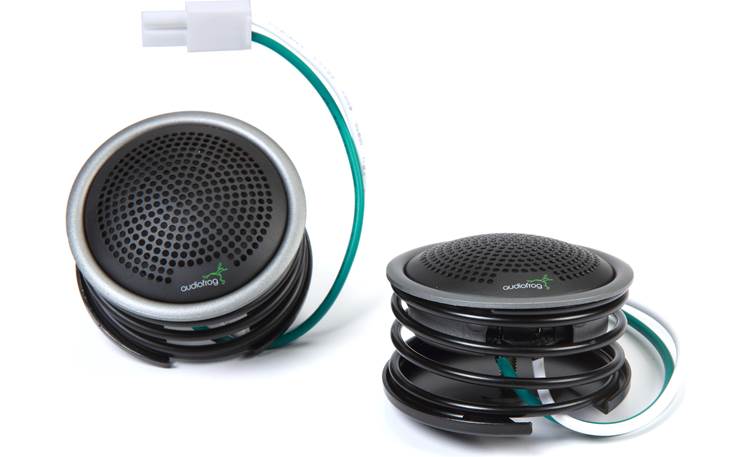

A responsive polypropylene cone provides high internal damping for smoother frequency response, and Audiofrog uses a 1" copper voice coil to enhance power handling. Audiofrog designed their fabric dome tweeter to deliver the high-frequency details in a well-powered, component system. Designed for superior accuracy, the expansive 1" fabric dome tweeter delivers highs with a natural, silky, smooth quality, eliminating the distortion and ringing created by some metal and plastic domes.
- component speaker system includes 2 woofers and 2 tweeters
- 6" polypropylene woofer with rubber surround
- 1" fabric dome tweeter with inline crossover
- inline crossovers (high-pass at 12 dB per octave, low-pass at 6 dB)
- handles 15 to 50 watts RMS (120 watts peak power)
- frequency range: 50-20,000 Hz
- sensitivity: 89 dB
- woofer mounting depth: 2-1/16"
- impedance: 4 ohms
- grilles not included
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # G60S

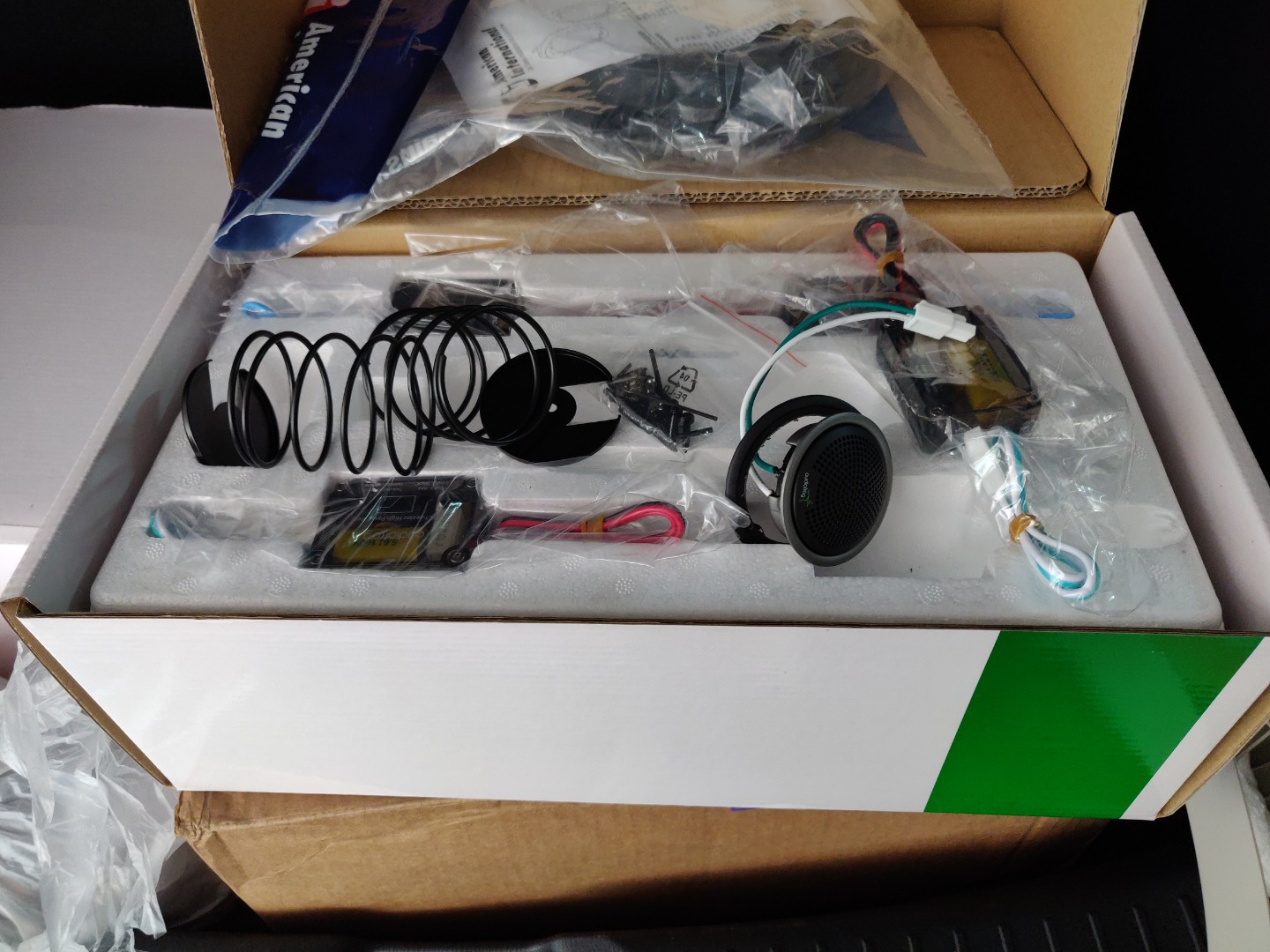

What's in the box:
- Two woofers
- Two tweeters (5" speaker wire attached)
- 2 Flush mount tweeter housings (installed)
- 2 High pass crossover networks
- 2 Low pass crossover networks
- 2 Multi-application woofer adapter brackets
- Eight 1/2" Allen head screws (2.5mm)
- Eight M4x5mm Machine screws
- Eight M2x3mm Machine screws (1.5mm Allen head)
- 2 Star lock washers
- 1.5mm Allen wrench
- 2mm Allen wrench
- 2.5mm Allen head bit
- Owner's manual
More details on the Audiofrog G60S
Features & specs
|Speaker Size||6 1/2|
|Tweeter Design||1" Dome|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
|Sensitivity (1W at 1 meter)||N/A|
|Sensitivity at 2.83 volts||89|
|Frequency Response||50 - 20k Hz|
|Minimum RMS Wattage||15|
|Maximum RMS Wattage||50|
|Peak Power Handling (Watts)||120|
|Top-mount Depth (Inches)||2 1/16|
|Bottom-mount Depth (Inches)||N/A|
|Cutout Diameter or Length (inches)||5|
Adapter Rings: The included adapter rings allow installation in numerous factory applications. Without the adapter rings the woofers fit many standard 6 3/4 locations. They will also fit standard 6 1/2 openings, but the bolt pattern is different, so you'd have to drill new screw holes. The adapter rings include standard 6 1/2 and Ford 6 1/2 bolt patterns, as well as specialized 6 3/4 bolt patterns. Please enter your specific vehicle information to confirm fit.
Power Handling: Audiofrog lists two RMS power figures in the manual; 50 watts RMS in the technical specifications section and 15-75 watts RMS in the recommendations section.

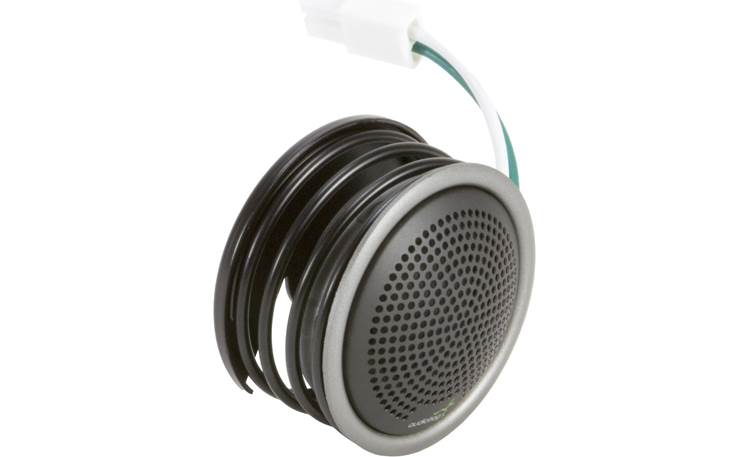

Tweeter Mounting: In addition to fitting many factory tweeter applications, flush mounting hardware is included.
|Mounting Depth||Mounting Height||Frame Diameter||Cutout Diameter|
|Flush Mount||0.519" |
(1.140" w/ stud bolt)

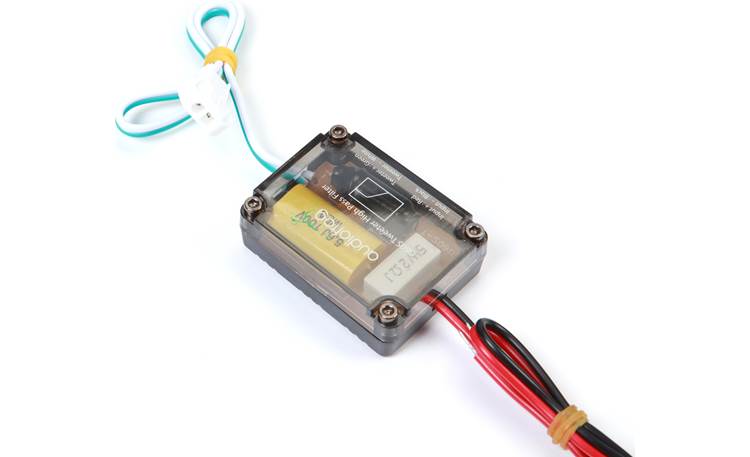

Crossovers: Each channel uses separate in-line crossovers for the woofer and tweeter, making them easy to install when the drivers are in different locations. The 12" input wire and 12" output wire are attached to each crossover. The 6 dB/octave low pass crossovers have female quick-slides on the outputs that connect to the woofer terminals. The 12 dB/octave high pass crossovers have harnesses on the outputs that connect to the harnesses on the wire attached to the tweeters. The crossover point for both is 4 kHz.
- Width: 2.325"
- Height: 1.74"
- Depth: 0.84"
