About the QSC AD-C.SAT
Satellites for your venue's sound system
Satellites for your venue's sound system

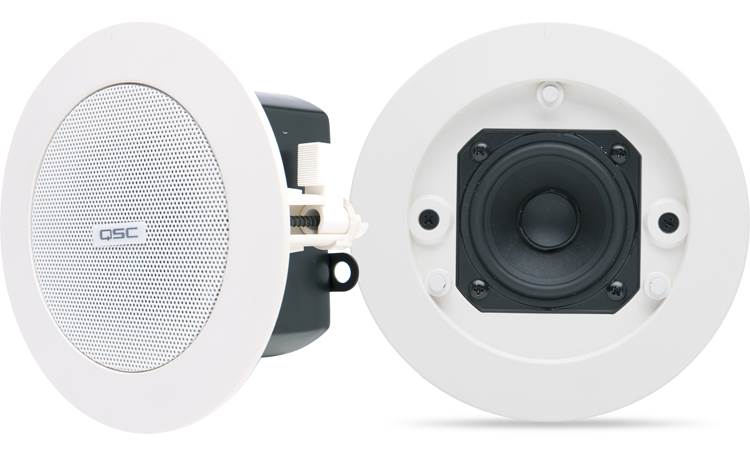

QSC AD-C.SAT speakers are designed to work as part of a team. These in-ceiling satellites provide rich mids and clear highs, and up to four can be connected directly to the high-pass filtered output on a matching QSC AcousticDesign™ Series subwoofer.
When paired with a sub, these speakers provide solid background music and easy-to-hear announcements for your customers. They come with paintable snap-on grilles so you can make them blend into your decor.
Part of a customizable AcousticDesign system
These satellites share voice characteristics with other speakers and subwoofers in the AcousticDesign lineup so you can mix and match to build a custom system. Other speakers in the lineup include:
One of our commercial design specialists can help you create a system that matches your unique space.
Get started with
a free system design
After we gather your information, we’ll send you a detailed system plan. It will include a link to a pre-filled shopping cart. Ordering is easy, and delivery is fast.
- in-ceiling satellite speakers with 2-3/4" treated paper cone woofer
- ABS baffle on powder coated steel back enclosure
- nominal impedance: 16 ohms
- power handling: 25 watts RMS
- frequency response: 150-20,000 Hz
- high-pass filter recommended
- 170° conical coverage angle
- maximum SPL: 96 dB
- sensitivity: 82 dB
- inverted aluminum dome dust cap
- snap-fit aluminum grilles included
- 2-pole Euroblock connectors
Dimensions and warranty:
- 4-1/2" cutout diameter
- 3" mounting depth
- weight: 1.39 lbs. (each)
- warranty: 3 years
- Our 60-day money-back guarantee
- MFR # AD-C.SAT-WH
What's in the box:
- 2 In-ceiling speakers (white)
- 2 Metal-mesh grilles (pre-installed on each speaker)
- Two 2-pin Euroblock connectors (pre-installed on each speaker)
- 2 Cover-plates (pre-installed on each speaker)
- 2 C-ring brackets
- 2 Cardboard cutout templates
- Quickstart guide
- Warranty information
Thanks for submitting your review
More details on the QSC AD-C.SAT
Features & specs
|Drivers per speaker||1|
|Woofer Size (inches)||N/A|
|Tweeter Size (inches)||N/A|
|System Frequency response||150-20k|
|Peak Power rating||---|
Overview: The QSC AD-C.SAT in-ceiling satellite speakers have been developed as part of QSC's AcousticDesign Series Sub/Sat systems. These systems can provide clear, crisp background music and paging for restaurants, lounges, waiting areas, and many other indoor applications where a "low-profile" audio speaker system is required.

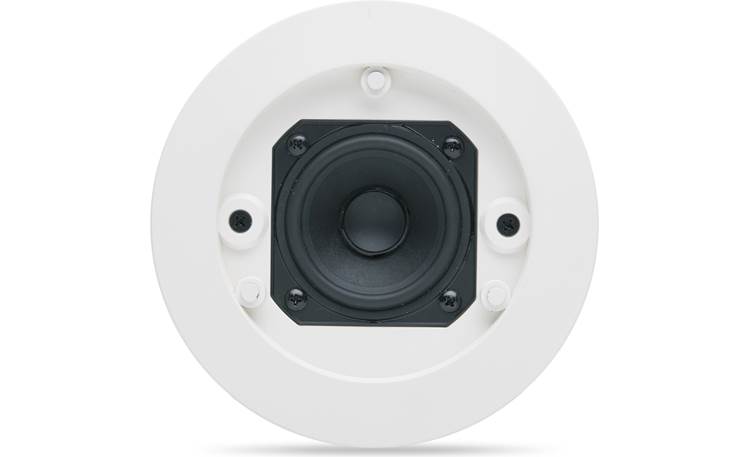

Speakers: The QSC AD-C.SAT speakers feature a 2-3/4" full-range driver with a weather treated paper cone and an inverted aluminum dust cap. Each 16 ohm satellite speaker is rated for 25 watts RMS and has a frequency response ranging from 150Hz up to 20kHz (200Hz high-pass filtering is recommended). The satellite speakers are housed in durable ABS enclosures with powder-coated steel mesh grilles. The speaker enclosures have an IP34 rating and are designed for indoor use only.
Sub/Sat System: Designed to be used in a matched system, the AD-C.SAT speakers can be paired up with any QSC AD Series subwoofer, such as the AD-C. SUB, ADP-P. SUB, or AD-S. SUB, in either a 70/100 volt or low-impedance (Low-Z) configuration. Each subwoofer includes output terminals for connecting the satellites speakers and has built-in high-pass filtering that's matched for QSC AD Series satellite speakers.
Mounting: The QSC AD-C.SAT in-ceiling speakers feature 2 built-in mounting arms that, when tightened from the front face of the speaker, will swing outward and tighten against the mounting surface, holding the speaker firmly in place. Two metal C-rings are provided for additional speaker support when mounting. Each speaker includes a safety ring on the back for adding an optional safety cable (not included).
Terminals: Connection to the AD-C.SAT speakers is done through a single 2-pin Euroblock connector on each, accepting speaker wire up to 12AWG. Each speaker connector includes 2 anchor screws for securing the plug to the back of the speaker housing. Terminal cover-plates are provided to protect the wire connection.
