About the QSC AD-S6T
Warm sound for your retail space or outdoor seating area
Get started with
a free system design
After we gather your information, we’ll send you a detailed system plan. It will include a link to a pre-filled shopping cart. Ordering is easy, and delivery is fast.
Warm sound for your retail space or outdoor seating area
The QSC AD-S6T speaker offers a durable, weather-resistant design, so you can use it for music and live paging of customers indoors or out.

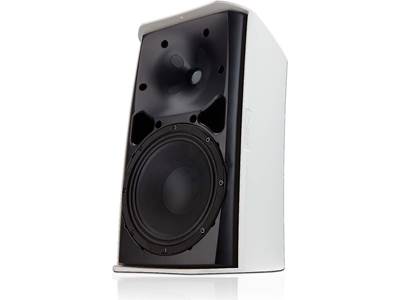

This speaker mounts an efficient 6-1/2" woofer and a 1" silk dome tweeter that produces smooth, accurate highs. QSC includes a sturdy and highly adjustable X-mount assembly that makes wall-mounting and aiming the speaker a breeze. The AD-S6T features multi-tap transformers for use with 70-volt or 100-volt audio systems, while an 8-ohm bypass setting allows use with regular home audio receivers or amplifiers. See what our satisfied customers have to say.
Product highlights:
- weather-resistant surface-mounted speakers with 6-1/2" woofer and 1" silk dome tweeter
- program power: 300 watts
- frequency response: 60-20,000 Hz (-10db)
- maximum SPL: 110 dB
- sensitivity: 89 dB
- 8-ohm nominal impedance
- multi-tap transformer for 70V or 100V systems
- 60, 30, 15, and 7.5-watt taps
- 8-ohm bypass setting for use with regular home audio receivers and amps
- ABS polymer enclosure
- paintable aluminum grille
- X-mount assembly included
- 8-1/2"W x 14-7/16"H x 8-1/2"D
- weight: 13 lbs.
- warranty: 3 years
- Our 60-day money-back guarantee
- MFR # AD-S6T-WH
What's in the box:
- 2 Surface-mount commerical loudspeakers
- 2 Euro-style connectors
- 2 Terminal weather protection covers
- 2 X-mount brackets
- Eight M4 screws
- Quick-Start Guide
- Warranty Sheet
Reviews
Customer reviews
Loading reviews...
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the QSC AD-S6T
Features & specs
| General | ||
|---|---|---|
| Drivers per speaker | 2 | |
| Woofer Size (inches) | 6 | |
| Tweeter Size (inches) | 1 | |
| System Frequency response | 60-20k | |
| Maximum SPL | 116 | |
| Power Handling | ||
| Power rating | 150 | |
| Peak Power rating | 0 | |
| Specs | ||
| Width (inches) | 8-1/2 | |
| Height (inches) | 14-7/16 | |
| Depth (inches) | 8-1/2 | |
| Weight | 13.6 lbs | |
Product Research
Features
AcousticDesign Series: QSC's AcousticDesign series offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign series provides integrators a versatile and confident install solution.
Surface Mount Speaker: The QSC AcousticDesign AD-S6T is a surface mounted 70/100V, 6" two-way loudspeaker system, ideally suited for a wide variety of foreground and background sound reinforcement applications.
Note: The AD-S6T is sold in pairs.
Two-Way Driver Design: The AD-S6T features a high quality 6" weather treated paper cone woofer on a 1.5" voice coil. A carefully selected horn-loaded 1" silk dome tweeter with 1" voice coil perfectly matches the sensitivity and performance of the woofer for outstanding full-range reproduction.
DMT (Directivity Matched Transition): Consistent and even 105° axisymmetric (conical) coverage is achieved through DMT (Directivity Matched Transition), a QSC innovation which matches the directivity patterns of the woofer and the high-frequency waveguide at the crossover point. The result is a coherent transition between transducers and improved off-axis response.
70/100V or 8-Ohm: The even, accurate frequency response of the AD-S6T is aided by a 60-watt low-loss, low-saturation transformer with selectable taps, including an 8Ω bypass. To preserve weather resistance, the rotary selector is located on the back of the enclosure, protected by a weather grommet.
Euro-Style Connector: The Euro-style connector allows pre-wiring of the speaker and when combined with the quick "snap-on" deployment of the loudspeaker to the mount, installation is completed in a fraction of the time required versus competitive models.
Rugged Enclosure Rated for Indoor & Outdoor Use: With rugged ABS enclosures, sealed input panel covers, and powder-coated aluminum grilles for weather resistance, the AcousticDesign surface mounted series exceed IEC60529 IP-54 ratings for dust and splash resistance. The AD Series loudspeakers qualified for outdoor use using the following tests.
- Salt Fog: MIL-STD-810G Method 509.5 for 100 hrs.
- Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days.
- High & Low Temperature: Tested to QSC internal standards between -20° and 50° C.
X-Mount System: Installers will appreciate the award-winning X-Mount system included with each full-range AcousticDesign model. This ingenious mounting solution achieves unprecedented ease-of-installation in horizontal, vertical, wall, or ceiling deployments. Knurled surfaces at the pivot planes ensure the load will not drift or sag over time. Articulation marks allow pre-configuration of the X-Mount while on the ground with no special tools required. Once secure, the loudspeaker installs in seconds, allowing the installer to work safer, smarter, and faster.
Black or White Finish + Paintable: The AcousticDesign series feature a stylish appearance free of obtrusive logo adornments for aesthetically sensitive installations. AcousticDesign surface loudspeakers are available in QSC standard black or white, and may be painted to match any decor.
