QSC K10

Features

K Series PA Speaker: QSC's K Series powered loudspeaker has been primarily designed for portable audio reinforcement. This includes a variety of uses in reinforcement for entertainers and presenters. The K10 is designed to perform well on their own as a full-range speaker or combined with QSC's KSub powered sub (907KSUB, sold separately). The K10 can be used singly, in stereo pairs, or in distributed audio systems.

Two-Way Amplified Speaker Design: The QSC K10 employs a two-way amplified speaker design with an 10" woofer powered by 500W class D amplifier and a 1.75" horn-loaded tweeter powered by it own 500W class D amplifier.

Digital Signal Processing: The K10 features advanced, proprietary DSP (digital signal processing) circuitry that greatly enhances the capabilities and performance of the K series system. Some of the DSP functions are fixed at the factory, while others are user adjustable.

• Low Frequency EQ: There are three low-frequency settings - Normal (loudspeaker is producing normal low-frequency signal), Ext Sub (engages 100Hz high-pass filter when using external powered sub), and Deep (engages proprietary algorithm, providing increased low frequency extension).
• High Frequency EQ: There are two high-frequency settings - Flat (loudspeaker is producing a flat response through the vocal band) or Vocal Boost (engages EQ that gives a stronger presence for vocal intelligibility and presences).
• Excursion Limiting: In addition to signal limiting to protect the amplifier and woofers from overload, the K10 utilizes a proprietary limiter that prevents woofer over-excursion. Over-excursion occurs when a voltage presented to the woofer causes the cone to physically travel too far. This builds up excessive heat, stresses the moving parts of the woofer, produces audible artifacts and distortion and reduces the woofer's lifespan. The proprietary algorithm contained in Excursion Limiting prevents over-excursion. Voltages that will harm the woofer through over-excursion are reduced enough to prevent over-excursion without any audible compression, limiting or loss.

Mic & Line Level Inputs: The QSC K10 is designed to accept MIC Level and Line Level inputs with several different connectors.

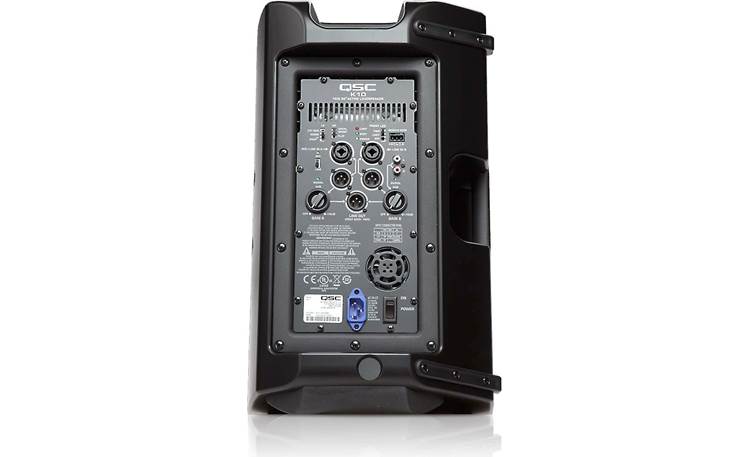

There are three input connection points on the input panel.

• Channel A: Channel A will accept MIC or Line Level inputs by connecting a male XLR cable or a male 1/4" phone cable (either TS or TRS type may be used). For MIC Level, the MIC/LINE selector switch must be in the "MIC" position, activating the MIC Pre-amp. The MIC setting should only be used if a microphone is connected directly to the MIC/LINE input. The LINE setting should be used for most other audio inputs.
• Channel B: Channel B will accept Line Level input only, by connecting a male XLR cable or a male 1/4" phone cable (either TS or
  TRS type may be used). Channel B will also accept mono or stereo Line Level input on a pair of RCA (phono) jacks.

Note: The Mic input setting does not provide phantom power.

XLR Outputs: Both Channel A & Channel B have discrete male XLR connector outputs. The signal on this output is exactly equivalent to the signal from the corresponding input. The level of the output signal is not affected by the gain setting for that channel. Additionally, signal delivered on the RCA (phono) jacks is not present on the Channel B direct line level output. The Post-Gain Line out male XLR connector is a mixed output of Channel A, Channel B, and the RCA (phono) jacks. This mix is affected by gain knobs on both Channel A & Channel B and the MIC/LINE switch on Channel A, but the output level is still Line Level.

Rugged ABS Enclosure: The QSC K10 powered loudspeaker features a rugged ABS enclosure with a steel grille and cast aluminum handles for longtime durability.

Mounting Options: The K10 was designed to sit on the floor, stage, subwoofer enclosure, be suspended, or be pole mounted on a 35mm diameter loudspeaker support pole.

• 35mm Pole Socket: The K10 equipped with a 35mm pole socket that allows use on a speaker stand or on a pole over a subwoofer. The pole socket features the QSC Tilt-Direct system for tilting the enclosures down 7.5 degrees while on the pole. When pole-mounted to the KSub, pole length must not exceed 28.5".
• Suspension Points: The K10 features three load-rated M10 installation points. The installation points may be used with any
  forged shoulder eyebolt with a M10 thread, provided the length of the thread is no more than 0.8" (20mm).
• Slip Resistant Feet: The K10 can also simply be set on the floor or on the stage. Rubber feet on the enclosure's bottom help to minimize enclosure movement during operation.

Note: This is a self-powered loudspeaker containing an internal power amplifier that produces heat. Allow a minimum of 6"  clearance at cabinet back for convection cooling. Keep anything that might restrict airflow away from the rear of the enclosure.

Auto Standby: All K Series speakers are equipped with an automatic standby feature to conserve energy when the systems are not in use. If no signal is present on any input of a K Series system or the gain knob is turned to off for five minutes, the power amplifier will go into standby. In this mode, the amplifier will be powered down. A small amount of voltage will continue to flow from the AC power source into the power supply of the K Series power module. This voltage will keep the power supply and DSP "awake" to reduce turn on time when the system is brought out of standby. The power up time of the amplifier is negligibly small and is shorter than the latency of the DSP, so no signal will be cut off when the K Series system is brought out of standby. A K Series loudspeaker can also be brought out of standby manually by turning the power switch off and then back on.

V-Lock Power Cord: The V-LOCK power cord has a special latching feature to prevent the power cord from being unintentionally removed. The IEC plug and socket are both blue in color so the power cord can be identified as a K Series loudspeaker cord.

GuardRail Protection Circuitry: GuardRail protection, first introduced on QSC's GX Series amplifiers protects both the amplifier module and your performance from unnatural and destructive clipping.
