About the Fusion SG-FL772SPW
Signature style and subtle colors
Signature style and subtle colors
You can count on FUSION's SG-FL772SPW 7.7" marine speakers to deliver impactful sound thanks to power handling up to 100 watts RMS and innovative acoustic design elements. You can also depend on these stylish speakers to create a serious mood. Built-in LEDs use CRBGW lighting to bring new dimension to your twilight cruises by adding Warm White and Cool White to industry-standard RGB options. Create a wider range of color blends for almost any ambience imaginable.
Designed to handle the extremes of a marine environment, FUSION's Signature Series makes the perfect captain's companion.
CURV cone technology and more
The boat life is unkind to speakers. Heat, humidity, salt, spray, and high-pressure hose-downs at the dock can shorten the life of any speaker that's not built for life on the water. Fusion's Signature Series 3 marine marine speakers meet the toughest standards for UV stability and salt/fog resistance. But just because they're tough doesn't mean they're not sensitive. Fusion's CURV cone design, a woven composite fiber that's heat-pressed into a light yet super-strong shape, delivers awesome sound. Plus, treated silk dome tweeters, brawny voice coils, and sealed componentry ensure impressive performance for your favorite songs of the sea.
What a warranty
The water-resistant design complies with high standards for UV stability and salt/fog resistance, so these speakers will perform at their peak even after prolonged exposure to the elements. As part of FUSION's True Marine™ line, these Signature Series 3 marine speakers are even backed by a 3-year warranty.
Add a remote
FUSION's optional MS-CRGBWRC wireless remote controller gives you total control over the built-in LED lighting. You can change the color, brightness, speed, and mode by using the touch controls.
Product highlights:
- 7.7" 2-way marine speakers (pair)
- built-in CRGBW LEDs (Cool White, Red, Green, Blue, Warm White)
- specially formed CURV woven fiber cone
- treated silk dome tweeter
- built-in tweeter protection
- UV-resistant grilles
- sealed, water-resistant construction
- complies with ISO12216 and IP65 standards for water and weather resistance
Specs:
- handles up to 100 watts RMS (280 watts peak power)
- frequency response: 60-22,000 Hz
- sensitivity: 91 dB
- impedance: 4 ohms
- cutout diameter: 6.02"
- frame diameter: 7.72"
- mounting depth: 3.255"
- warranty: 3 years
- Our 60-day money-back guarantee
- MFR # 010-02433-10
What's in the box:
Fusion SG-FL772SPW owner's manual
- Two 2-way Marine speakers
- 2 White grilles (fixed)
- Twelve 1-1/2" Stainless steel screws
- Installation instructions (English/ French/ Italian/ German/ Spanish/ Portuguese/ Danish/ Dutch/ Finnish/ Norwegian/ Swedish/ Chinese)
- Safety and Product information
- Template
Reviews
Customer reviews
Loading reviews...
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Fusion SG-FL772SPW
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 7.7 | |
| Design | 2-way | |
| Tweeter Design | Dome | |
| Tweeter Composition | Silk | |
| Woofer Composition | Woven Fiber Composite | |
| Woofer Surround | Rubber | |
| Parts Warranty | 3 Years | |
| Labor Warranty | 3 Years | |
| Specifications | ||
| Sensitivity |
91 dB at 1 watt | |
| Frequency Response | 60 - 22k Hz | |
| Max RMS Power Handling | 100 | |
| Peak Power Handling (Watts) | 280 | |
| Impedance (Ohms) | 4 | |
| Top-mount Depth (Inches) | 3 5/16 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 6 1/16 | |
| Bolt Circle | 6.925 | |
Product Research
Features
True Marine: Fusion describes these speakers as True Marine Accredited, meaning they are designed specifically for the marine environment and backed by Fusion's three year warranty. The speakers are tested to ensure they meet or surpass IP65 standards (waterproof and dustproof on the front of the speakers) and comply with ISO12216 standards for watertightness in areas II, III and IV of the vessel.

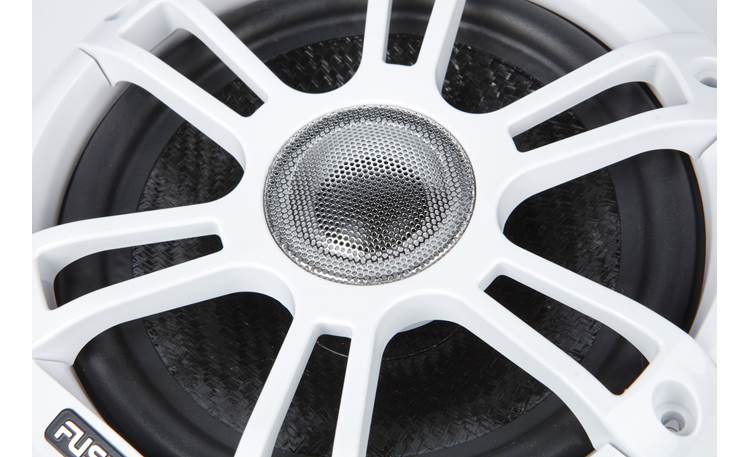

Curv Woofer Cone: CURV technology incorporates a woven fiber composite, heat pressed to form a lighter and stronger cone. This improves sound definition and increases output, along with creating better resistance to the marine environment.
Sealed Crossover: The crossover is sealed to provide full protection from the harsh marine environment.
Grilles: The grilles are not designed to be removed. The tweeter/LED housings are mounted to the grilles.
Compass Safe Distance: The minimum distance the speakers should be mounted from a compass to avoid any interference is listed in the manual as 11¾ feet.
Speaker Terminals: Each speaker has a six inch length of speaker wire attached, terminated with male quick slides (0.25" positive and 0.187" negative).
LED Illumination: There are multi colored LEDs mounted in the back of the tweeter casing, to create a glow on the cone. Depending on what combination of wires is connected, they can light red, green, blue, yellow, magenta, cyan, cool white, or warm white. A 12 volt power supply is needed to turn the LEDs on and Fusion recommends a switch and a 3-amp fuse in the power wire. The LEDs can also be controlled using Fusion's optional MS-CRGBW RC remote (item number 917CRGBWRC, sold separately).
Stainless Steel Hardware: The provided mounting screws are stainless steel.
Enclosure: Enclosure recommendations are given in the installation manual (an enclosure is not necessary, the speakers will operate in free-air):
- Sealed: 0.71 ft³
- Ported: 1.06 ft³ (with a 3" diameter 6.3" long port tube)
The Fusion SG-FL772SPW replaces these items
- built-in switchable blue/white LEDs
- specially formed polypropylene cone
- treated silk dome tweeter
