Variety Of Sources
Disc Player: The iRV66's built-in disc player will support playback of
CD-audio and DVD-video discs. It also supports playback of MP3 music files, MP4
video files, and JPEG photo files recorded onto CD-R/RW, DVD-R/RW, or DVD+R/RW
discs. DVD-video will be played back on a connected external monitor (sold
SD Card Slot: The unit's front-panel SD card slot supports playback of
MP3 music files, MP4 video files, and JPEG photo files loaded onto a SD or SDHC
memory card (up to 32GB). Photos and video will be played back on a connected
external monitor (sold separately).
USB Port: The iRV66's front-panel USB (type-A) port supports playback
of MP3 music files, MP4 video files, and JPEG photo files stored on a USB mass
storage class device, like your USB thumbdrive (up to 1TB). Your USB thumbdrive
must be formatted in FAT or FAT32. Photos and video will be played back on a
connected external monitor (sold separately). The unit's USB port (5V/0.5A)
will also charge many USB-enabled devices.
Bluetooth Audio Streaming: The unit features built-in Bluetooth
you can wirelessly stream stored music and music apps from your
Bluetooth-enabled smartphone or tablet (like Apple iPod/iPhone/iPad or Android)
to the iRV66. From the iRV66's front-panel controls, you can operate basic
playback functions such as Play/Pause, Previous/Next Track, and Fast
Forward/Rewind. Advanced music navigation and song/artist information is still done from your
Bluetooth-enabled mobile device.
Note: This unit does not support Bluetooth hands-free phone
communication. This unit may not be compatible with all Bluetooth audio devices.
Video Inputs: The iRV66 offers both analog and digital video
connectivity on the front and rear panel of the unit.
- Three HDMI Inputs: The iRV66 features a front and two rear panel HDMI 1.3
inputs for connecting external AV components, such as a Blu-ray player or
gaming console. The unit's HDMI input audio/video signal is passed through the
iRV66's HDMI output and to a connected external video monitor and speakers
(sold separately). HDMI audio/video is not played back on the iRV66, itself.
- Dual Analog Video Inputs: The unit's front-panel 3.5mm minijack video input
and rear-panel composite video input allow you to connect an external video player to the iRV66 and send video
out through its composite video outputs to an external video monitor (sold
Audio Inputs: The iRV66 provides both analog and digital audio inputs
on the front and rear panel of the unit.
- Dual Analog Inputs: The unit is fitted with a front-panel
minijack (3.5mm) aux input and a rear panel stereo RCA input. These analog
inputs let you easily connect an external audio device that
features an audio or headphone output for playback through the iRV66.
- Dual Digital Inputs: The unit's rear-panel optical
(toslink) and coaxial (RCA) digital inputs can be used to enable digital audio from external AV components
with a digital output, like a DVD player or TV tuner. The digital inputs
will accept 2ch PCM and 5.1ch Dolby Digital.
Apple iOS & Android Integration: You can connect your Apple
iOS or Android device to the iRV66 through its front-panel HDMI input and USB
port. However, the audio/video signal can only be heard through a HDMI-connected
external monitor & speaker system (not on the iRV66). The following proprietary
connector cables are required for Android or Apple iOS connectivity.
- Apple iOS: If you have a newer iPhone with the Lightning
connector, you will need Apple's
Lightning Digital AV adapter and
Lightning-to-USB cable; if you have an older 30-pin iPhone 4/4S, you'll
30-pin digital AV adapter and the
30-pin dock cable (all sold separately). In addition, for both types of
iPhones, you will need a a mobile-grade HDMI cable (sold separately). The
HDMI connector provides the audio/video playback, while the USB connection
charges your iPhone device.
- Android: To connect your Android (OS 4.0+) smartphone, you'll
Dual HDMI/MHL cable (sold separately) which plugs into both the unit's
front-panle HDMI input and USB port. The HDMI connector provides the
audio/video playback, while the USB connection charges your Android device.
here for a list of compatible MHL-enabled Android phones.
AM/FM Tuner: The unit's built-in AM/FM tuner provides 3 FM
bands and 2 AM bands. Each band can be manually or auto programmed with 8
stations presets; giving you a total of 24 FM presets and 16 AM presets. The
unit also offers manual tuning, seek tuning, and preset scan.
3 Speaker Zones: The iRV33 provides 3 speaker zones.
200 watts (peak) of power is distributed between the zones. Zone 1 consists of
a 5.1ch speaker system, while Zone 2 and 3 consist of 2ch speaker outputs. You can listen to
all zones or turn on only one or two of the zones. The same source will be
played back in each zone and the volume level is the same for each zone.
Dual Subwoofer Speaker-Level Outputs: The iRV66 also provides
amplified speaker-level outputs for dual subwoofers in Zone 1.
3 HDMI Outputs: The iRV66's three HDMI 1.3 output allow you
to playback audio/video from the unit's built-in disc player, USB port, SD-card
slot, or the front/rear panel HDMI inputs on external
monitor/speaker systems (sold separately). The HDMI 3 output also supports ARC
(Audio Return Channel); this way audio from your connected TV can be played back
through the iRV66.
Dual Composite Video Outputs: The unit's two composite video outputs allow
you to playback video from the iRV66's built-in disc
player, USB port, SD-card slot, or front-panel video input on an external
monitor (sold separately).
Display & Remote Features
Single-Line Display: The iRV66's front-panel, single-line display
indicates source selection, station identification, track & elapsed time, volume
level, menu settings, and clock. The unit will not display song/artist
Clock & Sleep Timer: The iRV66 will display a 12-hour clock and offers
a Sleep Timer that will turn of the unit for your after a predetermined period

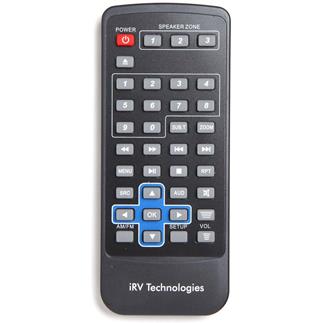

Remote Control: The unit comes with a 37-button IR remote for wireless
operation of the iRV66. Basic playback controls such as Play/Pause,
Previous/Next Track, and Fast Forward/Rewind can be done from the included IR
remote or the head units front-panel controls
Remote App: Download the IRV Radio Remote Control app onto your
Apple iOS (7.0+) or
Android (4.3+) device to control the iRV66 from your mobile device over a
Bluetooth connection. You'll be able to power on/off the unit, turn volume
up/down (even mute), select sources, change radio stations, switch zones, and
control disc playback from the app on your Apple iOS or Android device.
Mounting Options: The iRV66 mounts in your recreational vehicle with
ten screws (not included) that secure the unit to the dash. A trim-ring is included to hide the
screw-holes for a clean looking installation.
Note: The iRV66-ACWH has been specifically designed as a
replacement the Concertone ZX800, ZX700, ZX690 or Genesis Technologies
Wiring Harness: Color-coded power, speaker, and zone harnesses are included
to hardwire the iRV66 in your recreational vehicle.
Note: Purchase the iRV66-ACWH wiring harness
(932RVACWH, sold separately) if you are replacing a Concertone ZX800, ZX700, ZX690 or Genesis Technologies GT3.0 radio for a
- Front-Panel: 8.155" (w) x 10.905" (h) x 1.625" (d)
- Chassis: 6.675" (w) x 9.465" (h) x 5.0625" (d)
