About the Liberty MuxLabs Stereo Audio Balun Wall Plate
No more long RCA cable runs
No more long RCA cable runs
Transmitting quality audio over a long wire run can be tricky. Two of these analog stereo RCA baluns will get the job done. They'll let you send a stereo signal over CAT-5e or CAT-6 Ethernet cable so you can connect an audio source in one room to a distant amplifier in a smart and tidy installation. You'll use one balun to convert from RCA to Ethernet, and the second to convert from Ethernet back to RCA.
What is a balun?
A balun gets its name by converting signals between balanced and unbalanced lines. Balanced cables carry signals over much longer distances than unbalanced lines, thanks to superior noise rejection.
These baluns convert RCA to balanced CAT-5e or CAT-6 connections. The result is clear, crisp signal transmission that offers flexible placement options for your equipment.
Product highlights:
- RCA-to-Ethernet balun; 2 required to complete the signal path
- color-coded stereo RCA jacks
- fits standard single-gang junction box
- maximum range of 1,000 meters (3,250 feet)
- balanced connection offers excellent fidelity and noise-rejection
- cables required for installation (sold separately)
- 1-13/16"W x 4-1/8"H x 1-1/2"D
- warranty: limited lifetime
- Our 60-day money-back guarantee
- MFR # 500028-WP-US
What's in the box:
Liberty MuxLabs Stereo Audio Balun Wall Plate owner's manual
- Stereo Hi-Fi Wall-Plate Balun (Stereo RCA-to-RJ45)
- 2 Screws
- 2 Washers
- Instructions
Reviews
Customer reviews
Loading reviews...
Liberty MuxLabs Stereo Audio Balun Wall Plate reviews
Average review:
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Liberty MuxLabs Stereo Audio Balun Wall Plate
Product Research
Features
Stereo Hi-Fi Wall-Plate Balun: The MuxLab Stereo Hi-Fi Wall-Plate Balun (500028-WP-US) allows an unbalanced line-level Hi-Fi stereo analog audio signal to be transmitted via single Cat5e/6 cable in a point-to-point connection to distances of up to 3,250'. The MuxLab Stereo Hi-Fi Wall-Plate Balun (500028-WP-US) is designed for audio applications where full-range (20Hz to 20kHz), hi-fidelity audio frequency response is required. Used in pairs, the Stereo Hi-Fi Wall-Plate Balun eliminates costly and bulky audio cable, allowing audio equipment to be connected or moved within a structured cabling environment. Applications include - audio distribution, high-fidelity sound systems, custom residential audio systems.
- Male Stereo RCA Connectors: The front of the MuxLab Stereo Hi-Fi Wall-Plate Balun consists of male stereo RCA connectors to plug into the analog output of your analog audio source device or analog input of your Hi-Fi stereo system.

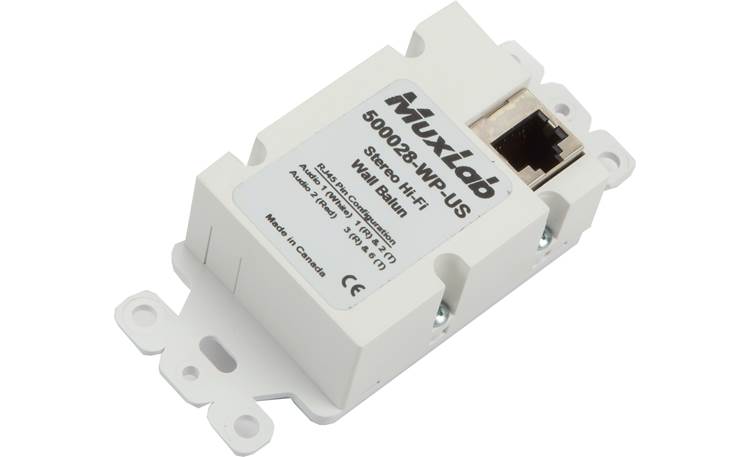

- Female RJ45 Jack: On the back of the Stereo Hi-Fi Wall-Plate Balun is a RJ45 Ethernet jack which connects two of the Stereo Hi-Fi Wall-Plate Baluns together in order to transmit an analog audio signal from your source device to your stereo system, using Cat5e/6 cable (sold separately).
Notes:
- Two MuxLab Stereo Hi-Fi Wall-Plate Baluns (500028-WP-US) are required; one is installed at the analog audio source device and the other at the Hi-Fi stereo system.
- When using the MuxLab Stereo HiFi Wall-Plate Balun with a turntable, you'll need an external phono preamp (sold separately) or a turntable with a built-in preamp.
Mounting Options: The MuxLab Stereo Hi-Fi Wall-Plate Balun installs in a standard back box (sold separately) with a minimum depth of 1.625". Its also compatible with Decora face-plates (sold separately).
Specifications:
- 3dB Bandwidth: 20Hz to 20kHz
- Maximum Input: 1.1Vp-p (unbalanced)
- Insertion Loss: Less than 2dB
- Common Mode Rejection: Greater than 60dB @ 1kHz / Greater than 40dB over frequency range
- THD: Less than 0.007% @1KHz
- Impedance: 100 Ω maximum (source) / 10k Ω minimum (receiver)
- Max Distance: 3,250' (1km)
