About the Memphis Audio 15-M612D2
Big bass, Memphis style
Big bass, Memphis style
From Elvis to Stax, the "Memphis Sound" has always relied on a foundation of deep, rich bass to tie the music together. Now, Memphis Audio brings that bass tradition to your ride with their M6 Series subwoofers.
The beast.
Ready to pound

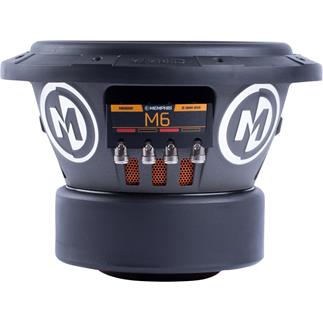

Memphis Audio created the M6 Series 15-M612D2 12" subwoofer for high-performance bass reproduction. The fiberglass reinforced cone offers exceptional rigidity so it maintains accuracy at high levels, while its double-stitched rubber surround helps to maximize and control excursion. The vented cast aluminum basket keeps things cool, and virtually eliminates resonances that can color your bass.
Handles plenty of power
The 2.5" dual 2-ohm voice coils combine with a 120-ounce magnet to handle up to 700 watts RMS, so make sure you feed this sub plenty of power. The dual 2-ohm voice coils allow you to wire the sub for 1 or 4 ohms for system flexibility.
To drive this single subwoofer, we recommend a mono amplifier rated between 475 and 1050 watts at 1 or 4 ohms. For more information, please refer to our article on How to Match Subwoofers and Amplifiers.
Product highlights:
- 12" dual 2-ohm voice coil subwoofer
- fiberglass-reinforced paper cone
- double-stitched rubber surround
- cast aluminum basket
- power handling: 700 watts RMS (1400 watts peak)
- sensitivity: 81 dB
- top-mount depth: 7-1/2"
- grille not included
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # 15-M612D2
What's in the box:
Memphis Audio 15-M612D2 owner's manual
- One 12" Dual 2-ohm voice coil woofer
- Removable rubber mounting ring (installed)
- Warranty information
Featured review
I love these Memphis Mojo's m sixes I have two 12 inch on 2500 Watt amp and they have blown my mind besides Memphis is a high quality brand got my money worth special thanks to the members of Crutchfield 4 All their help and providing and awesome product
Justin miner from Missouri
12 reasons to shop with us
Reason #5
Free instructions & discounted install gear
(The stuff you need to do it yourself)
REVIEWS
Customer reviews
Loading reviews...
Memphis Audio 15-M612D2 Reviews
Average Customer Review(s):
More details on the Memphis Audio 15-M612D2
Features & specs
| Size | 12 -inch | |
| Impedance | 1 ohm or 4 ohms | |
| Cone Material | Fiberglass/Paper | |
| Surround Material | Rubber | |
| Ideal Sealed Box Volume (cubic feet) | 1.5 | |
| Ideal Ported Box Volume (cubic feet) | 2.75 | |
| Port diameter (inches) | N/A | |
| Port length (inches) | N/A | |
| Free-Air | No | |
| Dual Voice Coil | Yes | |
| Sensitivity |
81 dB at 1 watt | |
| Frequency Response | --- | |
| Max RMS Power Handling | 700 | |
| Peak Power Handling (Watts) | 1400 | |
| Top Mount Depth (inches) | 7 3/8 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 10 3/4 | |
| Vas (liters) | 19.3 | |
| Fs (Hz) | 35 | |
| Qts | 0.816 | |
| Xmax (millimeters) | 13 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
Product Research
Features
Dual Voice Coils: This woofer features two 2Ω voice coils, allowing impedance flexibility. When the voice coils are wired in parallel, the woofer presents a 1Ω load. When the voice coils are wired in series, the woofer presents a 4Ω load.
Terminals: The two sets of spring post terminals are on the same side of the subwoofer. They will accommodate bare speaker wire up to 10 gauge. They will also accommodate many single banana plugs, but the post is slightly recessed, so some single banana plugs will not fit well. The binding posts are spaced too far apart to accept standard dual banana plugs (¾").
Sealed Box Volume: Memphis Audio recommends a sealed box volume of 1.5 ft³. A sealed enclosure design gives the smoothest response with increased energy at the lowest frequencies.
Ported Box Volume: The recommended ported box volume is 2.75 ft³ with a 12½" x 2¼" x 19" slot port; this yields a tuning frequency of 38 Hz. Ported (or vented) enclosures typically provide better overall efficiency than sealed, maximizing bass output for a given amplifier.
