Memphis Audio 16-MXA1MC

Marine digital media receiver with built-in Bluetooth® (does not play CDs)

Item # 953MXA1MC

Memphis Audio's MXA1MC digital media receiver combines today's tech with old-school engineering excellence in a...

Memphis Audio's MXA1MC digital media receiver combines today's tech with old-school engineering excellence in a...

Ember
Need help?
Contact our Virginia-based experts.
Discontinued item
5 questions - 12 answers

Item # 953MXA1MC

Ember
Need help?
Contact our Virginia-based experts.

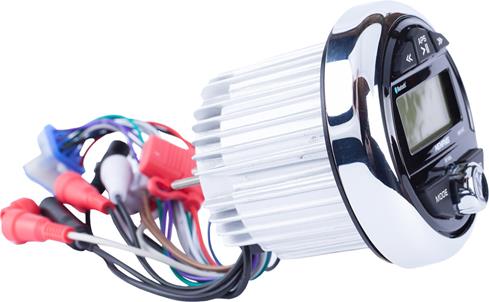

About the Memphis Audio 16-MXA1MC

Powerful and practical

Memphis Audio's MXA1MC digital media receiver combines today's tech with old-school engineering excellence in a compact package that's ideal for boats and powersports vehicles. This receiver is designed to fit into a standard gauge opening, so it's a great choice for ATVs or small boats. But don't let the compact exterior fool you – Memphis packs a lot of features into this weather-resistant receiver.

Powerful and practical

Memphis Audio 16-MXA1MC

Fits in a standard gauge opening

Memphis Audio's MXA1MC digital media receiver combines today's tech with old-school engineering excellence in a compact package that's ideal for boats and powersports vehicles. This receiver is designed to fit into a standard gauge opening, so it's a great choice for ATVs or small boats. But don't let the compact exterior fool you – Memphis packs a lot of features into this weather-resistant receiver.

Plenty of entertainment options

Use the built-in Bluetooth® to stream music from your smartphone or other Bluetooth-enabled device. If you want to enjoy your own music collection, you can also plug a music player into the rear aux input or pop a thumb drive into the rear USB port.

You can also tune into local radio using the AM/FM tuner. And if you're planning to add an amp to your system, you'll appreciate the rear-mounted 4-channel preamp outputs.

Smart engineering makes a difference

The rotary volume knob isn't just a retro touch—it's a thoroughly practical detail that really makes sense in rough water or on the trail — especially when you're wearing gloves. The big LED display gives you the info you need, while the watertight, UV-resistant face and easy-to-use controls will stand up to the rigors of marine use.

READ LESS

Product highlights:

  • AM/FM marine digital media receiver (does not play CDs)
  • built-in amp (25 watts x 4 RMS/50 peak x 4 channels)
  • built-in Bluetooth® for music streaming
  • marine-rated watertight face
  • rotary volume knob and big, easy-to-use buttons
  • backlit LCD display
  • inputs: rear USB input, rear aux input
  • outputs: 4-channel preamp outputs
  • fits into a standard tachometer opening
  • warranty: 3 years
  • Our 60-day money-back guarantee
  • MFR # 16-MXA1MC

What's in the box:

  • Gauge-style marine receiver
  • Instructions
  • Wiring harness
  • 39" USB extension cable
  • Mounting bracket
  • 2 Threaded studs
  • 2 Hex-nuts
  • 2 Flanged-nuts
  • 2 Lock-washers
  • Cutout Template
  • FCC Warning Card

Customer reviews

Loading reviews...

Memphis Audio 16-MXA1MC reviews

Average review:

6 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the Memphis Audio 16-MXA1MC

Stacey B.

Features & specs

Expandability
AUX Input RCA (rear)
Audio/video Input ---
USB Input Rear
Backup Camera Input No
Second Camera Input No
CarPlay No
Android Auto No
Siri Control No
Alexa Voice Control N
Android Control Yes
Memory Card Slot USB
Bluetooth Compatible Built-in
Satellite Radio Ready No
HD Radio No
Navigation ---
iPod Compatibility
Full size N/A
Nano N/A
Touch N/A
iPhone N/A
General
RMS Power (CTA-2006) N/A
RMS Power (Manufacturer) 25 watts
Peak Output 50 watts
RMS Power Bandwidth Not givenHz
Preamp Outputs 4-channel
Sub Preamp Outputs No
Switchable Rear Preamp Outputs
Video Screen No
Navigation App Compatible (iOS)
Navigation App Compatible (Android)
Preamp Voltage 2 volts
Screen Size ---
Display Color White/Black
Key Button Color White
EQ Bands None
Wireless Remote No
Steering Wheel Control Compatible No
Parts Warranty 3 Years
Labor Warranty 3 Years
Tuner
FM Sensitivity ---
European Tuning Yes
Seek/Scan Seek
Radio Data System No
File Playback
Music File Playback MP3
High-res Playback N

Product Research

Features

Gauge-Style Marine Receiver: The Memphis Audio MXA1MC is a 3" gauge-style receiver with marine-grade construction for your boat, vessel, or other watercraft.

Bluetooth Audio Streaming: The marine receiver supports wireless audio playback (AD2P) and control (AVRCP) of a Bluetooth enabled audio player or smartphone.  The marine supports playback of stored music and music apps on your Bluetooth-enabled source device. The marine receiver will be able to control basic playback functions, such as Play/Pause & Previous/Next Track. Advanced music browsing will still need be done via your Bluetooth-enabled smartphone. This unit does not display song/artist information.

Note: This unit does not support Bluetooth hands-free communication for making and answering phone calls.

USB Port: The Marine receiver is equipped with a rear-panel USB (type-A) port attached to the chassis by a 6" pigtail. The USB port allows you to connect a USB thumbdrive. The unit supports audio playback & control of MP3 audio files stored on a compatible USB thumbdrive. The unit offers Play/Pause, Fast Forward/Reverse, Previous/Next Track, and Repeat Track playback functions. This unit will also display song/artist information.

Note: The receiver's USB port does not support Apple iPod/iPhone/iPad or Android smartphone/tablet connectivity.

Aux Input: This unit features a rear mounted, stereo RCA auxiliary input on a 6" pigtail so you can connect an external audio source. An RCA-to-Minijack cable (sold separately) will be required for the connection of a portable audio player with a headphone jack output.

AM/FM Tuner: The marine receiver features a built-in AM/FM tuner with manual, seek, and preset tuning. You can select either US or European tuning. The marine unit provides 3 FM banks and 2 AM banks. Each AM/FM bank can hold up to 6 station presets, proving you with 18 FM station presets and 12 AM station presets. Stations can be stored automatically, six for each band, using the APS (Auto Preset Store) button. You'll also be able to use the Preset Scan function to quickly scan through all of your presets.

LCD Screen: The marine receiver features a single-line LCD screen with a white background and black text that is easy to view in the day or night.

Built-In Amp + Pre-Outs: The marine receiver is equipped with a 50 Watts (Peak) x 4ch amplifier. The marine unit is also fitted with 4Ch/2V RCA outputs to connect an external amplifier and/or powered subwoofer.

EQ: The marine receiver features 5 preset EQ modes - Flat, Classic, Pop, Rock, or Off. The marine head unit also offers independent Bass & Treble control; plus Balance & Fade adjustment. When listening to music at low volume levels, the Loudness feature will boost the bass & treble response.

Optional Wired Remote: The gauge-style marine receiver features a 3.5mm wired remote input for compatibility with Memphis Audio's wired remote control (953MXA1MCR, sold separately).

Mounting Options: The marine receiver features a 3" gauge-style design, so it fits perfectly in existing 3" gauge openings on your boat. If your boat does not already have a 3" opening, the MXA1MC requires a round cutout in the bulkhead for inserting the chassis. The integrated protective gasket, supplied U-bracket, and included hardware secure the unit in place against the mounting surface. Receiver dimensions:

  • Chassis: 3.5" (diameter) x 2.625" (depth)
  • Face-Plate: 4.5" (diameter) x 1.375" (depth)
  • Cutout: 3.6" (diameter) x 4.0" (depth)
Note: The receiver is round and does not include a mounting sleeve or ISO-mount screw holes to accommodate standard automotive installation.

Loading accessories...

Customer Q&A

Q
Crutchfield asked: Why did you buy this?
A
Current and prior experience with this brand. [ CHAD  Oct 08, 2018 ]
A
Trusted brand for durability. [ Samuel P.  Oct 02, 2018 ]
A
its the best marine unit on the market [ Rosalie  Jul 25, 2018 ]
A
Wanted MA product [ Kyle  Feb 26, 2018 ]
A
I have had great success with Memphis. I am brand loyal [ BOB E  Feb 08, 2017 ]
A
customer reviews and 3 year warranty [ James  Nov 08, 2016 ]
A
good reviews [ FERNANDO  Jul 21, 2016 ]
A
There a well know company [ STEVEN  Jun 08, 2016 ]
A
Memphis makes great equipment. This unit fits directly in the gauge cluster making it very convenient for the driver. [ Coy  Jun 06, 2016 ]
A
It is the only style radio that can fit near the steering wheel of my 17 foot flats boat, and it is the only tachometer size radio with a rotary volume knob. [ Devin  Apr 26, 2016 ]
SHOW MORESHOW LESS

5 questions already asked

Q
Can 2 wired remotes be connected and used for 1 main unit? (i.e.on boat bow and stern ?) If so is wiring splitter available or would splicing have to be done???
[ Jay  Apr 26, 2017 ]
1 answer
A
According to our research, it appears that only 1 Memphis Audio MXA1MCR remote can be used with the 16-MXA1MC digital media receiver. I wish I had better news for you, but if you would like to discuss further feel free to reach out to an Advisor by phone (1-800-324-9695) or online chat.
[ Larry  Apr 29, 2017 ]  Staff
Q
Will it work bridged? I'm Assuming not just thought I'd ask.
[ Devin  Aug 18, 2016 ]
1 answer
A
No. Like most car/marine stereos, the built-in amplifier is not bridgeable. I hope that helps. My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=5
[ Ryan  Aug 24, 2016 ]  Staff
Q
Does it have a cover for the radio?
[ Josh  Jul 08, 2016 ]
7 answers
A
no It doesnt. It would be nice if it did. If you find one let me know
[ ROBERT  Jul 11, 2016 ]
A
No, the radio is from the new Memphis Xtreme Audio lineup and is rated for harsh, damp and wet outdoor environments such as in a boat or off-roading vehicle.
[ Curtis  Jul 09, 2016 ]
A
Unfortunately it does not because it's really bright at night. But that being said it is the best gauge style head unit there is. Tried the mb quart had to return it.
[ Daniel  Jul 09, 2016 ]
A
No it does not
[ Devin  Jul 08, 2016 ]
A
no dont need one. killer radio
[ Douglas  Jul 08, 2016 ]
A
No it does not.
[ vettekid76  Jul 08, 2016 ]
A
No it does not
[ jacob  Jul 08, 2016 ]
Q
Is the "Aux Preamp" used for a sub?
[ mark  Jun 06, 2016 ]
1 answer
A
The unit offers an auxiliary audio input for connecting external sources to be heard through the system. It also offers two pairs of RCA pre-amp outputs for providing signal to an external amplifier. So, yes, you can use either set of pre-outs to provide signal to an external amp that will power a subwoofer (or, directly to a powered sub). You will find this information, and more, by clicking the "Details" tab on the receiver's main webpage and scrolling down below the "Features & Specs" table. I hope that helps. My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=5
[ Ryan  Jun 08, 2016 ]  Staff
Q
Does it have a trigger output to turn on remote amp?
[ S  Apr 29, 2016 ]
2 answers
A
yes it has remote amp power wire
[ Douglas  Jul 08, 2016 ]
A
Yes. The Memphis has a remote turn-on lead in it's wiring harness for triggering external amplifiers on/off with the stereo. I hope that helps! My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=5
[ Ryan  May 02, 2016 ]  Staff
SHOW MORESHOW LESS
