Name: Memphis Audio PRX690C
Brand: Memphis Audio
SKU: 953PRX690C
Price: 219.95 USD
Availability: BackOrder
Rating: 4.5 (24 reviews)

Overview

by Crutchfield's

Powerful components

The time has come to take a stand against disappointing sound, and Memphis Audio's Power Reference Series PRX690C 6"x9" component speaker system is your ally in the quest to bring fun back to your drive. These speakers handle up to 60 watts RMS, and they'll deliver excellent performance, whether you're driving them with a factory stereo or an aftermarket amp.

KEEP READING

Powerful components

Memphis supplies logo-stamped grilles if you have plans for a custom installation.

Superior sound staging

Experience the superior sound staging of component polypropylene dome tweeters, which handle detailed delivery of the high frequencies. A polypropylene woofer cone handles the low frequencies, and an external crossover optimizes each driver's performance.

READ LESS

Product highlights:

component speaker system includes two 6"x9" woofers, 2 tweeters, 2 external crossovers
polypropylene woofer with polyurethane surround
polypropylene dome tweeter
2-way external crossover
handles up to 60 watts RMS (120 watts peak power)
frequency response: 51-20,000 Hz
sensitivity: 90 dB
woofer top-mount depth: 3- 1/16"
woofer grilles included
warranty: 1 year
Our 60-day money-back guarantee
MFR # PRX690C

What's in the box:

Memphis Audio PRX690C owner's manual

2 Woofers
2 Tweeters (with attached 16" wire terminated with quick-slide connectors)
2 Crossovers
2 Adhesive backed Memphis Audio logos (packaged with the crossovers)
2 Woofer grilles
2 Flush mount housings (with tweeters installed)
2 Flush mount retaining rings
2 Angled surface mount housings
Two 6' Crossover input wires (tinned bare wire on both ends)
Two 12' Tweeter wires (quick slides on one end and tinned bare wire on the other)
Two 12' Woofer wires (quick slides on one end and tinned bare wire on the other)
Eight 1-3/8" Pan head screws
8 Speed clips
Four 3/4" Flat-head screws
Tweeter installation instructions
Warranty information
Template

Reviews

Loading reviews...

Memphis Audio PRX690C reviews

Average review:

24 reviews

Thanks for submitting your review

Most reviews are processed and published within 5 business days. You will receive a confirmation email once your review has been published.

Filter by rating

Customer photos

Verified customer

Verified employee review

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Have questions for

Crutchfield response

Helpful?

Yes

<< >>

Details

Researched by Crutchfield's Pat M.

Features & specs

General
Speaker Size	6X9
Design	2-way
Tweeter Design	1" Dome
Impedance (Ohms)	4
Tweeter Composition	Polypropylene
Woofer Composition	Polypropylene
Woofer Surround	Polyurethane
Parts Warranty	1 Year
Labor Warranty	1 Year
Specifications
Sensitivity (1W at 1 meter)	90
Sensitivity at 2.83 volts	N/A
Frequency Response	51 - 20k Hz
Minimum RMS Wattage	---
Maximum RMS Wattage	60
Peak Power Handling (Watts)	120
Top-mount Depth (Inches)	3 1/16
Bottom-mount Depth (Inches)	3 1/2
Cutout Diameter or Length (inches)	0
Mounting Height (Inches)	0.451

The Memphis Audio PRX690C replaces these items:

Memphis Audio 15-PRX69C

Product Research

Features

Tweeter Mounting: The tweeters offer multiple mounting options; choose a flush mount, surface mount, or angled surface mount. The tweeters are shipped in the flush mount housings and the angled surface mount housings are included. The back of the flush mount housing and the top of the angled surface mount housing combine to create the (non-angled) surface mount housing. Once installed in any of the housings, the tweeter will pivot slightly to optimize imaging.

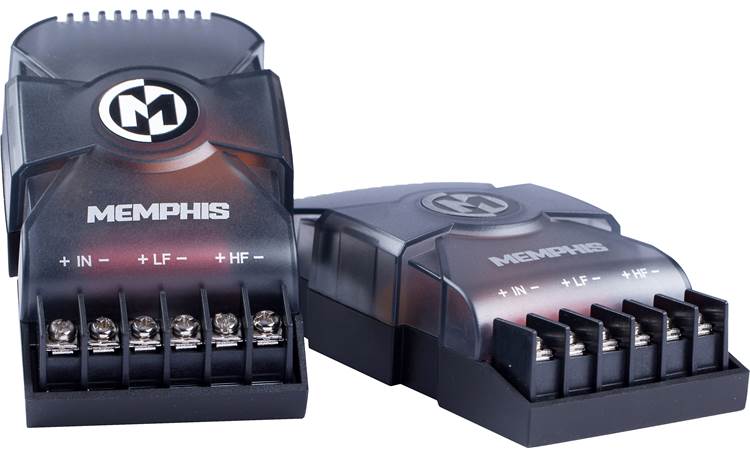

Crossover: The crossover's inputs and outputs are screw terminals that will accept bare wire or spade connectors up to 0.315" wide.

Tweeter Dimensions:

	Flush Mount	Surface Mount	Angled Surface Mount
Mounting Height	0.207"	1.044"	1.605"
Mounting Depth	0.855"	screw depth	screw depth
Frame Diameter	2.135"	1.833"	N/A
Cutout Diameter	1.839"	N/A	N/A
Frame Width	N/A	N/A	1.808"
Frame Depth	N/A	N/A	1.838"

Crossover Dimensions:

Width: 2-3/4"
Height: 1-1/2"
Depth: 4-3/4"

The Memphis Audio PRX690C replaces these items

Memphis Audio 15-PRX69C

Power Reference Series 6"x9" component speaker system

polypropylene woofer with polyurethane surround
polypropylene dome tweeter
handles up to 60 watts RMS (120 watts peak power)

Accessories

Loading accessories...

Q&A

6 questions already asked

I have a 2014 Dodge ram 1500 i see the woofers go in the doors. where do the tweeters go? i only have tweeter in my dash as far as i know. Would i need a amp for these speakers?

[ BRIAN Jul 13, 2021 ]

1 answer

These are really good speakers that dont need an amp if you dont have one. I have these in my 2007 dodge ram. You will have to make holes for the tweeters. With these installed in the front and a pair of 3 way speakers in the back, you will be taken care of for all the highs and the lows. Good luck!

[ KEVIN Jul 13, 2021 ]

Can a stock head unit run these sufficiently?

[ Dalton Jul 10, 2021 ]

3 answers

You can run them off the head unit but they sound even better with an amplifier.

[ Crashkj Mar 01, 2022 ]

I'd assume so, but I am not a audio person. Ask Crutchfield

[ DANIEL Jul 14, 2021 ]

You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.

[ KRISTINA Jul 14, 2021 ] Staff

Do I need to use the cross overs that come with them? Or should I use the same wiring that was used for the factory speakers. I have a 2006 Tacoma with an after market head unit.

[ Logan Dec 04, 2020 ]

1 answer

Yes you need to use the crossovers. The factory wiring will need to be hooked up to the input of the crossovers. There will be two outputs, one that goes to the woofer and one that goes to the tweeter. You will need to run the output wiring from the crossover to the woofer and tweeter separately.

[ NATHAN Dec 04, 2020 ]

What is the function of the crossovers, and where are they installed?

[ Depawl Sep 18, 2020 ]

1 answer

In short, it is a filter to protect your speakers by ensuring they only receive signals in frequencies they are meant to audibly reproduce. High frequency sounds go to your tweeter after passing through a high pass filter on your crossover network, and low frequency sounds go to your woofer after passing through a low pass filter. You can place the crossovers where ever you may have room, either near the amplifier, or near the speakers.

[ KRISTA Oct 07, 2020 ]

Amp recommendation for these speakers?

[ Scot Aug 06, 2019 ]

2 answers

The coaxials are rated for 50w rms. These can handle 60w rms. I have them on a 4 channel 50w rms amp from alpine.

[ Crashkj Mar 01, 2022 ]

Thanks for your question. For information on selecting the best amp for your speakers I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They will be able to help determine the differences between the amp models and help you make the best choice for your system.

[ KRISTINA Aug 19, 2019 ] Staff

What is the Fs of these speakers?

[ NATHAN Oct 25, 2018 ]

1 answer

I have no idea what theFs are

[ BRIAN Oct 26, 2018 ]
