DJI Air 2S

Aerial Drone
Gimbal Camera
Remote Controller
Rechargeable Battery

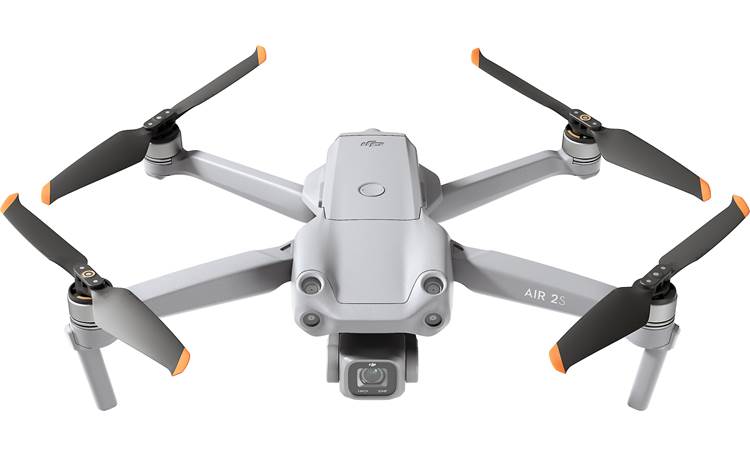

Aerial Drone

 APAS 4.0 Obstacle Avoidance: The DJI Air 2S features the upgraded Advanced Pilot Assistance Systems (APAS 4.0) which allows DJI Air 2S to autonomously avoid obstacles in more complex scenarios and at high speeds. The DJI Air 2S has the ability to perceive its environment in four directions: up, down, forward, and backward. These enhanced obstacle sensing capabilities mean the DJI Air 2S is better able to avoid obstacles automatically, even when flying at high speeds. One of the reasons obstacle sensing is such a benefit for pilots of any skill level is that it lets them focus on the shot instead of worrying about surroundings. Pilots should always be aware of their environment and fly safely, but obstacle avoidance is indispensable when trying to get cinematic shots in complex environments like a wooded forest or a rocky coastline. The DJI Air 2S is equipped with both an infrared sensing system, plus forward, backward, upward, and downward visions systems.

• The forward, backward, upward, and downward visions systems consists of two cameras each and the infrared sensing system consists of two 3D infrared modules.
• The downward vision system and infrared sensing system helps the aircraft maintain its current position, hover in place more precisely, and to fly indoors or in other environments where GNSS is unavailable.
• In addition, the auxiliary bottom light located on the underside of the aircraft improves visibility for the downward vision system in weak light conditions.

Notes:

• APAS 4.0 is not available while recording in 5.4K/30fps, 5.4K/25fps, 5.4K/24fps, 4K/60fps, 4K/50fps, 4K/48fps, 2.7K/60fps, 2.7K/50fps, 2.7K/48fps, or 1080p/120fps.
• The Vision System cameras are factory calibrated. If any abnormality is detected with a vision system camera, the aircraft will automatically preform calibration; not further manual calibration is required.

Automatic Dependent Surveillance-Broadcast (ADS-B): The DJI Air 2S provides an added layer of airspace safety with the industry-leading AirSense safety system. This receives Automatic Dependent Surveillance-Broadcast (ADS-B) flight location information from airplanes and helicopters in your area that transmit ADS-B signals, displays those aircraft on a map, and provides audio and visual alerts through the DJI Fly app to help you keep the drone out of the way of those aircraft.

OcuSync 3.0 Technology (O3): The Air 2S utilizes DJI's most up-to-date and upgraded OcuSync 3.0 transmission technology (O3) for a strong and reliable wireless transmission signal with ultra-smooth, clear, and reliable image footage. This 1080p feed at distances of up to 7.45 miles (12km) away allows you to not only see more, but to fly further in a safe and reliable way. OcuSync 3.0 (O3) and four dual-band (2.4/5.8GHz) integrated antennas on the DJI Air 2S support omnidirectional signal reception, offering sensitive and stable signal when the drone is flying above or ahead. A stronger transmission signal is absolutely critical when flying a drone. An increased signal means pilots can fly farther and see more. It also means increased safety as loss of signal is less likely. And with a low-latency feed, pilots are more able to get the precise shots and movements they want for a better flight and filming experience.

• 1080p HD Video: OcuSync 3.0 (O3) has a video transmission distance of up to 7.45 miles (12 km) and can deliver a 1080p FHD resolution livestream directly from the drone's camera to your Apple iPhone or Android smartphone through the DJI Fly App. Now, you can enjoy more freedom for exploring and more clarity for that perfect shot.
• Dual Band: OcuSync 3.0 (O3) utilizes  2.4/5.8GHz dual-frequency communication and automatically switches to the best channel with the lowest interference in real time and low latency (120-130 ms). This significantly improves the aircraft's anti-interference ability in challenging environments, increasing flight safety.

Note: Unobstructed, free of interference, and when FCC-compliant. Maximum flight range specification is a proxy for radio link strength and resilience.

Flight Modes: The DJI Air 2S has three Flight Modes (Normal/Sport/Cine), plus a fourth Flight Mode (Attitude) that the aircraft switches to in certain scenarios. Flight Modes can be switched via the Flight Mode switch on the remote controller.

• Normal Mode: In this mode, the aircraft utilizes GNSS, plus the Forward, Backward, Upward and Downward Vision Systems, a well as the Infrared Sensing System to locate itself and stabilize. When the GNSS signal is strong, the aircraft uses GNSS to locate itself and stabilize. When the GNSS is weak and the lighting conditions are sufficient, the aircraft uses vision systems to locate itself and stabilize. Maximum speed is 35.8 mph in Normal mode.
• Sport Mode: In Sport mode, the aircraft uses GNSS for positioning and the aircraft responses are optimized for agility and speed making it more responsive to control stick movements. It can reach a maximum speed of 42.5 mph in Sport Mode. The obstacle avoidance system is disabled in Sport mode, which means the aircraft cannot sense obstacles and avoid them automatically.
• Cine Mode: Cine mode is based on Normal mode and the flight speed is limited, making the aircraft more stable during photo and video shooting.
• Attitude Mode: The aircraft automatically changes to this mode when the Vision Systems are unavailable or disabled and either the GNSS signal is weak or the compass is experiencing interference. When the Vision Systems are unavailable the aircraft is not able to position itself or auto-brake, so potential flight hazards exist when flying in this mode. Environmental factors such as wind can result in horizontal shifting, which may present hazards - especially when flying in confined spaces.

Automatic Takeoff & Landing: The DJI Air 2S will automatically take off and hover at approximately 3.9' above the ground. The aircraft will also automatically land on its own using its integrated vision sensing system.

Return To Home (RTH): The Return to Home (RTH) function brings the aircraft back to the last recored Home Point when the GPS signal is strong. It does this by recording its real-time flight path, and when you choose to return home or if the control signal gets lost or the battery is low, the aircraft will fly towards the Home Point, bypassing any signal obstruction and reconnect to the controller. When the Air 2S detects an obstacle, it will choose a proper path to bypass it according to its altitude. The aircraft will match the images of the ground with those captured at takeoff for increased landing accuracy. When landing automatically, the Air 2S will scan the terrain of the landing area in real-time, then warn the user and safely hover if it detects

Note: If the aircraft's video link signal is lost during flight while the remote controller is still able to operate the movements of the aircraft, there will be a prompt to initiate RTH that can be canceled.

Flight Recorder: Flight data including flight telemetry, aircraft status information, and other parameters are automatically saved to the internal data recorder of the DJI Air 2S. The data can be accessed using the DJI Assistant 2 (Consumer Drones Series) software program that is compatible with Windows PC and Mac.

FAA Rules & Regulations: Please familiarize yourself with the FAA's rules & regulations for unmanned aircraft systems before flying your drone. Click here for more details.

Gimbal Camera

3-Axis Gimbal: The DJI Air 2S features a full stabilized 3-axis gimbal. The 3-axis gimbal provides stabilization of the Air 2S' camera, allowing you to capture clear and stable images and video. The mechanical pan range is -100 degrees to +100 degrees, the mechanical tilt range is -135 degrees to +45 degrees, and the mechanical roll range is -45 degrees to +45 degrees. You can use the gimbal dial on the remote controller or the DJI Fly app on your compatible smartphone device to control the tilt of the camera from -90 degrees to +24 degrees. There are two gimbal operations modes available - Follow Mode and FPV Mode.

• Follow Mode: The angle between the gimbals orientation and aircraft front remains constant at all times.
• FPV Mode: The gimbal synchronizes with the movement of the aircraft to provide a first-person flying experience.

Note: The default control tilt range is -90 degrees to 0 degrees. You can increase the control tilt range of -90 degrees to +24 degrees through the DJI Fly app.

1" CMOS Image Sensor: With its 1" CMOS image sensor, the DJI Air 2S is capable of 5.4K/30fps and 4K/60fps video. This allows you to capture more visual information in every shot, ensuring richer, more dynamic, high-quality results that are professional-level. The 1" CMOS image sensors delivers countless benefits, especially on a drone as compact and lightweight as the DJI Air 2S. Essentially, a larger sensor means bigger pixels, and each pixel can collect more visual information. That means you can enjoy higher dynamic range, better resolutions, more accurate color, and excellent details in both the highlights and low lights of any scene. It also ensures more flexibility when editing footage.

• Low Light Performance: When it comes to low-light performance, a bigger sensor is critical as it's able to take in and process more information. The 1" sensor on the DJI Air 2S allows for the individual pixels to be larger. The purpose of a pixel is to absorb light and produce an electrical signal, which is then converted into a digital image signal. The more light the sensor can absorb, the stronger the image signal will be. So, a sensor with larger pixels will collect more light data and have better performance in low-light situations. A bigger sensor will allow you to shoot at a lower ISO, which produces cleaner overall images.
• Dynamic Range:  The larger sensor and bigger pixels on the DJI Air 2S mean that each pixel can collect more information compared to smaller pixels. This allows for more information in both the highlights and shadows of an image, letting users capture richer details and more nuance in any environment.
• Editing Footage: The larger 1" CMOS image sensor also gives you more freedom when it comes to your editing. Whether it's brightening up a dark image, recovering details in the shadows/highlights, pushing colors further, or even cropping.

Note: The aperture of the camera is f2.8 and can shoot at 1.97' (0.6m) to infinity.

5.4K Video: The DJI Air 2S lets you capture stunning footage in 5.4K/30fps, 4K/60fps, or 1080p/120fps. These resolutions ensure video results are as epic and dynamic as the shooting location, and retain extreme quality and details - even when shown on larger displays. Its 10-bit Dlog-M color profile can record up to one billion colors while retaining all the nuance that makes footage stand out for a fully immersive video experience. You are also able to digitally zoom in video footage. Video is recorded in MOV or MP4 (H.264/MPEG-4 AVC, H.265/HEVC). The HEVC (H.265) video codec records more image information, uses less storage, and preserves the dynamic range and detail of your footage, ensuring next-level content.

• Video Resolution: 5.4K (5472x3078) @ 24/25/30fps, 4K (3840x2160) @24/25/30/48/50/60fps, 2.7K (2688x1512) @ 24/24/30/48/50/60fps, or 1080p (1920x1080) @ 24/25/30/48/50/60/120fps
• Slow Motion Mode: 1080p (1920x1080) @ 120fps
• ISO Mode: Auto (100-3200) or Manual (100-6400)
• Digital Zoom: 4x (4K @ 24/25/30fps or 2.7K @ 48/50/60fps), 6x (2.7k @ 24/25/30fps or 1080p 48/50/60fps), and 8x (1080p 24/25/30fps)

Note: Digital zoom is not available when recording in 5.4K, 4K/60fps, 1080p/120fps, D-log, HLG, or Slow Motion.

20MP Photos: With it 1" CMOS image sensor, the Air 2S can capture impressive 20MP (5472x3648) photos. Still images are recorded in JPEG or DNG (RAW). Now, you'll be able to shoot RAW format photos with a dynamic range of up to 12.6 stops to capture more visual information in every scene, even when lighting conditions are bad or complex. This provides more flexibility in post-processing, giving creators more possibilities to get the look they want. You can select Auto (100-3200) or Manual 100-12800) ISO mode.

• Single & Burst Capture a single 20MP still-image every-time the shutter button is pressed or use Burst mode to capture 3, 5, or 7 images at a time with one shutter-button press.
• SmartPhoto: SmartPhoto integrates scene recognition, HyperLight, and HDR into one mode for optimal results; scene recognition optimizes different camera parameters for various scenes and supports intelligent recognition of five categories - sunset, skies, grass, snow, and trees.
• AEB & Timed: Auto exposure bracketing can be set to 3 or 5 frames in 0.7EV steps. Interval shooting of 2, 3, 5, 7, 10, 15, 20, 30, or 60 seconds.
• Panoramas: You can choose from 180 degree, Wide Angle, Vertical and Sphere panoramas; the aircraft will automatically takes several photos according to the selected type of Pano and generates a panoramic shot.

FocusTrack: Selecting and tracking a subject is easier than ever with the DJI Air 2S thanks to FocusTrack. This suite of tracking technologies features several advanced options for automatic shooting with your subject in center frame.

• ActiveTrack 4.0: ActiveTrack 4.0 lets you follow your subject smoothly while autonomously avoiding obstacles. Even if the subject is momentarily lost, you can quickly resume tracking during flight.
• Spotlight 2.0: With Spotlight 2.0, the camera stays centered on a subject as you fly in a spiral or take close-up shots. The zoom function also enables clear shots at a distance for increased safety.
• POI 3.0: POI 3.0 allows you to easily take a perfect circle shot while keeping your subject centered.

Note: FocusTrack is not available while recording in 5.4K/30fps, 5.4K/25fps, 5.4K/24fps, 4K/60fps, 4K/50fps, 4K/48fps, 2.7K/60fps, 2.7K/50fps, 2.7K/48fps, 1080p/120fps, 1080p/60fps, 1080p/50fps, or 1080p/48fps.

MasterShots: MasterShots provide automatic aerial imaging and editing. MasterShots combines 10 to 15 automatic flight routes at a time, which are flown in sequence while the drone focuses on a subject of your choice and records. According to the type and distance of the target, the DJI Air 2S automatically selects from Proximity, Landscape, and Portrait templates and executes a cinematic sequence of shots. It even creates an automatic video clip afterward, edited with music, filters, and smooth transitions.

QuickShots: Capture cinematic video clips automatically with QuickShots. With just a few taps, Air 2S plans and flies a complicated aerial route for a professional-quality shot. You can even add music, effects, and filters with super-intuitive Story templates so you can share your masterpiece directly to social media.

• Dronie: The aircraft flies backward and ascends with the camera locked on the subject.
• Rocket The aircraft ascends with the camera pointing downward.
• Circle: The aircraft circles around the subject.
• Helix: The aircraft ascends and spirals around the subject.
• Boomerang: The aircraft flies around the subject in a oval path, ascending a it flies away from its starting point and descending as it flies back. The aircraft's starting point forms one end of the oval's long axis, while the other end of its long axis is at the opposite side of the subject from the starting point.
• Asteroid: The aircraft flies backward and upward, takes several photos, and then flies back to the starting point. The video generated starts with a panorama of the highest position and then shows the descent.

Hyperlapse: The Air 2S supports Hyperlapse videos, allowing you to warp time and space for especially stunning footage. Best of all, you can achieve this shot without complex post-processing. Choose from Free, Circle, Course Lock, and Waypoint modes, select the shooting location, and the DJI Fly app will do the rest.

• Course Lock: Course Lock can be used in two ways. One, the orientation of the aircraft is fixed but a subject cannot be selected. Second, the orientation of the aircraft is fixed and the aircraft flies around a selected object.
• Free: The aircraft automatically takes photos and generates a timelapse video. Free mode can be used while the aircraft is on the ground. After takeoff, you'll control the aircraft's movements and gimbal angle using the remote controller.
• Waypoint: The aircraft automatically takes a photo on a flight path of two to five waypoints and generates a timelapse video. The aircraft can fly in order from waypoint 1 to 5 or 5 to 1.
• Circle: The aircraft automatically takes photos while flying around the selected subject to generate a timelapse video.

Note: For all hyperlapse videos, you can set the interval time, video duration, and max speed.

microSD Card Slot: In addition to its internal 8GB flash memory, the Air 2S features a microSD card slot for storage of MP4/MOV videos and JPEG/RAW photos on a microSD/SDHC/SDXC memory card (up to 256GB). A UHS-I Speed Grade 3 rating microSD card is required due to the fast read and write speed necessary for high-resolution video data.

Remote Controller

Remote Controller: The DJI Air 2S comes with a dedicated wireless remote controller that works in tandem with the DJI Fly App and your compatible smartphone device to control flight pattern and capture aerial images. The dedicated remote controller utilizes DJI's OcuSync 3.0 wireless transmission system to maintain a 2.4/5.8GHz wireless 1080p HD video feed at a distance of up to 7.45 miles (12 km) with the DJI Fly app and your compatible Apple OS or Android smartphone device. The newly designed remote controller features an ergonomic design for a more comfortable grip and boasts an impressively long battery life of 6 hours. The new clamp makes attaching smartphones fast and easy, while integrated antennas significantly improve user experience.

• The remote controller reaches its maximum transmission distance (FCC) in a wide-open area with no electromagnetic interference at an altitude of approximately 400' (120 m).
• The Air 2S is also compatible with DJI's Smart Controller (sold separately - see Accessories Tab).

DJI Fly App: The Air 2S requires the DJI Fly app (for Apple iOS 11.0+ and Android OS 6.0+), which has been designed to provide you with intuitive controls that make flight easier than ever. The DJI Fly app offers a simple and intuitive user experience, enabling you to create cinematic shots that you can share. It even has Flight Tutorial, a feature to help you get started with the Air 2S quickly and safely.

• Live Video Feed: The DJI Fly app provides a live 1080p HD video feed (up to 6.2 miles) on your compatible Apple iOS or Android smartphone device.
• Flight Status: Parameters like signal strength, flying mode, altitude, distance, and battery level are easily visible during flight so you always have access to the latest information.
• Camera Settings: With a sleek and efficient interface, DJI Fly provides an expanded view for composition and shooting. You can easily adjust camera parameters, quickly switch between shooting modes, and adjust the gimbal angle on the screen
• Editing Suite: Shooting, editing, and sharing can all be done the the DJI Fly app. You can also easily manage storage with the ability to export or delete footage directly in the app.

Note: The DJI Air 2S is not compatible with previous and other DJI apps. Only use the DJI Fly app.

Smartphone Cradle: The included remote controller's integrated smartphone cradle will hold Apple iOS and Android OS smartphone devices that 1.75" to 3.25" wide and no more than 0.5" thick. Devices beyond this measurement range are not supported. Make sure to remove the protective case or cover from your smartphone device before attaching it to the remote controller.

Smartphone Connection: The remote controller features a USB-C port for a wired connection of your compatible Apple iOS or Android OS smartphone device. A Lightning, USB-C, and microUSB adapter cables are provided to make the connection between your compatible smartphone device and the remote controller's USB-C port.
• Smartphone Charging: The remote controller's USB-C port will also charge your Apple iOS or Android device with a charging ability of 5V/500mA. The remote controller will automatically charge Android devices. For iOS devices, first make sure the charging feature is enabled in the DJI Fly app (charging for iOS devices is disabled by default and needs to be enabled each time the remote controller is powered on).

DJI Academy: The DJI Fly app includes access to the DJI Academy where you can find easy-to-follow flight tutorials and instructional videos to help you get started.

SkyPixel: Take part in the world's largest aerial imaging community at SkyPixel. Learn tips and tricks from power users, find people to fly with and give your productions a global audience. SkyPixel can be accessed through the DJI Fly app.

Rechargeable Battery

Rechargeable Batteries: The DJI Air 2S is powered by a high-density, rechargeable lithium-polymer (LiPo) battery that has a capacity of 3500mAh and voltage of 11.55V. This battery can provide a maximum flight time of up to 31 minutes (at 11 mph with 0 wind) and a hover time of 30 minutes (with 0 wind). The included remote controller features a built-in, rechargeable lithium-polymer battery with a capacity of 5200mAH and can last up to 6 hours. The operating temperature for both batteries is 41°F to 104°F. The batteries must be fully charged before using it for the first time.

• Intelligent Flight Battery: The DJI Intelligent Flight Battery in the Air 2S adopts the latest technologies to ensure that the flight control system is able to obtain accurate battery level. This allows it to calculate remaining flight times more accurately. It also gives pilots a full understanding of the overall battery status, including real-time battery cell status, circle number, temperature and more - and all in the DJI Fly app on your smartphone.
• BMS (Battery Management System): As well as monitoring the battery status during flight, the BMS (Battery Management System) also has overcharge and over discharge protection, reducing the likelihood of battery damage. When not in use for extended periods of time, DJI Intelligent Flight Battery automatically discharges to 50% charge, keeping it at an optimum charge level for extended battery life. When flying in cold temperatures, the BMS will activate low-temperature protection and will control power output according to the temperature. This ensures the battery can provide adequate propulsion without damage from the cold.

Notes: The aerial drone will automatically return to home if the battery signal is getting too low. The drone may land automatically if the current battery level can only support the aircraft long enough to descend from its current altitude.

Battery Charger: An AC power adapter is included to charge the Air 2S's Intelligent Flight Battery. The AC power adapter is also outfitted with one USB (type-A) port to charge the built-in battery of the included remote controller. The optional DJI Charging Hub and powerbank adapter lets you charge up to three Intelligent Flight Batteries and the battery of the remote controller at once. The Intelligent Flight Batteries will be charged in sequence according to their power levels, from high to low. It takes approximately 1 hour and 35 minutes to fully charge a single Intelligent Flight Battery.

Note: The Intelligent Flight Battery must be removed from the aircraft for charging using the AC power adapter or Charging Hub.
