About the Electro-Voice ELX 112P
Decades of innovation
Decades of innovation
If you're a musician, you know about EV. If you're not, just know that Electro-Voice has been at the forefront of live sound innovation for over 70 years. Now they've distilled those decades of experience into their Live X series of portable PA speakers.

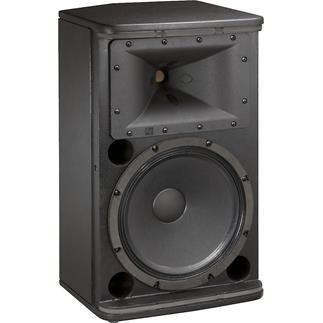

The 12" woofer and 1-1/2" titanium compression driver are powered by a 1000-watt Class D amp.
Plenty of power
Electro-Voice designed the ELX 112P powered speaker to give you plenty of clean power, with a built-in Class D amplifier that delivers 1000 watts to a 12" woofer and a 1.5" titanium high-frequency driver. A built-in pole mount lets you mount the speaker on a stand or above a subwoofer, and you can use the speaker's switchable high-pass filter to optimize the speaker for use with a sub.
The ins and outs
The two input channels are equipped with combination 1/4" TRS and XLR inputs; one channel also has a set of stereo RCA inputs. An XLR line output provides signal for other ELX 112Ps or for a powered subwoofer.
The speakers and amplifier are housed in a seriously sturdy 9-ply wooden cabinet, and the enclosure's shape allows you to use it as a stage monitor as well as a PA speaker. If you're looking for a versatile, powerful speaker with a great heritage, the Electro-Voice ELX 112P is ready to go to work for you.
- 2-way powered PA speaker
- 12" woofer and 1-1/2" titanium compression driver
- 1000-watt Class D amplifier
- sturdy 9-ply wood enclosure
- biamped with built-in crossover
- XLR/1-4" input for mics or line level devices
- Link Output for connecting other powered speakers
- maximum SPL: 132 dB
- frequency response: 50-20,000 Hz
- dimensions: 24"H x 14-1/4"W x 13-7/16"D
- weight: 37 lbs.
- warranty: 5 years
- Our 60-day money-back guarantee
- MFR # ELX112P-120V
What's in the box:
- Powered PA loudspeaker
- AC power cord
Electro-Voice ELX 112P reviews
Sonically, these monitor's are stellar! I a/b'd them against the JBL 812, Mackie 450v3, JBL eon 612 and the 812's and EV's were clearly above the rest. They sounded very musical and with the price difference of the JBL 812 vs the EV's, it was a no brainer. Also, Cory at Crutchfield was super helpful and deserves 5 stars as well. He owns a pair and has also used various other monitors and really helped me by answering all my questions. I use these for solo songwriter gigs and love that i can expand these, use 1, use 2, etc. Plus, after owning a linear array system, it is good to be back with a 12" driver that pushes air!!!
Pros: Musical, articulate, sound great at all volumes
Cons: none if you are looking for a pure speaker with no dsp or bluetooth capacity
0 of 0 found this helpful
More details on the Electro-Voice ELX 112P
Features & specs
|Drivers per speaker||2|
|Woofer Size (inches)||12|
|Tweeter Size (inches)||1.5|
|System Frequency response||60-18000|
|RMS Power rating||1000|
|Program Power rating||---|
|Peak Power rating||---|
|Mic Inputs||2 XLR/TRS combo|
|Line Inputs||XLR/TRS (2)|
|Tone Controls||2 EQ Modes|
Two-Way Driver System: The ELX112P utilizes a two-way driver system with an Electro-Voice-engineered 12" bass woofer and a 1.5" high-frequency titanium compression driver to provide exceptional audio quality and reliability. The ELX112P provides a coverage area of 90° x 50°.
1000W Class-D Amplifier: The Electro-Voice ELX112P a 1000W Class-D high-efficiency amplifier that runs cool without fans.
Balanced & Unbalanced Inputs: Balanced Mic and line inputs (Input 1/Input 2) with combo XLR/1/4" and RCA inputs provide versatile mix capabilities. Input 1 also features a stereo unbalanced RCA input can be used for connecting sources, such as a CD player or MP3 player. You have independent level control for Inputs 1 & 2.
XLR Output: An XLR output is used for daisy-chaining multiple ELX full-range or subwoofers together. There is a selectable 100Hz high-pass filter for use with an external subwoofer.
EQ: The ELX112P offers two EQ Modes - EQ Flat, and EQ Mid Cut. EQ Flat works best when the loudspeaker is used for vocal monitors or for speech. EQ Mid Cut works best for music playback and applications that require enhanced bass & treble.
Rugged & Portable Enclosure: The ELX112P's enclosure features stylish-yet-rugged 15mm plywood construction with textured finish. The speaker enclosure's lightweight materials, balanced design, and ergonomic handles offer convenient transport, set-up, and load-out.Mounting Options: The Electro-Voice ELX112P can be used as a floor monitor with its built-in 60° angle, pole-mounted or stacked with an ELX subwoofer (sold separately), or mounted on a tripod speaker stand (sold separately) via its 35mm (1-3/8") socket.
