About the MATCH MEC HD-Audio USB Interface

Get your digital input here
Get your digital input here
If you're a MATCH UP 7BMW user and want the cleanest sound possible, this USB extension card may be just what you need. Your smartphone or tablet becomes a high-definition music player that streams its digital output directly into your sound system via this USB interface, with no degradation of the signal by another digital-to-analog conversion. This MATCH extension card (MEC) module handles a PCM format digital input with sampling rates up to 192 kHz with 32-bit resolution.

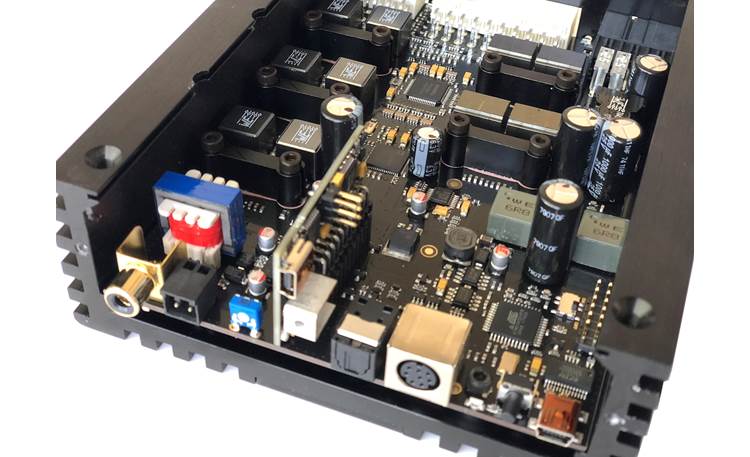

Mounts inside the amp
To install a MATCH Extension Card, you'll need to remove the side panel of your amp and replace it with a new side panel that comes with this module. MATCH includes step-by-step instructions and an installation tool to help you mount the extension card inside your MATCH UP 7BMW.
Note: Connection cables are not included — a miniUSB cable plus a device-specific adapter are required for operation. This USB connection does not support battery charging.
Product highlights:
- miniUSB input interface for a MATCH UP 7BMW amp/processor
- PCM digital input: 32 kHz to 192 kHz sampling rate; 16-, 24-, or 32-bit resolution
- supports Windows, macOS, iOS, and Android devices
- replacement side panel and installation tool included
- warranty: 2 years
- Our 60-day money-back guarantee
- MFR # MEC USB-UP7BMW
What's in the box:
MATCH MEC HD-Audio USB Interface owner's manual
- HD/USB card
- Replacement side-panel
- 2mm Allen wrench
- Hex-head screw
- Instructions
Reviews
Customer reviews
Loading reviews...
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the MATCH MEC HD-Audio USB Interface

Product Research
Features
Overview: The Match HD-Audio/USB Extension Card is one of the optional add-on modules for the Match UP 7BMW and UP 7DSP amplifier/processors. This Match Extension Card adds a high resolution audio USB (mini type-B, 2.0) input, turning your PC or smartphone into an HD-Audio player. The direct digital signal transmission from the music source to the DSP allows lossless audio processing, up to 192 kHz / 32 Bit, giving superior sound quality and is compatible with Windows, macOS, iOS, and Android devices. The HD-Audio/USB Extension Card also provides the highest jitter immunity with an asynchronous USB connection using its own clock generators. This Extension Card comes with a replacement side-panel for the amplifier, providing the extra slots needed.
Note: The HD-Audio/USB Extension Card does not support charging of USB devices and no connection cables are provided.
Compatibility: The Match HD-Audio/USB Extension Card is compatible with Match UP 7BMW and UP 7DSP amplifier/processors.
Specifications:
- Input sampling rate: 32 kHz to 192 kHz / 16, 24, or 32 Bit
- Input format: PCM
- Supported device OS: Windows, macOS, iOS, Android
- Card dimensions:
- Width: 1.09"
- Height: 0.453"
- Depth: 1.850"
