2008-2013 Toyota Highlander

2008 • 2009 • 2010 • 2011 • 2012 • 2013

toyota highlander

In a Nutshell

This article will explain how to install new car stereo gear in your Toyota Highlander. Check it out and then use our vehicle selector to find the gear that will fit your SUV.

The stock speaker systems, especially the JBL, aren't terrible, so we suggest replacing the receiver first. Depending on which receiver you choose, you'll get much better sound and vastly improved connectivity. The stock navigation receiver is challenging to replace, so talk to us about other options.

Replacing the speakers isn't hard, but it is interesting. Still, it's a good project for the average DIY-er and the audio improvement will be worth the effort. To get the most out of your new system, add an amplifier for the speakers and upgrade the JBL subwoofer to boost your bass.

Full Story

Overview of the Toyota Highlander

Is it just us, or is it interesting that Toyota's 4Runner is actually the choice for driving into the highlands, while the Highlander is the one to buy for running around town?  Okay, maybe it is just us….

Theoretical nomenclatural absurdity aside, the third-generation Highlander is pretty much everything you'd want in a family-style SUV. The Camry-based chassis is competent, the interior is comfortable, and it's not a minivan. There's plenty of cargo room for all the things you need to ferry from one place to another, and available third-row seating means it'll hold up to eight people, provided that the last few are either small children or full-grown adults you don't like very much.

The Highlander is a reliable, versatile vehicle that'll give you years of quality service, and you'll enjoy those years a lot more if you upgrade to a higher-quality audio system.

This article is an overview of your vehicle's audio system and its upgrade options. If you're looking for step-by-step instructions on how to install a car stereo or speakers in your Highlander, there's nothing better than our exclusive Crutchfield MasterSheet™. This detailed, well-illustrated document is free with your Crutchfield order, or you can purchase one separately for $9.99.
toyota highlander radio

The standard radio isn't that hard to replace, but the nav receiver is a different story (Crutchfield Research Photo)

Factory stereo system

Toyota knows its customers, so they made sure the Highlander stayed in step with the technological times. The base stereo system was decent enough, and the optional 9-speaker JBL system was better still. The AM/FM/CD receiver could be upgraded to a navigation receiver, too.  Like we said, not bad. But not great, either.

If you have the regular factory receiver, you can choose from a healthy number of single-DIN (2" tall) and double-DIN (4" tall) aftermarket receivers. You'll lose some factory functions when you remove the old one (USB, AUX, satellite radio, and hands-free calling, for example), but you'll be able to replicate them with a new receiver.

Highlanders with factory navigation systems

Replacing the nav receiver is a lot tougher, because there's no dash kit available at the moment — unless you have the 2013 Highlander.

There are some other ways to improve your sound without replacing the receiver, and we'll touch on some of them in this article. You can also speak to a Crutchfield Advisor to learn more about your options.

When you order your new receiver from Crutchfield, you'll save big on the dash kit (where applicable) and wiring harness adapter needed for installation. That harness also allows you to retain your factory backup camera or add an aftermarket model.

toyota highlander radio removal

There are some slight differences in how you approach the 2008-2012 and 2013 radios (Crutchfield Research Photo)

Replacing your factory radio

Removing the stock radio is a pretty uncomplicated process, so even a first-time DIY-er can probably handle it with the help of the Crutchfield MasterSheet that's included with your stereo or speaker purchase. You'll need some basic tools and a bit of patience, but it's totally do-able.

The first thing you'll need to do is set the parking brake and disconnect the negative battery cable to prevent any electrical short. Once that's handled, crawl into the driver's seat and, using the shift lock release, place the gearshift in its lowest possible position.

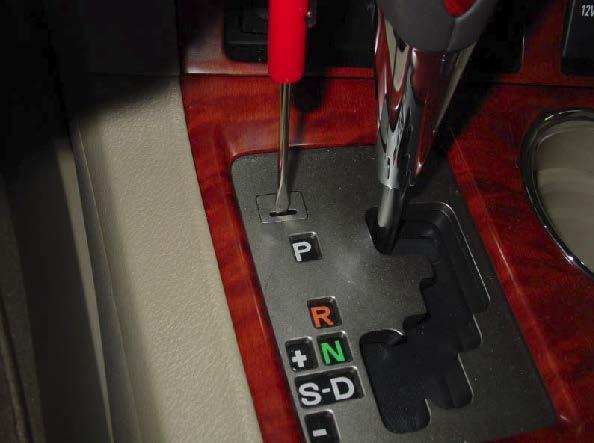

Toyota Highlander shift lock

Use the shift lock release to move the gear shift (Crutchfield Research Photo)

Use a panel tool to pry out the climate control panel to release the retaining clips. Disconnect the harnesses and remove the panel. Remove two exposed 10mm screws from the lower radio brackets, then pry out the upper vent trim panel to release those retaining clips and remove the panel. Remove the two exposed 10mm screws from the upper radio brackets, then pull out the radio assembly and disconnect everything.

Depending on the model year, there are some mild differences in how you'll install your new receiver. The 2008-2012 trucks are all the same, but the 2013 models differ just a bit. None of this is hard to deal with, though, and it's all explained in your MasterSheet.

Once the new stereo is in place, be sure to test it out to make sure it's working. You'll do this by reconnecting all of the wiring harnesses including the airbag, then reconnecting the battery. If everything's working properly, you're ready to put the dash back together. Just don't forget to disconnect the battery again before you start on the speakers.

Tools needed: Panel tool, 10mm socket, ratchet and extension

Steering wheel audio controls

It's relatively easy to retain the steering wheel audio controls when you install a new stereo in your Highlander. When you enter your vehicle information, our database will choose the adapter you need to make your factory steering wheel controls work with your new receiver.

Shop for car stereos that fit your Toyota Highlander

toyota highlander rear door speaker removal

If you're a DIY-er, replacing the Highlander's speakers is a rewarding way to spend an afternoon (Crutchfield Research Photo)

Replacing your factory speakers

Speaking of speakers, the Highlander has them in the dash and doors, plus the JBL-only rear hatch subwoofer. When you're replacing any of the low-impedance JBL speakers, remember that installing higher-impedance aftermarket speakers will result in lower volume levels. Shop accordingly.

toyota highlander tweeter

Replacing the dash tweeters is a really simple thing to do (Crutchfield Research Photo)

Removing the dash tweeters

The dash tweeters, which can be found in both standard and JBL systems, are pretty easy to deal with. Just pry up the rear edge of the speaker grille to release two clips, then get the grille out of the way. Remove the two 10mm screws securing the speaker, then pull it out and disconnect it.

A variety of component speaker tweeters will fit here, and the only real hitch is with the wiring. If you have the JBL system, you can connect the new tweeter's wiring adapter to the vehicle speaker harness. With the standard system, you'll need to use Posi-Products speaker connectors to make that connection. There's also no mounting bracket available, so you'll need to use our universal backstraps to secure your new tweeters. Hot glue or silicone will work, too, if you're creative.

The new speakers might not come with mounting screws, so check the box before you start and head to the hardware store if you have to.

Tools needed: Panel tool, 10mm socket, ratchet and extension

Hybrid note

A hybrid's gas-electric hybrid powertrain makes replacing the stereo is a little more complicated. As you might expect, hybrid Highlanders contain some very sensitive electronics, so here are a couple of things to keep in mind:

  • Be sure to only use a multi-meter when testing wires. NEVER use a test light to test wires in this vehicle. Doing so could cause some serious (by which we mean dangerous and expensive) damage.
  • A hybrid Highlander is not the SUV to choose if you want to build a massively powerful audio system. The thirsty current draw of a high-powered stereo is not a good thing for the hybrid system, so don't exceed a 30-amp current draw or 350-watt RMS power rating.
toyota highlander jbl front speaker

The JBL speaker system announces itself with these little orange emblems (Crutchfield Research Photo)

Removing the front door speakers

The front door speakers aren't hard to deal with, but there are some minor differences between the base and JBL speakers. Nothing complicated, but worth noting. Which is why we noted them in your Crutchfield MasterSheet.

You'll need to remove the door panels, a process that begins with prying off the sail panel. Start at the top and work gently.

Pry out the screw cover behind the door release and remove it, then remove the exposed Phillips screw. Starting at the bottom edge, pry off the door pull handle cover, then remove the two exposed Phillips screws. Pry around the sides and bottom of the door panel to release those retaining clips. Disconnect the door lock and release cables, then disconnect the wiring harnesses and remove the door panel.

Removing the speakers is pretty uncomplicated, but this is where you run into those differences we talked about. The JBL's are a bit easier, mostly because you'll need to drill new mounting screw holes to replace the base models. The drilling is easy enough, but you are drilling into your own truck, so know what's around the area you're drilling into, work carefully, and wear eye protection. All the nitty-gritty details can be found in your Crutchfield MasterSheet.

If you need mounting brackets, they'll be included with your speaker purchase. You might need mounting screws, too, and they might not be included with your speakers. Check the speaker box to make sure they're there before you get started.

Once everything's installed, test the speakers to make sure they're working before you put the doors back together. Also check to be sure that the speaker wires don't interfere with the windows and locks.

Tools needed: Panel tool, Phillips screwdriver, cordless drill and bits (non-JBL only)

toyota highlander rear door

Replacing the rear door speaker isn't hard, and it's well worth the effort (Crutchfield Research Photo)

Removing the rear door speakers

Replacing the rear door speakers starts with removing the door panels. A variety of speakers will fit, and the adapter brackets for the smaller speaker are available at a deep discount with your Crutchfield speaker purchase.

With the base speakers, the process is quite similar to what you did up front, including the drilling. Be patient, wear eye protection, and be sure to check the drilling depth and location to avoid damaging the vehicle. Your MasterSheet contains detailed, illustrated instructions for the entire process.

The JBL system's rear speaker replacement process is also similar to the front door version. Unlike the non-JBL system, you won't have to do any drilling. Remember, replacing the low-impedance JBL speakers with higher-impedance speakers will result in lower volume levels.

Tools needed: Panel tool, Phillips screwdriver, cordless drill and bits (non-JBL only)

toyota highlander rear hatch

Replacing the hatch-mounted subwoofer is easy to do, but it might be hard on your neck (Crutchfield Research Photo)

Removing the hatch door subwoofer

The JBL sub in the rear hatch is an 8" dual-voice coil model. That said, it's a bit larger than a standard 8" sub and has a non-standard bolt pattern, so you'll need to fabricate a bracket to install an aftermarket sub. There's also no wiring harness adapter available, so you'll need to use Posi-Products speaker connectors to connect it to the factory wiring.

The factory amp (located under the front passenger's seat) only sends bass frequencies to this location, so if you install anything that isn't a sub back here, it'll only play bass. Like the other JBL speakers, the sub is a low-impedance model, so installing higher-impedance aftermarket speakers will result in lower volume levels. We recommend installing a 2-ohm subwoofer.

You'll need to remove the trim panel to get to the sub, a process that begins with prying off the upper window trim panel to release the retaining clips. Remove that, then pry off the power liftgate arm cover.

Pry off the left and right side window trim panels. Pry off the screw cover and remove one exposed 10mm screw from the pull handle anchor, then pry around all sides of the liftgate trim panel to remove the panel. Remove the four 10mm screws and two retaining clips securing the sub to the door, then disconnect the wiring harness and remove the sub.

Fabricating a mounting bracket requires a certain amount of "handiness," so if you're not comfortable doing that, consult your local car audio installation professional.

Tools needed: Panel tool, 10mm socket, ratchet and extension

Shop for speakers that fit your Toyota Highlander

toyota highlander cargo area

If you're thinking about addind a sub box, the Highlander offers all the space you'll need (Crutchfield Research Photo)

Bass in your Highlander

Like most SUVs, the Highlander offers plenty of space for a subwoofer box. With the third row seats in the "up" position, we measured a 43" W x 14" H x 7"/10" D space, but obviously there's more if you don't have the third-row seats at all.

The size of the sub box you want will depend on how much bass you like to hear and how much space you need to hang onto for gear, groceries, and stuff. If you like space more than bass, you can go with a smaller powered subwoofer.

dynamat

Seal in sound and seal out road noise with Dynamat

Other options for your Highlander

Here are some other ways to upgrade your Highlander.

Sound damping to block noise

Highlanders are reasonably quiet as SUVs go, but as trucks age, creaks and groans can start to intrude on your driving serenity. A Dynamat Xtreme Door Kit is the perfect way to seal in sound. This heavy-duty insulating material is easy to install, and it really makes a difference. One kit will take care of the front doors in your SUV. The rear doors and the rear hatch are also good areas to target if you build a serious sound system.

Add an amplifier (or two) for better sound

A new amplifier will help you get the most out of your new speakers. You'll get cleaner power (and a lot more of it), which will result in much, much better sound. A 4-channel amp will help your new speakers deliver crystal-clear details in your music, and a mono amp can provide the juice your subwoofer needs to pump out the bass.

Floor mats to protect your carpet

No matter how much you pamper your Highlander, you're eventually going to get involved in some sort of truck-like activity that gets you and/or it dirty. When that happens, it's a good idea to have a set of WeatherTech liners on the floors and especially in the cargo area. These incredibly durable mats trap moisture, contain dirt, and keep your factory carpets looking good. To see all the mats that fit your truck, enter your vehicle info.

Security systems to protect your stuff

Installing a security system in your Highlander isn't easy (security systems rarely are), but it's less complicated than it could be. Our Crutchfield Advisors can help figure out what you need to get the job done, but we usually recommend taking your car and your new security gear to a professional installer.

Shop for car security systems for your Toyota Highlander

Find the audio gear that fits your car or truck

Visit our Outfit My Car page and enter your vehicle information to see stereos, speakers, subs, and other audio accessories that will work in your vehicle.
