Amplifier Inputs: The amp has three inputs; RCA, mini-jack,
and Bluetooth. All three are inputs are live simultaneously, so if more than one
is connected, selection must be made by turning all but one source off.
Note: If more than one source connected to the line
inputs (RCA and 3.5mm) is turned on, it's likely you'll hear static through
the speakers in addition to music, even if the source is muted or paused.

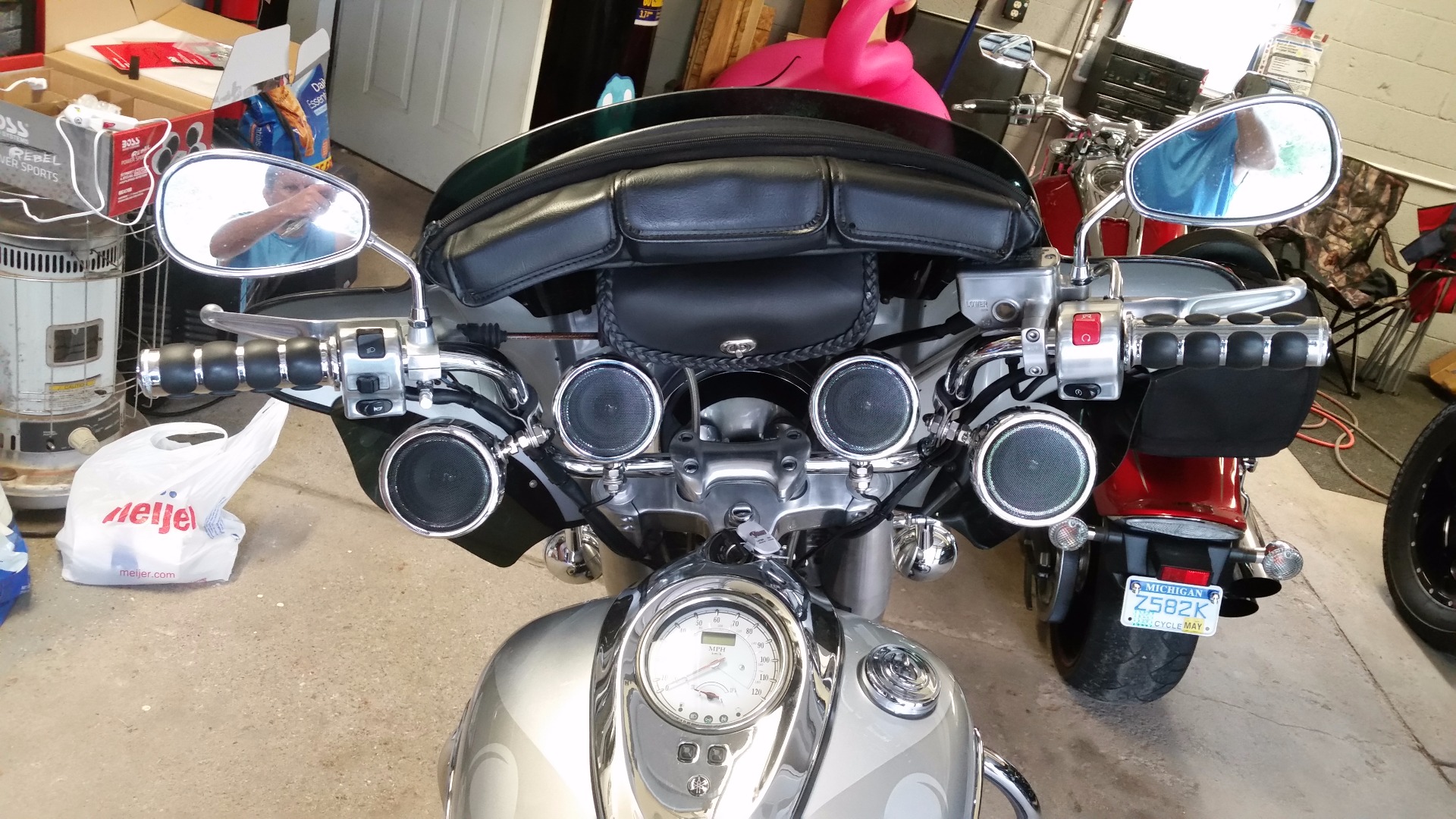

Speaker Mounting: The speakers are designed to mount to a
round tube using the adjustable stainless steel clamps. Six different spacer
sizes are included for use with tubes from 0.75" to 1.25" (approximately).
Once the speakers are in place, but before the brackets are tightened, you can
adjust the mounting angle. After mounting, the speakers can still swivel almost
Wiring: All the wiring is fixed length and already attached
to the speakers and amplifier. Each speaker has a 37" input wire attached
and the wires from all four speakers are attached to a single Molex plug. The
speaker output wires and the power and ground wires attached to the amplifier
are routed together for 18" in a nylon sleeve. Three inches from the sleeve,
the speaker wires are attached to a Molex plug (which connects to the plug attached
to the speaker wires). The power and ground wires extend 6-1/2' beyond the sleeve
with a 10 amp fuse in-line with the power wire.
Volume: The rotary volume control has a 76" cable attached
that plugs into the amp and mounts in a round hole in a panel, 0.27" diameter.
- Width: 4-1/8"
- Height: 4-1/4"
- Mounting Height: 5-1/2"
(above center of the bar to which the speaker is
- Depth: 4-3/4"
- Width: 2-5/8"
(3-1/8" including mounting flange)
- Height: 1-5/8"
- Length: 4-3/8" (5"
- Voltage: 10-16 volts DC
- Max Power: 1,000 watts
- THD: <0.1%
- Signal to Noise Ratio: >85 dB
- Channel Separation: >50 dB
- Frequency Response: 80 Hz - 15 kHz
- Sensitivity: 150 mV - 1 V
Extended Warranty: Units purchased from Crutchfield after
3/1/2015 carry an extended warranty relative to purchases from Boss' standard
dealer network. The new warranty is 3 years parts and labor.
