2-DIN Chassis: The DNX6160 has a
2-DIN chassis (also known as Double DIN or size DD), and will fit in many
vehicles with a large dash opening. The unit can be ISO-mounted using factory brackets, or Euro-mounted using the
supplied mounting sleeve.
Note: As always, please consult the
Crutchfield Car Selector to verify fit with your vehicle.

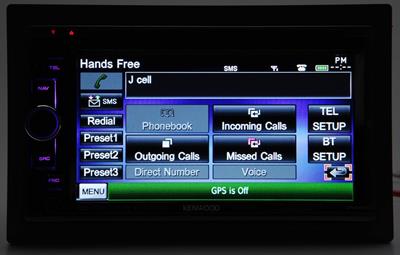

6.1" Touchscreen Display: The Kenwood DNX6160 features
a fixed 6.1" wide, 16:9 touchscreen display with a TFT active matrix
system. The screen has a resolution of 800 (H) x 480 (V) x RGB with 1,152,000
total pixels. This unit has touch screen controls with interactive video
graphics, making menu navigation easy. The unit has a front-loading disc-slot to
make loading your disc easier because there is not panel to slide or fold-down.
Selectable Screen Viewing Modes: You can choose from the
following screen modes for DVD, Video, iPod, USB, and Rear-camera playback:
- Normal: Displays 16:9 widescreen format
pictures that fill the entire screen width, and 4:3 (conventional
TV) pictures display with black bars on either side.
- Full: Expands 4:3 pictures horizontally
to fill the entire width of the screen, distorting the picture
slightly but retaining full image height.
Expands 4:3 pictures
horizontally only at the edges.
- Zoom: Expands 4:3 pictures both
horizontally and vertically, filling the screen without
distorting the picture but cutting off the top and bottom
Display Adjustment: You can adjust the unit's display
brightness, contrast, color, tint, and black level to suit your viewing needs.
Multi-Language Display: For your convenience, this unit is
equipped with a multiple language display. You can select the language which is
best suited to your first language - English, French, Spanish, German, Italian,
Portuguese, Japanese, or Chinese.
Front Panel Controls With Changeable Illumination: In addition
to the touchscreen controls, the unit includes frequently used buttons and a rotary-dial
along the left edge of the screen. You can adjust the head unit's button illumination
from the following preset colors - Blue, Purple, Sky Blue, Aqua Blue, Yellow, Green,
Amber, Red, Pink, White or Scan (Scans through all preset colors). You can also select
three custom user colors that are adjusted between Red, Green, and Blue values from
0-31 each. In addition, you can download still images for use as the unit's background
from a connected USB thumbdrive.
Parking Brake Detection: To prevent the displaying of video
while the vehicle is in motion, the light green wire in the supplied 22-pin harness
must be connected to the vehicle's parking brake detection circuit. While the vehicle
is in motion (parking brake off), you can still view all of the other displays and
Dimmer: The dimmer function will dim this unit's display automatically
when the vehicle light switch is turned On when you connect orange/white
Illumination wire of this player's harness.
Security Indicator: The Security Indicator feature helps to protect
the Kenwood DNX6160 against theft. Turning this function "On" allows the security
indicator light on the front-panel of the headunit to flash when your vehicle's
ignition is off.
Navigation: With built-in Garmin navigation technology and
NAVTEQ mapping software, the Kenwood DNX6160 features on-screen maps of
the United States, Canada and Puerto Rico which includes over 6 million Points
of Interest. You can follow calculated on-screen routes to your destination
using the headunit's built-in navigation software. As you travel, the DNX6160's
navigation system guides you to your destination with voice prompts, arrows, and
directions along the top of the map. Your route is marked with a highlighted
line and an arrow, while your destination is marked with a checkered flag.
SiRF Star III: The SiRF Star III GPS chipset is so sensitive
that it's forgiving of less than optimal antenna placement, giving you
additional placement options.
GPS Antenna: The DNX6160 comes supplied with a GPS antenna
that features a magnetic base and an attached 16.5' cable terminated by a
proprietary plug which connects to GPS-ANT input on the back of the headunit.
The unit also comes supplied with a self-adhesive magnetic base if you are
having trouble finding a flat metal surface to mount the antenna.
Text-To-Speech Voice Prompts: The unit's text-to-speech
voices "read and speak" the same words that are displayed on the unit's screens.
The voices have an extensive vocabulary and they pronounce the street names as
you approach turns. The DNX6160 also features pre-recorded voices, which have a
limited vocabulary and do not speak names of locations or streets.
Find Locations and Routes: The unit's "Where To?" menu
screen offers the following features to help you find your destination.
- Browse Map: Allows you to search for a destination by
touching and dragging the map.
- Go Home: Store one home location to allow you to
calculate a route home from any current location.
- Address: Input your destination address by house
number, street, and city.
- Cities: Allows you to search by city's name.
- Intersection: Allows you to search where to streets
- Routes: Allows you to select from previously created
- Coordinates: Allows you to search your destination by
longitude and latitude values.
- Phone Number: Allows you to search your destination by
enter the place's phone number.
- Recently Found: Choose from one of your 50 most recent
destinations or waypoints.
- Favorites: You can save all of your favorite places in
the navigation system, so you can quickly navigate to them later.
- Points-of-Interest: Allows you to search for over
6-millions points of interest in the following categories: Food and Drink,
Lodging, Fuel, Transit, Shopping, Bank or ATM, Parking, Entertainment,
Recreation, Attractions, Hospitals, Community, or Auto Services. The "Spell
Name" feature allows you to enter a point of interest by name.
- Extras: You can manually load custom points of interest
(POI) databases, available from various companies on the Internet. Some
custom POI databases contain alert information for points such as safety
cameras and school zones. The navigation system can notify you when you
approach one of these points (Proximity Alert). You can download the custom
POIs onto a CD-R or DVD-/+R, which can then be loaded into the unit's
Search Modes: The navigation system automatically searches
for places near your current location. You can also choose to have the
DNX6160 search for places in a different city, a recent destination, a favorite
destination, projected destination, or along your current route.
Multiple Destination Routing (Via Points): You can add
intermediate destination points (via points) to your routes as you create it.
You can also add points to your route after its been created when you go to edit
the route. You can program up to 500 via points for long trips.
Where Am I?: The "Where Am I?" feature gives you instant
access to important information in case of an emergency. When you select "Where
Am I?" from the menu, you get the coordinates (including elevation) of your
current position, plus the nearest address and intersections. There are also
menus to help you locate the nearest hospitals, police stations, gas stations,
and roadside assistance. You can also save the location for future reference.
2D/3D Map: You can changes the perspective of the map from
2D North-Up (displays the map in 2 dimensions with North at the top), 2D
Track-Up (displays the map in 2 dimensions with your direction of travel at the
top of the screen), 3D Track-Up (displays the map in 3 dimensions with your
direction of travel at the top of screen).
Color Modes: Select between Day (for a bright background),
Night (for a black background) or Auto (to automatically switch between the
Route Preference: Selects the preference for your
calculation between Faster Time, Shorter Distance, Less Fuel, or Off Road.
Avoidance Setup: This feature allows you to enter specific
areas and roads to avoid in your routes. You can choose to avoid U-Turns,
Highways, Toll Roads, Traffic, Ferries, Carpool Lanes, or Unpaved Roads.
Auto Reroute: If you happen to depart from your original
route, the internal navigation system recalculates the route and provides new
Detour: The navigation system attempts to get you back on
your original route as quickly as possible, after calculating a detour. If the
route you are currently taking is the only reasonable option, the DNX6160 might
not calculate a detour.
Turn Pages: The following pages help guide you along the
turns of your calculated route.
- Turn-List: When you are navigating a route, the Turn
List page displays turn-by-turn instructions for your entire route and the
distance between turns.
- Next Turn: When you are navigating a route, the Next
Turn page shows the turn on the map and the distance and time left before
you reach the turn.
Trip Log: The Trip Log creates a bread crumb trail (trip
log) of your movement. At any time the entire track log can be displayed on the
map. You can also reset the track log whenever you like.
Trip Computer: The trip computer shows current speed,
current direction, distance to destination, total distance traveled, average
speed (including stopped time), average speed while moving, maximum speed, total
trip time, total moving time, and stopped time. You can reset just the maximum
speed or reset the entire trip computer at once.
ecoRoute: The ecoRoute feature calculates your vehicle's
fuel economy, carbon footprint, the fuel price of navigating to your
destination, and offers tools for improving fuel efficiency. The first time you
access the ecoRoute features, you will be asked to enter fuel and mileage
information (Fuel Type, City Fuel MPG, HWY Fuel MPG) about your vehicle.
- Fuel Report: If you have entered your vehicle profiles
and the current fuel price, the DNX6160 calculates the average fuel economy
for your vehicle, your carbon footprint, and the cost of the fuel consumed.
- ecoChallenge Tool: The ecoChallenge tool helps you
maximize your fuel economy by scoring your driving habits. The high your
overall score for a driving challenge, the more fuel you could save. You
overall score is the average of these three scores:
- Acceleration: Gain points for gradual acceleration;
lose points for rapid acceleration.
- Deceleration: Gain points for gradual braking; lose
points for hard braking.
- Speed: Gain points for driving at the best speed
for conserving fuel, which is 45-60mph for most vehicles.
- Mileage Report: Mileage reports provide the distance,
the time, the average fuel economy, and the fuel cost of navigation to a
destination. A mileage report is created for every route that you drive. If
you stop a route on your navigation system, a mileage report is crated for
the distance you traveled.
- Less Fuel Routes: The Less Fuel rote is calculated
based on speed limit and acceleration data.
Note: The data provide by the ecoRoute feature is only
an estimate. The data is not actually read from your vehicle.
Traffic Information Ready: The Kenwood DNX6160 allows you to
add-on either a TMC traffic receiver or a NAVTEQ traffic receiver (both sold
separately) to get up-to-date, real-time traffic information over FM broadcast.
- TMC (Traffic Message Channel) Receiver: Using an
optional Kenwood FM Traffic Receiver (113GTM10,
sold separately), the navigation system can receive, display, and use
traffic information. The FM TMC traffic receiver receives traffic
information that is broadcast over the FM Radio Data System. The traffic map
shows color-coded traffic flow and delays on nearby roads. When a traffic
message is receive, you can see the event on the map an change your route to
avoid the traffic incident. When calculating your route, the navigation
system examines the current traffic and automatically optimizes the route
for the shortest time.
- NAVTEQ Traffic Receiver: The optional Kenwood KNA-NT100
NAVTEQ Traffic Receiver (113KNANT10,
sold separately) receives real-time traffic data from NAVTEQ and displays it
Kenwood in-dash navigation headunit's video display. Real-time traffic is
delivered over FM radio using a radio data system (RDS) sub-carrier channel.
The NAVTEQ Traffic receiver's data is designed for seamless integration with
the headunit's digital map content. NAVTEQ Traffic provides comprehensive,
reliable nationwide coverage with traffic flow conditions and speed values.
It notifies you of unplanned incidents such as accidents and stalled
vehicles, as well as planned incidents such as road construction and
Note: A subscription is required to receiver the Traffic
Message Channel (TMC) service. Because NAVTEQ traffic is subsidized by
unobtrusive pop-up advertising there is no subscription fees. Service is
offered in 80 US Markets
Tools: The DNX6160 offers tools you can use as you travel:
- World Clock: The world clock allows you to display the
current time for four locations throughout the world. You can also display a
map of the world showing which portions are in daylight and which are in
- Calculator: The calculator allows you to perform simple
Safe Mode: Safe Mode disables all navigation system
functions when the vehicle's parking break is disengaged, that require
significant operator attention and could become a distraction while driving. You
will need to engage the parking brake to enter addresses or other advance
navigation functions when you have the unit set to Safe Mode.
Software/Map Data Updates: To update the navigation
software, you must have a microSD card, a microSD card reader, and an Internet
connection. The navigation system will provide periodic notification at startup
when the preloaded maps are considered out of date. You can purchase a microSD
card of updated map data from Garmin.
Note: The unit's microSD slot is located on the front-panel. The microSD card is only used for software and map updates, and cannot be used to playback audio/video content.
24-Bit D-A Converter: For superb quality audio
playback from DVDs, CDs, and USB media, the DNX6160 is equipped with a
24-bit digital-to-analog converter.
MOSFET Amplifier: The Kenwood DNX6160 is equipped with a
MOSFET amplifier. Compared to conventional power supplies, the MOSFET
amplification circuit is smaller and more efficient, and it delivers increased
power with less distortion and absolutely zero on/off switching noise. More
power means louder and cleaner music at higher volumes because you're not
pushing the limits of the amplification circuit. The power output specs for the
DNX6160 are as follows:
- Full Bandwidth Power: 22 watts RMS x 4 channels (at 4
ohms, 20-20kHz, 1% THD)
- Maximum Output Power: 50 watts x 4 channels
Speaker Type Setting: This feature tailors the System Q EX
Sound Control settings according to the type of front speakers in your vehicle.
You may select Standard (for speakers with a general diameter), Narrow (for
speakers with a small diameter), Middle (for speakers with
a medium diameter), or Wide (for speakers with a large diameter).
System Q EX Sound Control: Eight EQ curves are preset into
memory, allowing you to recall the best preset EQ curve for different types of
music. The preset curves are named Natural, Rock, Pops, Easy, Top 40, Jazz,
Flat, and User (you may store your own settings under the User Memory EQ curve).
Each preset has its own adjustment for the bass center frequency (40, 50, 60,
70, 80, 100, 120, or 150Hz), bass level (-8 to +8), bass Q factor (1.00, 1.25,
1.50 or 2.00), bass extension (On or Off), middle center frequency (500Hz,
1.0kHz, 1.5 or 2.0kHz), middle level (-8 to +8), middle Q factor (1.0 or 2.0),
treble center frequency (10.0, 12.5, 15.0 or 17.5kHz), and treble level (-8 to
+8). The System Q EX can be turned off in the menu, still allowing you to adjust
the bass (100Hz), middle (1kHz), and treble (10kHz) levels only from +/-8dB.
3 Sets of Preamp Outputs: The DNX6160 features front, rear,
and subwoofer 2-volt preamp outputs. The front and rear preamp outputs feature
fade control, while the subwoofer preamp output is non-fading.
Advanced Crossover System: The
System E's+ Advanced Crossover system allows you to tailor your system with
selectable crossover points for all channels. For the front and rear channels
(using either speaker level or preamp output),
there is a high-pass filter with independently selectable crossover
points of 40Hz, 60Hz, 80Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz or Through (no
filter). The non-fading subwoofer preamp output provides a low-pass crossover
filter (40/60/80/100/120/150/180/220Hz), phase (normal/reverse), and independent
volume control (-50 to +10).
Dolby Digital: The DNX6160 supports playback of Dolby Digital
and DTS 2.0 DVD discs and will convert multi-channel Dolby Digital sources to
Dynamic Range: The dynamic range can be adjusted by selecting
either Normal, Wide or Dialog. Dialog makes the total sound volume become larger
as compared with Wide and Normal, allowing you to listen to the movie's dialogue
more clearly. This is effective only on Dolby Digital software.
Loudness: The Loudness feature compensates for low and high
tones during low volume. You can turn this feature either on or off. Only the
low tone is compensated for when the tuner is selected as a source.
Volume Offset Control: The level of each source may be
independently adjusted to prevent radical leaps in output volume when switching
from one source to another. The available settings range from -15 to 0.
Source Tone Memory: This feature allows you to store System
Q-EX, and bass, middle and treble tone settings for each source (Disc, Tuner, USB, Aux,
Setup Memory: Audio Control, AV-IN Setup, AV Interface,
Navigation, and Audio Setup settings can be
memorized and recalled at any time. When the settings are cleared when the unit
is disconnected from the battery, they can be restored.
Dual Zone Capability: The unit's dual zone control allows
you to independently set the source for the front and rear channels. You can set
the front channels to Tuner, Sirius, XM, DVD, Video, USB, iPod, Bluetooth,
Navigation, or Standby. You can set the rear channels to DVD, Video, iPod, USB, or
Off. You can adjust the volume of the 2nd Zone independently from 0 to 35.
CR-2 Tuner: The DNX6160 uses Kenwood's CR-2 tuner provides
high signal strength for clear radio reception. The tuner features the Clean
Reception System Circuit (CRSC) for improved rejection of distortion due to
multi-path. You can choose one of three tuning modes: Auto 1 (seek tuning), Auto
2 (cycles through and tunes the selected band's preset stations only with each
button press), or Manual.
Radio Data System (RDS): The unit's tuner features RDS
(Radio Data System). RDS is a service used by some radio stations to transmit
data outside of normal radio broadcast signals. When an RDS station is received,
you can immediately find out what kind of data is being transmitted by looking
at the program service name which appears in the display after the frequency.
RDS features an emergency transmission function which interrupts regular
programming to broadcast an emergency announcement (such as a tornado or severe
storm). There is also a switchable Traffic Information function, which will
automatically tune a traffic bulletin when it is broadcast, even when you're not
listening to the radio.
Station Name Preset (SNPS): This feature allows you to
assign names to radio stations. Up to 24 AM and FM stations can be named. Each
name can be up to 16 characters in length. The Preset Select menu will display
the six presets in each band either by name or frequency.
Satellite Radio Ready: There are several options for
connecting an optional XM or SIRIUS Satellite Radio tuner to this receiver:
- Sirius: To receive SIRIUS Satellite Radio, you can
connect the optional SIRIUS Universal Vehicle Tuner (607SCC1) and the
optional Kenwood Sirius Satellite Radio Interface (113CASR20V); package item
700SIRKENV; or you can connect the optional CA-SR20V Kenwood Sirius
Satellite Radio Interface and the SiriusConnect vehicle docking kit
(607SCVDOC1); package item number
700SIRKENP, along with your compatible SIRIUS Dock & Play receiver (all
sold separately). SIRIUS Satellite Radio features more than 120 streams of
original programming beamed coast-to-coast, including 65 streams of
commercial-free, digital-quality music, and news, talk, sports,
entertainment, and children's programming.
- XM: A portable XM Satellite Radio receiver can be
connected to the headunit via its auxiliary input.
Note: A subscription is also required to receive
satellite radio programming from SIRIUS or XM.
HD Radio Ready: The DNX6160 is HD Radio ready. With an
optional Kenwood HD Radio tuner (113HR300,
sold separately), you will be able to receive digital AM/FM broadcasts from
local stations where available. This new technology will significantly improve
audio quality and reception, as well as include information such as artist name
and song titles or traffic news, viewable on the receiver's display. The Kenwood
KTC-HR300 is also capable of iTunes tagging. iTunes tagging gives the ability to
tag a song (up to 50) and stores it to a connected iPod. The next time the iPod
is connected to iTunes the tagged songs are displayed with the option to
purchase them from the iTunes Store.
Note: Right now there are about 2,000 radio stations
broadcasting using digital HD Radio technology in the U.S. To find HD Radio
stations in your area, visit the HD Radio website (HDRadio.com).
External Tuner Note: You cannot connect both a Satellite
Radio Interface and HD Radio tuner to the headunit's KAB port.
Compatible Discs: The Kenwood DNX6160 supports playback of DVD-Video,
DVD-R/RW, DVD+R/RW, DVD-/+R DL, CD-Audio, CD-R/RW, CD-ROM, DTS-CD, and VCD
AAC/MP3/WMA Playback: This unit can play AAC (16-320 kbps),
MP3 (32-320 kbps) and WMA (48-192 kbps) files recorded on CD-ROM, CD-R, CD-RW
and DVD+/-R/W discs in ISO9660 Level 1/Level 2, Joliet, Romeo and Long file name
formats. Each disc should have a maximum of 8 directory levels, 254 folders per
disc, and 255 files per folder (65,025 maximum number of files and folders). During
AAC/MP3/WMA playback, the unit displays song, artist, and album information (up
to 128 characters). The unit supports ID3 Tag version 1.0, 1.1, 2.2, 2.3, and
JPEG/MPEG Playback: This
unit can play back JPEG (Baseline format: 8192 x 7680, Progressive format: 1600
x 1200) still image files recorded onto DVD-R/W, DVD+R/W, and CD-R/W discs. The unit
also supports video playback of MPEG1 (352 x 240, 362 x 288) and MPEG2 (720 x
480, 720 x 576) NTSC video files recorded onto DVD-R/W and DVD+R/W discs.
Setting: If there is a problem with the CD player reading a disc with
a special format, you can switch to a second CD Read setting which forces the
player to read the disc. CD Read setting 1 is for normal CDs and MP3/WMA discs,
while CD Read setting 2 cannot read MP3/WMA/AAC discs or VCD.
List Select: The List Select function allows you to search folders and
audio/video/pictures files stored on a disc.
DVD Display Setup: You can setup the monitor to display a 16:9, 4:3
Letter-Box, or 4:3 Pan&Scan aspect ratio when viewing a DVD disc.
Playback Screen: During DVD playback, you can control certain
operations simply by touching an area of the screen. The touchscreen has 4
functions areas. You can touch the left of the screen to start the current
chapter over, or the right of the screen to skip to the next chapter. Pressing
the top center of the screen activates the DVD Disc Menu control buttons, while
pressing the bottom center briefly displays the information screen. For VCD
playback, the top center is the Zoom control area.
Direct Search: By entering its number with the optional
remote (KNA-RCDV330, sold separately) you can directly access title, chapter,
time, track, channel, or frequency.
Video Display Adjustments: During playback of a video or still image
you can reverse the picture horizontally and rotate the picture clockwise or
Zoom: The DNX6160 features a 4 level zoom (1, 2, 3, or 4x) when
playing back video and still images.
Parental Control: Parental Control allows you to restrict
DVD playback according to a predetermined level. You can select a parental control
rating from 0-8, which is protected by a 4-digit password.
USB Port: The Kenwood DNX6160 features a rear-panel 2.0 USB
type-A port that is attached to the chassis with a 39" cord to allow for various
placement options during installation. The USB port enables playback of MP3
(32-320 kbps), WMA (48-192 kbps), and AAC (16-320 kbps) audio files; as well as JPEG
(8192 x 7680 pixels base format/1600 x 1200 progressive format) still-picture
files. The DNX6160 also supports video playback of MPEG1 (352 x 240 or 352 x 288)
and MPEG2 (720 x 480 or 720 x 576) video files from a connected portable USB mass-storage player, USB
thumb drive, or portable digital audio player. The USB port is compatible with
all USB mass storage class devices that support the FAT16 or FAT32 file system.
The head unit can recognize up to 8 folder layers, 255 folders, 255 files per
folder, and 65,025
total files. The unit can also support up to a maximum of 7,000 files per
playlist. The unit will display any recorded song, artist, and album information stored on
your connected USB device (up to 128 characters. Your USB device's rechargeable battery will be
recharged while it is connected to the USB port of the DNX6160 and the unit is
iPod High Speed Connection: The navigation headunit's USB
port and rear-panel 3.5mm A/V AUX input are compatible with select iPod/iPhone
devices when used with the optional KCA-iP302 adapter (item number
sold separately). One end of this cable plugs directly into your iPod's dock
connector while the other end of the cable uses three connectors that plug into
the back of the DNX6160. The USB type-A connector portion of the cable plugs
into the receiver's USB port and handles the control and charging of your
iPod/iPhone, so you can navigate through your music and video files using the
headunit's touchscreen controls and view song and movie info on its display. The
two 3.5mm minijack connectors of the cable plug into the unit's A/V 3.5mm inputs
and transfer the music and video from your iPod/iPhone to the Kenwood DNX6160.
By using the Auxiliary input, the music travels to the receiver as an analog
signal, so you can even play the Digital-Rights-Protected files you've stored on
- USB Connection: The USB direct connection enables
high-speed iPod data communications of 12MB/bps via the optional KCA-iP302
(3-Wire) interface. The USB connection allows your iPod/iPhone's large media
library to be loaded instantly to the navigation headunit.
- Audio/Video Playback: The Kenwood multimedia headunit
supports both audio/video playback from your compatible iPod or iPhone.
Using the optional Kenwood iPod/iPhone connector cable (sold separately),
you can enjoy audio/video playback of music and movie files stored on your
iPod or iPhone. Video can only be displayed while the vehicle is in park.
- Media Navigation: Controlling your iPod/iPhone from the
DNX6160 is seamless when used with the optional KCA-iP302 cable. The
Kenwood DNX6160 will allow you to navigate your iPod/iPhone's music library
by Playlist, Artists, Album, Genre, Composer, Song, and Podcast; or your
video library by Movie, Music Video, TV Show, Video Podcast, and Rented
Movie (your iPod/iPhone's clickwheel or touchscreen will be locked). The
DNX6160 also offers Link Search, which searches for other songs of the
currently selected artist.
- Music Information Display: The DNX6160 also supports
metadata display of music stored on your iPod/iPhone. The multimedia
headunit will display your iPod/iPhone's music file information, including -
Track number, Elapsed playing time, Song Title, Artist Name, Album Title and
- Charging: While connected and the ignition switch is
set to ACC or ON, the headunit's USB connection will power and charge your
Note: If your iPod/iPhone has no initial battery charge,
then the unit will not recognize it.
iPod/iPhone Compatibility Chart: The Kenwood DNX6160 and the
KCA-iP302 iPod adapter cable is "Made for iPod/iPhone" compatible and supports
the following iPod/iPhone model features (as of June 2010):
Model ||Generation ||Media Type ||Control
Type ||Charge |
|Audio ||Video ||Headunit ||iPod/iPhone ||Song/Artist Info ||Track Info |
|dock connector ||3rd ||N ||N ||N ||N ||N ||N ||N |
|4th ||N ||N ||N ||N ||N ||N ||N |
|mini ||1st ||N ||N ||N ||N ||N ||N ||N |
|2nd ||N ||N ||N ||N ||N ||N ||N |
|video ||5th ||Y ||Y ||Y ||N ||Y ||Y ||Y |
|classic ||80GB ||Y ||Y ||Y ||N ||Y ||Y ||Y |
|120GB ||Y ||Y ||Y ||N ||Y ||Y ||Y |
|160GB ||Y ||Y ||Y ||N ||Y ||Y ||Y |
|nano ||1st || Y || N || Y || N || Y || Y || Y |
|2nd ||Y ||N ||Y ||N ||Y ||Y ||Y |
|3rd ||Y ||Y ||Y ||N ||Y ||Y ||Y |
|4th ||Y ||Y ||Y ||N ||Y ||Y ||Y |
|5th ||Y ||Y ||Y ||N ||Y ||Y ||Y |
|6th ||Y ||N ||Y ||N ||Y ||Y ||Y |
|touch ||1st ||Y ||Y ||Y ||N ||Y ||Y ||Y |
|2nd ||Y ||Y ||Y ||N ||Y ||Y ||Y |
|3rd ||Y ||Y ||Y ||N ||Y ||Y ||Y |
|4th ||Y ||Y ||Y ||N ||Y ||Y ||Y |
|iPhone ||2G ||Y ||Y ||Y ||N ||Y ||Y ||Y |
|3G ||Y ||Y ||Y ||N ||Y ||Y ||Y |
|3GS || Y || Y || Y || N || Y || Y || Y |
|4 ||N ||N ||N ||N ||N ||N ||N |
Note: Apple iPod/iPhone software updates may change
functionality results. If you download a newer software version, you may
need to reset the headunit and your iPod/iPhone to regain functionality.
If this doesn't work, you may need to revert to the older software
version or wait until an newer software update is available. Not
compatible with iOS 4.0 for iPhone (3G/3GS) or iPod touch (2nd/3rd gen).
Front Panel A/V Input: The unit features a front-panel 3.5mm
audio/video input on the front panel of the head unit for connecting an external
A/V source. The AV Input can be labeled AUX, TV, Video, DVD, VCD, VCR or Game.
Video/Camera Input: The DNX6160 is equipped with a built-in
video/camera input with a composite video jack on the rear-chassis of the unit.
This composite video terminal can be used to connect an external video source
without audio. This input can also be used as a rear camera input for connecting
an optional rear view camera, such as the Kenwood CMOS-200 (113CMOS200,
sold separately). The video from this connection can be set to display when
switched to this input, or display the rear view camera video automatically
when the vehicle is shifted into Reverse gear. You can also display the video
of the rear view camera in a mirror image, if desired. The purple/white wire in
the wiring harness must be connected to the vehicle's reverse lamp circuit for
automatic video switching.
A/V Output: The unit features a set of stereo RCA jacks and a
composite video jack to output A/V signals to an optional monitor. You can choose
AV-In, DVD, iPod, USB or Off as the source for the A/V output.
Built-In Bluetooth: The Kenwood DNX6160 features built-in
2.4GHz Bluetooth technology (version 2.0) with a range of 32.8 ft and supports
the following profiles: HFP (Hands Free Profile), HSP (Headset Profile), OPP
(Object Push Profile), PBAP (Phonebook Access Profile), SPP (Serial Port
Profile), and SYNC (Synchronization Profile). The unit's touchscreen controls
can be used to dial a number, answer an in-coming call or end a call. The DNX6160
can even be setup to automatically answer a call. The DNX6160 also supports Call
Waiting which allows you to answer another incoming call with the current call
suspended. The unit comes with an external microphone with adjustable gain so
you can carry on your side of the conversation while listening to the other
party through your car's front speakers. During a conversation, you can switch
between the Private Mode (talking directly on your cell phone) and the Hands
Free Mode. Your cell phone must be paired with the DNX6160 before you make and
receive calls. You can register up to five cell phones (only one paired phone
can be used at a time). You can also wirelessly download the short message (SMS)
arrived at your cell-phone so that is can be read on the headunit's display.
Using the DNX6160, you can dial a phone number in one of the following ways:
- Entering a Phone Number: Allows you to directly dial a
phone number up to 32 digits.
- Speed (Preset) Dialing: Allows you to register up to 6
phone numbers for quick dialing.
- Phone Book: You can dial by using the downloaded phone
book. You can download phone book data from your cell phone to the DNX6160.
Up to 1000 numbers can be stored for each registered cell phone. Each number
can be up to 32 digits long and each name can be up to 50 characters long.
You can search for a number by the initials, or you can search the phone
book in alphabetical order.
- Call Log: The Call Log is a list of calls that have
originated from and were received by this unit that you can dial. You can
select Outgoing, Incoming, or Missed calls.
- Outgoing Call List: Allows you to dial by using the
outgoing call list. Up to 10 phone numbers are stored in the outgoing
- Incoming Call List: Allows you to dial by using the
incoming call list. Up to 10 phone numbers are stored in the incoming
- Missed Call List: Allows you to dial by using the
missed call list. Up to 10 phone numbers are stored in the missed call
- Voice Dialing: If your phone supports voice
recognition, then you can dial out by voice command. You can register up to
35 voice tags (audio sound is not output during voice recognition).
Note: Not all Bluetooth enabled cell-phones will be
compatible. Please visit Kenwood.com for a complete list of compatible
Bluetooth enabled phones.
Optional Remote Control: The
optional Kenwood KNA-RCDV330 IR wireless remote control (113RCDV330,
sold separately) unit is designed to operate this Kenwood multimedia headunit.
The KNA-RCDV330 wireless remote controller operates off of two supplied "AAA"
batteries. The remote operates off of IR transmission so the KNA-RCDV330 must be
pointed at the front-panel of your compatible Kenwood headunit within direct
line of sight.
Steering Wheel Remote Compatibility: The unit also features
an OEM steering wheel remote control input on the rear of the unit that lets you
keep your vehicle's factory radio steering wheel remote controls when used with
the optional PAC SWI-JACK Steering Wheel Control Interface Adapter (127SWIJACK,
sold separately); or the optional Metra ASWC Steering Wheel Control Interface
Note: Please consult the
Crutchfield Car Selector to see if your vehicle is compatible.
