Peavey IPR2™ 2000
IPR2 Series power amplifier — 325W x 2 at 8 ohms (non-bridgeable)
Our take on the Peavey IPR2™ 2000 by Crutchfield's Buck Pomerantz
Lightweight heavy hitter
This is definitely not your grandfather's old school lead-weight power amp. Peavey delivers the power amplifier you need — a lightweight, compact magic box that reliably sends your speakers massive amounts of power. The IPR2 2000 2-channel amplifier can put out 325 watts each to a pair of standard 8-ohm PA speakers, plenty for an acoustic act or jazz ensemble, for example, playing in a small club. This versatile amp can handle low impedances, so you could daisy-chain a couple more speakers to the first pair and up your power to 570 watts RMS per channel. Now that same band can play in a larger club or small theater using this same amp.
More power potential
For more permanent installations, like in a theater or house of worship for instance, this one little amplifier could drive up to eight speakers with a combined total power of 1,800 watts. That's enough power to fill most 500- to 700-seat auditoriums with quiet rock, pop, or jazz music.
Packed with technology
This amplifier uses a special power supply and high-speed Class D amp technology to give you high-resolution audio and highly-efficient operation. Distortion Detection Technique (DDT™) circuitry lights up a warning LED on the amp's front panel when it first senses signal clipping. The LED glows bright and steady as the DDT limits the amp's output to protect your speakers from damaging distortion. High Pass, Full Range, and Subwoofer modes let you tailor the amp's signal to match its drivers.

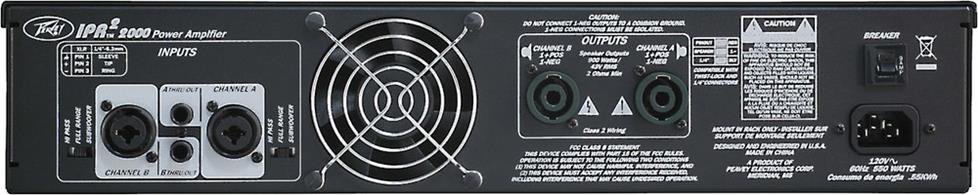

IPR2 2000 rear panel
- 2-channel power amplifier
- rated power output:
- 325 watts x 2 at 8 ohms
- 570 watts x 2 at 4 ohms
- 900 watts x 2 at 2 ohms
- frequency response: 10-30,000 Hz (±3 dB)
- switchable high- or low-pass filter (100 Hz)
- DDT™ (Distortion Detection Technique) circuitry protects drivers
- front-panel LEDs indicate active channel, signal presence, clipping, temperature protection, and DC protection
- inputs: XLR and 1/4" TRS
- preamp outputs: 1/4" TRS
- power outputs: Speakon
- variable speed cooling fan
- weight: 7.12 lbs.
- dimensions: 19-1/8"W x 3-9/16"H x 13"D (including handles)
- warranty: 2 years
- Our 60-day money-back guarantee
What's in the Box:
- 2-Channel power amplifier
- 78" AC power cord (IEC 3-prong)
- Owner's Manual on CD-ROM
- Safety and Warnings sheet
- Peavey decal
Scratch & Dent items may be missing non-essential accessories. In some cases the manufacturer's accessories have been replaced with generic equivalents.
Why Shop With Us?10 Reasons.
Features and Specs
|Number of Channels||2|
|Watts per channel 8 ohms||325|
|Watts per channel 4 ohms||570|
|Watts per channel 2 ohms||900|
Overview: The Peavey IPR² 2000 is a 2-channel Class D power amplifier, designed to provide reliable performance for years. The IPR² series features an advanced design that increases power output, reliability, and thermal efficiency, while reducing weight.
Power Output: The IPR² 2000 has the following power output:
|20ms Repetitive Burst||1% THD |
Both channels driven
|0.15% THD |
Both channels driven
|8 Ohms||370 watts per channel||325 watts per channel||270 watts per channel|
|4 Ohms||600 watts per channel||570 watts per channel||500 watts per channel|
|2 Ohms||1100 watts per channel||900 watts per channel||---|
Front Panel Controls: The front panel features large, illuminated controls:
- AC Power Switch: The main power switch is flush-mounted to prevent accidental activation. When off, the power button glows dimly. When pressed, the amplifier turns on, and the button illuminated brightly.
- Input Attenuators: Separate rotary controls for Channels A and B independently attenuate the input signal. The range of attenuation is -80dB (fully counter-clockwise) to 0dB (fully clockwise).
- Indicators: Five color LED indicators are provided for
- Active (green): indicates the channel is operational when lit.
- Signal (blue): indicates the channel is producing an output signal of about 4 volts RMS or more to be amplified by the amplifier.
- DDT (Distortion Detection Technique) (yellow): illuminates at the onset of clipping. If flashing, the channel is just at the clipping threshold. If glowing solid, the amp is clip limiting, or reducing gain to prevent severely clipped waveforms from reaching the loudspeakers.
- Temp (amber): indicates an unstable thermal condition, and amplifier protection has been activated, shutting down the channel. The LED will remain illuminated until the amp has cooled to a safe operating temperature.
- DC (red): illuminates to indicate an abnormal operating condition, and the amplifier is automatically restarting to correct the condition.
Connectors: The IPR² 2000 has the following connections on its back panel:
- Inputs: 2 Combination XLR-1/4" connectors (Channels A & B)
- Thru/Outs (parallel to input connector for patching to an additional power amplifier): Two 1/4" TRS connectors (Channels A & B)
- Speaker Outputs: 2 Combination Speakon (2-pole twist lock) and 1/4" connectors (Channels A & B)
- Power: IEC C13 connector (10A max)
Channel Mode Switch: The IPR² 2000 has independent 4th-order Linkwitz-Riley crossovers that are controlled by the Channel Mode switches. The switches have three positions:
- High Pass: When set to High Pass, the filter will limit the signal sent to the corresponding channel to frequencies above 100 Hz.
- Full Range: The Full Range position allows all frequencies to be sent to the amplifier.
- Subwoofer (Low Pass): When set to Subwoofer, the Low Pass filter is activated on the corresponding channel, and will limit the signal to frequencies below 100 Hz.
DDT (Distortion Detection Technique): The DDT circuitry protects your speakers from damaging distortion, and maintains clean sound, even when operating at low impedances. The DDT circuit detects and eliminates distortion to give you reliable performance during adverse conditions.
