Inputs And Outputs

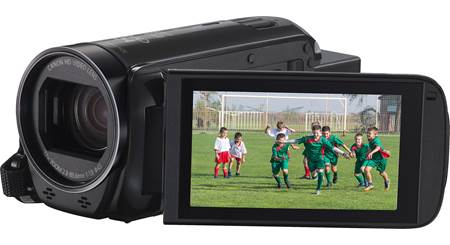

3.0" Widescreen LCD Capacitive Touch Screen: The Canon VIXIA
HF R82 features a 3.0" Capacitive Touch Panel LCD screen (230,000
dots) to make it easy to compose and review your shots. The capacitive touch
technology is similar to that of a smartphone, and lets you activate functions
by a simple touch. The LCD screen can be rotated 270° allowing the subject to monitor the LCD screen
during shooting. The LCD's touch
screen contains zoom, playback and menu controls
for added convenience.
Note: This camcorder does not feature a separate viewfinder.
Recording Media: The Canon HF R82 camcorder captures video
and still-images onto its built-in 32 GB internal memory, or optional SD, SDHC, or SDXC memory cards (sold separately) with a Speed Class rating of 4 and up. Class 6 or 10 SD cards are recommended
for recording movies with a video quality of 60p or 35Mbps. There are no memory
cards included with the camcorder.
Recording Formats: The camcorder records movies in MPEG-4
(MPEG-4 AVC/H.264) video compression format with 2-channel AAC audio,
ideal for playback with highest picture quality. Available frame rates include
60p, 30p, and 24p. You can resize 30p and 24p movies to MP4 format to obtain a
smaller file size. Still photos are recorded with JPEG
image compression. Recording options include:
- 35 Mbps: 1920 x 1080
- 24 Mbps: 1920 x 1080
- 17 Mbps: 1920 x 1080
- 4 Mbps: 1280 x 720
- Still Photos:
- 1920 x 1080
- 1280 x 720 (when recording movies at 4 Mbps)
Image Sensor: The HF R82 features a 1/4.85" CMOS image sensor
with approximately 3,280,000 total pixels for excellent detail and
clarity when recording video and exceptional digital still photography performance. The effective pixel count is
approximately 2,070,000 for movies and still images.
DIGIC DV 4: The HF R82 is equipped with the DIGIC DV 4 HD image processor. It captures more light than its predecessor DV III, for
brighter, cleaner images. It also features increased processing power for better
image stabilization, even when walking.
Built-in Wi-Fi: The HF R82 is equipped with built-in Wi-Fi
(IEEE 802.11 b/g/n, 2.4 GHz) for wirelessly sharing your movies and images with your friends and family. You
can upload images and video to various Social Networking sites through the Canon
Image Gateway online photo album, or send them to a PC (connected via an access
point) for storage. With the free CameraAccess plus App, you can enjoy live
streaming and remote operation on an iOS or Android device. Most of the Wi-Fi features are compatible with devices running iOS
8 and up, and Android devices
running version 4.0 and up. The Canon CS100 Connect Station and NFC-enabled
Android devices can automatically connect to the camcorder by touching the NFC
touch points together.
Genuine Canon Video Lens: The HF R82 comes with a
Genuine Canon HD video lens with a 32x Optical
zoom. The 57x Advanced zoom makes more efficient use of the effective imaging
area to take the telephoto power all the way to 1853mm (35mm equivalent).
Zoom Speed: The zoom speed can be set to variable or one of
three fixed speeds. In the variable position, the zoom speed depends on how
far you push the lever. The purpose of the three fixed zoom speeds is a
smoother zoom transition, at your choice of speeds.
Zoom Position at Startup: You can set the camcorder to
memorize the zoom position when you turn it off, so the zoom position will be
the same the next time you turn on the camcorder.
Framing Assistance: When you're shooting at the long end of
the zoom range, it's easy to accidentally lose your subject in the frame. When
that happens, you can touch the Framing Assistance icon on the screen to quickly
decrease the zoom magnification so you can find your subject. Releasing your
finger from the screen allows the camcorder to quickly zoom back in to the
previous zoom magnification.
SuperRange Optical Image Stabilization: The HF R82 features
Canon's sophisticated SuperRange Optical Image Stabilizer to give you rock
steady movies, even if you're shooting while walking. The 5-axis stabilization
makes corrections for rotational camera shake--horizontal, vertical, and roll
axis--as well as up-down and left-right movements. Continuous adjustment is
provided throughout the zoom range, with extra compensation applied at
wide-angle focal lengths. Intelligent IS modes include:
- Dynamic IS: when the zoom is closer to the wide angle
range, Dynamic IS steadies the video while following subjects move left or
- Macro IS: excellent for close-ups.
- Powered IS: corrects camera shake when you're zoomed in
for telephoto shots while you remain stationary.
- Tripod Mode: turns off image stabilization when the
camcorder is mounted on a tripod.
Optional Connect Station: You can conveniently save, play
back, and share your movies and photos using the optional
CS100 Connect Station.
You can connect the camcorder to the CS100 via USB. The CS100 has 1 TB of storage capacity.
Video Snapshot: The camcorder's Video Snapshot mode lets you
shoot a series of short video clips of 2, 4, or 8 seconds to create an entertaining movie.
Face Detection: The camcorder can automatically detect people's faces and use this information to adjust the focus and set the best exposure and color
control settings for beautiful videos and photos. When there are a number of people in the picture, one person will be determined to be the main subject. You can also select the main subject manually
by touching the subject on the touch screen.
Shooting Modes: The HF R82 features several shooting
modes, plus a manual exposure adjustment for scenes that appear underexposed or
overexposed. The available exposure modes include:
- AUTO Mode: You can take videos and photos easily, by
letting the camcorder automatically adjust settings based on the recording
situation. The camcorder will also choose the best image stabilization mode,
and activate Face Detection and TeleMacro mode. Some functions are not available during AUTO mode.
- Highlight Priority: The Highlight Priority mode can
record bright scenes with life-like detail in the brightest areas.
- Cinema Mode: The camcorder
will adjust the frame rate to give your recordings a cinematic look. You can
also apply a variety of cinema-look filters to create movies with a unique
appearance: cinema standard, vivid, cool, sepia, and old movies.
- Special Scene Recording
Modes: The Special Scene modes adjust the camera settings according to
the scene. You can select Portrait, Sports, Night Scene, Snow, Beach,
Sunset, Spotlight, Fireworks, or Low Light.
- Programmed AE: The camcorder automatically adjusts the
aperture and shutter speed to obtain the optimal exposure for the subject,
while you are able to adjust the other settings.
White Balance: The white balance system
helps you accurately reproduce colors under different lighting conditions so that white objects will always look truly white in your recordings. You can choose from the following modes:
Automatic, Daylight, Tungsten, and Custom WB.
Self-Timer: This feature allows the camcorder to start recording after a 10-second countdown.
Slow & Fast Motion Recording: When recording MP4 movies, you
can use slow motion to record action at half the normal speed, or fast motion to
compress time and create time-lapse movies. Sound is not recorded during slow
and fast motion recording. You can choose from the following
|Slow/Fast Motion Rate ||Recording Time and Interval ||Real Time Elapsed in a
1-minute scene |
|1 Frame ||0.5 sec |
|Slow Motion: |
|Every 0.02 sec ||x ||30 sec. |
|Fast Motion: |
|Every 0.07 sec ||x ||2 min. |
|x4 ||Every 0.13 sec ||x ||4 min. |
|x10 ||Every 0.33 sec ||Every 5 sec ||10 min. |
|x20 ||Every 0.67 sec ||Every 10 sec ||20 min. |
|x60 ||Every 2 sec ||Every 30 sec ||1 hr. |
|x120 ||Every 4 sec ||Every 1 min ||2 hrs. |
|x300 ||Every 10 sec ||Every 2.5 min ||5 hrs. |
|x600 ||Every 20 sec ||Every 5 min ||10 hrs. |
|x1200 ||Every 40 sec ||Every 10 min ||20 hrs. |
Pre-Recording: When Pre-Recording is activated, the camcorder starts recording video continuously into a temporary 3-second memory. When you press the Start/Stop button, the scene
recorded will have started 3 seconds before you started shooting. This is especially useful when it is difficult to predict when to start recording.
Built-in Speaker: The camcorder has a built-in speaker so
you can review the soundtrack as well as the picture when you're using the LCD
screen to playback a recording. The built-in speaker is monaural.
Playback Functions: The camera uses the following
special playback modes: Fast Playback (5x, 15x or 60x) in either direction, and Slow Playback (1/8x, 1/4x) in either direction.
During these playback modes there is no sound.
Li-ion Battery Pack: The Canon HF R82 comes supplied
with a rechargeable
BP-727 Lithium-ion Battery Pack (3.6V,
2685 mAh, 9.7 Wh). The camcorder also comes
supplied with an AC power adapter and charger (CA-110). The BP-718 battery is also compatible with the
HF R82 but has a smaller capacity (1790 mAh) than the supplied BP-727. The battery recording and playback times are as follows:
|Battery Pack ||Recording |
|180 min. ||100 min. ||265 min. |
|120 min. ||65 min. ||175 min. |
Charging Times: The BP-727 battery charges in 7 hours 45 minutes
when charging through the camcorder with the supplied AC adapter. The charging
time is 5 hours 15 minutes when using an optional CG-700 battery charger.
Auto Power Off: After 3 minutes without any operation when
powered by the battery, the camcorder automatically powers off. Approximately 30
seconds before the camcorder automatically turns itself off, a warning message
appears in the display.
Inputs And Outputs
HDMI Output: The HF R82 features a mini-HDMI (Type C) terminal that offers a high-quality digital connection that combines audio and video in a single convenient cable. The HDMI
port is compatible with HDMI-CEC (Consumer Electronics Control), allowing you in
many cases to control the camcorder with the remote control of the connected TV.
Note: A 5' HTC-100 HDMI cable is included with the camcorder.
AV Output: The camcorder features a 3.5mm AV
output to playback audio and video on your television using the optional
composite video/stereo audio RCA cable. You can select between a 4:3 aspect ratio
or a 16:9 aspect ratio for the video out based on your television's aspect
ratio. The AV Output also doubles as a headphone output. The built-in speaker will be muted when headphones or the AV cable are plugged in.
Note: Due to variations in the configuration of the
3.5mm plug, it is recommended that you use only the
Canon STV-250N cable.
USB 2.0 Connection: The camcorder features a Mini-B USB 2.0 High Speed terminal for fast transfer of
photos and videos, and connection to the optional CS100 Connect Station.
Microphone Input: In addition to the camcorder's built-in
microphone, the HF R82 features a 3.5mm microphone input for connecting an
Downloadable Software: The Canon HF R82
camcorder comes with no software in the box. CameraWindow DC software is
available for download from the Canon website (URL provided in the Operating
Manual). CameraWindow DC is used for saving MP4 movies and photos to your
computer and organize them. It is compatible with Windows 10 (desktop mode), 8.1 and 7 SP1, and Mac OS X v10.9
