QLED TV: Samsung's QLED TV utilizes Quantum Dots along with Samsung's
Q-Engine to produce an immersive viewing experience with a wide range of color,
exceptional contrast, and accurate detail. Quantum Dots are nano-sized,
cadmium-free, finely tuned particles that turn light into the brilliant billion
plus colors you experience on QLED TVs. Quantum dots are inorganic particles
that resist wear out, so you can enjoy superb picture quality for years. As some
TVs age, you may see that colors are less vibrant. QLED TVs are built to last
and provide a vibrant picture even after long periods of time. Samsung's metal
alloy quantum dot pixels feature inorganic materials that are engineered for
durability and resistance to fading.
Q-Engine: Samsung engineers developed the exclusive
Q-Engine, a powerful processor that optimizes your content for 4K clarity,
color, and HDR in real time.
- Q Color: QLED televisions can produce 100% color volume
in the DCI-P3 color space, the format for most cinema screen and HDR movies
for television. By definition, Color Volume is an index of how well colors
are reproduced in richness and accuracy at different brightness. With higher
color volume, you get a wider, more diverse range of color that feels
rejuvenated at higher brightness levels. Samsung QLED TV delivers 100% color
volume. QLED TVs with 100% Color Volume deliver a brilliant visual
experience by providing a rejuvenating effect for colors that may appear
dull or faded in challenging content.
- Q Contrast EliteMax: Samsung QLED TV lets you
experience dramatic depth and picture detail with incredibly deep blacks.
You get a realistic picture, whether you're watching in a room drenched with
light or with no light at all. Q Contrast EliteMax utilizes Ultra Black
Elite technology with an anti-reflective protective film and a Full-Array
LED backlight system with controlled dimming for superior contrast levels.
- Q HDR EliteMax: Q HDR EliteMax was created by combining
Samsung's QLED and HDR10+ technologies to give you the maximum High Dynamic
Range experience with wider ranges of brightness and contrast for a premium
picture that is stunning. As a result, you'll see colors in movies and shows
that absolutely "pop", just as the director intended-in stunning high
dynamic range (no more details hidden in the shadows).
10-Bit LCD Panel w/ Ultra-Wide Viewing Angle: With a 10-bit
panel, Samsung's QLED TVs are capable of displaying tons of colors with fine
steps of gradation. With so many more colors to express, you'll see a picture
that is more detailed and natural when compared to conventional 8-bit panels.
The Samsung QLED TV also offers an ultra-wide viewing angle, so practically any
seat in the room can deliver an exceptional viewing experience.
Full Array Backlight + Ultra Black Elite Technology: The
Samsung QLED TV delivers stunning images with pristine contrast through Direct
Full Array (DFA) & Ultra Black Elite technologies. Smartly controlled zones of
the QLED TV's Full Array LED Backlight System adjust automatically for precision
pinpoint lighting to reveal precise detail and depth from deep blacks to

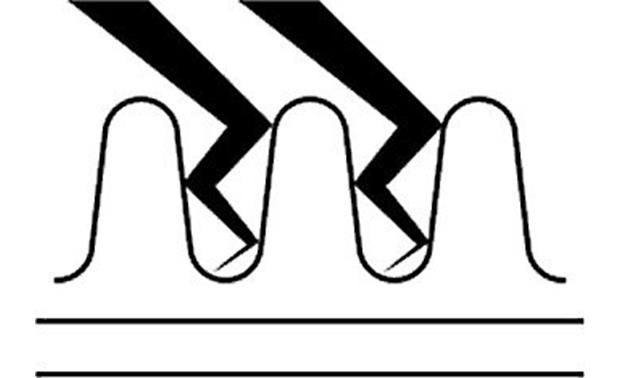

brilliant whites. The QLED TV also utilizes Samsung's Ultra Black Elite
technology which consists of an outer layer of nano-sized ridges along the LCD
panel to better absorb or re-direct light which in turn prevents reflection and
glare. The Ultra Black Elite feature further enhances contrast and preserves
deep blacks and color richness in brighter room light settings.
HDR (High Dynamic Range): The Samsung QLED TV features the
ability to provide a premium High Dynamic Range (HDR) experience, with a higher
level of contrast between light and dark images. HDR delivers a much higher
level of contrast between light and dark to produce an image that is more
realistic and closer to what the content creator imagined. This increased
contrast reveals the subtle nuances of the image, from detailed blacks and
shadows to the brightest whites and colors, plus greater depth. In addition to
supporting the standard HDR10 format, the Samsung QLED TV also supports HDR10+
and HLG; as well as HDR+.
- HDR+: One of the biggest benefits of HDR+ is its ability to
upgrade Standard Dynamic Range (SDR) content to HDR-like picture quality,
allowing viewers to enjoy all of their favorite content in the highest
picture quality possible. With HDR native content, HDR+ also uncovers
previously hidden images from darker content scenes, supplementing the level
of brightness to express objects hidden in darker shadows. For brighter
content scenes, HDR+ increases the level of contrast ratio to differentiate
objects from the background, while still depicting more image details on the
screen for an overall better picture.
- HDR10+: Samsung Electronics and Amazon Prime Video announced the
entire Prime Video HDR library is now available in
HDR10+, a new open
standard that leverages dynamic metadata to produce enhanced contrast and
colors on an expanded range of televisions. Prime Video is the first
streaming service provider to deliver HDR10+ content to its users. The
HDR10+ technology on Prime Video incorporates dynamic metadata that allows
the Samsung QLED TV to adjust brightness levels on a scene-by-scene or even
frame-by-frame basis. By applying individualized tone mapping to each scene,
HDR10+ delivers an incredible viewing experience. The picture quality offers
an enhanced visual experience with more detailed expressions, brighter
shadow areas and more accurate color renderings that stay true to the
creator's original intent.
- HLG: HLG (Hybrid-Log Gamma) is primarily designed for
live video feed and over-the-air broadcasts. It uses no pre-encoded metadata
and is backwards compatible with SDR. HLG's native compatibility allows much
of today's existing SDR infrastructure to be re-used for HDR in the future.
MR 240 + Auto Motion Plus: The Samsung QLED TV combines its
120Hz native panel refresh rate with Samsung's proprietary MR 240 & Auto Motion
Plus image processing technology, which is faster and more responsive than
conventional image processors, as it interpolates intermediate frames to smooth
out the image. MR 240 & Auto Motion Plus helps to remove blur and judder from
scenes with large amounts of rapid movement to provide a clearer picture. MR 240
& Auto Motion Plus reduces blur so that action movies, sports and video games
have enhanced clarity. Advanced panel and unique backlight technology combine
with proprietary algorithms to reduce the response time and yield a more
accurate image reproduction with faster onscreen motion.
HDMI 2.0a Inputs: The Samsung QLED TV is equipped with four
HDMI 2.0a inputs (located on the One Connect Box) to connect to your Blu-ray
player, Satellite/Cable receiver, Game Console, and/or AV receiver. Any HDMI
input can also be used to connect a PC to this TV. All HDMI inputs are 4K
compatible, HDCP 2.2 compliant, and support 4:4:4 color subsampling. Please use a premium high speed HDMI cable with 18 Gbps and above to
view 4K HDR content.
- Ultra-HD 4K Resolution & Upscaling: The Samsung QLED TV
has a display resolution of 3,840 x 2,160 (4K) and will display all video at
that resolution, regardless of input signal, thanks to UHD upscaling. UHD
Upscaling delivers the complete Ultra-HD picture experience with a
proprietary process including signal analysis, noise reduction, UHD
upscaling, and detail enhancement to seamlessly upconvert SD, HD, or full-HD
content to Ultra-HD-level picture quality. Supported input video resolutions
include 4k (24/30/50/60Hz), 1080p (24/30/50/60Hz), 1080i (50/60Hz), 720p (50/60Hz),
480p (60Hz), and 480i (60Hz).
- Color Subsampling: With 4:4:4 color subsampling, luminance
(brightness) and chroma (color) are sampled at the same rate; resulting in
an RGB color palette as big as the video sampling rate for a video image
with more total colors, plus greater color accuracy and detail. 4:2:2
(50/60p) and 4:2:0 (50/60p) are also supported by all HDMI inputs.
- HDCP 2.2 Compliant: HDCP 2.2 compliance makes the TV fully
compatible with the latest copyright protection standard for 4K video
transmission from Ultra-HD Blu-ray players and 4K Satellite//Cable
Notes: This TV does not contain analog composite or component
Picture Controls: You can make the following adjustments for
an optimum picture. The TV's picture adjustments can be made for a particular AV
input or for all inputs.
- Picture Sizes: You can choose one of the following
screen sizes - 16:9 (16:9 widescreen format), 4:3 (4:3 standard format),
or Custom (magnifies or shrinks
16:9 pictures vertically and/or horizontally). The Picture size is fixed for
video and still images displayed natively in 3840 x 2160 (4K).
- Picture Modes: Picture Modes apply preset adjustments
to the picture. Select from Dynamic (increases the brightness of the
screen), Standard (suitable for a normal environment), Natural (useful for
reducing eye strain), or Movie (darkens the screen and reduces glare).
- Manual Picture Settings: The TV has several options for
manually adjusting the picture quality. Manually adjust Backlight (adjusts
the brightness of the LED backlight), Contrast (increases or decreases the
contrast between dark and light areas of the picture), Brightness (adjusts
the brightness level of the picture) Sharpness (sharpens or dulls the edges
of objects), Color (adjusts the color saturation of the picture), and Tint
(adjusts the amount of green and red in a picture).
- Expert Settings: The TV also offers more advanced
picture adjustments for expert fine tuning. Fine tune the
- Contrast Enhancer: automatically balances the
contrast to prevent excessive differences between bright and dark areas
- Color Tone: adjusts the overall color tone of the
televisions using Cool/Normal/Warm 1/Warm 2 presets
- Color Space: adjusts the range of colors available to create the
- White Balance: adjusts the color temperature for more natural
- RGB: displays the Red/Green/Blue color for making find adjustments
to the hue and saturation
- Gamma: adjusts the primary color (red/green/blue intensity)
- Digital Clean View: reduces any static and ghosting that may appear
on the screen
- HDMI Black Levels: adjusts the black level to compensate for
low black levels, low contrast, or dull colors generated by external
devices connected to the TV via an HDMI cable
- Film & Games Modes: The TV can be set to automatically
sense and process film signals and adjust the picture from optimum quality. When the
Game Mode is activated, the TV's settings are automatically optimized for an
enhanced gaming experience with minimal input lag and ultra fast refresh
rates (not available for normal TV viewing).
Built-in HDTV Tuner: The TV features a built-in over-the-air HDTV (ATSC) and Clear QAM tuner, so you don't need a separate
set-top box to receive and decode over-the-air HDTV/SDTV or unencrypted Digital
Cable signals (up to 1080i); subscription still required to receive cable
channels. A single RF-type coaxial input is use to connect an
external indoor/outdoor antenna (sold separately).
ARC (Audio Return Channel): The Audio Return Channel within
the television's HDMI 4 input (located on the One Connect Box) enables the TV, via a single HDMI cable, to send
audio data "upstream" to an A/V receiver; increasing user flexibility and
eliminating the need for any separate S/PDIF audio connection. This feature
allows audio to be sent from the television to your A/V receiver through the
same HDMI cable already being used to send audio/video to the television. This
eliminates the need for extra cables connected to the TV. ARC allows audio from
the TV tuner, Network connection, inserted USB device, or HDMI inputs to be
heard through your ARC compatible AV receiver via the television's HDMI ARC
- The audio from the TV's tuner, HDMI inputs, USB ports, and Samsung TV
apps can pass as Dolby Digital Plus, Dolby Digital, or 2ch PCM.
- DLNA compliant devices will be output audio at 2ch PCM only.
- DTS multichannel audio formats are not supported.
Note: Both the television and the receiver must support
ARC for this function to work properly. When connecting an A/V receiver that
is compatible with Audio Return Channel (ARC), connect it to the TV's HDMI 4
input. If connecting a system that is incompatible Audio Return Channel
(ARC), an additional audio connection via Digital Audio Out (Optical) is
necessary. The TV's speakers are muted when using ARC function.
Optical Digital Output: The TV's optical digital output
terminal (found on the One Connect Box) will output Dolby Digital (when available) or 2ch PCM. The digital optical output terminal only sends an audio signal
in Dolby Digital when receiving Dolby Digital surround sound from a
digital broadcast channel through the tuner, network apps, HDMI inputs, or USB
ports. When the TV's optical digital output is selected, the TV's speakers are
muted. DTS multichannel audio formats are not supported.
Note: This TV does not contain any analog audio inputs or
Equalizer: You can manually adjusts the TV's built-in 7-band
EQ (100, 200, 500, 1k, 2k, 5k, & 10k Hz) for a more customized sound; or simply
choose from the following EQ Preset Modes - Standard, Optimized, or Amplify.
Audio Delay: The Audio Delay function corrects audio/video
mismatch, when watching TV or video, and listening to a digital audio output
using an external device such as an AV receiver. You can adjust the audio delay
from 0ms to 250 ms.
Wireless Audio Connectivity: The Samsung TV provides
wireless surround connectivity to compatible Samsung soundbars and speakers via
WiFi. You can also wirelessly
stream audio from the TV to a set of Bluetooth headphones or Bluetooth
- WiFi Surround: If you've connected one or more Samsung wireless audio
devices that support the WiFi function to the TV, you can create an optimal
sound set up by configuring the surround effect settings. You can select any of
the surround sound configurations, with or without a soundbar. During a WiFi
Connection, audio is transmitted in stereo (not Dolby Digital) from
the TV while the compatible Samsung speakers create a surround sound effect.
- Bluetooth Audio: Thanks to built-in Bluetooth,
you can wirelessly connect a single set of Bluetooth headphones, a stereo
pair of Bluetooth speakers, or a single Bluetooth speaker
with the Samsung QLED TV. You are able to stream audio from any of the
TV's built-in sources or connected sources to the Bluetooth headphones or
speakers. The TV's audio outputs will be
deactivated when streaming audio to Bluetooth headphones or speaker. You can
choose to have the TV speakers play at the same time as your Bluetooth
headphones or speaker, or you can turn the TV speakers completely off. The
volume of the Bluetooth headphones or speaker will be controlled via the
headphones or speaker, and not the TV.
Note: You cannot use the WiFi Surround and Bluetooth Audio feature
simultaneously (you must choose one or the other).
Samsung's Quad-Core Processor: Samsung's Quad-Core
processing speeds allow you to perform multiple tasks at the same time, such as
using an app while downloading another one. It also enables extremely faster web
browsing and application access. Quad-Core eliminates lag to give you a fluid
browsing experience. It enables you to switch between apps, stream content, and
multi-task much faster. This extra power also provides faster page refreshing.
Network Connection: You can set up the Samsung QLED TV so
that it can access your home network and online Samsung TV Apps through your
local area network (LAN) using a wired (RJ-45 Ethernet) or wireless connection
(built-in WiFi); it also supports WiFi Direct.
- Wired Ethernet: The TV's contains an RJ-45 Ethernet
jack on its back-panel for a wired network connection. You can setup a wired
network connection automatically or manually.
- WiFi 802.11ac: The TV is IEEE 802.11ac WiFi certified
for a wireless network connection. You can setup the wireless network
connection using these four methods; Automatic, Manual, WPS (PBC), or WPS
(PIN). The TV's built-in WiFi supports WEP (open/shared), WPA-PSK
(TKIP/AES), or WPA2-PSK network security.
- WiFi Direct: When using
WiFi Direct, you can connect directly with other devices without using a
wireless router. You'll be able to wirelessly transfer personal content
(such as photos & videos) to the Samsung QLED TV without connecting to your
home network. WiFi Direct completely bypasses your WiFi access point/router,
so it's easy to set up. Streaming of copy-protected content and other
certain formats are not supported.
Note: A dual-band Gigabit wireless-N router or better is
recommended For 4K streaming. Samsung recommends a home network connection
speed of at least 2.5 Mbps for standard definition, 10 Mbps for high
definition, and 20 Mbps for ultra-high definition.
Samsung TV Apps: Once you have connected the Samsung TV to
your home network, you gain access to Samsung's TV Apps. Samsung's TV Apps let
you download online applications and services to the Samsung
QLED TV. Samsung TV Apps has a growing collection of online applications that
connect you to some of your favorite online content. You can enjoy a variety of
content from various downloaded applications - such as movies, TV shows, music,
news, sports, and weather (subscriptions and purchase fees will apply).
- Movies & TV Shows: This QLED TV is HEVC Advanced
& VP9 compliant, which means it'll be able to display 4K & HDR10 content
from online movie & TV show providers (like
Amazon Video, Netflix,
Play Movies & TV, &
You'll also be able to watch high definition movies and TV
HuluPlus, as well as live TV broadcasts from
Sling TV and
- Music & Radio: You can listen to online music and internet
TuneIn, and more.
- Gaming: This Samsung QLED TV offers built-in Steam Link
functionality through the Steam Link app which can be downloaded from the
Samsung Smart Hub. This app uses the same streaming technology as
Valve's Steam Link, allowing you to stream all your favorite games
seamlessly with amazing graphics and speed. The TV also offers select games
from GameFly. Separate USB or Bluetooth controllers (sold separately) are
required for gaming. Membership and game purchases also required.
- Sports, News, & Weather: Enjoy sports, news, and
weather information from
Note: 4K & HDR network streaming requires a network speed
of 20Mbps or greater. A wired Ethernet connection is recommended over a
wireless WiFi connection for better performance. If you desire a WiFi
connection, then use a dual-band Gigabit wireless-N router (or better) for
4K & HDR streaming. Make sure the Samsung television has the latest
software/firmware updates installed.
Sync & Share: You can play media content saved on your
computer (via DLNA), thumbdrive or hard disk drive (via USB), and the cloud (via
Samsung Cloud) through the Samsung QLED TV; as well as mirror content between
your compatible mobile device and the TV (via the SmartThings app).
- DLNA Certified: The Samsung QLED TV is
DLNA certified, allowing
you to watch videos and photos, as well as listen to music saved on your
Windows 7/8/10 PC (or other DLNA Certified media server) through the TV via
its Ethernet (LAN) port or built-in WiFi (wireless).
- USB 2.0 Ports: The television is equipped with three USB-A 2.0
ports (located on the One Connect Box); there are two USB 5V/0.5A ports for connecting USB thumbdrives and one USB
5V/1A port for connecting a HDD (hard disk drive). All three USB ports let you view photo and movie files, as well as listen to audio files
saved on a compatible USB device. Files must be formatted in FAT, exFAT, or
NTFS. The TV can recognize up to 1,000 files per folder.
- Gallery App (Samsung Cloud): The built-in Gallery App
lets you view photos and videos synchronized with the Samsung Cloud. You can
enjoy various content synchronized with a mobile device that supports the
Samsung cloud. The available content types are photos, videos, stories, and
other content shared through your groups.
- Bidirectional Mirroring: Bidirectional mirroring refers to either
outputting the screen and sound of your compatible Apple iOS or Android
device on the Samsung QLED TV or outputting the screen and sound of the TV on
your compatible mobile device. You can use the SmartThings app (for
iOS 9.0+ and
Android OS 4.0+)to enjoy the screen and sound of the TV on your mobile
device or to play the screen and sound of your mobile device on the TV.
Note: Compatible video file formats include AVI, MKV, WMV, MP4, and
MOV. Compatible photo file formats include JPEG, PNG, BMP, and MPO.
Compatible audio file formats include MP3, WMA, AAC, AIFF, ALAC, FLAC, WAV,
SmartThings Compatible: From the Samsung QLED TV's on-screen
dashboard, you can monitor, configure,
and control smart devices you connected to the SmartThings service via the
SmartThings app (for
iOS 9.0+ and
Android OS 4.0+) installed on your compatible smartphone or tablet device.
You'll receive notifications about the statuses of your smart devices on the UHD
TV's screen. You'll also be able to create custom modes to easily control
multiple smart devices with a single command from the TV. Control of your
SmartThing devices can be done from the included remote with Bixby or your
mobile device running the SmartThings app.
- SmartThings & Samsung Devices: With SmartThings hub
functionality, the Samsung QLED allows you to connect and control
SmartThings compatible devices - including a
Multipurpose Sensor, a
Motion Sensor, a
Arrival Sensor, a
Water Leak Sensor, and a
Smart Outlet (all sold separately). It is also compatible with a number
of Samsung appliances - including refrigerators and washers/dryer machines.
Internet of Things (IoT): In addition to being compatible with
SmartThings and other Samsung network-enabled products, Samsung Connect Home
is compatible with a number of third-party network devices that support
Internet of Things (IoT) through Z-Wave, zigbee, LAN, or Cloud-to-Cloud;
including locks (from Kwikset & Schlage), thermostats (from Honeywell),
cameras (such as Netgear Arlo), light bulbs (such as Philips Hue), and more.
Full Web Browser: You can surf the Internet on the TV as you
would on a PC. You may enter a URL addresses or enter a keyword search. The
player will archive your web browser history. You can scroll web pages with the
directional pad on the included remote. For a more convenient web browsing
experience, connect a USB- or Bluetooth-enabled keyboard and mouse (sold
separately) to the TV.
One Smart Remote with Voice Control by Bixby: Using the One Smart Remote's built-in
microphone and the Bixby voice control function of the TV, your voice is all you
need to control the TV and your SmartThing compatible devices. Because
the One Smart Remote communicates with the TV through a wireless Bluetooth
communication, you don't have to point the remote directly at the TV. There is
an on-screen Bixby Guide which lets you learn the voice commands that are
compatible with Bixby in various situations. Bixby is available only when the TV
is connected to the Internet. Bixby will require an active Samsung Account user
- TV Control: Use the remote's built-in microphone and Bixby to
turn on/off the Samsung television, navigate menus, and get to your favorite
Smart TV content. You can even use only your voice to switch the channel or
input, adjust the volume level, and launch online apps while focusing on the
TV screen; which removes the need for a conventional remote control.
- SmartThings Control: Using the remote's built-in microphone with
Bixby and the TV's on-screen dashboard to control your connected SmartThing
and IoT devices. It will know all your connected devices, so all you have to
do is say a command.
- Questions & Answers: You can also use the One Smart Remote to ask
Bixby questions about the weather, traffic, news, sports, etc.
Note: When you turn on the TV for the first time, the Samsung
One Smart Remote pairs to the TV automatically. If the Samsung Smart
Remote does not pair to the TV automatically, point it at the remote
control sensor of the TV, and then press and hold the "Back/Return" and
"Play/Pause" buttons simultaneously for 3 seconds or more.
Universal Remote Control Function: You can control external
devices connected to the TV via HDMI using the One Smart Remote, Anynet+
(HDMI-CEC), and Auto Source Recognition.
- Anynet+ (HDMI-CEC): You can use the TV's One Smart
Remote to control external devices that are connected to the TV by an HDMI
cable and that support Anynet+ (HDMI-CEC). Anynet+ (HDMI-CEC) can control up
to 12 compliant external devices (up to 3 of the same type) except for home
theaters; Anynet+ (HDMI-CEC) can control only one home theater system.
- Auto Source Recognition: The TV uses Auto Source Recognition
technology to automatically detect what kind of devices are plugged in via
HDMI; then the One Smart Remote makes it simple to control these detected
devices through the TV via HDMI-CEC. Auto Source Recognition and controlling
function may not be supported by certain devices connected to the TV. To use
the Auto Source Recognition feature, all HDMI-connected devices must also be
on the same network and Internet connection is required.
Note: The remote control does not support IR commands. However, the TV
does have an IR receiver and will support universal remote controls -
such as Logitech's Harmony (sold separately).
SmartThings App: Use the SmartThings app (for
iOS 9.0+ and
Android OS 4.0+) to turn your compatible smartphone or tablet into a remote
control for the Samsung QLED TV. You can also use the app to share and mirror
content between your compatible mobile device and the TV. Your Apple iOS or
Android device must be connected to same wireless network as the Samsung QLED TV.
- Remote Control: Use the SmartThings app on your compatible Apple
iOS or Android device to quickly and easily connect to the TV and control
its main settings from your smartphone or tablet. In addition, you can
remotely check and control the statuses of various devices such as Samsung
smart devices, home appliances, and speakers registered to the server.
- Bidirectional Mirroring: Bidirectional mirroring refers to either
outputting the screen and sound of your compatible Apple iOS or Android
device on the Samsung QLED TV or outputting the screen and sound of the TV on
your compatible mobile device. You can use the SmartThings app to enjoy the
screen and sound of the TV on your mobile device or to play the screen and
sound of your mobile device on the TV.
Keyboard & Mouse Compatible: The Samsung QLED TV will support
a USB or Bluetooth enabled keyboard and mouse (both sold separately), which
makes web browsing a lot easier.
Serial Port (EX Link): You can connect the 3.5mm serial port
(located on the One Connect Box) to an external control device, such as a computer or A/V control system, to
control the TV's functions externally.
Smart Hub: The TV's Smart Hub has been redesigned and offers
even easier navigation, plus quick access; you can even use these convenient
features while still watching TV. The new Smart Hub features easy
access to content by displaying your favorite and most used TV applications, as
well as recommendations for even more entertainment options. Smart Hub offers
unique ways to search and access your favorite and new content from the TV's
tuner and network apps.
- Universal & Keyword Search: You can type in a keyword
to search for TV shows & movies across platforms, like over-the-air
broadcasts and available online providers.
- Apps: From the TV's Home Screen, you can easily select
the apps that have used previously or frequently. The apps can also be moved
or deleted from the screen. You are also able to easily view, navigate and
select between the following App categories - Editor's Choice, Most Popular,
Downloaded Apps, Group Content, and Genre.
- TV Plus & Recommendations: The TV Plus feature
aggregates TV and movie content from across services into a single
interface. This includes on-demand TV shows, as well as movies available for
rent or purchase. You'll also receive personalized recommendations based on
your viewing habits, plus what's popular and trending.
- Channel Guide & Favorite Channels: In the Channel
Guide, you can see the daily program schedules for each off-air broadcaster,
see program information, choose a program to watch, and set up a schedule
viewing. You can even designate frequently watched off-air stations as
Favorites (up to 5).
- Notifications & Reminders: Set notifications & reminders to
display on screen. You'll get a pop up message on the corner of your TV
screen when there is a notification or reminder.
Connection Guide: The TV's on-screen Connection Guide lets you view
detailed information about external device that can be connected to the
televisions. It shows you how to connect various external devices such as cable
boxes, satellite receivers, Blu-ray players, game consoles, and more using
on-screen images. You can also change the input name of a connected external
device or add it to the Home Screen for easier access.
Ambient Mode: With Samsung's new Ambient Mode, you can elevate your
living room with decorative content, useful information and your own photos, You
won't notice the TV on the wall as it blends perfectly with your décor, and it
can even play a bit of light background music.
Netflix Recommended: This Samsung TV is a
Netflix Recommended TV. This is due to the fact that is offers a unique set
of features which makes Netflix even easier to use and enjoy. First of all, the
TV starts up instantly and apps are ready to use right away, just like on your
smartphone. Second, the Netflix app always launches quickly, whether it's right
after turning on the TV or after using several other apps. Third, the Netflix
app is easy to access and convenient to launch from the TV's on-screen menu.
Fourth, you can browse the Netflix app interface with crisp text and clearer
images. And finally, the TV remembers what you were doing and wakes to the same
place as when it was turned off.
Hearing & Visually Impaired: The Samsung QLED TV offers Close
Captions and Voice Guides for the hearing and visually impaired. The TV
provides Analog Closed Captions and Digital Closed Captions for the hearing
impaired. You can also activate Voice Guides that describe the menu options
aloud to aid the visually impaired.
ECO Settings: The Samsung QLED TV provides ECO settings to
reduce the television's power consumption and cut-down on energy costs.
- Ambient Light Detection: Samsung's unique Ambient Light
Detection measures the intensity of the room's light and automatically
calibrates the brightness of the image on the screen. In a sun-filled
environment, the screen gets brighter and in dim surroundings, the intensity
is reduced. This feature optimizes the viewing experience while also saving
- Power Saving Mode: This feature adjust the brightness
of the TV in order to reduce power consumption. When watching TV at night,
set the Energy Saver feature to High to reduce eye fatigue as well as power
consumption. You can set this feature to High, Medium, Low, or Picture Off
(sound remains on).
- Motion Lighting: This feature adjusts the TV's
brightness in response to on-screen movements to reduce power consumption.
- Auto Power Off: Automatically turns off the TV to
reduce unnecessary power consumption if there is no operation for the length
of time you specify (up to 4 hours)
Security Settings: The Samsung QLED TV offers
security features for TV programming and the Internet.
- Program Rating Lock: The Program Rating Lock feature
automatically locks out programs that are deemed inappropriate for children.
You can block TV program based on their ratings and Movies based on their
MPAA rating, so you have more control over what your children watch. The
Program Rating Lock function is protected by a 4-digit PIN. You can also
lock and unlock specific apps using the same 4-digit PIN.
- Smart Security: When any device is connected to the
Internet, it is vulnerable to hacks and malicious code. Samsung Smart
Security protects the TV and storage media connected to the TV from such
threats, when the television is connected to the Internet.
Timers: You can set Off Timer to shut off the TV
automatically at a specific time; the Off Timer is only available if the Clock
has been set. The Sleep Timer switches the television off after a specified
amount of time. The Sleep Timer can be set to 30, 60, 90, 120, 150, or 180
Remote Support + Self Diagnosis: The Samsung Remote Support
service offers you one-on-one support with a Samsung Technician who can remotely
diagnose your TV, adjust the TV settings, perform a factory reset, and install
recommended firmware updates. Your TV must be connected to your homes wired or
wireless network. The Samsung QLED TV also provides a Self Diagnosis menu which
allows you to check the television for picture, sound, and signal problems.
Note: The television only comes with a brief User Manual. A
complete instruction manual is built-in into the TV and can be viewed
on-screen. Open the e-Manual to learn how to use the TV's many features.
Auto Updates: If the television is connected to the
Internet, you can have the TV update its software automatically while you are
watching it. When the background update is completed, it is applied the next
time the TV is turned on. Updates can also be done via USB. Visit the
Download Center for the latest Firmware & Software updates.
Note: Do not turn off the TV's power until the update is complete. The TV
will turn off and on automatically after completing the software update. Video
and audio settings will be reset to their defaults after a software update.
One Connect Box: The QLED TV includes Samsung's One Connect
Box which connects to the television via a single 16' proprietary fiber optic
cable. The One Connect Box features a built-in HDTV tuner and antenna connector,
4 HDMI inputs, an Optical Digital output, Ethernet (RJ-45) jack, and three USB-A
2.0 ports. The One Connect Box provides clean integration of all your external
devices so there's less clutter, plus allows you to update your TV with the
newest software and features. The One Connect Box measures 15.375" (w) x 2.6875"
(h) x 7.3125" (d).
- Proprietary Fiber Optic Cable: The included 16'
proprietary fiber optic cable is clear in color and thin in diameter
(0.125"). It features a proprietary, directional connector on each end; one
for the One Connect Box and one for the TV. When installing the proprietary
fiber optic cable, make sure it is not bent at a 90°
or greater angle (this will damage the cable). The proprietary fiber
optic cable is not rated for in-wall use, but can be run through 2" conduit.
The connector which plugs into the One Connect Box measures 1.0" (w) x
0.5625" (h) x 2.1875" (d), while the connector which plugs into the TV
measures 1.5625" (w) x 0.6875" (h) x 1.75" (d).
- Detachable AC Power Cord: The One Connect Box includes
a detachable 5' AC power cord that plugs into the back of the box. The
included 16' proprietary fiber optical cable which plugs in between the One
Connect Box and the QLED TV provides power to the television.
Note: The only connector found on the TV is the proprietary
One Connect connector located on the rear-panel. The included 16'
proprietary fiber optic cable plugs into One Connect connector on back of
the TV and the Once Connect connector found on back of the One Connect Box.
Pedestal Stand w/ Cable Management: The TV is shipped with
the pedestal stand unattached. The back of the TV and the included pedestal
provide cable channels and cover so you can neatly conceal and route cables to the TV. The pedestal
stand and TV do not swivel. The television weighs 90.4 lbs with the stand.
Wall Mounting: The TV has four threaded inserts on the back
and comes with four wall-mount adapters for use with an optional wall-mount
bracket. The spacing of the mounting holes is 400mm (h) x 400mm (v). The
threaded inserts and wall-mount adapters require M8 (8mm) machine screws (not
supplied). The included wall-mount adapters must be used when wall-mounting
television. The television weighs 86.6 lbs without the stand.
Note: The television is also compatible with Samsung's
No Gap Wall Mount (sold separately - see Accessories Tab), which hangs the TV snug to the
Ventilation Clearance: When mounting the TV on the stand or
a wall (with optional bracket) leave 4" of clearance on each side of the
television and 4" above/below the television for adequate ventilation.
