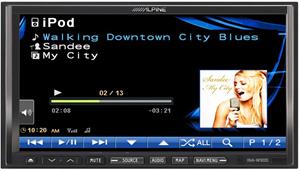

Motorized 7.0" Wide Touch Screen Display: The INA-W900BT has a motorized
7.0" touch screen monitor (with
16:9 aspect ratio) that serves as a video monitor and system information
display. The unit's touch screen provides audible and visual confirmation of commands.
For better visibility you can adjust the monitor's angle; choose flat or one of
five settings angled upward.
Video Lock-out Feature: For
safety and legal reasons, the INA-W900BT features a video lock-out feature to
prevent the driver from viewing a video source while the vehicle is in motion. To watch a
video source, the vehicle must be parked with the ignition in the ACC or ON
position. The vehicle's parking brake must be engaged, disengaged, and engaged
again while the foot brake is held in.
Display Modes: You can select
one of the following display modes:
- Mode 1 (Wide): evenly
stretches a 4:3 picture horizontally to fit the widescreen monitor
- Mode 2 (Cinema): displays
a 4:3 picture by stretching out the picture horizontally and vertically;
good for displaying a cinema-type picture with a 16:9 ratio
- Mode 3 (Normal): displays
a 4:3 picture at the center of the screen with a vertical black band at each
TV Screen Mode: This feature
allows you to select the aspect ratio of any back seat monitor(s); choose from 4:3 Letter Box, 4:3
Pan and Scan, 16:9 Widescreen.
Visual EQ Mode: You can select
one of the following preset modes suitable for the subject image:
- Night Mode: suitable for
movies in which dark scenes frequently appear
- Soft: suitable for
- Sharp: suitable for old
movies where images are not clearly shown
- Contrast: suitable for
- User Memory (P-1, P-2): change and save Brightness,
Color, Tint, Contrast, and Sharpness settings in the two user memories
Illumination Control: You can
select one of the following settings for the LCD's fluorescent backlight:
- Auto: adjusts the
brightness of the background illumination based on the
ambient light in your vehicle
- On: keeps the background
illumination of the monitor dark (always dimmed, the degree to which the
backlight is dimmed is adjustable)
- Off: keeps the background
illumination of the monitor bright (no dimming)
Button Lighting Dimmer: You can
adjust the brightness of the button lighting at night from -2 to +2.
Background Screen: You can
choose from four different background colors for the display; Blue, Red, Green,
Flash Memory Navigation: Alpine has the Navteq map database
loaded in its internal flash memory; the maps cover the entire United States
(including Alaska and Hawaii), Canada, Puerto Rico, and the Virgin Islands. The
database provides approximately 6 million points-of-interest (POIs) in various
categories throughout the coverage area. You can search for a POI near your
current location, near your destination, along your current route, or near a
Positioning Technology: The INA-W900BT uses Alpine's OnPoint
Advanced GPS Positioning, ensuring your vehicle stays accurately positioned on
the map even in areas where it's difficult to receive GPS reception, such as in
a tunnel or around tall buildings. OnPoint simultaneously uses three
technologies - satellite-linked positioning data, gyro sensor technology (to
determine the vehicle's direction) and accelerometer technology (to gauge the
vehicle's speed) - resulting in continuous coverage of the location of your
Voice Guidance/Text to Speech: In addition to graphical
on-screen directions and maps, the INA-W900BT provides voice guidance and
turn-by-turn directions, capable of text-to-speech (TTS), announcing the street
names along with the turn directions. Directions can be announced in English,
French, or Spanish.
Map Orientation: The INA-W900BT provides three Map
Orientations, choose from North Up, Heading Up, or 3D View:
- North Up: north is always at the top of the display;
this makes it easy to determine your current heading with respect to the map
- Heading Up: the current direction is always pointing to
the top of the display; this makes it easy to see the direction of the next
turn on the map
- 3D View: offers you a more realistic perspective by
tilting the map and displaying it with a horizon line; streets are displayed
as you approach them instead of from a birds-eye view
Map Color: The INA-W900BT offers 12 color settings for the map
Setting A Destination: The Alpine INA-W900BT offers several
ways to select a destination:
- Home: save your home address so you can quickly
navigate to your house from anywhere
- Address: enter a specific street address as your
destination; Alpine's Smart Key Filtering program highlights only the
possible next letters as you spell street names, city names, or POI names
- Places (POI): select from approximately 6 million
Point-of-Interest (POI) locations stored on the flash drive; destinations
are sorted by POI Name or by POI Category and are listed in order of
distance from your current location; search near your current location, near
your destination, along your current route, or near a specific city
- History: choose from recent destinations
- Address Book: save frequented locations in the unit's
address book to quickly add as a destination
- Intersection: enter a street name (you can first enter
a city) and choose from the intersecting streets
- Coordinates: enter Latitude and Longitude coordinates
as your destination
Route Calculations: Navigation settings allow you to have
the unit calculate routes based on quickest time or shortest route. You can also
avoid highways, toll roads, and ferries.
Waypoints: You can set up to three waypoints between your
current location and your destination. The final destination must be set before
entering any waypoints.
GuideView Window: Alpine's GuideView Window gives you a
picture-in-picture navigation window while the unit is in audio display mode.
The GuideView Window displays the next maneuver as you head towards your
destination. When you are not routing towards a specific destination, the
GuideView Window displays a digital compass, the street you're on, and the
city/state you're in, allowing you to view and control your music playback and
still see your next turn.
Map Updates: Future mapping and Point of Interest
information updates are likely to be available from Alpine and are input using
the SD card slot above the DVD slot behind the touch screen (the SD card slot
only used for navigation updates).
24-Bit DAC: The
utilizes the latest Burr-Brown 24-bit Digital to Analog Converter to ensure accurate audio reproduction.
Dolby Digital and DTS
Compatibility: The INA-W900BT can perform 2-channel Dolby Digital and DTS decoding when
playing back a DVD through its analog outputs (multi-channel soundtracks are
down-mixed to 2-channel).
Bass and Treble Controls: Without an external processor, the
head unit features independent Bass and Treble controls. Each can be adjusted as
- Bass Center Frequency: 60Hz, 80Hz, 100Hz, or 200Hz
- Bass Band Width: four options from 1 (narrow) to 4 (wide)
- Bass Level: select
from -7 to +7 (+/-14 dB in 2 dB steps)
- Treble Center Frequency: 10kHz, 12.5kHz, 15kHz, or 17.5kHz
- Treble Level: -7 to +7 (+/-14 dB in 2 dB steps)
Loudness: The Loudness feature introduces a special low and
high frequency emphasis at low listening levels. This compensates for the ear's
decreased sensitivity to bass and treble sound at lower volumes.
Subwoofer Control: The
features a dedicated subwoofer preamp output with user level adjustment between
0 to 15.
High Pass Filter: The receiver
features independent high-pass filters for the front and rear outputs, both speaker
level and preamp; select from Off (full range), 80, 120, or 160Hz.
Rear Entertainment Function:
The rear entertainment function independently routes different sources to the
front and rear of the vehicle. For example, while listening to the radio or other
audio source in the front, a DVD can be enjoyed in the rear with an optional
rear monitor and headphones; the rear zone signals are passed by RCA composite
video and stereo RCA preamp audio connections.
Interrupt Feature (NAV.MIX): The volume of the voice guidance
commands from the navigation system is adjustable, relative to the main volume.
IMPRINT Sound Upgradeable: The INA-W900BT is IMPRINT ready.
Simply add the Alpine IMPRINT PXA-H100 audio processor (500PXAH100,
sold separately) and the Alpine KTX-H100 tuning kit (500KTXH100,
sold separately) for automatic sound tuning or powerful manual tuning options.
IMPRINT automatically measures the entire listening area, capturing time domain
and frequency response information from each listening location to process and
improve the sound at every seat in your vehicle. Precise control and corrections
yield enhanced sound so you can enjoy an optimal listening experience. The
IMPRINT audio processor allows you to customize your crossover adjustments so
you can control where you send your high and low frequencies. It also provide
detailed equalizer adjustments.
AM/FM Tuner: The unit features
a built-in AM/FM tuner with two FM bands and one AM band.
Preset Tuning: You can preset up to
six stations for each band giving you a total of 12 FM presets and 6 AM presets.
The unit's tuner can also automatically seek and store six strong stations in a
selected band in order of signal strength.
Satellite Radio Ready:
There are several options for connecting
an optional satellite radio receiver to this unit:
- XM Satellite Radio: To receive XM Satellite Radio
connect the optional CNP2000UCA XM Tuner and the Alpine CNP-ALP1 adapter
cable (package item number
700XMALP2, sold separately).
- Auxiliary Input: A portable satellite
radio receiver, such as the Delphi SkyFi3 or SIRIUS Sportster,
can be connected to the head unit via the auxiliary input.
Note: A subscription is also required to receive satellite radio
programming from SIRIUS or XM.
HD Radio Ready: The
INA-W900BT can receive HD Radio signals
when the TUA-T550HD HD Radio Tuner Module (item number500TUAT550, sold separately) is connected via the Ai-NET connector. While receiving HD
Radio, the unit can seek both analog and digital signals, or you can switch to
seek only the digital signals. When used with
the compatible HD Radio Tuner, the INA-W900BT supports Multicasting, which is the
ability to broadcast multiple programs streams over a single FM frequency,
thereby increasing the amount and diversity of content choices.
Compatible Discs: The unit's
integrated disc drive will play back DVD Video
(including two-layer), DVD-R/RW, DVD+R/RW, CD,
MP3/WMA/AAC Playback: This unit can play CD-R/RW, DVD-R/RW and DVD+R/RW
discs containing MP3, WMA, and AAC files recorded using the ISO 9660
Level 1 or Level 2 formats; constant and variable bit rates from 32 kbps to 320
kbps are supported for MP3, 48 kbps to 192 kbps for WMA, and 16-320 kbps for AAC.
Recordings made using Track At Once or packet writing cannot be correctly played
back. ID tags are supported; track title, artist name, and album name up to 128
Pre-stop Function: When the
Pre-stop function is used, the position at which playback is stopped is stored
in the memory, and playback resumes from that position.
Motion Playback: When a DVD is in the pause mode, you may move
forward through the program being played one step (frame) at a time or in slow motion
(1/8 or 1/2 speed), forward or backward. No audio is played during slow
Fast-Forward/Fast-Reverse: You can view a DVD in double speed in
either direction by touching and holding the fast-forward or fast-reverse button
on the touch screen for more than 1 second. If held for 5 or more seconds,
playback at 8x speed in the selected direction will begin. If held for 10 or
more seconds, playback at 21x speed will begin.
Repeat Playback: When
playing a DVD, you can repeat the current title or the current chapter. When
playing a CD, you can repeat the current track (the disc repeats automatically).
Parental Lock: Parental Lock allows you to restrict the playback of DVDs that are unsuitable
for younger viewers. You can select a parental lock rating from 1-8, which is
protected by a 4-digit password.
Audio/Video Input: Stereo RCA
jacks and an RCA composite video jack are provided for connecting an external
video source such as a VCR, DVD player, or video game.
Audio/Video Output: Stereo RCA
jacks and an RCA composite video jack are provided for feeding A/V signals to an
optional video monitor. When the Rear Entertainment Function is used and these
jacks are connected to a rear seat entertainment system (e.g. a rear seat
monitor and wireless headphones), your rear seat passengers can view/listen to a
different source than the one selected for the front passengers.
Rear Camera Input: A proprietary rearview camera input on
the rear panel is designed for use with the Alpine HCE-C107D camera (item number500HCE107D, sold separately). A composite video adapter is also included so
the input can be used with most current rearview cameras. If a
rear-view camera is connected, you should also connect the reverse lead
to the vehicle's back-up
lamp circuit. When properly connected, the image from the rear-view camera
automatically appears on the monitor when the vehicle is shifted into reverse.
USB Memory: You can play MP3, WMA, or AAC files stored on
a USB memory device. The USB connection will also allow you to control and playback
MP3 and WMA files on some portable players. During playback, the display shows song,
album, and artist title, and elapsed time. If no tag information exists, the display
shows the track number and elapsed time. When connected, music files are
automatically divided into Banks of 1,000 songs each; the maximum recognizable number of files is
10,000. You can repeat the current track, and play the tracks in the current category
or all of the tracks in memory in random order.
iPod Interface: The INA-W900BT allows you to
connect an iPod using the supplied adapter cable. With the USB
connection you get the fastest speed available and a direct digital connection
to the unit's 24-bit DAC when playing audio files. The controls on the iPod are not functional once
connected. The INA-W900BT supports audio/video transfer from iPod video, iPod nano,
iPod classic, and iPod touch.
You can quickly and easily search through all of the music contained on your
iPod through Playlist, Artist, Album, Song, Podcast, Genre, Composer, and Audio
Book searches. You can view Artist, Album, and Song information, as well as the
song number and elapsed time on the head unit's display. The unit also supports
Repeat and Shuffle playback modes. The Alpine INA-W900BT is Made for iPod and
Works with iPhone
compatible and supports the following iPod model features (as of November 2011):
|iPod/iPhone Model||Generation||Tested Version||Media Type||Control Type||Display Type||Charge|
|Audio||Video||Head Unit||iPod/iPhone||Song/Artist Text||Track Info |
Note: Apple iPod/iPhone software updates may change
functionality results. If you download a newer software version, you may
need to reset the head unit and your iPod/iPhone to regain functionality. If
this doesn't work, you may need to revert to the older software version or
wait until a newer software update is available.
Bluetooth Module: The included hide-away Bluetooth module (INA-W900BT BT BOX) enables
Bluetooth hands-free communication from your compatible
Bluetooth enabled cell phone. You get full on-screen control and full hands-free
functionality from your Bluetooth compatible cell phone.
Bluetooth Technology: Bluetooth is a wireless technology allowing
communication between a mobile device over short distances. This enables a
hands-free call or data transmission between Bluetooth compatible devices.
Bluetooth transmission is available in the unlicensed 2.4GHz spectrum if the
distance between devices is within 33 feet (10 meters).
Bluetooth Compatibility: The included Bluetooth module
supports Bluetooth version 2.0 and the following Bluetooth Profiles.
- HFP: Hands Free Profile
- HSP: Head Set Profile
Phone Compatibility: The included Bluetooth module is
powered by Parrot for expanded compatibility for many Bluetooth enabled cell
phones. The KCE-400BT supports select Apple, AU, BenQ-Siemens, Blackberry, and
Casio Bluetooth enabled cell phones. New software can be downloaded and
installed via Bluetooth connection to your laptop to support future cell phone
Note: Not all Bluetooth-capable phones will be
Pairing: The Bluetooth module can be paired to up to five
Bluetooth enabled mobile devices (only one device can be used at a time).
Bluetooth Phone Operation: The INA-W900BT features full
phone book access, call history, voice tag dialing, and auto answer with
compatible phones. The Alpine INA-W900BT offers the following hands-free
communication answer and dialing features.
- Placing Calls: The INA-W900BT provides a variety of
functions for placing a phone call without using your mobile phone.
- Direct Dial: direct 12-key dialing from the multimedia head unit's touchscreen
- Phonebook: up to 1,000 entries can be downloaded
from your phone
- Redial: press the phone button within 5 seconds of
ending a call
- Call History: the 10 previously dialed, received, or
missed numbers can be retrieved and dialed from memory
- Voice Dialing: if you have a voice-dial capable
phone, you can dial a phone contact just by speaking the name of your
- Call Switch: while making a call, this function allows you to
initiate a transfer of the audio between your mobile phone and the
speakers in your car
- Receiving Calls: The INA-W900BT provides a couple ways
to answer your phone calls without picking up your mobile phone. Incoming
call are announced by the received call ring tone through your vehicle's
speakers and a displayed message (Caller name/Phone No.) across the Alpine head unit's display.
- Manual Answer: manually answer an incoming call by
pressing the "Phone" button on the Alpine head unit
- Automatic Answer: set the Alpine head unit to
answer the incoming call automatically; when a call is received, it is
answered automatically after about 5 seconds
Note: Display of Phonebook, Received Calls, Missed
Calls and Dialed Calls varies from phone to phone and by your service
Microphone: The supplied microphone allows you to speak to
the other party on the telephone call hands-free. The microphone comes with a
visor clips for mounting purposes. The microphone measures 0.5625" in diameter
and 1.375" long. The microphone has an attached 13' cable which plugs into the
Bluetooth interface module. The microphone's volume can be adjusted from 0-15.
Echo Cancellation: The Active Echo Cancellation
technology ensures the highest-quality, noise-free sound when you are on the
Mute: When you make or receive a call, the audio from the
stereo is muted. When using the Bluetooth interface, no other device can be used
with the mute (interrupt) function.
Speaker Output: You can select which connected speakers in
your vehicle to output the sound signal of your Bluetooth enabled mobile phone.
You can choose from All, Front Left, Front Right, or Front Left/Right. You can
also adjust the volume level of a received call.
Bluetooth Streaming Audio (optional): Using the optional
Alpine KCE-400BT Bluetooth Interface Module (500KCE400B,
sold separately), you will be able to listen to songs stored on your phone through the
Alpine INA-W900BT with Streaming Audio support (A2DP or AVRCP). You can even get
on-screen song info, play/pause, and track up/down functions on AVRCP enabled
- A2DP: Allows you to listen to the music from your cell
phone and displays basic song information on-screen, such as title and
- AVRCP: Allows you to listen to the music from your cell
phone with basic control such as play/pause and track up/down of the music
on your cell phone.
IR Remote: In addition
to the unit's touch screen and hard-key controls, the INA-W900BT has an IR remote
sensor, for use with an optional wireless remote control (item numbers500RUE4190 and500RUE4202, both sold separately).
Steering Wheel Remote Compatibility: The unit also features
an OEM steering wheel remote control input on the rear of the unit that lets you
keep your vehicle's factory radio steering wheel remote controls when used with
the optional PAC SWI-JACK Steering Wheel Control Interface Adapter (127SWIJACK,
sold separately); or the optional Metra ASWC Steering Wheel Control Interface
Note: Please consult the
Crutchfield Car Selector to see if your vehicle is compatible.
