Class bd Design: Rockford Fosgate bd topology is a patented
design, integrating a technology that is more efficient than typical class A/B
amps, and has lower distortion than typical class D designs. Punch bd amplifiers
are 75-80% efficient, while class A/B amps are typically less than 50%
efficient. This means, more power from your amplifier with less drain on your
vehicles electrical and charging system.
CEA-2006 Compliant: CEA-2006 is a system of testing and
measurement methods for mobile audio amplifiers. This voluntary standard
advocates a uniform method for measuring an amplifier's RMS power output and
signal-to-noise ratio. The criteria for measuring power uses a DC input voltage
of 14.4 volts and the RMS power output is measured with 1% or less Total
Harmonic Distortion plus noise (THD+N) over a frequency range of 20 Hz to 20 kHz
(for full range amplifiers). Signal-to-Noise ratio is measured in weighted
absolute decibels (dBA) at a reference of 1 watt into 4Ω. CEA-2006 allows
consumers to compare car amplifiers and receivers on an equal basis. Using
CEA-2006 criteria, the Rockford Fosgate P1000X1bd is rated as follows:
- Power Output:
- 4Ω: 300 watts x 1-channel
- 2Ω: 600 watts x 1-channel
- 1Ω: 1000 watts x 1-channel
- Signal to Noise Ratio: 80 dBA (100 dB at rated power)
Aluminum Heatsink: The cast aluminum heatsink dissipates heat generated
by the amplifier's circuitry. The inherent advantage of casting provides a 30%
cooling improvement over conventional extrusion heatsink designs.
MEHSA³ (Maximum Efficiency Heat Sink Application-3rd Generation):
MEHSA is a Rockford Fosgate proprietary process that increases the heat transfer from
the MOSFET devices to the heatsink. The multi-layer insulated metal MEHSA substrate
operates with minimal thermal resistance, spreading heat both downward and outward
to quickly dissipate heat from each device across the heatsink. This allows greater
power output, enhanced thermal stability, and maximum reliability.
NOMAD (NOn-Multiplying Advanced Decision): NOMAD is an intelligent
protection circuit that uses an analog computer to make real time decisions regarding
temperature, voltage, current and impedance. The amplifier is protected without
limiting sound output unless needed.
DSM (Discrete Surface Mount): High speed robotics are used in
the manufacturing process to place 1% tolerance parts and large board traces. DSM
improves the efficiency of the circuit, decreases cross-talk from other discrete
components and lowers operating temperature.
CLEAN Set-Up: Rockford's integrated level setting technology,
CLEAN (Calibrated Level Eliminates Audible Noise), replaces sophisticated test
equipment with input/output clip LEDs, allowing you to match the source unit's
output to the amp's gain, and optimize the amp's output. The input clip indicator
works in conjunction with the audio source volume, illuminating red when the source
reaches it's clipping point. The output clip indicator works in conjunction with
the input level dial on the amp, illuminating the appropriate color depending on
the audio content used for the setup.

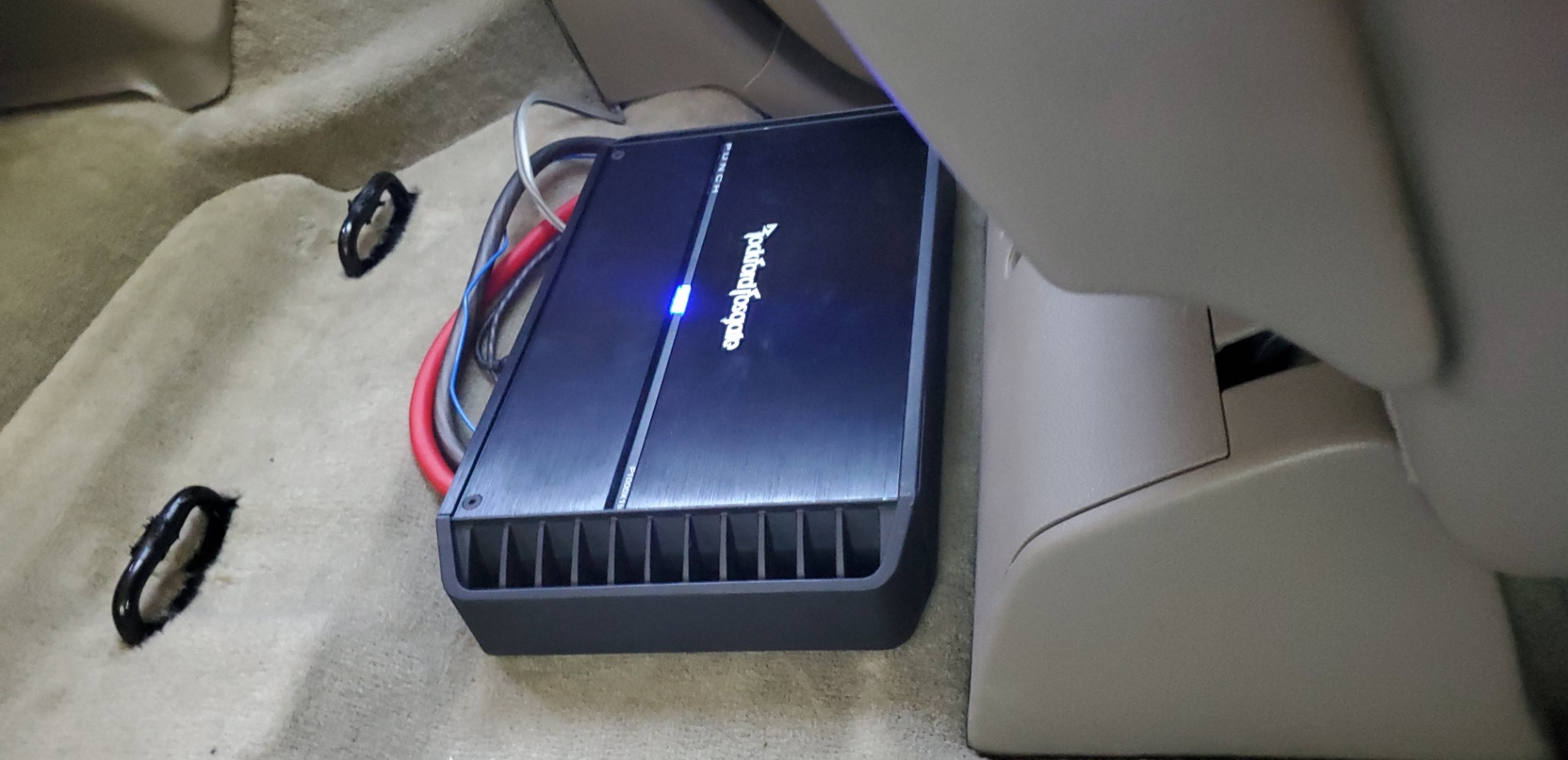

Power and Protection LEDs: The LEDs are located on top of
the amplifier. A blue Power LED illuminates when the amplifier is turned on. A
red Thermal LED illuminates if the amplifier overheats. The yellow Protect LED
illuminates if a short circuit or too low an impedance is detected at the speaker
connections. When any of the protection circuits engage, the amp automatically
shuts down until the problem is corrected.
Balanced Differential Inputs: Differential inputs eliminate
noise picked up by signal cables by measuring the voltage of both the (+) and (-)
input signal, then subtracting the voltage common to both conductors (noise),
resulting in only the clean signal entering the amplifier.
Infrasonic Filter: The infrasonic filter is fixed at 28 Hz with
a slope of 12dB/octave. This high-pass filter is designed to prevent frequencies
below the audio range from being applied to the subwoofer, or reproduced by the
amplifier. This improves your subwoofer performance and power handling, particularly
in vented enclosures.
Input Level: To accommodate the varying range of signal levels
from today's factory and aftermarket radios, the input level is adjustable from 150mV
Crossover: The amplifier's internal low-pass crossover has a 12
dB/octave slope. The crossover point is variable from 50 Hz to 250 Hz. The crossover
cannot be bypassed (it's not a full range amp).
Punch EQ: The Punch EQ bass boost circuit is continuously
variable from 0 to +18 dB, centered at 45 Hz.
Remote Punch Level: When activated, this switch allows the
use of a optional remote Punch Level Controller (PLC2).
Infrasonic Filter: A switch allows you to turn the infrasonic
filter off if you prefer.
Power Connections: The power and ground terminals are nickel-plated
captive c-clamp wire connectors and will accommodate up to 4-gauge wire. An external
140-amp fuse (not included) must be installed on the power wire. The remote turn-on
terminal will accept up to 12-gauge wire. A Phillips or flat-head screwdriver (not
supplied) is required to tighten/loosen the terminals.
Speaker Connections: The two speaker outputs are internally
wired in parallel, making it easy to connect two subwoofers. The speaker terminals
are also nickel-plated captive c-clamps and will accept up to 8-gauge wire. A
Phillips or flat-head screwdriver (not supplied) is required to tighten/loosen
Signal Input: The RCA inputs will accept either a line-level
or speaker-level input. A speaker-level signal can be connected using a Speaker
Wire to RCA adapter (sold separately). When using a speaker-level input signal,
the auto turn-on feature is active and the remote turn-on terminal becomes a 12
volt output to turn on/off up to two additional amplifiers or other components.
Line Level Output: The amplifier has a pair of RCA line level
pass-thru outputs to feed another amplifier. The pass-thru output is passive (the
same signal present at the amp's input) and the amp's crossover has no effect on
Punch Level Control (PLC): An RJ-45 jack is
provided for connecting an optional wired remote PLC2 (item number
sold separately), allowing remote control of the output level of the
amplifier. A second RJ-45 jack is the PLC output, used to daisy-chain
additional amplifiers controlled by a single remote.
Note: Previous model PEQ, Punch Bass,
and Para-Punch remotes will not work with this amp.
