HDTV Tuner: The TV has built-in over-the-air HDTV (ATSC) and
Digital Cable (QAM) tuners, so you don't need a separate set-top box to receive
and decode over-the-air HDTV/SDTV or unencrypted Digital Cable signals.

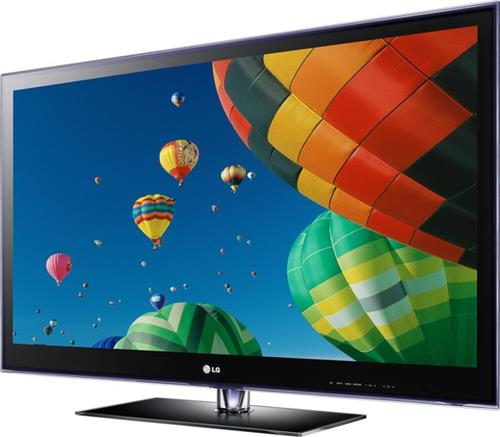

1080p Resolution: The LG Infinia 50PX950 Plasma TV has a display
resolution of 1920 x 1080. All of the television's video inputs are displayed at
1920 x 1080 (1080p).
Video Inputs: The LG Infinia Plasma HDTV features HDMI, Component, and
Composite video inputs.
- HDMI (ver.1.4 with Deep Color): The four HDMI inputs (3
rear/1 side) can be used to connect a DVD player, Blu-ray player, HDTV or
Satellite Set-top box with an HDMI output. The HDMI 1 input can also be used
to connect a device with a DVI output (a DVI-to-HDMI adapter cable is
necessary). If a DVI-equipped device is used, a separate audio cable will
also be needed from the device to the "PC/DVI Audio In" 3.5mm stereo audio
jack. No audio cables are needed for an HDMI-equipped device. The HDMI jacks
will accept 1080p (60/24Hz),1080i, 720p, and 480p video signals; as well as
support Deep Color and 3D content.
- Component Video: The two rear-panel Component Video inputs
will accept 1080p (60/24Hz), 1080i, 720p, 480p, and 480i signals.
- Composite: The TV features a rear-panel and side-panel composite
video input which will accept a 480i video signal.
Note: The television's HDMI inputs do not accept 480i video
3D-Ready: This Plasma TV can display 3D (three-dimensional)
video when received from a 3D compatible device. 3D video contains two pictures
for each video frame formatted for each eye. Therefore, special 3D glasses are
required to view 3D video. The optional LG 3D glasses (689S100,
sold separately) enable you to view 3D video and images on this 3D-ready Plasma
television from a 3D-ready source; such as a Blu-ray player, Game system, or
Satellite receiver. The wireless 3D glasses communicate seamlessly with the LG
3D-ready TV via it's built-in emitter. The result is a beautiful, full HD 1080p
three-dimensional experience that brings you closer to the action from the
comfort of your home. The LG Plasma TV offers several 3D modes to match various
||1280 x 720
||Top & Bottom, Side-by-Side, Frame
||1920 x 1080
||Top & Bottom,
Side-by-Side, Checker Board, Single Frame Sequential, Frame Packing
||1920 x 1080
||Top & Bottom,
Side-by-Side, Checker Board, MPO (Photo)
||1280 x 720
||Top & Bottom ,
||1920 x 1080
Note: The LG Plasma 3D-ready TV along with the
LG's active shutter glasses provide a wide, clear view of the action
with a 6.5-22.9' and 120° viewing range. To experience LG's 3D
technology on this Plasma TV, you will need LG's 3D Active Shutter
Glasses (AG-S100), an HDMI (ver.1.4) connected 3D source (such as a
Blu-ray player or Satellite receiver), and 3D content.
2D-to-3D: 2D images can be
transformed to 3D images. If you are watching a 2D digital broadcast
(720p/1080i), the television can transform those two-dimensional images to
virtual 3D images.
Note: Analog TV and
480i/480p 2D images cannot be viewed in 3D (three-dimensional) mode.
THX Certified 3D Display: The TV's THX Certified 3D Display lets you watch
movies that deliver the meticulous level of visual detail the director
envisioned in the studio. THX (Thomlinson Holman's Experiment) is an
audio and video certification standard established by George Lucas and
Thomlinson. A THX Certified 3D display guarantees screen quality that exceeds the
display standard specification in both hardware and software. The THX Certified
3D Display program adheres to the strictest engineering standards regarding color
accuracy, luminance, black levels, and more. To earn certification, Infinia
passed rigorous laboratory testing covering more than 400 data points. The
result is Infinia's THX Cinema and Right Room modes, which deliver an
compromised cinematic experience at home.
Dual XD Engine: The Infinia 50PX950 combines two of LG's exclusive
XD Engines to maximize picture quality for any
type of video content. LG's Dual XD Engine lets you watch sports, play video
games, and experience high-speed movie action with exceptionally rich detail and
virtually no motion blur. It also completely filters out noise, resulting in a
more pure picture. By combining XD Engine
processors, panel performance is optimized ensuring higher color accuracy
and more realistic images.
TruBlack Filter: The television's TruBlack Filter helps block glare while boosting images on
the screen to improve picture quality and contrast ratio. TruBlack Filter
technology reduces ambient light reflection, enabling superior black levels and
improving contrast for a sharper and more detailed picture, even in a bright
600Hz Max Sub Field Driving: The television's
600Hz refresh rate virtually eliminates motion
blur for an incredible viewing experience of fact action sports, movies, and
5,000,000:1 Mega Dynamic Contrast: The Plasma TV delivers a
Mega Dynamic Contrast Ratio of 5,000,000:1; which provides stunning colors and deep
black, so your picture's details don't get lost in the shadows.
Intelligent Sensor: The LG Infinia Plasma TV's
Intelligent Sensor automatically optimizes the picture to the lighting
and color conditions in the room for a more enjoyable viewing experience. Unlike
other sensors which can only sense brightness of ambient light, LG's "Intelligent Sensor" uses 4,096 sensing steps to
evaluate its surroundings. Using a sophisticated algorithm, the LG processes
picture quality elements including brightness, contrast, color, sharpness and
white balance. The result is a picture optimized for its surroundings, more
pleasing to watch and which can also save up to 50% in power consumption.
Picture Size (Aspect Ratio): This feature lets you
choose the way an analog picture with a 4:3 aspect ratio is displayed on your
TV. You can select a different aspect ratio depending on input source (analog
broadcasting, digital broadcasting, video input). You can select from:
- 4:3: Choose 4:3 when you want to view a picture
with an original 4:3 aspect ratio.
- 16:9: Adjust the picture horizontally, in a linear
proportion to fill the entire screen.
- Just Scan: Normally the edges of video signals are
cropped 1-2%. Just Scan turns off this cropping and shows the complete
- Zoom: Choose Zoom when you want to view the
picture without any alteration. However, the top and bottom portions of the
picture will be cropped.
- Cinema Zoom: Choose Cinema Zoom when you want to
enlarge the picture in correct proportion. This enlarges an image with
cinemascope aspect ratio (2.35:1) without distortion.
- Set By Program: Selects the proper picture
proportion to match the source's image (16:9 or 4:3).
(Picture Control): This feature lets you adjust the picture quality of
the original image. The LG Infinia 50PX950TV's Picture Wizard (Easy Picture
Calibration) offers self-calibration with on-screen reference points for key
picture quality elements such as black level, color, tint, sharpness and
backlight levels. This features takes the guesswork out of picture adjustments.
Picture Modes (Presets): There are factory presets for
picture settings available in the user menu. You can use these preset modes or
change each picture setting manually.
- Standard: This mode provides optimum viewing for general use.
- Vivid: Maximizes the effect of the video by strengthening the
contrast, brightness, color, and sharpness.
- Cinema: Optimizes video for watching videos.
- Sport: Emphasizes dynamic video and primary color for optimum
- Game: Provides fast response speed for fast gaming system.
- THX: Cinema (cinema quality mode to provide you the
experience of watching a movie at home); Bright Room (the specification to
optimize TV viewing in a Bright Room).
- User: This mode allows you to adjust the video quality settings
manually. You can adjust the following.
- Contrast: Increase or decrease the gradient of
the video signal. You may use Contrast when the bright part of the
picture is saturated.
- Brightness: Adjusts the base level of the
signal in the picture. You may use Brightness when the dark part of the
picture is saturated.
- Sharpness: Adjusts the level of crispness in
the edges between the light and dark areas of the picture. The lower the
level, the softer the image.
- Color: Adjusts intensity of all colors.
- Tint: Adjusts the balance between red and
- Color Temp: Set to warm to enhance hotter
colors such as red, or set to cool to enhance cooler colors such as
Picture Improvement Technology (Advanced Control):
Advanced Control allows you to adjust some of the advanced video features of the LG
Infinia Plasma TV.
- Dynamic Contrast: Adjusts the contrast to keep it at
the best level according to the brightness of the screen. The picture is
improved by making bright parts brighter and dark parts darker.
- Dynamic Color: Adjusts screen colors so that they look
livelier, richer and clearer. This feature enhances hue, saturation and
luminance so that red, blue and green will look more vivid.
- Skin Color: It detects the skin area of video and
adjusts it to express a natural skin color.
- Noise Reduction: Reduces screen noise without
compromising video quality.
- Digital Noise Reduction: Removes noise caused by
- Gamma: You can adjust the brightness of dark areas and
middle gray level areas of the picture.
- Black Level: Sets the black level of the screen to the
- Clear White: Makes the white area of screen brighter
and more white.
- Eye Care: Adjusts the brightness of the screen to
prevent the screen from being too bright. Dims extremely bright pictures.
- 24p Real Cinema: Makes video clips recorded in a film
look more natural by eliminating judder effect.
- Edge Enhancer: Shows clearer and distinctive, yet
natural edges of the video.
- x.v.YCC: This feature produces richer colors from
x.v.YCC compatible sources.
- Color Filter: This function filters specific colors in
the video. You can use the RGB filter to set color saturation and hue
- Color Temperature: Adjust the overall color the screen
by changing the white baseline.
- Color Management System: A tool that allows you to make
adjustments by using test patterns; this does not affect other colors, but
can be used to selectively adjust the 6 color areas
ISFccc Mode: This TV contains the detailed calibrations
necessary for professional certification by the Imaging Science Foundation. The
resulting ISF "day" and "night" modes will then be accessible by the user to
experience the best this LG HDTV has to offer. Sophisticated and detailed
calibrations can be made through the ISFccc mode. Detailed calibration requires
a licensed technician. Please contact your local dealer to inquire about an ISF
Image Sticking Minimization (ISM):
A frozen still picture displayed
on the screen for prolonged periods can result in a ghost image. You can use
Orbiter to help prevent image sticking. The other two functions are for removing
a ghost image.
- Normal: If image sticking is never a problem, ISM is
not necessary - set to Normal.
- Orbiter: Orbiter may help prevent ghost images.
However, it is best not to allow any fixed image to remain on the screen. To
avoid a ghost image on the screen, the image will move every 2 minutes.
- Color Wash: The color block with the screen moved a
little and the white pattern are alternately displayed. It is difficult to
see the after image on all colors. Once it has been corrected it will not be
visible in any color.
- White Wash: White Wash removes ghost images from the
screen. Use sparingly. Watch the TV normally for a while before using this
feature to see if the ghost image disappears on its own.
Invisible Speakers: The LG 50PX950 contains a unique invisible speaker
system, tuned by renowned audio expert, Mr. Mark Levinson. The TV's speakers are
embedded in strategic spots behind the front-cabinet and use minute vibrations
to turn the entire front bezel into the speaker system. The result is a clean,
polished look, and enhanced audio by increasing the "sweet-spot", giving a wider
and richer sound field.
Sound Modes: Sound Mode lets you enjoy the best sound
without any special adjustment using factory presets. Standard, Music, Cinema,
Sport, and Game are preset for optimum sound quality. There is also a User Mode
which allows you to adjust the television's Bass & Treble.
Clear Voice II: Clear Voice II
enhances and amplifies the frequency range of the human voice to help keep
dialogue audible when background noise swells.
Infinite Sound: Infinite Sound is a patented LG proprietary sound processing technology that
delivers immersive 5.1 surround sound with just two front speakers.
Auto Volume: Auto Volume makes sure that the volume level remains
consistent whether you are watching a commercial or a regular TV program.
Because each broadcasting station has its own signal conditions,
volume adjustment may be needed every time the channel is changed. This feature
allows users to enjoy stable volume levels by making automatic adjustments for
Digital Audio Output: An optical digital output is
provided to allow you to connect the unit to a surround processor. The TV's
digital audio output terminal outputs a Dolby Digital or 2-channel
down-mixed PCM signal for use with an external Dolby Digital decoder or
other external audio system with an optical audio input.
Note: There is no analog audio output.
PC-Compatible: This unit has a rear-panel 15-pin D-Sub (RGB)
input that allows you to use it as a high-resolution computer monitor. This
input consists of a stereo mini-jack and an analog RGB (D-Sub 15-pin) jack. This
jack allows you to connect a personal computer with a D-Sub 15-pin output. When
using the RGB (D-Sub 15-pin) jack, you must use the PC Audio 3.5mm input for
your audio connection. Any HDMI input can also be used with a computer. The TV
can be set to automatically adjust to the video signals received, or you can use
the setup menu to adjust the screen's Position, Size, and Phase.
Note: The LG Plasma TV provides an optimal PC
resolution of 1920 x 1080p (60Hz).
Dual USB 2.0 Ports: The television features two side-panel
USB type-A ports for playback of video, still image, and music files stored on a
connected USB mass storage class (MSC) device. This TV can playback still image
files (JPEG), video files (DivX/MPEG), and audio files (MP3/WMA/AAC). It will
recognize up to a maximum of 999 folders or 999 files in one folder.
Note: The recommend capacity is 1TB or less for a USB
external hard disc and 32GB or less for a USB memory. USB storage devices
must be formatted as FAT 32 or NTFS file system provided with the Windows
Wired or Wireless Network Connection: This TV can be
connected to a local area network (LAN) via its Ethernet (LAN) port. The
Wireless LAN for Broadband/DLNA Adaptor (AN-WF1000) allows the
TV to connect to a wireless LAN network.
Note: A 10 Base-T or 100 Base-TX LAN port is required
for connection to this TV. Use a standard LAN cable with this TV (Cat5 or
better with a RJ45 connector). The included wireless network adapter
operates at 2.4 GHz radio frequencies, that are also used by other household
DLNA Certified: This TV is a DLNA Certified digital media
product that can display and play JPEG photo content from your DLNA
Certified network device and DLNA server. The Digital Living Network Alliance
(DLNA) is a cross-industry organization of consumer electronics, computing
industry and mobile device companies. Digital Living provides consumers with
easy sharing of digital media through a wired or wireless network in the home.
Note: The DLNA certification logo makes it easy to find
products that comply with the DLNA Interoperability Guidelines. This unit
complies with DLNA Interoperability Guidelines v1.5. When a PC running DLNA
server software or other DLNA compatible device is connected to this TV,
some setting changes of software or other devices may be required.
Nero MediaHome 4 Essentials: Nero MediaHome 4 Essentials is
easy to use DLNA server software for Windows (CD-ROM software disc included). If
you are already using DLNA server software on your PC, Nero MediaHome is not
required. Nero MediaHome is not required for Windows 7 since it has a built-in
|Requirement PC System
Before Installing Nero MediaHome 4 Essentials
CPU: 1.2 GHz Intel Pentium III
or AMD Sempron 2200+ processor
OS: Windows XP (SP 2 or higher)
Windows Vista (no SP required), Windows XP Media Center Edition
2005 (SP 2 or higher), Windows Server 2003, Windows Vista 64-bit
edition (application runs in 32-bit mode)
Hard Drive Space: 200 MB hard
Memory: 256 MB RAM
Graphics Card: at least 32 MB
video memory, minimum resolution of 800 x 600 pixels, and 16-bit
Internet: Windows Internet
Explorer 6.0 or higher
Software: DirectX 9.0c revision
30 (Aug. 2006) or higher
Network Environment: 100 Mb
Ethernet, WLAN (IEE 802.11b/g/n)
Compatible Audio/Video/Photo File Formats: The LG Infinia Plasma TV
is compatible with the following video, still-image, and audio formats via USB
and from your PC via a network connection.
||MPEG 1/2/4, H.264, DivX (VOD), Motion JPEG
||Still Image Formats
||up to 1920 x 1080 (640 x 480 for
|| 64 x 64 to
15360 x 8460
|1920 x 1080
||up to 30fps
||MPEG1 (Layer 3)
|1280 x 720
||up to 60fps
||64 x 64 to
1920 x 1440
|Max Video Bit Rate
||MPEG2 (Layer 3)
|Audio Bit Rate:
||32-320 kbps (MP2/3, WMA, AAC, Dolby Digital,
||MPEG2.5 (Layer 3)
NETCAST: NetCast Entertainment Access brings select
Internet services directly to the LG Infinia Plasma TV via the television's wired
(Ethernet) or wireless (Wi-Fi) network connection. NETCAST allows you stream
and instantly access movies, TV shows and video, or get up to the minute news,
stock information, or weather updates directly to the LG TV via the television's
network connection (no computer required). NETCAST delivers the following online
content to the LG Infinia TV.
- Yahoo: Yahoo! TV Widgets give you the best of the
Internet in perfect harmony with the simplicity and reliability of your TV.
TV Widgets deliver a Cinematic internet experience by converting your
favorite web services for viewing on the TV.
- Netflix: You can instantly watch movies (quite a few
new releases) & TV episodes from Netflix streamed over the internet to your
TV. To become a Netflix member visit: www.netflix.com/LG.
- Vudu: In order to make rental/purchase transactions on
the Vudu service, a user must create an account on vudu.com. That account is
linked to a specific device, via a process called "activation". It is
possible to have multiple devices associated with a single Vudu account. Vudu only available in the US.
- YouTube: YouTube is a video sharing website where users
can upload, view, and share video clips.
- Picasa: Picasa is a photo organizing or sharing website
where users can upload, view, and share photos.
- Flickr: Flickr provides a television-viewing experience
while watching slideshows of family and friends' photos.
Note: A minimum connection speed of 1.5 Mbps is
required. For the best playback condition, a connection speed of 4.0 Mbps is
required. NETCAST online content may change at anytime without notice
(please check LG.com for the latest NETCAST online content services).
Software Update: You can update the TV with the latest
software to enhance the product operation and/or add new features via the TV's
TruSlim Frame with Slim Profile: The display is a seamless, edge-to-edge panel
of glass over an ultra-slim bezel. At less than 1" thick, the new
TruSlim Frame trims away distraction without
compromising screen size. The LG Infinia Plasma TV only measures a mere 2.25" in
On-Screen Simple Manual: You can easily and effectively
access the TV's information by viewing a simple on-screen manual on the TV.
During the Simple Manual operation, audio will be muted.
AV Modes: With AV Mode, you can easily select from one of
three picture modes. You can choose from "THX Cinema", "Sports," or "Games"
to enjoy an optimized picture and sound experience.
Favorite Channels: Favorite Channels are a convenient
feature that lets you quickly select channels of your choice without waiting for
the TV to search through all the in-between channels. You can check which
channels are stored in the memory by displaying the favorite channel list.
Input Label List: The LG Infinia HDTV will only display inputs which are
connected to the television. You can select from preset names to label each
Analog and Digital Caption Modes: Analog and Digital Captions are provided to help the
hearing impaired watch TV. Select a caption mode for displaying captioning
information if provided on a program. Analog caption displays information at any
position on the screen and is usually the program's dialog. Caption/Text, if
provided by the broadcaster, would be available for both digital and analog
channels on the Antenna/Cable. This TV is programmed to memorize the
caption/text mode which was last set when you turned the power off.
Games: The LG Infinia Plasma TV features preinstalled video games for
your whole family to enjoy. You can choose from Jump, Hole In One, Whack A Mole,
Sodoku, JigSaw, Cooking Burger, Balloon Hunter, Saving Crystal, Invader, and
Picture/Sound Test: This function is a customer support
function that can execute picture and sound tests.
Parental Control: Parental Control can be used to block
specific channels, ratings, and other viewing sources (external input block).
The Parental Control Function (V-Chip) is used to block program viewing based on
the ratings sent by the broadcasting station. The default setting is to allow
all programs to be viewed. Viewing can be blocked by choosing the type of the
program and the categories. It is also possible to block all program viewing for
a time period. The Parental Control function is protected by a 4-digit user
Key Lock: This feature can be used to prevent unauthorized
viewing by locking out the front panel controls, so that it can only be used
with the remote control.
Calendar Schedule: The Calendar Schedule feature provides a view of a
monthly calendar, so you can keep track of the date better. It also allows you
to enter special events for specific members of your family, such as your son or
daughter's birthday, or your mom and dad's wedding anniversary; so you won't
forget. Notes can be placed for a particular month or calendar year.
World Time: This function allows you to see the date and time from all
around the world.
Timers: The Plasma TV employs On, Off, and Sleep Timer functions.
- Auto On/Off: You can program the television to turn On and turn
Off at a certain time. You can set the On and Off timer to Daily, Mon-Fri,
Mon-Sat, Sat-Sun, or Once. You can also set the input, channel, and volume
level for the On Timer. If you do not press any button within 2 hours after
the TV turns on with the On Timer, the TV will automatically revert back to
- Sleep Timer: The Sleep Timer turns the TV off at the
preset time (10, 20, 30, 60, 90, 120, 180, or 240 minutes).
Wireless External Equipment Connection: LG TVs with a
proprietary Wireless Control port support the LG Wireless Media Box (AN-WL100W,
sold separately). When you connect the wireless ready dongle (included with the
media box) to the TV, external devices can be connected to the LG Wireless Media
Box and video and audio will be sent to the TV wirelessly.
IR Remote Control: The supplied IR remote control is
designed to only operate the LG Infinia Plasma television and SIMPLINK connected
components. The remote's buttons are backlit and will light up with a press of a
Magic Motion Remote: The included RF remote control uses a 2.4GHz
frequency range (2.4-2.4835 GHz; 32-channels) to control the TV up to a distance
of 30'. The RF remote operates the TV as if it were a wireless mouse. It allows
you to point the remote at the TV and move through menu options. The RF remote
contains the following buttons - Power, Menu/Enter, Volume up/down, Channel
up/down, and Mute.
SIMPLINK: SIMPLINK allows you to control and play other
LG AV devices connected with HDMI cable without additional cables and settings,
from the television's remote control. SIMPLINK provides the following remote
- Direct Play:
After connecting AV
devices to the TV, you can directly control the devices and play media
without additional settings.
- Select AV device:
Enables you to
select one of the AV devices connected to the TV.
Control playback of
connected Blu-ray and DVD players.
- Power off all devices:
When you power off
the TV, all connected devices are turned off.
- Switch audio-out:
Offers an easy way
to switch audio-out.
- Sync Power on:
When the equipment
with SIMPLINK function connected HDMI terminal starts to play, The TV will
automatically turn on.
Note: To operate SIMPLINK, an HDMI cable over
Version 1.3 with *CEC function should be used. This TV may work with devices
with HDMI-CEC support, but only devices with the "SIMPLINK" logo are fully
RS-232C (Service): The RS-232C port on this TV is used for
Pedestal Stand: The TV is shipped with a pedestal stand
unattached; assembly is required using the supplied hardware. The tabletop stand
allows the television to swivel 20° left or right. The television weighs 76.7
lbs with the stand.
Wall Mounting: The pedestal stand can be removed to
wall-mount the television with and optional bracket (sold separately). The TV
has four threaded inserts on the back for use with an optional wall-mount
bracket. The spacing of the mounting holes is 400mm horizontal x 400mm vertical.
The threaded inserts require 6mm machine screws (not supplied). The television
weighs 66.5 lbs without the stand.
Note: The television's straight 3-prong AC plug sits 2.125" from
the wall outlet.
