Large Recessed Component Box

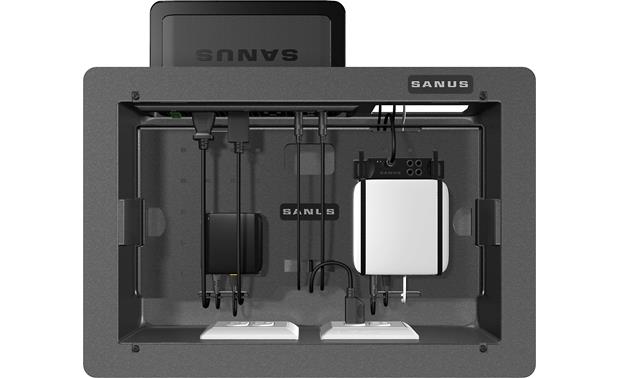

Sanus SA809 - Houses smaller A/V components and holds Sanus SA206 surge protector (router, surge protector and streaming device not included)

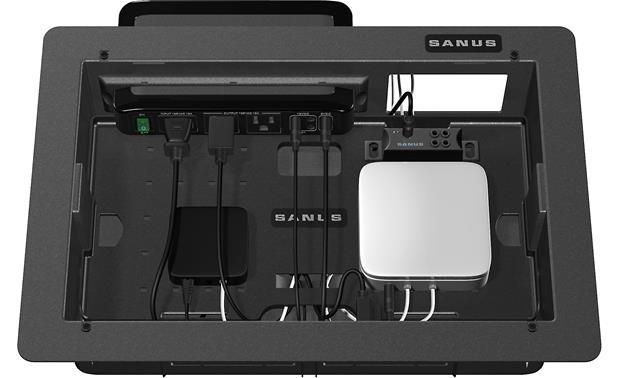

Sanus SA809 - Houses smaller A/V components and holds Sanus SA206 surge protector (router, surge protector, and streaming device not included)
Sanus SA809 - Mount components to panel (A/V gear not included), before securing them inside housing
The Sanus SA809 hides your smaller A/V gear in your wall behind a mounted TV and holds the Sanus SA206 EcoSystem Mini surge protector (sold separately).
Hide smaller A/V gear in-wall, behind your mounted TV
Your TV setup might include small A/V components, like network streaming devices and IR repeaters. But where do you put them if you want to mount that TV on your wall? The Sanus SA808 is a small cabinet that can be installed inside your drywall and hides your components behind your mounted TV, keeping the system clean and neat. It fits behind the wall plate of most large TV wall-mounts.
The SA809 can hold up to 30 pounds, and includes elastic hook-and-loop straps to keep them secure. The straps also help keep your cables neat and organized. There are openings on the bottom for your electrical or cable outlets, and a supplied mounting bracket will hold a Sanus SA206 EcoSystem™ Mini surge protector (sold separately).
Note: For AC and cable outlets, installation by a licensed electrician is recommended.
- space-saving in-wall design fits behind a wall-mounted TV
- holds and secures small A/V components
- mounting bracket included for Sanus SA206 EcoSystem™ Mini surge protector (sold separately)
- "knock-out" openings for 3 AC outlets (sold separately)
- integrated cable management
- 16-5/8"W x 7-7/16"H x 4-1/16"D
- holds up to 30 lbs.
- weight: 3.4 lbs.
- warranty: 5 years
- Our 60-day money-back guarantee
What's in the Box:
- Recessed component box
- Component panel
- ECO-mini bracket
- 2 Straps
- 4 Screws. Cutout Template
- Instruction Manual
- Registration Card
Sanus SA809 Reviews
Average Customer Review(s):
Thanks for submitting your review
Recessed Component Box: The Sanus SA809 large recessed component box was specially designed for use with the Sanus SA206 EcoSystem Mini (sold separately) for an additional power source. Its space-saving design keeps components and cables neat, making it perfect for use with wall-mounted TVs. Includes three AC outlet spaces to allow power to be integrated and cables to be concealed as well as an elastic strap for holding and organizing up to six small components. A removable component panel allows component organizing before and after installation.
ECO-Mini Bracket Compatible: The SA809 recessed component box features a "knock-out" opening and comes with a mounting to bracket to install the Sanus ECO-Mini bracket (051SA206, sold separately).
AC Outlet Box Compatible: The SA809 also includes three other "knock-out" openings which allow the installation of up to three UL listed 120 VAC electrical outlet boxes (sold separately).
Security Straps: The two included elastic straps are used to attach and secure components inside the housing.
Applications: The SA809 can be installed behind most large wall plates of wall-mounts or underneath or above most small wall plates. To access the SA809 after installation, disconnect all cables and wires from the TV, then either slide or remove the arm or TV mount from the wall plate.
Mounting: The recessed component box must be mounted between studs that are at least 16" apart; drywall covering the wall must not exceed 5/8". After installation there will not be enough space between the SA809 and the studs for electrical wires/cables, plumbing, ductwork, or insulation.
- Outer Dimensions: 16.625" (w) x 11.4375" (h) x 0.125" (d)
- Interior Dimensions: 13.6875" (w) x 8.75" (h) x 3.875" (d)
- Cutout Dimensions: 14.125" (w) x 9.75" (h) x 4.0" (d) *A cutout template is supplied.
- Overall Dimensions: 16.625" (w) x 11.4375" (h) x 4.125" (d)
- Tape Measure
- Drywall Saw
- Phillips-head screwdriver
Our Product Research Team
At Crutchfield, you'll get detailed, accurate information that's hard to find elsewhere. That's because we have our own in-house Product Research team. They verify what’s in the box, check the owner's manual, and record dimensions, features and specs. We stay on top of new products and technologies to help people make informed choices.
Why did you buy this?
Seems to work well. [ Timothy Jun 07, 2018 ]
Rocks the house [ mark Feb 15, 2018 ]
To make a clean install. [ Steamfitters Lo Jun 19, 2017 ]
Need to save space to insure TV is as close to wall as possible [ Robert May 02, 2017 ]
recommended [ H Nov 20, 2016 ]
6 questions already asked
Not sure what a power brick i s. I have my internet wifi box from centurytel a small cordless phone base and phone in mine mounted high in my hallway.. I like the boxes and encourage use of then in new or old construction. Fishing the wire may stink but the boxes are nice. [ david Dec 06, 2017 ]
You may be able to get away with that if you don't have too many wires coming into the wall box . [ RAFI Dec 04, 2017 ]
Yes. I put a Sony power brick in it. [ Andrea Dec 03, 2017 ]
The Sanus SA809 can be installed behind most large TV wall-mount plates; including those recommended for the Sony 75" XBR850E. For more details on a specific wall mount to use, please feel free to contact an Advisor directly by phone (888.955.6000)--they'll be happy to go over the available options with you. Thanks! My bio: https://www.crutchfield.com/advisors/larry [ Larry Aug 25, 2017 ] Staff
plastic [ david Dec 06, 2017 ]
David, this box is made of very sturdy plastic. [ George Apr 28, 2017 ]
plastic, be sure to cut the box with enough room , JUST so it fits into the hole... It has wings that deploy as you tighten them to hold it in place. dont screw up or youll end up drilling and placing wall anchors as I did.. [ david Apr 28, 2017 ]
It is plastic. [ Michael Apr 28, 2017 ]
It's made of plastic. [ James Apr 28, 2017 ]
I installed vertical because of studs, so make sure you at least have room for that width. [ Robert Apr 29, 2016 ]
I believe so , the remodel style clamp type brackets will hold it and as in my case by placing the flush end against a stud and using screws I believe it will be just fine [ BRENT Apr 22, 2016 ]
Your best bet is going to be to give us a call. You can reach our Customer Support team at 1-800-955-9091. They'll be able to look up your order and help you find any information you may need from it. [ Jeff Aug 25, 2015 ] Staff
it does not account for those items. I had the same problem but my wall was a shear wall. So I had to cut away the extra plywood to make room. [ CHARLES Nov 03, 2014 ]
