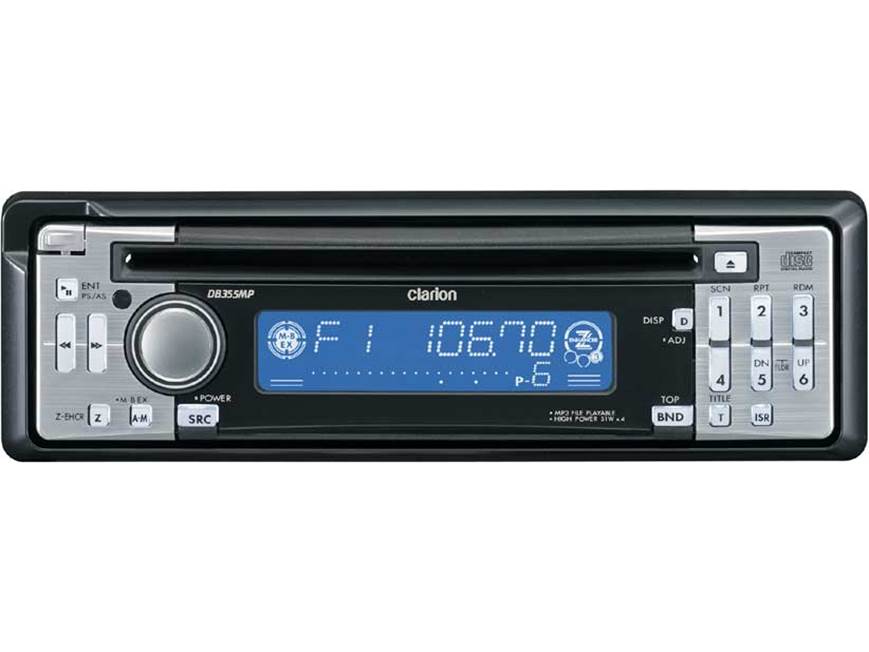

About the Clarion DB355MP
Clarion's DB355MP CD receiver is all about value. Not only does it offer plenty of speaker-driving power and convenient sound shaping controls — it adds MP3 playback to your entertainment array. That means you can burn a CD-R or CD-RW with up to 10 hours' worth of your favorite music files and take it wherever you go. It's like having a virtual jukebox in your dash!
And the DB355MP doesn't stop there. It offers Z-Enhancer's three preset sound curves for easy, one-touch tone adjustments, plus Magna Bass EX to help boost the low frequencies. Clarion's on-board amplifier (17 watts RMS x 4) powers the show, ensuring clean sound at all volume levels.
If you're building a system, you'll appreciate the set of preamp outputs. They make it easy to connect an external amplifier or powered sub for even more bass reinforcement. The faceplate detaches for an extra measure of security, and the wireless remote allows you to control the receiver from anywhere in the car.
Product highlights:
- CD receiver with built-in amplifier (17 watts RMS/51 peak x 4 channels)
- plays CDs, CD-Rs, and CD-RWs (including discs loaded with MP3 files)
- Z-Enhancer — offers three preset tone settings
- detachable face with high-contrast LCD display
- one set of preamp outputs
- Magna Bass EX selectable bass boost
- Magi-Tune tuner
- 18 FM/6 AM presets
- rotary encoder
- wireless remote
- clock
- CD frequency response 10-20,000 Hz
- CD signal-to-noise ratio 100 dB
- FM sensitivity 11 dBf
- warranty: 1 year
- MFR # DB355MP
What's in the box:
Clarion DB355MP owner's manual
- CD/MP3 receiver
- Wiring harness (with in-line 15A fuse on constant power wire)
- Sleeve
- Trim ring
- Face
- Hard plastic face case
- Wireless remote control (RCB-172)
- CR2025 Lithium battery
- 2 Hook plates (radio removal tools)
- Silica Gel desiccant packet
- Owner's Manual
- Installation/Wire Connection Guide
- Warranty sheet
More details on the Clarion DB355MP
Features & specs
| Expandability | ||
|---|---|---|
| AUX Input | No | |
| Audio/video Input | --- | |
| USB Input | --- | |
| USB Port Power | --- | |
| Backup Camera Input | No | |
| Second Camera Input | No | |
| CarPlay | No | |
| Android Auto | No | |
| Siri Control | No | |
| Alexa Voice Control | ||
| Android Control | No | |
| Memory Card Slot | No | |
| Bluetooth Compatible | --- | |
| Satellite Radio Ready | No | |
| HD Radio | --- | |
| Navigation | --- | |
| iPod Compatibility | ||
| Full size | --- | |
| Nano | --- | |
| Touch | --- | |
| iPhone | --- | |
| General | ||
| RMS Power (CTA-2006) | N/A | |
| RMS Power (Manufacturer) | --- | |
| Peak Output | 51 watts | |
| RMS Power Bandwidth | 20-20kHz | |
| Preamp Outputs | 2-channel | |
| Sub Preamp Outputs | No | |
| Switchable Rear Preamp Outputs | No | |
| Video Screen | No | |
| Navigation App Compatible (iOS) | ||
| Navigation App Compatible (Android) | ||
| Preamp Voltage | 1.8 volts | |
| Screen Size | --- | |
| Screen Type | --- | |
| Display Color | White on blue | |
| Key Button Color | Light blue | |
| EQ Bands | None | |
| Wireless Remote | Yes | |
| Steering Wheel Control Compatible | --- | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Tuner | ||
| FM Sensitivity | 11 dBf | |
| European Tuning | No | |
| Seek/Scan | Seek | |
| Radio Data System | No | |
| File Playback | ||
| Music File Playback | ||
| High-res Playback | ||
Product Research
MP3 Playback: The unit can play MP3 files recorded onto CD-R and CD-RW discs using ISO9660 Level 1 or 2, Joliet, or Romeo formats. The player can recognize up to 8 hierarchical levels, up to 254 total files, and up to 128 total folders. Bit rates for MP3 are 8-320 kbps, plus VBR (Variable Bit Rates).
Z-Enhancer: The Z-Enhancer function features three types of sound tone effects stored in memory. You may select Z-Enhancer 1 (bass emphasized), Z-Enhancer 2 (treble emphasized) or Z-Enhancer 3 (bass and treble emphasized). When the Z-Enhancer feature is on, the bass and treble controls cannot be adjusted.
Magna Bass EX (Extend): The Magna Bass EX feature provides an extra boost of bass when activated. Unlike conventional loudness features which boost the low frequency range at around 100Hz, the Magna Bass EX boosts the low- and center-range frequencies of about 50Hz. By focusing on the lower frequencies, the added bass impact won't distort or muffle the high frequencies.
Bass/Treble: The bass control range is +/-14dB at 100Hz. The treble control range is +/-14dB at 10kHz.
Screen Saver: Thirty seconds after a button is pressed, the screen saver will activate, displaying a series of moving dashes. It can be deactivated at any time.
Top Function: The Top function resets the CD player to the first track of the disc.
Auto Reload: When a CD is ejected and left sticking out of the CD slot for 15 seconds, the unit automatically reloads the CD to protect if from damage.
Last Position Memory: If you turn off the unit while a disc is playing, it will resume playback at the stopping point when it is turned on again.
Instant Station Recall (ISR): You can store one radio station in Instant Station Recall (ISR) memory and recall it from any mode (except Power Off). Once the ISR station has been recalled, you cannot tune to another station without first disengaging the ISR function. You can, however, switch to another source.
Wireless Remote: The DB355 is equipped with the RCB-172 infrared wireless remote control. Dimensions: L=4.452", W=1.723", D=0.491".
