About the AudioSource Premium Series AS-602E-4

Product highlights:
- pack of four 2-way in-ceiling speakers
- 6-1/2" long-throw polypropylene woofer with butyl rubber surround
- 3/4" aimable soft dome tweeter
- attaches to ceiling using load-balancing toggle mounting system for extra security
- frequency response: 45-20,000 Hz (±3dB)
- handles up to 40 watts RMS
- sensitivity: 91dB
- impedance: 8 ohms
- paintable grilles included
- cutout diameter: 7-1/4"
- frame diameter: 8-1/2"
- mounting depth: 2-3/4"
- warranty: 2 years
- MFR # AS-602E-4Bulk
- Item # 021AS602E4
What's in the box:
AudioSource Premium Series AS-602E-4 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 4 In-ceiling loudspeakers
- 4 Grilles

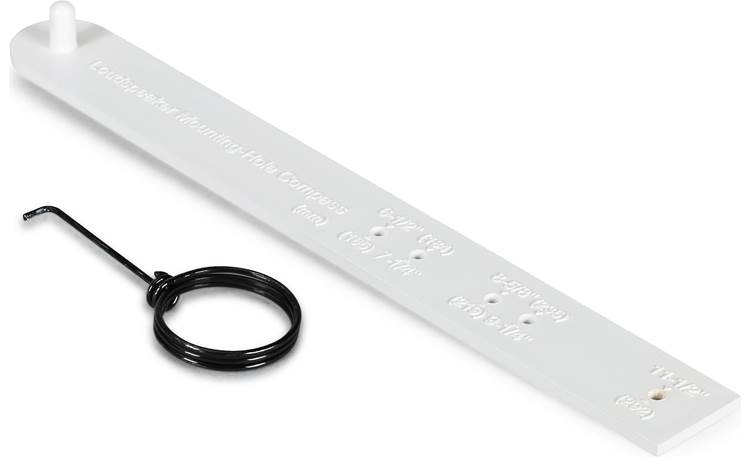

- Mounting-hole compass
- Grille removal tool
- Installation Guide
- 4 Cutout Templates
More details on the AudioSource Premium Series AS-602E-4

Features & specs
Features | ||
---|---|---|
Quantity in Package | ||
Tweeter | Soft-Dome | |
Aimable Tweeter | Yes | |
Woofer Composition | Polypropylene | |
Woofer Surround | Rubber | |
Connector Type | Spring post | |
Bi-Amp Inputs | No | |
Built-in Back-box | No | |
Moisture Resistance | ||
Indoor (Moisture-resistant) | No | |
Outdoor (Partial Exposure) | No | |
Outdoor (Full Exposure) | No | |
Specs | ||
Tweeter Size | 0.75 | |
Midrange Size | N/A | |
Speaker Shape | Round | |
Woofer Size | 6.5 | |
Cutout Width | 7.25 | |
Cutout Height | 7.25 | |
Mounting Depth | 2.75 | |
Power Range (Watts) | up to 40 | |
Sensitivity | 91 dB | |
Impedance (Ohms) | 8 | |
Frequency Response | 45-20kHz | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years |
Product Research
Features

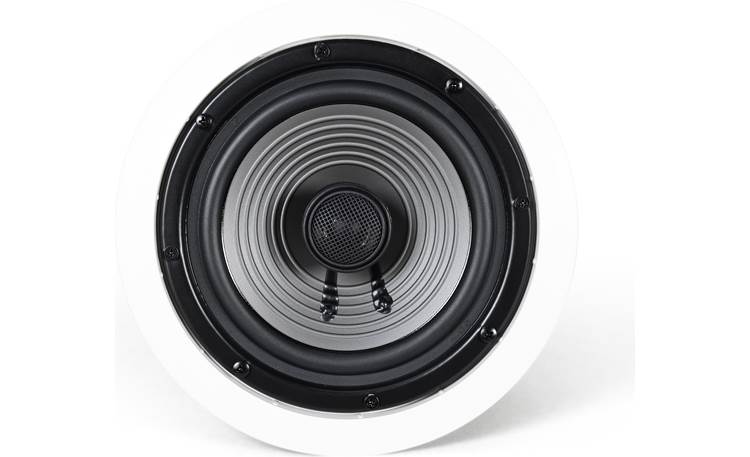

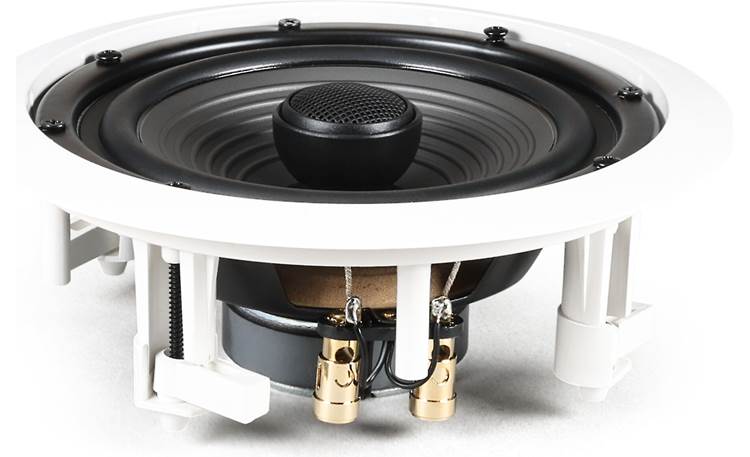

2-Way Driver Design: The AudioSource AS-602E in-wall loudspeaker employs a 2-way driver design featuring a 0.75" soft-dome tweeter and 6.5" polypropylene woofer. The soft-dome tweeter is aimable and provides excellent high frequency dispersion throughout your entire listening environment. The polypropylene woofer uses a unique ribbed long-throw cone design with butyl rubber surround for long life and superior damping.

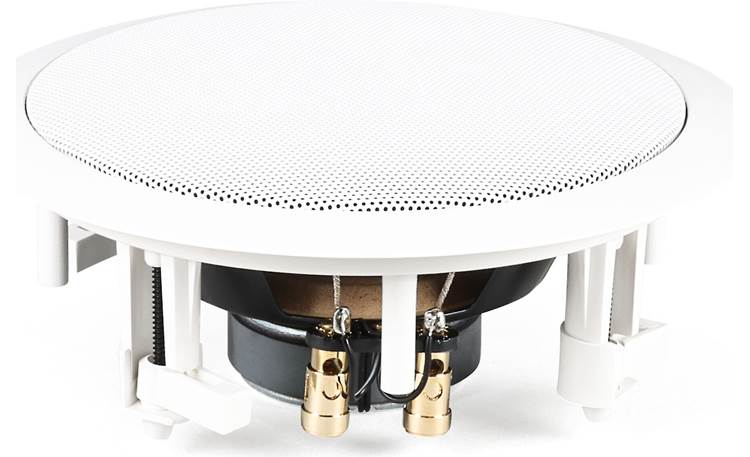

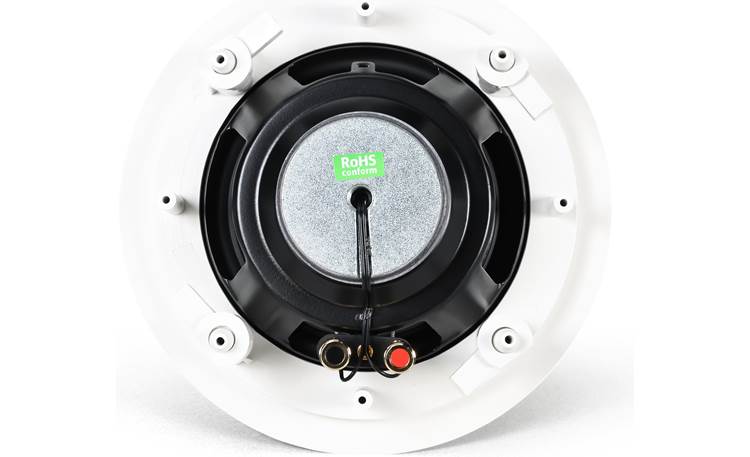

Spring Post Terminals: The AudioSource AS-602E in-wall speaker is outfitted with a set of spring-post terminals that will accept bare wire (up to 12AWG), pin-connectors, and banana plugs (single only).

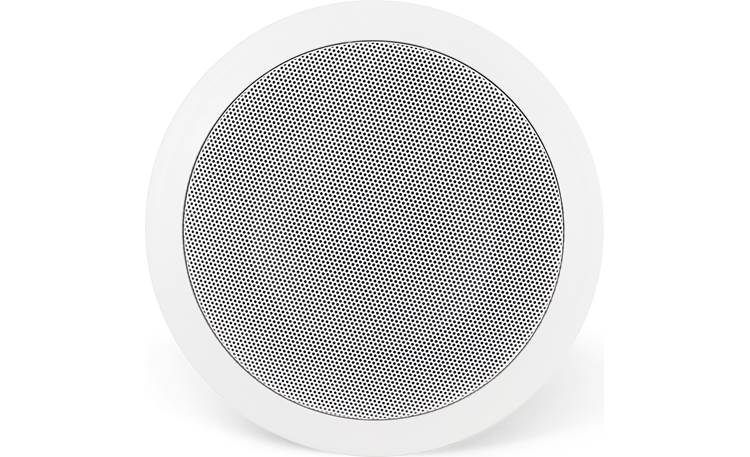

Grille: The AudioSource AS-602E comes with perforated metal grille that protrudes approximately 0.5" from the mounting surface of the ceiling.
Mounting Options: The AudioSource AS-602E speaker requires a circular cutout in the ceiling that measures 7.25" (diameter) x 2.75" (depth). Four "dog-leg" mounting clamps secure the speaker in the ceiling. Make sure to leave approximately 0.75" of clearance around the interior of the cutout to accommodate the rotating "dog-leg" clamps. The AudioSource AS-602E speaker accommodates 0.75" to 1.75" drywall ceiling thickness.
