Product highlights:
- stereo-input design plays both the left and right channels of a stereo mix
- dual 1" polymer soft dome tweeters
- 6-1/2" polypropylene woofer
- frequency response: 45-20,000 Hz (±3dB)
- recommended amplifier power: up to 125 watts RMS
- sensitivity: 90 dB
- nominal impedance: 8 ohms
- paintable grille for discreet installation
- cutout diameter: 7-1/4"
- overall diameter: 8-7/16"
- mounting depth: 3-5/16"
- warranty: limited lifetime
- Our 60-day money-back guarantee
- MFR # AS61C
What's in the box:
AudioSource Performance Series AS61C owner's manual
- In-ceiling speaker
- Grille
- Mounting-Hole Compass
- Cutout Template
- Installation Guide
Reviews
Customer reviews
Loading reviews...
AudioSource Performance Series AS61C reviews
Average review:
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the AudioSource Performance Series AS61C
Features & specs
| Features | ||
|---|---|---|
| Quantity in Package | Single | |
| Tweeter | Soft-Dome | |
| Aimable Tweeter | No | |
| Woofer Composition | Polypropylene | |
| Woofer Surround | Rubber | |
| Connector Type | Spring post | |
| Bi-Amp Inputs | No | |
| Built-in Back-box | No | |
| Moisture Resistance | ||
| Indoor (Moisture-resistant) | No | |
| Outdoor (Partial Exposure) | No | |
| Outdoor (Full Exposure) | No | |
| Specs | ||
| Tweeter Size | 1 | |
| Midrange Size | N/A | |
| Speaker Shape | Round | |
| Woofer Size | 6.5 | |
| Cutout Width | 7.25 | |
| Cutout Height | 7.25 | |
| Mounting Depth | 3.3125 | |
| Power Range (Watts) | 5-125 | |
| Sensitivity | 91 dB | |
| Impedance (Ohms) | 8 | |
| Frequency Response | 45-20kHz | |
| Parts Warranty | Limited Lifetime | |
| Labor Warranty | Limited Lifetime | |
Product Research
Features
Stereo Driver Design: The AudioSource AS61C in-ceiling loudspeaker employs a stereo driver design with two 1" soft-dome polymer tweeters and one 6.5" polypropylene cone woofer for room-filling stereo sound.
Stereo Input: The AS61C in-ceiling loudspeaker is outfitted with two sets of spring-post terminals to connect the left and right channels of your stereo amplifier. The spring-post terminals will accommodate bare wire (up to 12AWG), pin-connectors, and banana plugs (single only).
- For wire lengths of less than 50', use at least 16-gauge speaker wire.
- For wire lengths between 50' and 100', use at least 14-gauge speaker wire.
- For wire lengths of greater than 100', use at least 12-gauge speaker wire.
Note: Your speaker wire must comply with all local building and safety codes for use in in-ceiling applications.
Applications: Because of its stereo design, the AudioSource AS61C is perfect for distributed audio applications where you want stereo sound, but only have room or the budget for a single loudspeaker.

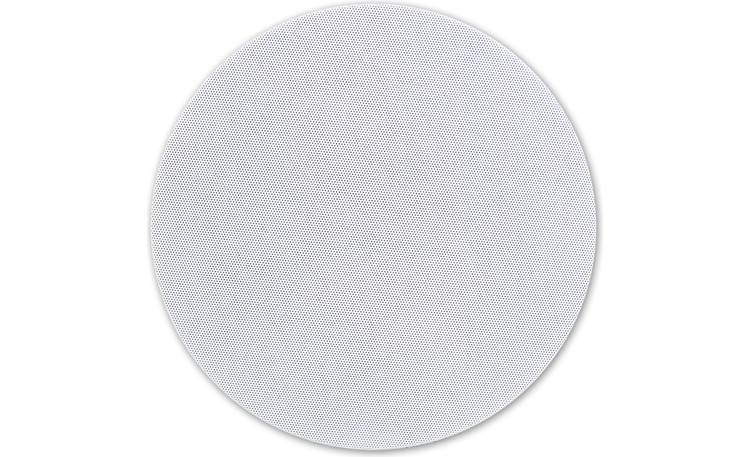

Low-Profile Magnetic Grille: The AS61C in-ceiling speaker comes with a low-profile magnetic grille that sits only 0.25" from the ceiling. The grille is paintable.
In-Ceiling Installation: The AudioSource AS61C is designed for standard drywall ceilings and drop ceilings with at least 3/8" thick wall material. Standard "dog-leg" locking mechanisms are utilized to secure the speaker in the ceiling.
- The AS61C requires a circular (round) cutout that measures 7.25" (diameter) x 3.3125" (depth) cutout. Its outer frame measures 8.4375" (diameter) x 0.25" (depth).
- Make sure to leave at least 0.75" of open space (without obstruction) around the cutout above the ceiling, so the speaker's locking mechanisms will have room to engage fully.
- Be sure that there are no studs, lengths of conduit, pipes, heating ducts or air returns in the ceiling cavity that will interfere with the speaker.
