About the Blaupunkt TSw1200

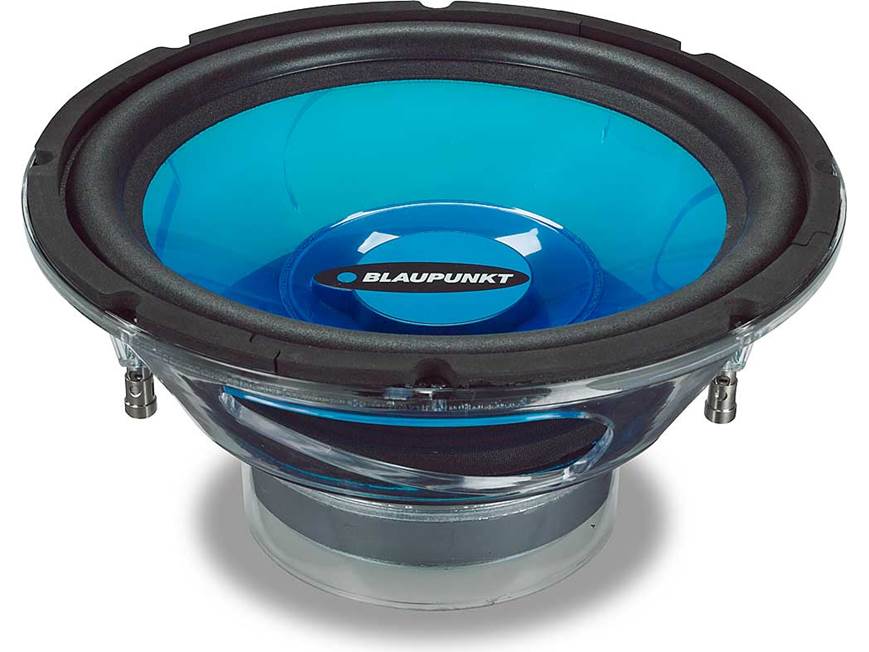

Talk about low end clarity! Blaupunkt 's Transparent Series TSw1200 12" subwoofer houses a translucent polymer cone in a transparent polycarbonate basket for accurate performance and exceptional style. Even the included grilles are clear, so you can backlight these babies to create a show-stopping effect.
A big 40-ounce magnet, 2" voice coil, and heavy-duty black foam surround spell big power handling — up to 200 watts RMS! Spring-loaded binding posts make a secure connection with your speaker wire. This sub will work in a variety of enclosures, and it's suitable for free air use.
Priced per speaker
Product highlights:
- 12" 4-ohm subwoofer
- translucent blue polymer cone with foam surround
- transparent polycarbonate basket
- transparent grille included
- frequency response 20-200 Hz
- power range 50-200 watts RMS (600 watts peak power)
- sensitivity: 93 dB
- top-mount depth: 5-7/16"
- sealed box volume: 0.5 - 2.0 cubic feet
- ported box volume: 0.5 - 2.0 cubic feet
- Recommended Q-Logic Box Type: 1, 2, 3, 4
- warranty: 1 year
- MFR # TSW1200
What's in the box:
Blaupunkt TSw1200 owner's manual
- One 12" woofer
- 1 Transparent plastic grille
- 8 Self-tapping screws
- 8 Speed clips
- Manual
Reviews (11)
Customer reviews for Blaupunkt TSw1200
Loading reviews...
Average review:
4.5 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Blaupunkt TSw1200
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 12 -inch | |
| Impedance (Ohms) | --- | |
| Cone Material | Transparent polymer | |
| Surround Material | Foam | |
| Port diameter (inches) | N/A | |
| Port length (inches) | N/A | |
| Free-Air | Yes | |
| Dual Voice Coil | No | |
| Sensitivity |
93 dB at 2.83 volts 90 dB at 1 watt | |
| Frequency Response | 20 - 200 Hz | |
| Max RMS Power Handling | 200 | |
| Peak Power Handling (Watts) | 600 | |
| Top Mount Depth (inches) | 5 7/16 | |
| Bottom Mount Depth (inches) | 6 | |
| Cutout Diameter or Length (inches) | 11 1/16 | |
| Vas (liters) | 118.3 | |
| Fs (Hz) | 25 | |
| Qts | 0.35 | |
| Xmax (millimeters) | 5.6 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | N/A | |
| Minimum Sealed Box Volume (cubic feet) | 0.5 | |
| Maximum Sealed Box Volume (cubic feet) | 2 | |
| Ideal Ported Box Volume (cubic feet) | N/A | |
| Minimum Ported Box Volume (cubic feet) | 0.5 | |
| Maximum Ported Box Volume (cubic feet) | 2 | |
Product Research
Features
Enclosure Compatibility
Transparent Polymer Cone (TPC): The injected transparent polymer cone is lightweight and mechanically rigid, allowing the speaker to play louder with less power. Acoustically inert, the cone does not "color" the sound of the music, giving you accurate musical reproduction. The woofer uses a foam surround.
Transparent Polycarbonate Basket: The transparent polycarbonate basket is acoustically inert, so that sonic output is free of unwanted resonances. Since the magnet is encapsulated by the polycarbonate basket, the speaker is inherently water-resistant, allowing you to use it in outdoor and marine applications.
Extended Pole Piece: The pole piece has been extended to provide a more linear magnetic field for woofer operation. This lowers distortion and provides the woofer with better low frequency response.
Recommended Sealed Box Volume: Blaupunkt recommends using this woofer in a sealed enclosure with one of the following internal volumes: 0.5, 0.75, 1.0, 1.5, or 2.0 cu/ft.
Recommended Ported Box Volume: Blaupunkt recommends using this woofer in a ported enclosure with one of the following internal volumes:
- 0.5 cu/ft: one 2" diameter x 4" long port
- 0.75 cu/ft: one 2" diameter x 4" long port
- 1.0 cu/ft: one 2" diameter x 3.7" long port
- 1.5 cu/ft: one 2" diameter x 3.6" long port
- 2.0 cu/ft: one 2" diameter x 3" long port
Recommended Single-Vented Bandpass Box Volume: The bandpass box sizes recommended by Blaupunkt include the following:
- 1.0 cu/ft: has a vented chamber volume of 0.45 cu/ft and a sealed chamber volume of 0.55 cu/ft. The vented chamber can have one 3" diameter x 3.7" long port, or one 4" diameter x 7.8" long port.
- 1.25 cu/ft: has a vented chamber volume of 0.625 cu/ft and a sealed chamber volume of 0.625 cu/ft. The vented chamber can have one 3" diameter x 4.1" long port, or one 4" diameter x 8.7" long port.
- 1.5 cu/ft: has a vented chamber volume of 0.75 cu/ft and a sealed chamber volume of 0.75 cu/ft. The vented chamber can have one 3" diameter x 3.9" long port, or one 4" diameter x 8.3" long port.
- 2.0 cu/ft: has a vented chamber volume of 1.0 cu/ft and a sealed chamber volume of 1.0 cu/ft. The vented chamber can have one 3" diameter x 3.8" long port, or one 4" diameter x 8.1" long port.
- 2.5 cu/ft: has a vented chamber volume of 1.4 cu/ft and a sealed chamber volume of 1.1 cu/ft. The vented chamber can have one 3" diameter x 4.5" long port, or one 4" diameter x 9.3" long port.
Loading accessories...
Customer Q&A
Loading articles...
I have owned a pair of these for over a year. They are durable, powerful, and rich sounding. I'm considering a purchase of two more for an isobaric enclosure.
dragonpitt from Baton Rouge, LA
